Product Information
The FUT092 4-Zone RGB+CCT Remote Controller is your essential tool for managing sophisticated, multi-faceted LED lighting systems. Designed for intuitive use, this handheld remote controller for led light combines a tactile color wheel and responsive buttons, providing precise, real-time adjustments for both vibrant colors and tunable white light. Manage up to four independent lighting zones from a single device, making it perfect for creating layered, dynamic atmospheres in any residential or commercial space. Its reliable 2.4GHz RF technology ensures a stable connection up to 30 meters, giving you the freedom to control your lighting from anywhere in the room.
Key Features

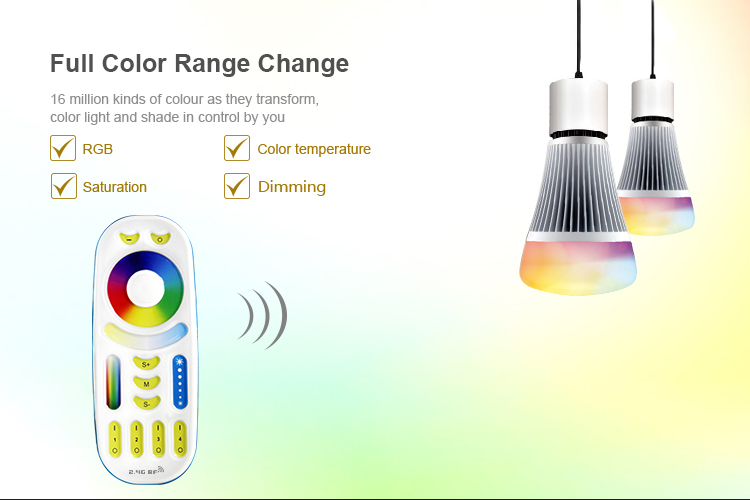

Full Spectrum RGB+CCT Control
Seamlessly adjust between millions of RGB colors and a full range of white temperatures from warm to cool.

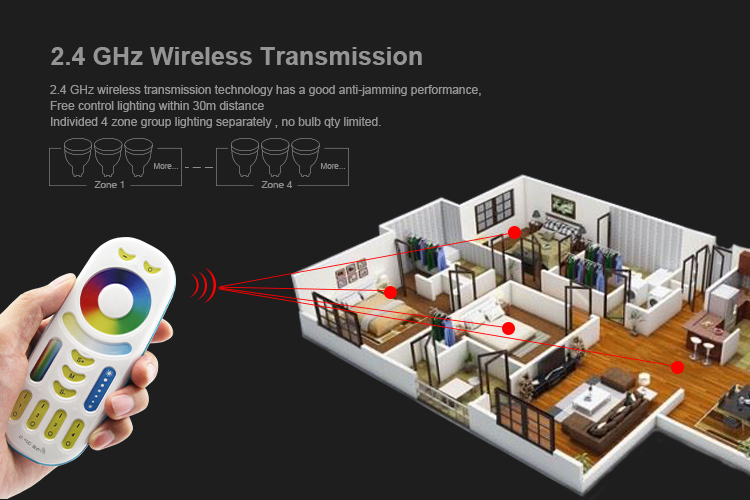

4-Zone Group Management
Independently program and control up to four different groups of MiBoxer lights with one remote.
Long-Range 2.4GHz RF Signal
Enjoy a stable, responsive connection up to 30 meters (98 ft) that works through walls and obstacles.

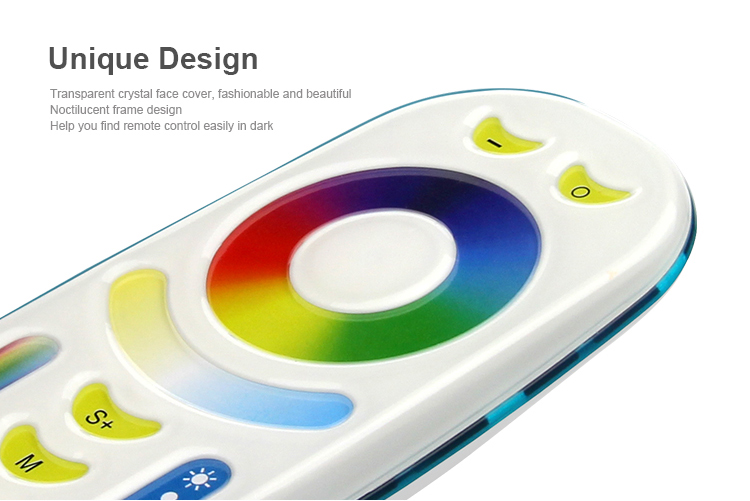

Intuitive Tactile Interface
Features a responsive color wheel, brightness slider, and dedicated buttons for fast, accurate adjustments.
Dynamic Lighting Modes
Cycle through multiple pre-programmed color-changing effects to instantly set the mood.
Ultra-Low Power Consumption
Engineered for efficiency with a standby power usage of just 20uA, maximizing battery life.
Product Specifications
| Parameter | Details |
|---|---|
| Model No. | FUT092 |
| Input Voltage | 3V (2x AAA Batteries) |
| Transmission Frequency | 2.4GHz |
| Modulation Method | GFSK |
| Transmitting Power | 6dBm |
| Standby Power Consumption | 20uA |
| Control Distance | 30m |
| Operating Temperature | -20~60°C |
| Dimensions (L*W*H) | 138 x 56 x 38 mm (5.43 x 2.20 x 1.50 inches) |
Ideal Lighting Control For Any Environment
How to Control & Use This Controller

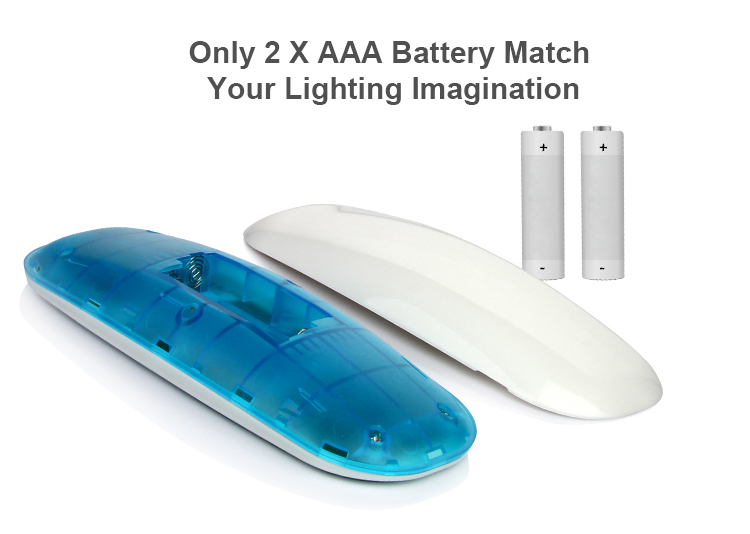

- Power On: Insert two AAA batteries (not included) into the battery compartment, observing correct polarity.
- Link to Lights: Switch off the power to the MiBoxer light or controller you wish to pair. Switch the power back on. Within 3 seconds, press the 'I' (ON) button for your desired zone (1-4) once. The light will flash 3 times to confirm a successful link.
- Select a Zone: Before making adjustments, press the 'I' (ON) button for the specific zone (1-4) you wish to control.

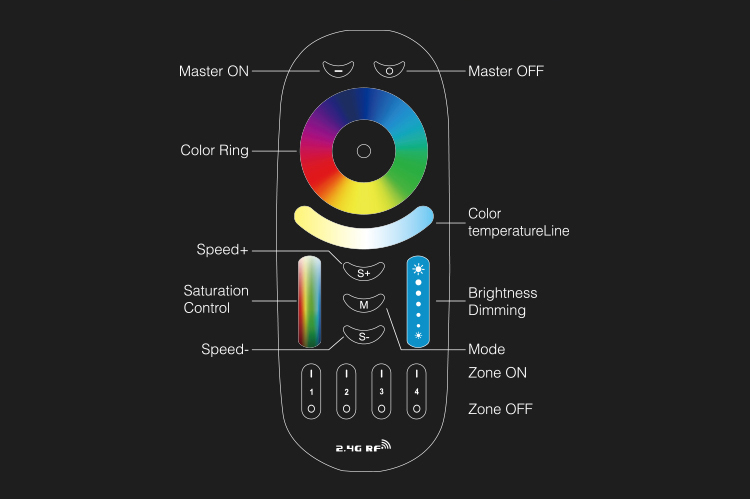

- Adjust Lighting: Use the color wheel to select RGB colors. Use the central slider to adjust brightness. Press the S+ / S- buttons to change saturation or speed of modes. Use the CCT button to switch to white mode and adjust color temperature.
- Change Modes: Press the 'M' button to cycle through various pre-set dynamic color-changing modes.
- Unlink Lights: To unlink a light, switch its power off and on again. Within 3 seconds, press the 'I' (ON) button for the corresponding zone 5 times quickly. The light will flash 10 times to confirm it is unlinked.
- This remote requires a compatible MiBoxer / Mi-Light 2.4GHz series RGB+CCT controller or light fixture to function.
- Batteries are not included.
- Keep the remote away from large metal areas or strong electromagnetic fields to avoid interference with the signal.

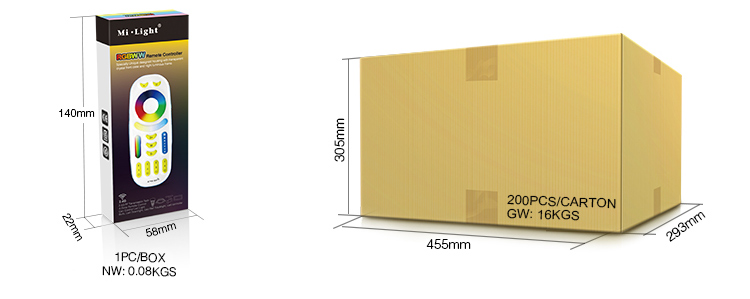

What's in the Box
- ✓1 x FUT092 4-Zone RGB+CCT Remote Controller
- ✓1 x User Manual
Frequently Asked Questions
Q: What types of lights can the FUT092 remote control?
A:This remote is specifically designed for 5-channel RGB+CCT LED strips and fixtures within the MiBoxer and Mi-Light 2.4G ecosystem.
Q: How many separate groups of lights can I control?
A:You can control up to four independent zones. You can link multiple lights or controllers to a single zone, and they will all respond to commands for that zone simultaneously.
Q: Is this a WiFi or Bluetooth remote?
A:The FUT092 uses a direct 2.4GHz Radio Frequency (RF) signal for reliable, low-latency control. For WiFi, app, or voice control (like Alexa/Google Assistant), you can add a MiBoxer WiFi Gateway to your system.
Q: How is this different from the FUT096 RGBW remote?
A:The FUT092 controls RGB+CCT (5-channel) lights, allowing you to mix RGB colors and also tune a separate white channel from warm to cool. The FUT096 is for RGBW (4-channel) lights, which mix RGB colors or activate a single static white channel.
Q: Do I need a separate receiver for my LED strips?
A:Yes, if you are using standard non-MiBoxer LED strips, you will need to wire them to a compatible MiBoxer RGB+CCT controller (receiver), which this remote will then pair with.
Q: What is the typical battery life?
A:Thanks to its ultra-low standby power consumption of 20uA, a pair of quality AAA batteries can last for a very long time with typical use.
