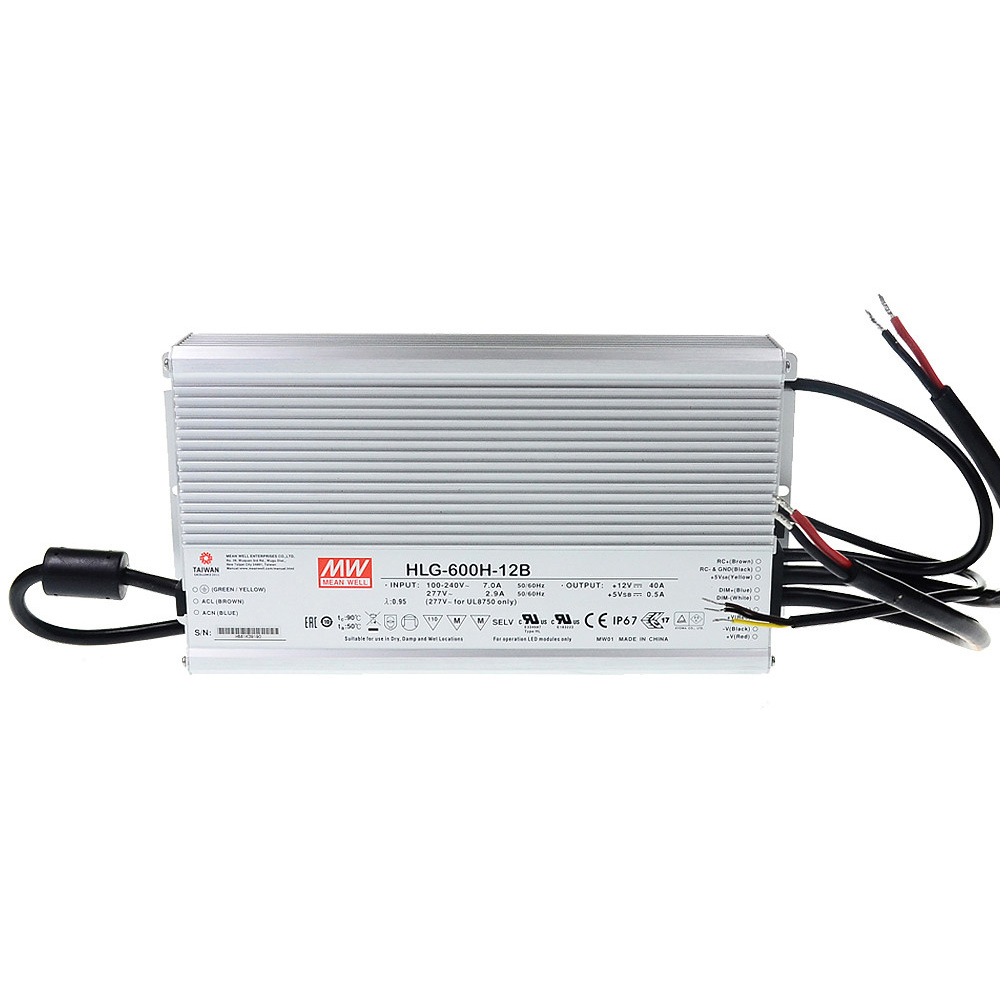

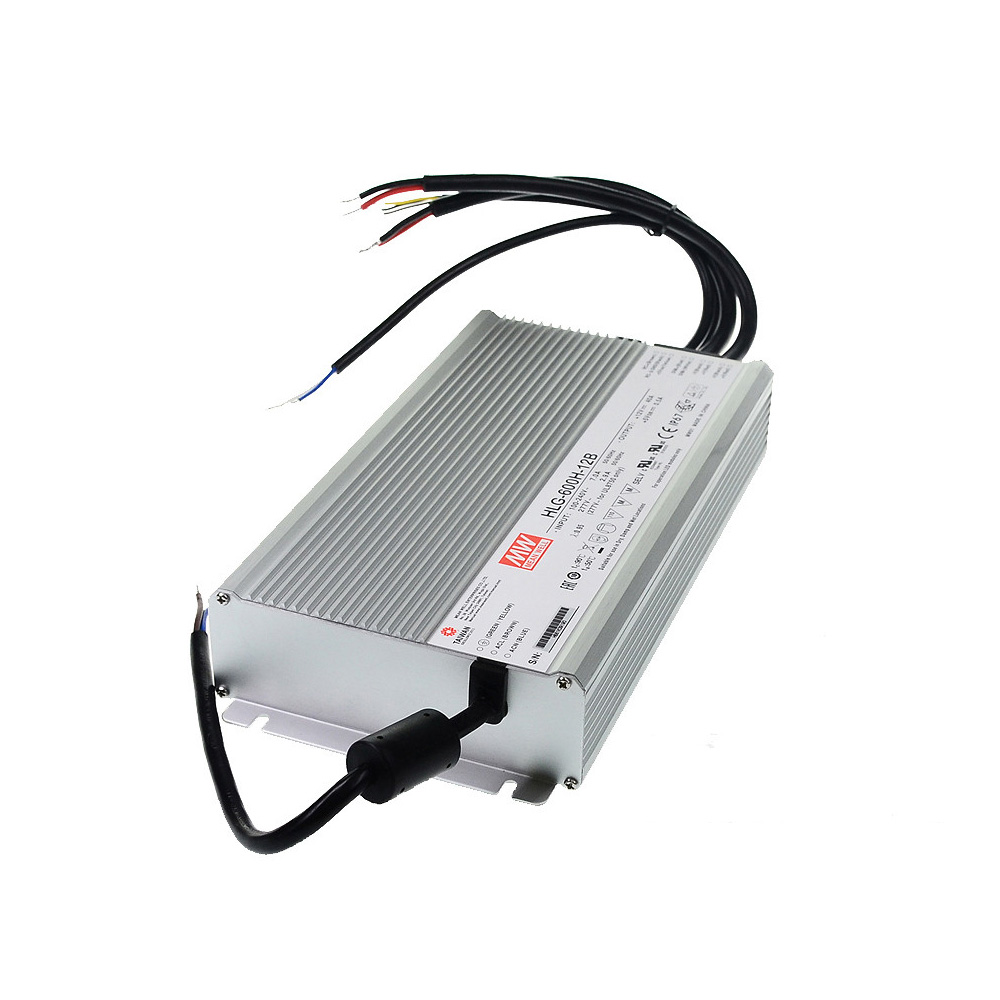

HLG-600H-12B AC90-305V Input Voltage Mean Well Waterproof DC12V 480Watt UL-Listed LED Power Supply
Constant Voltage + Constant Current mode output Metal housing with class 1 design
Standby power consumption <0.5W at remote off
IP67 / IP65 rating for indoor or outdoor installations
Function options: output adjustable via potentiometer;
3 in 1 dimming (dim-to-off)
Typical lifetime > 62000 hours
7 years warranty
LED high-bay lighting
Parking space lighting
LED fishing lamp
LED greenhouse lighting
Type“HL" for use in Class I , Division 2
hazardous (Classified) location.
HLG-600H series is a 600W AC/DC LED driver featuring the dual mode constant voltage and constant current output. HLG-600H operates from 90 ~ 305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency up to 96%, with the fanless design, the entire series isable to operate for -40°C ~ +90°C case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-600H is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibilityt for LED lighting system.
Rated Current: 40A
Output Voltage: 6-12V
Current Range: 20-40A
Rated Power: 480W
Output Voltage Accuracy: ±3%
Load Regulation: ±2%
Input Voltage: 90～305VAC/127-431VDC
Leakage Current: <0.75mA / 277VAC
Frequency Range: 47-63Hz
Standards and Certifications
Type HL for use in class I, Division 2
