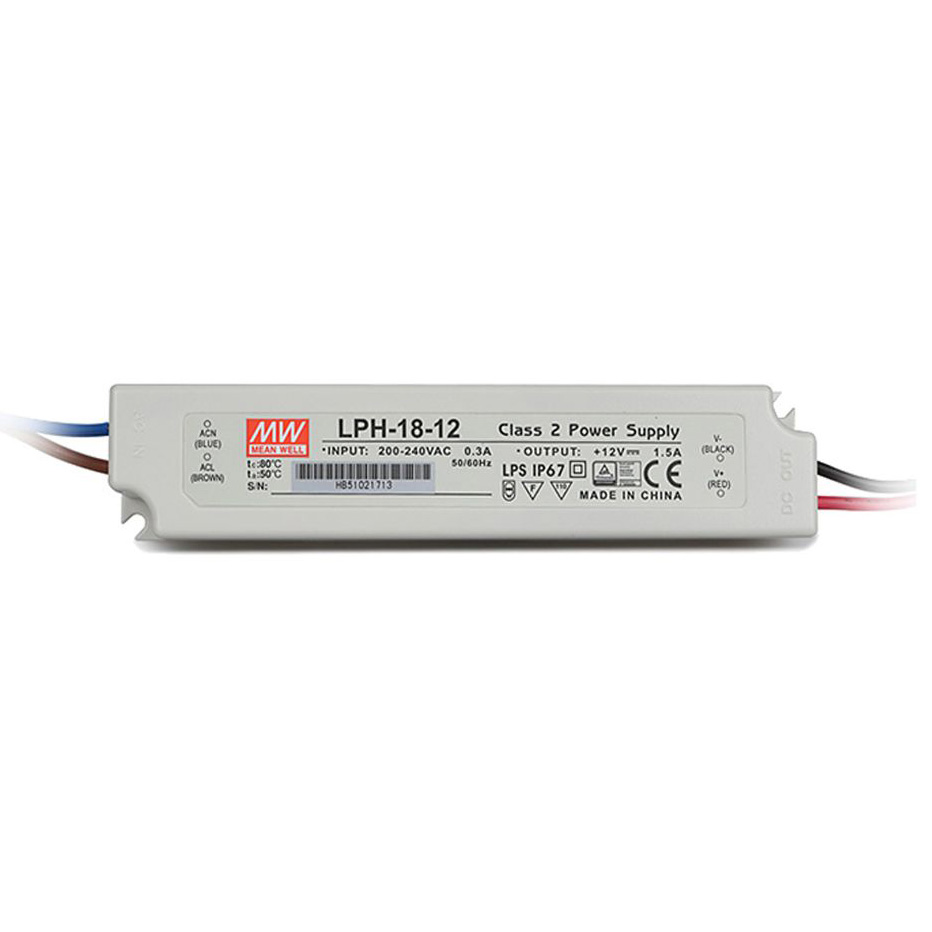

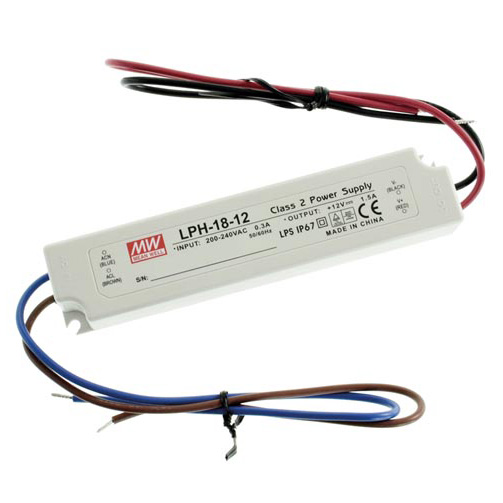

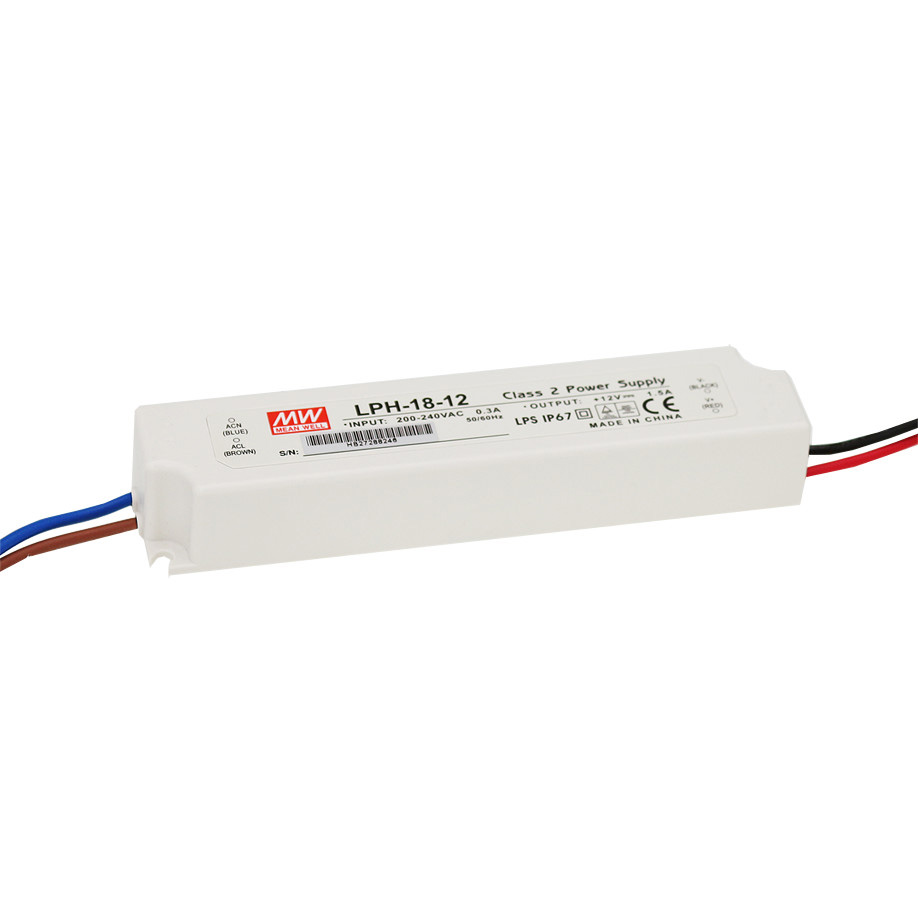

LPH-18-12 18Watt AC180~264V Input Mean Well High-efficacy Waterproof Constant Voltage DC12V UL-Listed LED Display Lighting Power Supply
LPH-18-12 18Watt... $13.98
IP68 Outdoor Waterproof... $1.59 $1.3913% off
DC 12~36V 4 Channel... $27.98
Male Female Screwless... $0.99
SPI LED Bluetooth... $14.98
IP68 Outdoor Waterproof...
DC 12~36V 4 Channel...
Male Female Screwless...
SPI LED Bluetooth...
Note: The AC input voltage of this LED power supply is 180～264VAC
180～264VAC AC input voltage
Fully enclosed plastic shell, in line with IP67 protection standard
With short circuit protection/overload protection/overvoltage protection/overheat protection
International safety certification: TUV/CB/CE
Constant pressure working mode
Class II input, no shell grounding terminal
Can withstand 300VAC surge input for 5 seconds
Pass the LPS (Limited Power Supply) test
100% full load burn-in test
Adopt lead-free process, comply with environmental RoHS requirements
Taiwan Mingwei brand, produced in Guangzhou factory
2 years warranty

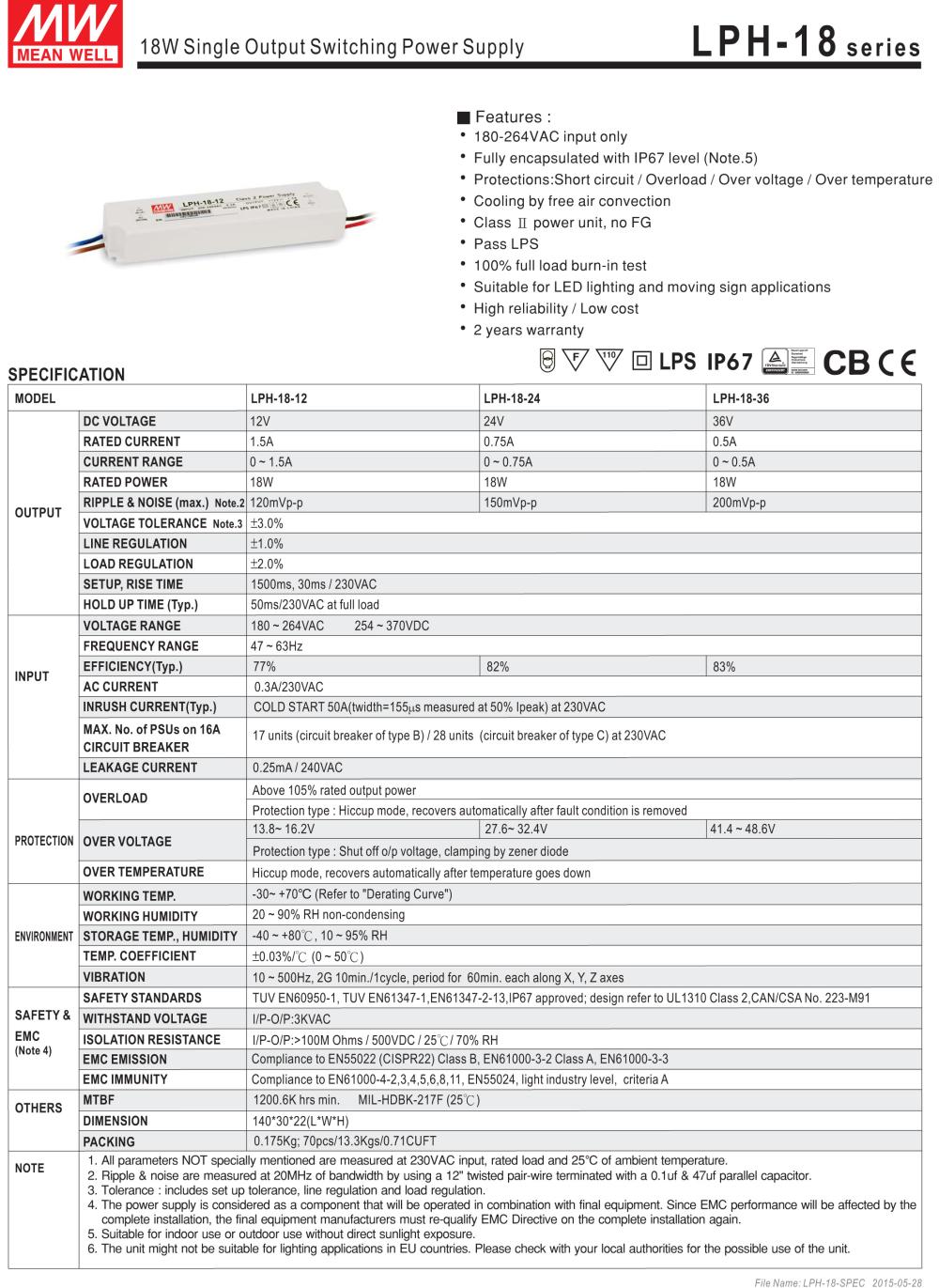

DC output range 12V, 0～1.5A
Output voltage accuracy ±3%
Input voltage range 180～264VAC/254～370VDC
Input surge current cold start, 50A/230V
Leakage current <0.25mA / 240VAC
Overload protection, cut off more than 105% of the rated current, automatic detection, automatic recovery
Over-voltage protection The output voltage will be cut off when the rated output voltage is 115%～135%, and the diode clamped
Overheating protection When the internal temperature of the transistor exceeds 170℃, it will recover after cooling down
Start up hold time 1500ms, 30ms, 20ms at 230VAC full load
Insulation characteristics between input and output: 3KVAC

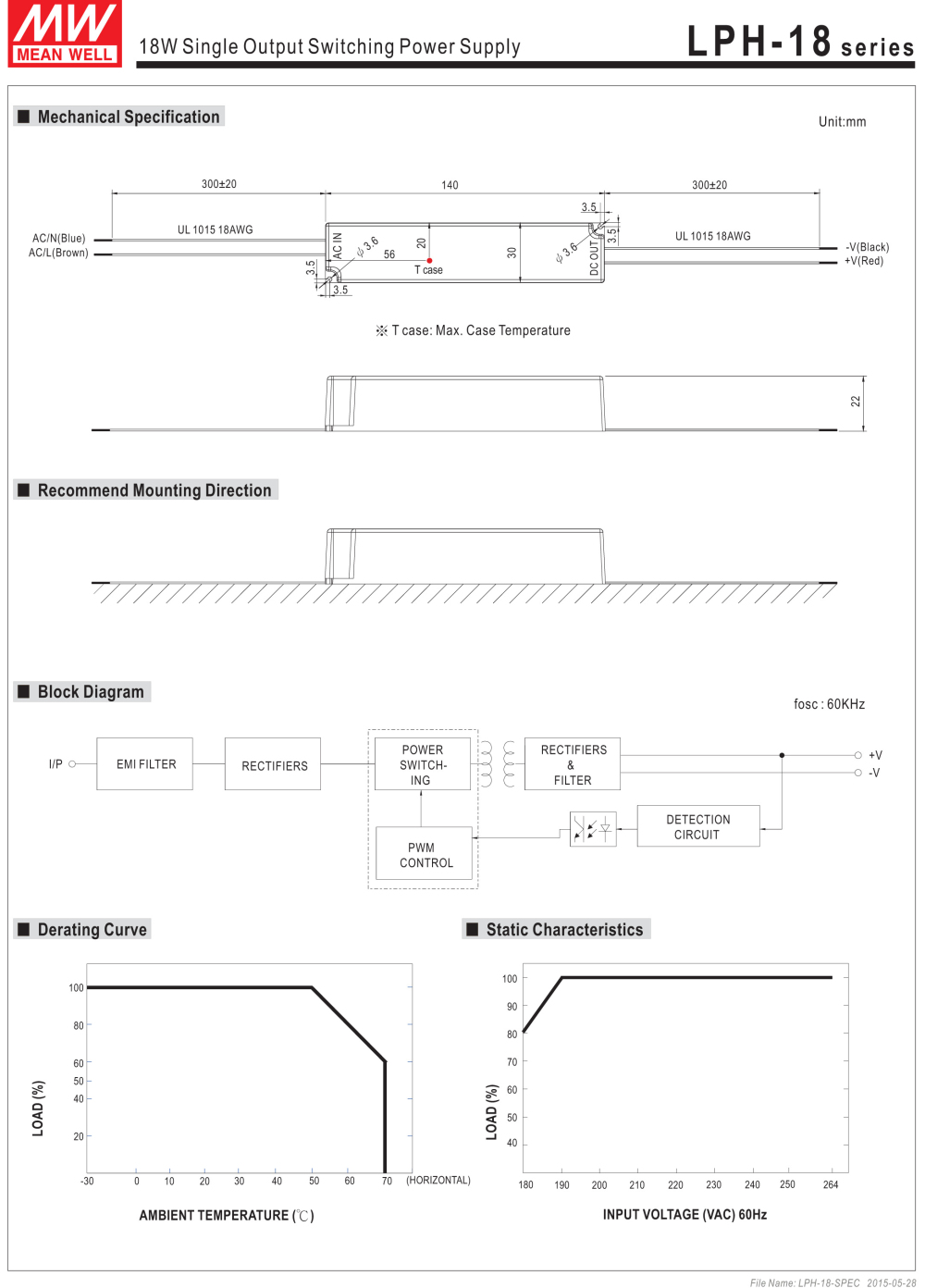

Working temperature -30～+70℃ (see output derating curve)
Vibration resistance 10～500Hz, 2G 10 minutes/cycle, 60 minutes for each axis of XYZ
Safety certification TUV EN60950-1, EN61347-1, EN61347-2-13, IP67 certification passed; design refer to UL1310 Class2, CAN/CSA-C22.2 No.223-M91
Electromagnetic compatibility standards Emission: EN55022 (CISPR22) class B FCC part 15, Harmonics: EN61000-3-2 class A, EN61000-3-3
Electromagnetic compatibility standards Anti-interference: EN61000-4-2,3,4,5,6,8,11, EN55024, Class A light industry standard
Mean time between failures ≥1.206 million hours, MIL-HDBK-217F (25℃)
Wiring mode Input/output: UL standard, 18AWG×2C(30cm)
DC voltage: 12V
Current Rating: 1.5A
Current range: 0-1.5A
Rated power: 18W
Ripple and Noise: 120mVp-p
Voltage accuracy: ± 3.0%
Line regulation: ± 1.0%
Load regulation: ± 2.0%
Start, rise time: 1500ms, 30ms / 230VAC
Hold time: 50ms / 230VAC at full load
Voltage range: 180 ~ 264VAC 254 ~ 370VAC
Frequency Range: 47 ~ 63Hz
AC current: 0.3A / 230VAC
