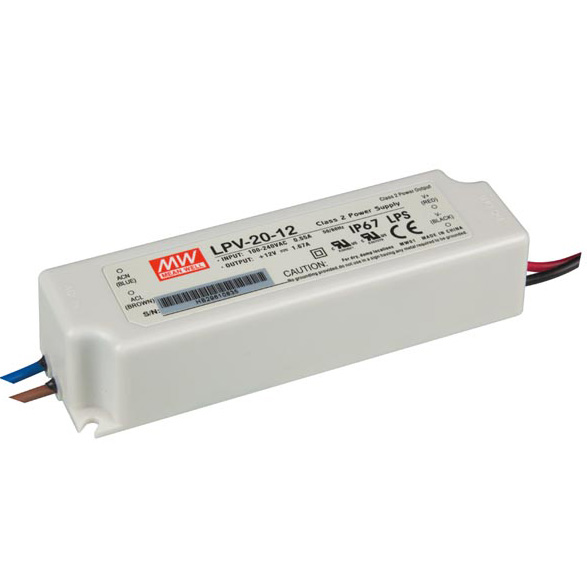

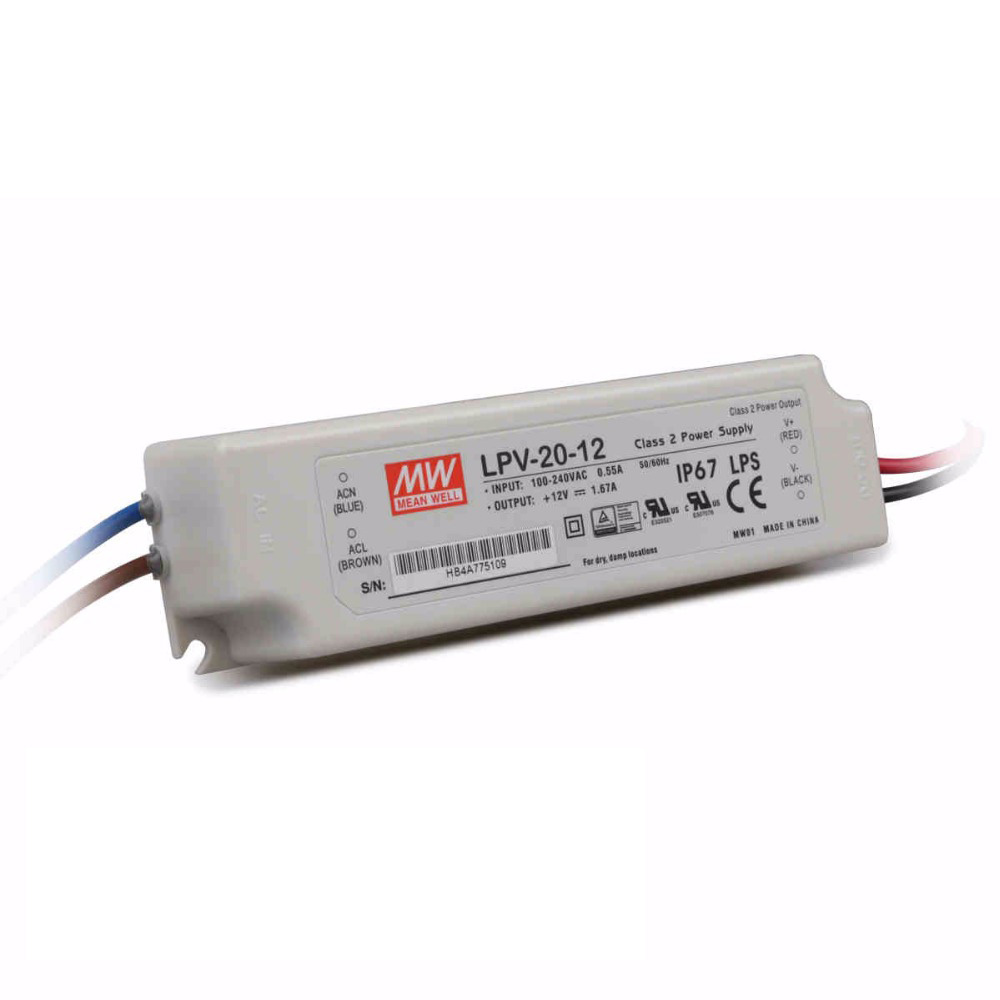

LPV-20-12 20Watt AC90～264V Input Mean Well High-efficacy Waterproof DC12V UL-Listed LED Display Lighting Power Supply
Global universal full range AC input voltage
Fully enclosed plastic shell, in line with IP67 protection standard
With short circuit protection / overload protection / over voltage protection
International safety certification: UL/CE
Constant pressure working mode
Class II input, no shell grounding terminal
Can withstand 300VAC surge input for 5 seconds
UL1310 Class 2 power supply unit
Pass LPS (Limited Power Supply) test
100% full load burn-in test
Adopt lead-free process, comply with environmental RoHS requirements
Taiwan Mingwei brand, produced in Guangzhou factory
2 years warranty
DC output range 12V, 0～1.67A
Output voltage accuracy ±5%
Input voltage range 90～264VAC/127～370VDC
Input surge current Cold start, 70A/230V
Leakage current <0.25mA / 240VAC
Overload protection The over current point is 110%～150%, automatic detection, automatic recovery
Over-voltage protection The output voltage will be cut off when the rated output voltage is 115%～135%, and the diode clamped
Start up hold time 500ms, 20ms, 50ms at 230VAC full load
Insulation characteristics between input and output: 3KVAC
Working temperature -30～+70℃ (see output derating curve)
Vibration resistance 10～500Hz, 2G 10 minutes/cycle, 60 minutes for each axis of XYZ
Safety certification through UL879, UL1310, CSA-C22.2 No.207-M89; CAN/CSA-C22.2 No.223-M91, TUV EN60950-1, IP67 certification
Electromagnetic compatibility standards Emission: EN55022 (CISPR22) class B Harmonics: EN61000-3-2 class A, EN61000-3-3
Electromagnetic compatibility standards Anti-interference: EN61000-4-2,3,4,5,6,8,11, EN55024, Class A light industry standard
Mean time between failures ≥786,500 hours, MIL-HDBK-217F (25℃)
Wiring mode Input/output: UL standard, 18AWG×2C(60cm)
DC output voltage: 12V
Output voltage tolerance: ±1%
Rated output current: 1.7A
Output current range: 0~1.7A
Output power: 20.4W
Ripple &noise: 100mVp-p
DC adjustable range: ±10%
Setup rise and hold up time: 200ms,100ms,30ms
Input voltage range: 170~264VAC 47~63Hz,240~370VDC
AC input current: 0.28A/230VAC
AC inrush current: Cold start current 30A/230V
Leakage current: <0.5mA/240VAC
Over load protection: 115%~135% rated output power start the over load protection
Protection mode : Hiccup mode ,auto-recovery
Over- temp protection: Rectifier≥105°Ccut off the output ,auto-recovery
Working temperature: -10°C~+60°C;20%~90%RH(please refer to the Load deduction curve)
Remark:1..All parameters at the unspecified condition, should be measured in the230Vinput voltage ,at the rated load and25°C.
2.Ripple and noise voltage is measured at the end of20MHzBandwidth of oscilloscope,12inch Twisted pair plus0.1u and 47u.
3. Tolerance is the sum of voltage setting error,voltage regulation rate and current regulation rate.
