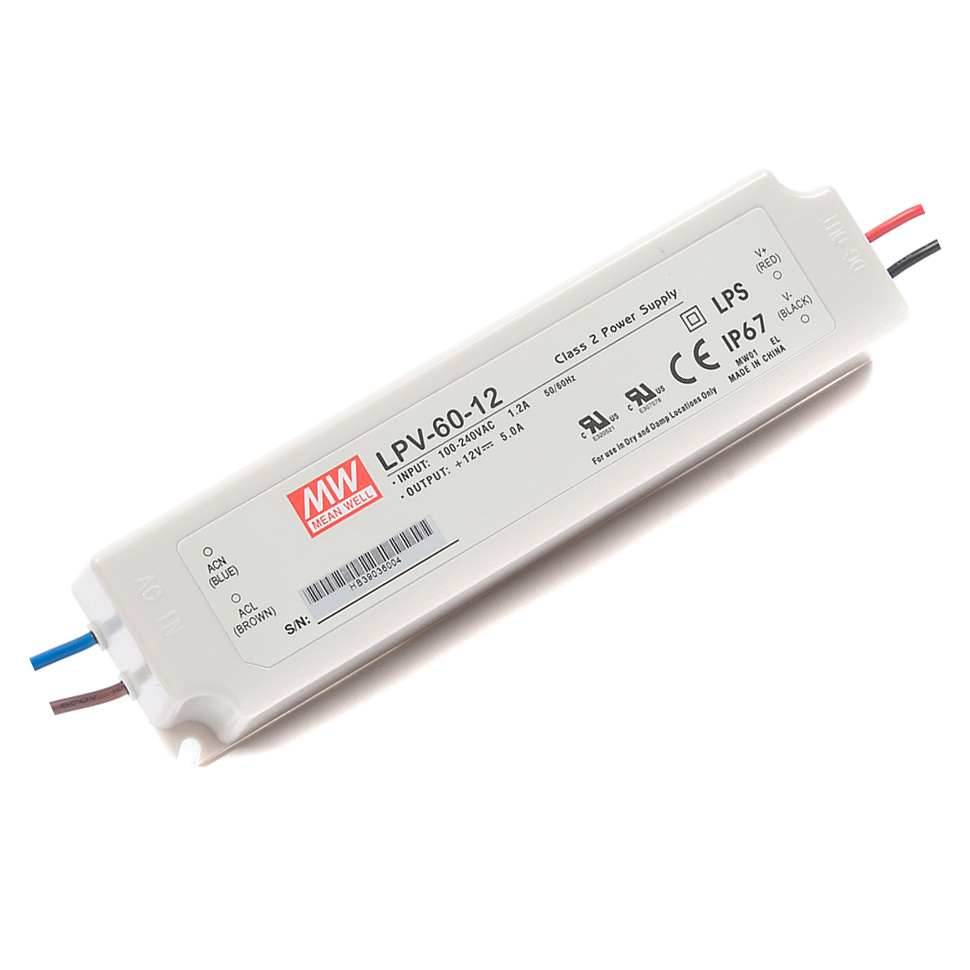

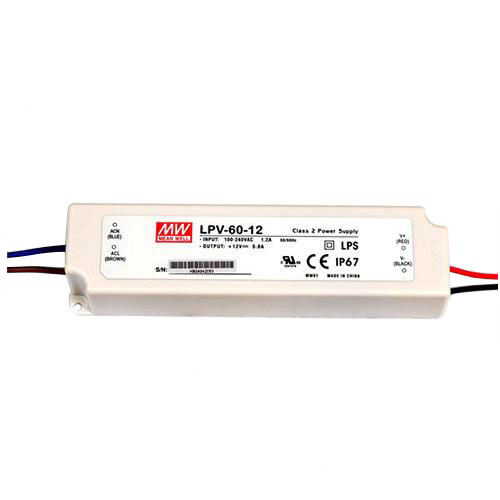

LPV-60-12 60Watt AC90～264V Input Mean Well High-Efficacy Waterproof DC12V UL-Listed LED Display Lighting Power Supply
The main material used in MEAN WELL LPV series is ultra-thin plastic shell, and the waterproof grade can reach IP67. The LP series LED driver has 300VAC surge input for 5 seconds, which can effectively avoid short circuit, load and other safety problems. It is suitable for Economical LED lighting and mobile sign applications. The input voltage is AC90-264V. This power supply is designed for constant voltage and wide voltage input, and can be used in the United States and European countries. The output voltage is DC12V, which is safe, efficient and stable, suitable for DC12V led strip light.Mean Well LP series led driver’s type “HL” led drivers for use in Class I, division 2 hazardous.
Universal AC input / Full range
Withstand 300V AC surge input for 5 seconds
Protections: Short circuit / Over load / Over voltage
Cooling by free air convection
Fully encapsulated with IP67 level (Note.8)
Fully isolated plastic case
Class II power unit, no FG
Class 2 power unit
Suitable for LED related fixture or appliance
(such as LED Decoration or Advertisement devices)(Note.7)
100% full load burn-in test
Low cost, high reliability
2 years warranty
DC Voltage: DC12V
Rated Current: 5A
Current Range: 0-5A
Rated Power: 60W
Output Voltage Accuracy: ±5%
Input Voltage: 90～264VAC/127～370VDC
Input Surge Current Cold Start,1.2A/115VAC 1A/230VAC
Leakage Current: <0.25mA / 240VAC
Overload Protection: The over current point is 110%～150%, automatic detection, automatic recovery
