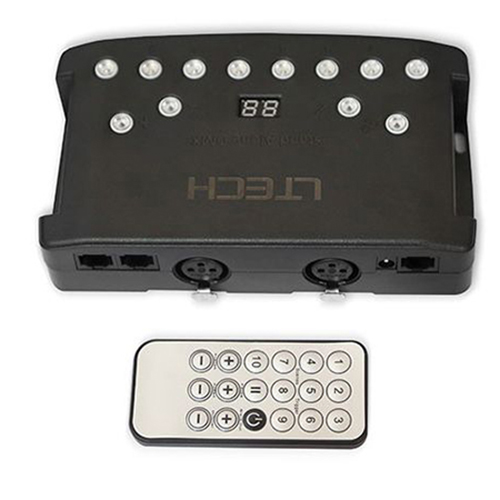

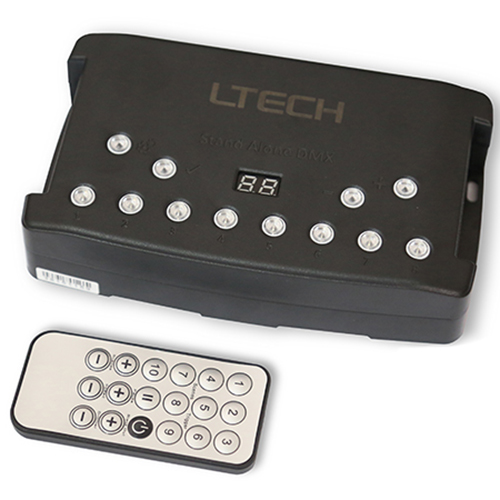

LTSA1024 DC5V USB-DMX IR Remote LED Master Controller

Model: LTSA1024
LTSA1024 DC5V USB-DMX IR Remote LED Master Controller
  • LTSA1024 DC5V USB-DMX IR Remote LED Master Controller
  • LTSA1024 DC5V USB-DMX IR Remote LED Master Controller

$391.98

Free worldwide shipping on orders over $199

Various options in stock
Qty: -+

DHL, UPS and USPS are delivered to your door, any needs please note at checkout.

Accept the project customization, please contact us for commercial offers and technical support.

Related Products

  • Product Information
  • Reviews
  • Accessories
  • Images
  • LED Strip Lights Guide

    Ltech LTSA1024 is a dmx lighting controller with 1024 DMX output channels that offers precise control over color, intensity, and various lighting effects.

    LTSA1024 usb dmx 512 master controller supports both DMX and Art-Net protocols, providing flexibility in integration with other lighting systems. It also offers multiple playback options, including a built-in microSD card slot for storing and playing back custom lighting scenes.



    Specification

    Input:USB 2.0

    Input connector:Mini USB -Mini USB cable included

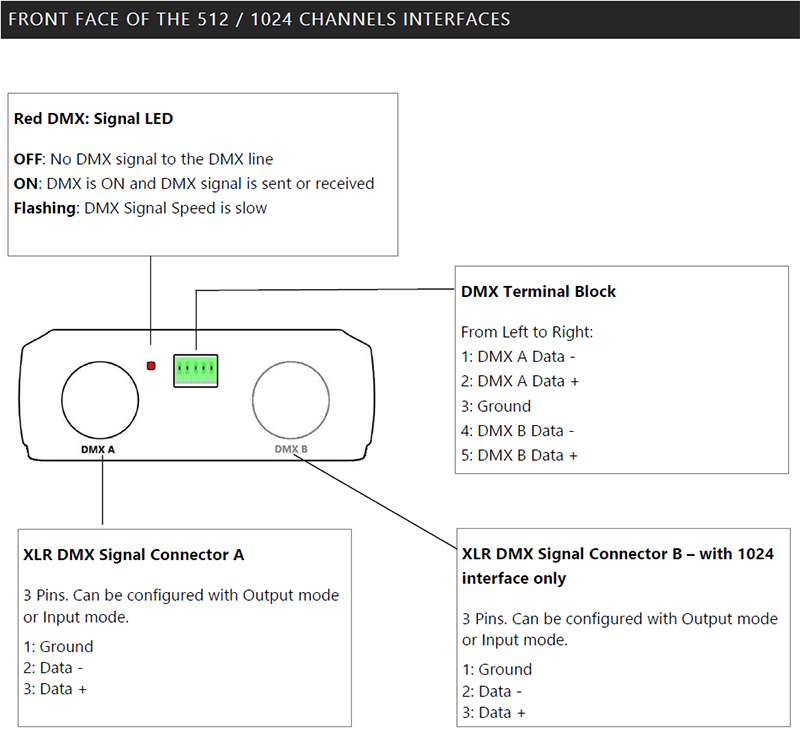

    Output connector:XLR 3 (XLR 5 is optional) 1:Ground, 2:Data+, 3:Data

    Number of DMX Input/Output:512 or 1024 (PC + Stand Alone)

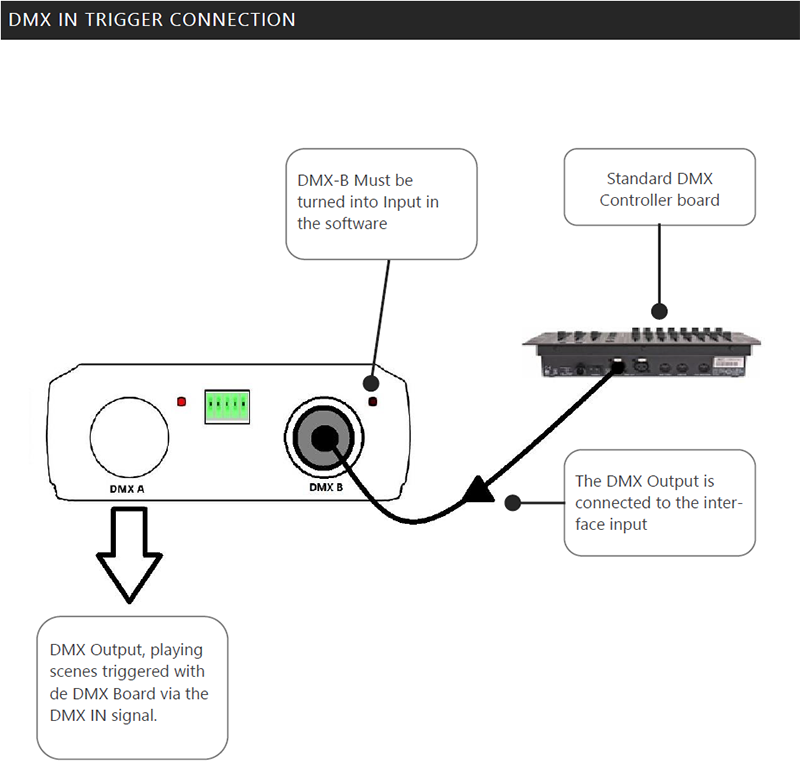

    PC DMX IN triggers:Yes

    StandaloneDMX IN triggers:Only with 1024 interfaces

    External triggers:x4 contacts (5V.) multiplexed to 15 contacts max(20m max cable length)

    Master/Slave connection:Yes, 3 wires for 16 connected interfaces max(20m max cable length)

    Infra-redconnection:Yes via an external IR module (PCB) and 3 connection wires(max15m away)

    Infra-redremote:Optional

    DMX Speed:1 to 45 Hz, MaB, Bk

    Stand Alone mode:Yes, 512 or 1024 channels per interface

    Internal Clock (RTC):Yes

    Internal calendar:Yes

    Backups of the internal clock:Yes, 3 weeks without power

    Internal memory:Yes (4 MB)

    Memory Capacity:4000 steps with 512 channels, 100 000 steps with 16 channels

    Input power voltage:5 V. via USB(USB power supply included)

    Input current:80 to 200 mA

    Power:2W

    Display of signal states:DMX LED + USB LED

    CPU technology:32 bitInternal memory:Yes

    Data display:7 segments LED display

    External triggers:x4 dry contacts for up to 15 multiplexed contactsContact

    Input Voltage:5 V

    Dimensions:H: 40 mm (1,57 in) / W: 110 mm(4,33 in)  / D: 120 mm (4.72 in)

    Color:Black / Red

    Operating Temperature:-25 to +70 C°

    Certifications:CE, RoHS

    IP rating:IP20

    Place of use:Indoor

    Storage:Keep in a dry place

    Warranty:24 months

    DMX Compatibility:8 and 16 bit

    DMX fixtures

    System Compatibility:Windows XP, Vista, 7, 8, 8.1, 10, MAC OS X (10.6 and +), Linux



    LTSA1024PDF

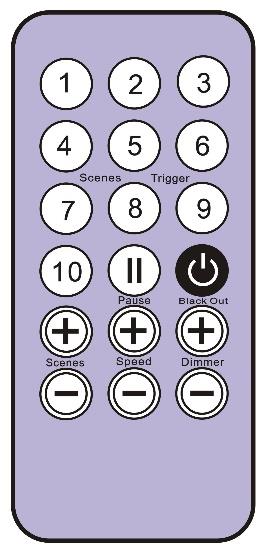

    Button 1 to 10 must be assigned to a scene via the software.

    Each button can trigger a different scene. With the remote control, a scene cannot be stop directly with the assigned button. To stop it you must press the Stop/Black Out button or trigger another scene.

    Pause button to freeze the current scene to its actual state.

    Stop/Black Out button to stop the current scene and play the empty scene number 00. All DMX channels are set down to 00 levels.

    +/- for scene trigger. Select the next or previous scene automatically. You don't need to hold the button to validate and play a scene. The next or previous scene will play directly after selected.

    +/- for Scene speed. Increase or decrease the speed of the current scene. A different speed can be chosen separately for each scene.

    +/- for General dimmer. Increase or decrease the RGB, CMY and dimmer channels of the fixtures. The CMY, RGB, Dimmer channels are defined in the Profile of the fixture.

    To use the IR remote control, an external PCB with an IR receiver LED must be connected before to the RJ45 #1 of the Stand Alone interface. The stand-ard RJ45 cable distance is about 20 meters maximum.

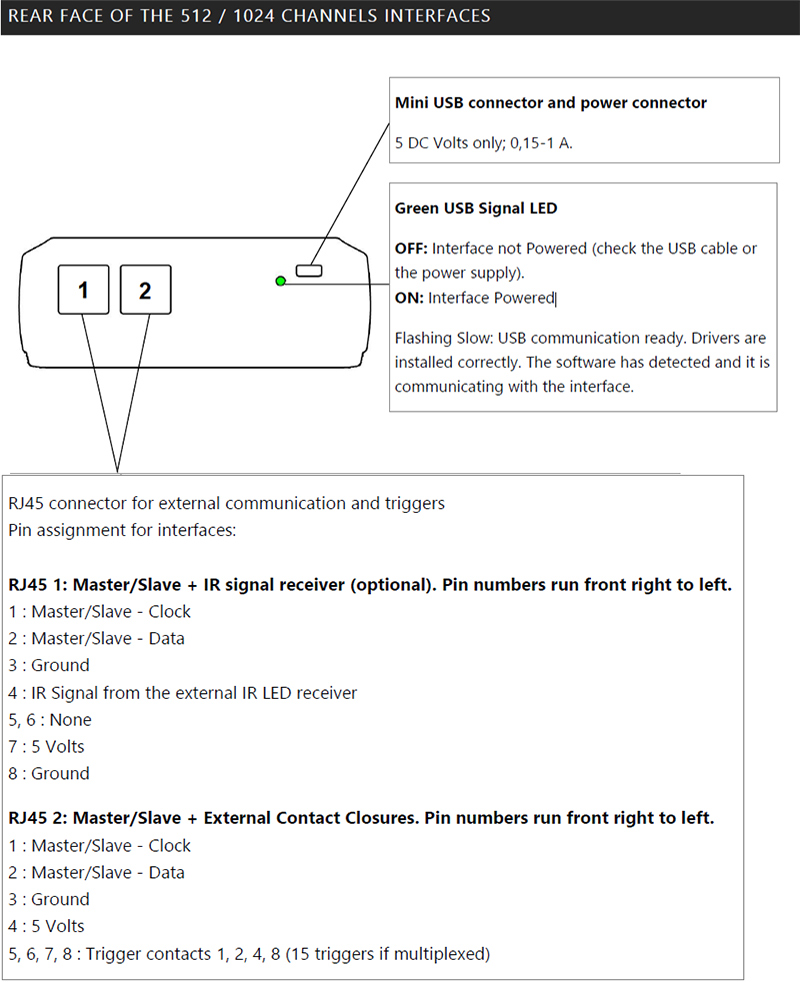

    IR PCB Pin assignment: -With RJ45 use pins #3 = Ground; #4 = IR Data ; #7 = 5V DC. -With T. Block use pins: O = IR Data; V = 5V DC; G = Ground.

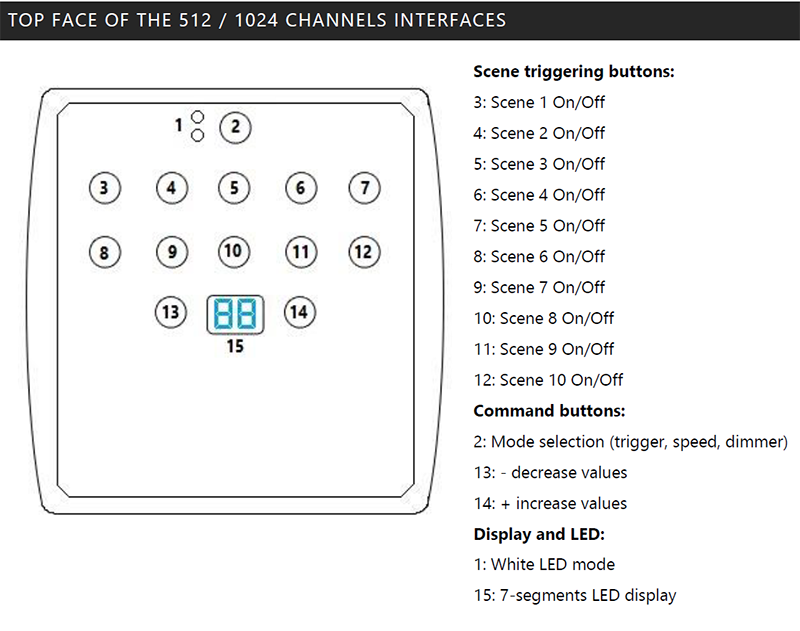

    LED 7-SEGMENTS DISPLAY OPERATION:

    Display the number of the playing scene and the mode (speed/dimmer) value.

    00: Stand Alone mode running. No scene is playing. All DMX channels are set to 0. PC: The interface is connected to the computer and software controlled.

    In trigger mode, the 7 segment display gives the current scene number. The 00 value indicates that no scene is playing and the DMX interface send nulls (0x00) on all output DMX channels. In speed mode, the display indicates the speed of the current scene, values are between -9 and 9. In dimmer mode, the display indicates the general intensity, values are between -9 and 9.

    WHITE LED MODE

    All OFF: Scenes buttons are operating on trigger mode 1st LED ON: Scene Speed mode activated. Press + or – to adjust the speed of the current playing scenes 2nd LED ON: General Dimmer mode activated. Press + or – to adjust the dimmer

    MODE SELECTION BUTTON

    Press the Buttons to select the Speed, Dimmer or the default Trigger mode. NEXT/PREVIOUS, +/-SCENE PUSHBUTTONS

    Trigger Mode: Select the Next or Previous Scene number. Go to the scene number you wish to start and Hold the button for 2 seconds to confirm and play the new scene from 01 to 99. Speed Mode: Increase or decrease the Speed of the current scene. Values from -9 to +9.

    Dimmer Mode: Increase or decrease the general intensity (dimmer + RGB). Values from -9 to +9. Default is 00.

    BLUE LED TRIGGER PUSH BUTTONS:Push a button to trigger scenes loaded in memory. Push again to stop scenes.

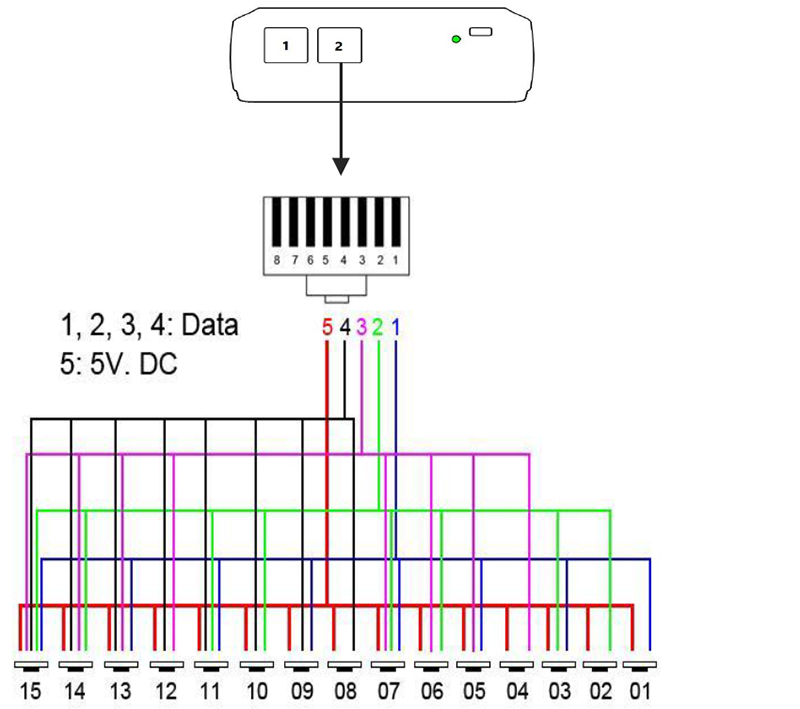

    15 CONTACTS WIRING AND CONNECTIONS WITH RJ45 PINS

    The 4 externals contacts are located on the Ethernet socket number 2. You can use the 4 contacts to basically trigger 4 scenes. To have more triggers you must use a multiplexed system to get a maximum of 15 contacts as following:
