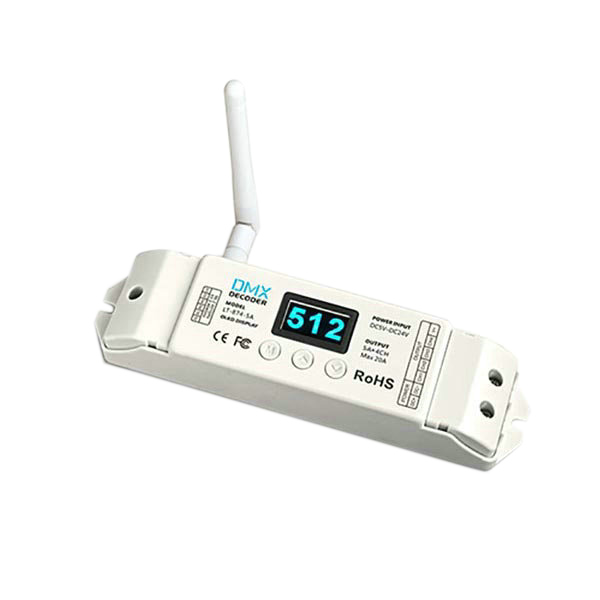

LT-874-5A, 4CH Wireless CV DMX Decoder, High-end DMX Decoder for Led Light Bulbs and Building LED Strips, 5 Warranty
The LT-874-5A has been discontinued.
LT-874-5A Wireless DMX512 receiver receive the standard DMX512 protocol data wirelessly. Match with our LT-870 wireless transceiver,supporting point to point, point to multi-point net work Network structure.A transceiver can match with multiple receivers as long as they under the same frequency.
The product is used for data transmission between DMX console and lightings ,lightings and lightings which replace Wired transmission .The data will not be delayed and which is ture and reliable during transmission process.
The product adopts 2.4GHZ RF global open ISM frequency channel, which is a low-cost, powerful wireless DMX512 transceiver and widely applied to DMX512 controllers from various manufacturers.
64 channels choices, users can use 64 groups wireless network independently without interference in one place.
Use relay settings or connect to Booster Antenna to further the communication distance.
Note: This product also can be applied to the RS485 bus equipment where wiring is not convenient to wireless transmit RS485 signal.
● It is easy to set the address parameter and so on with OLED display.
● Adopt 2.4GHZ RF global open ISM frequency channel, which is applicable for license free worldwide and efficient GFSK modulation.
● Compatible with Standard International standard DMX512 protocol.
● A sending end can configure multiple receiving ends. As long as the receiving end and sending end are set as same frequency point,
both sides can communicate normally.
● 64 channels choices, users can use 64 groups wireless network independently without interference in one place.
● 4 choices of sending end transmitted power level, visual communication distance can reach 350 meters at maximum transmitted power
● With self-test inspection mode when need to test the wireless link quality or engineering installation and debugging.
● Use relay settings or connect to Booster Antenna to further the communication distance. Relay once or many times to achieve the

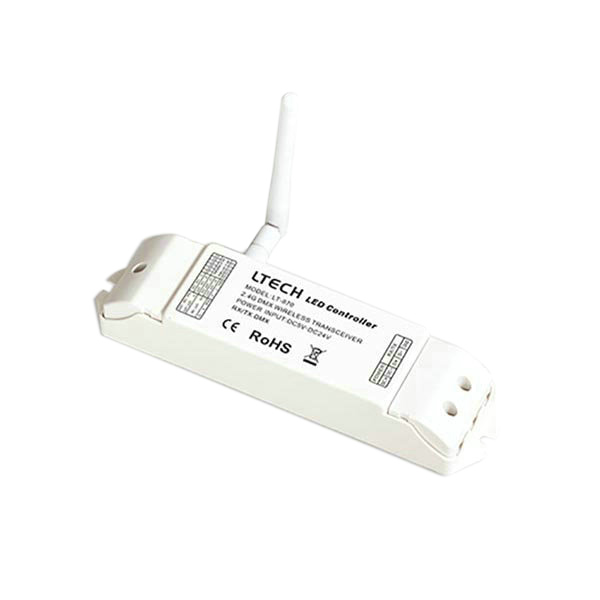

Matched Wirless Transmitter LT-870 DMX Wirless Transmitter
receiving wireless signal DMX512
Input voltage: DC5V-DC24V
Max load current: 5A ×4CH Max 20A
Max output power: 100W/240W/480W/(5V/12V/24V)
Working frequency channel: 2.4GHz ISM 64 channels
Receiver sensitivity: -96dBm
Communication distance: 350m (Exist differences in different conditions, such as the weather environment etc.)
Working temperature: -20℃～55℃
Package Size: L178×W48×H33mm
Weight (G.W): 120g
