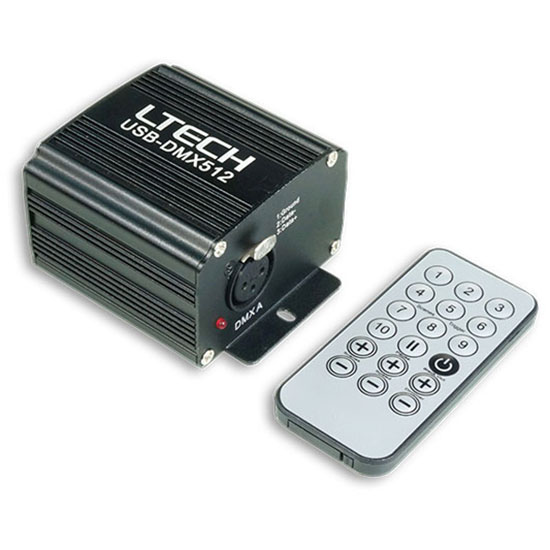

USB-DMX controller LT512
The Ltech USB-DMX Controller LT512 is a DMX control interface. LT512 dmx controller features a USB interface, making it compatible with most modern computers and laptops. It allows you to easily connect your computer to DMX lighting fixtures, providing a user-friendly solution for controlling stage and architectural lighting systems. With the LT512 dmx usb controller, you can control up to 512 DMX channels and create stunning lighting effects using your computer's software.
Input: USB 2.0
Input connector: Mini USB – Mini USB Cable included
DMX Output Connector: XLR 3 (XLR5 optional) + Screw terminal (5 pins, only for 1024 interface)
Number of DMX Outputs: 512 or 1024 (PC) or 256 (Stand Alone)
Infra-red connection: Yes with IR LED embedded (10m away max)
Infra-red remote: Optional
DMX Speed: 1 to 45 Hz, MaB, Bk
USB Mode: Yes
Stand-Alone Mode: Yes
Internal memory: Yes (150 Kb)
Memory Capacity: 120 steps with 256 channels, 1 000 steps with 4 channels
Display of signal states: DMX LED + USB LED
Power supply input: 5V via USB
Input Current: 100 to 200 mA
Power: 2 W
CPU's technology: 32 bits
Dimensions: H: 48 mm (1,89 in) / W: 70 mm (2,76 in) / D: 89 mm (3,5 in)
Weight: 0,16 Kgs (512) / 0,21 Kgs (1024)
Color: Blue, Red, Black
Operating Temperature: 25 to +70 C°
Certifications: CE, RoHS
IP rating: IP20
Place of Use: Indoor
Storage: Keep in a dry place
Warranty: 24 months
Compatibility: 8 and 16-bit DMX fixtures
System Compatibility: Windows XP, Vista, 7, 8, 8.1, 10, MAC OS X (10.6 and higher), Linux
