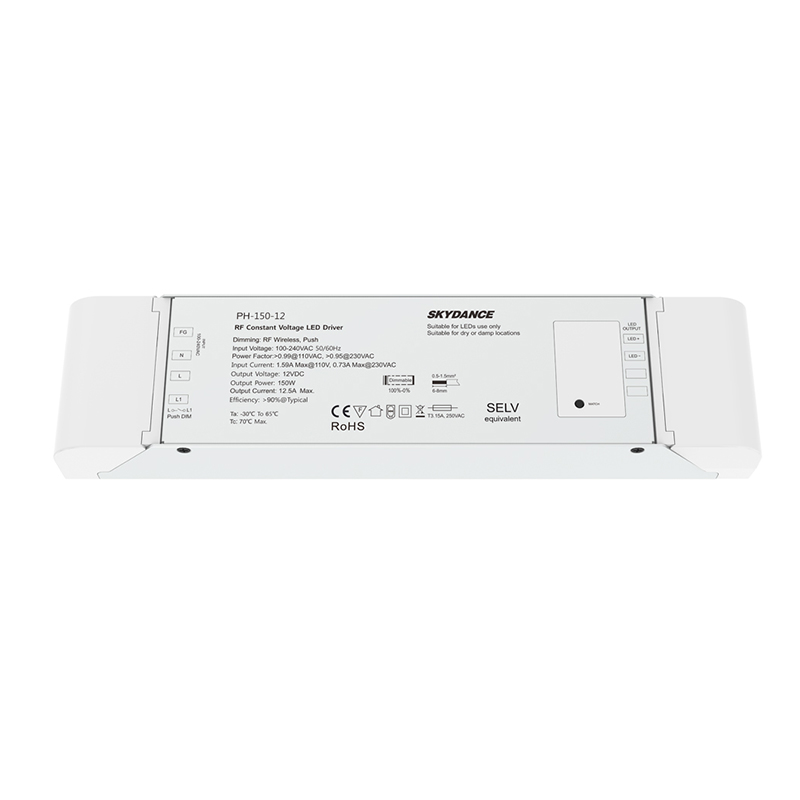

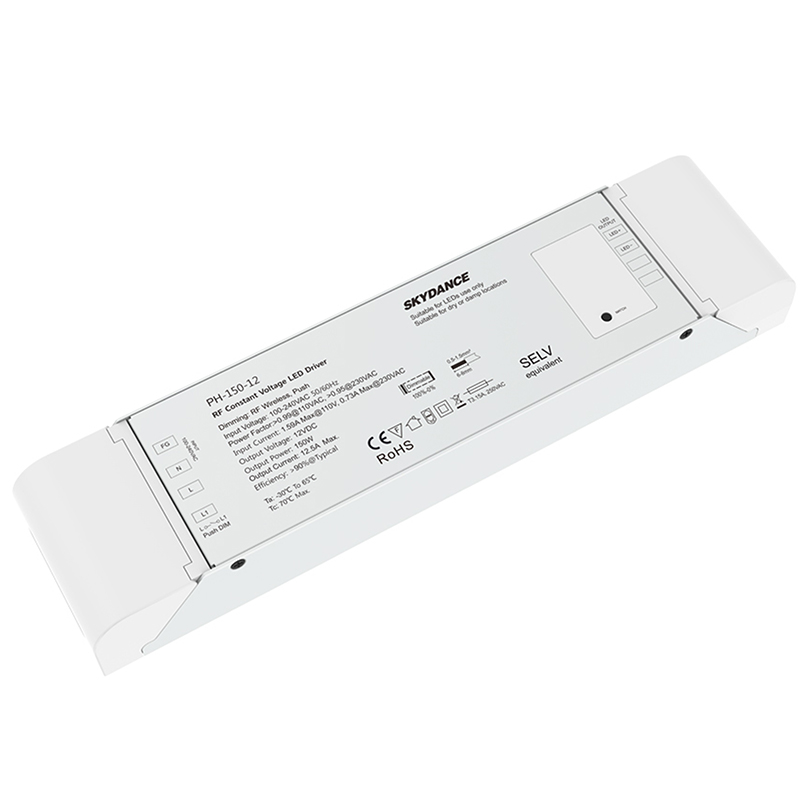

PH-150-12 150W DC12V AC Push-Dim & RF Wireless Dimmable LED Driver

Model: PH-150-12
PH-150-12 150W DC12V AC Push-Dim & RF Wireless Dimmable LED Driver
  • PH-150-12 150W DC12V AC Push-Dim & RF Wireless Dimmable LED Driver
  • PH-150-12 150W DC12V AC Push-Dim & RF Wireless Dimmable LED Driver


Free worldwide shipping on orders over $199

Various options in stock
Qty Discounts Off Price
Qty: -+

DHL, UPS and USPS are delivered to your door, any needs please note at checkout.

Accept the project customization, please contact us for commercial offers and technical support.

  • Product Information
  • Reviews
  • Accessories
  • Images
  • LED Strip Lights Guide


    ● Dimming interface: RF Wireless, AC Push-Dim

    ● Match with Skydance’s 2.4G single color remote control, one RF LED driver accepts up to 10 remote controls

    ● Universal AC input / Full range

    ● 1 channel constant voltage output, Max. total output power 150W

    ● Built-in active PFC function: 0.95 Typ

    ● Auto-transmitting function: LED driver automatically transmit signal to another LED driver with 30m control distance

    ● Synchronize on multiple number of LED drivers

    ● Over-heat / Over-load / Short circuit protection, recover automatically

    ● Suitable for indoor LED lighting application

    ● 5 Year, 50,000hr warranty



    ● Suitable for LED related fixture or appliance which use LED light bar and LED tape (like LED Decoration or Advertisement devices).

    ● Office / Commercial / Domestic Lighting, Hotels, Retail and Display.

    ● Use for retrofit upgrades & new luminaire designs.


    Technical Parameters


    Output Voltage: 12VDC

    Output Current: Max. 12.5A

    Output Power: Max. 150W

    Dimming Range: 0~100%

    Ripple & Noise: <=150mV/230VAC

    PWM Frequency: 500Hz

    Rise Time: 500ms/115VAC, 424ms/230VAC

    Hold Time: 3.6ms/115VAC, 4.5ms/230VAC



    Input Voltage Range: 100VAC~240VAC

    Frequency Range: 50/60Hz

    Efficiency: 92%/230VAC

    Alternating Current: 1.59A/110VAC, 0.73A/230VAC

    Power Factor: >0.99/110VAC, >0.95/230VAC

    Inrush Current: Cold start 27.5A at 230VAC

    Leakage Current: <5mA

    No Load Power: 2W/115VAC, 2W/230VAC



    Over Load Power: Shut down the output when current load >= 120%~150%, auto recovers.

    Short Circuit: Shut down automatically if short circuit occurs, auto recovers.

    Over Temperature:Intelligently adjust or turn off the output current if the PCB temp > 100℃, auto recovers.



    Woking Temperature: -30℃~50℃

    T-case Max: 70℃

    Working Humidity: 20%~90%RH, non-condensing

    Storage Temperature/Humidity: -40℃~80℃, 10%~95%RH

    Temperature Coefficient: ±0.03%/℃ (0-50%)

    Vibration Resistance: 10-500Hz, 2G, 6min/cycle, X,Y,Z axes/2min

    Waterproof Rating: IP20



    Security Specifications: IEC/EN61347-1, IEC/EN61347-2-13

    Withstand Voltage: I/P-O/P: 3750VAC

    Insulation Resistance: I/P-O/P: 100MΩ/500VDC/25℃/70%RH

    EMC Emission: EN55015, EN61000-3-2 Class C, IEC61000-3-3

    EMC Immunity: EN61000-4-, EN61547

    Certications: CE, EMC


    Standards and Certifications



    Match Remote Control (two match ways)

    End user can choose the suitable match/delete ways. Two options are offered for selection:

    Use Match key


    Short press match key, immediately press on/off key (single zone remote) or zone key (multiple zone remote) of the remote.


    Press and hold match key for 5s to delete all match,The light blinks 5 times means all matched remotes were deleted.

    Use Power Restart


    Switch off the power, then switch on power again,immediately short press on/off key (single zone remote)or zone key (multiple zone remote) 3 times on the remote.The light blinks 3 times means match is successful.


    Switch off the power, then switch on power again,immediately short press on/off key (single zone remote) or zone key (multiple zone remote) 5 times on the remote.The light blinks 5 times means all matched remotes weredeleted.

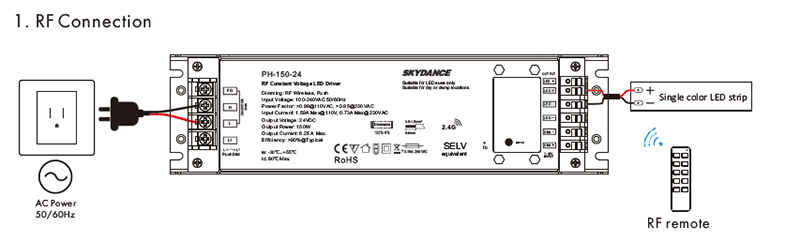

    When use multiple RF drivers, two application method:

    1. All the drivers in the same zone.

    Auto-transmitting: One driver can transmit the signals from the remote to another driver within 30m, as long as there is a driver within 30m, the remote control distance can be limitless.

    Auto-synchronization: Multiple drivers within 30m distance can work synchronously when they are controlledby the same remote.

    Driver placement may offer up to 30m communication distance. Metals and other metal materials will reduce the range.

    Strong signal sources such as WiFi routers and microwave ovens will affect the range.

    We recommend for indoor applications that driver placements should be no further apart than15m.

    2. Each driver(one or more) in a different zone, like zone 1, 2, 3 or 4.

    Match Remote Control (two match ways)

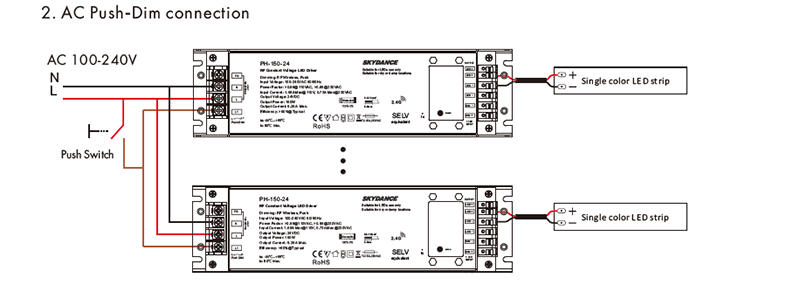

    The provided AC Push-Dim interface allows for a simple dimming method using commercially available non-latching(momentary) wall switchs.

    ● Short press:

    Turn on or off light.

    ● Long press (1-6s):

    Press and hold to step-less dimming,With every other long press, the light level goes to the opposite direction.

    ● Dimming memory:

    Light returns to the previous dimming level when switched off and on again, even at power failure.

    ● Synchronization:

    If more than one LED driver are connected to the same push switch, do a long press for more than 10s,then the system is synchronized and all lights in the group dim up to 100%.

    This means there is no need for any additional synchrony wire in larger installations.We recommend the number of LED drivers connected to a push switch does not exceed 25 pieces,The maximum length of the wires from push to LED driver should be no more than 20 meters.
