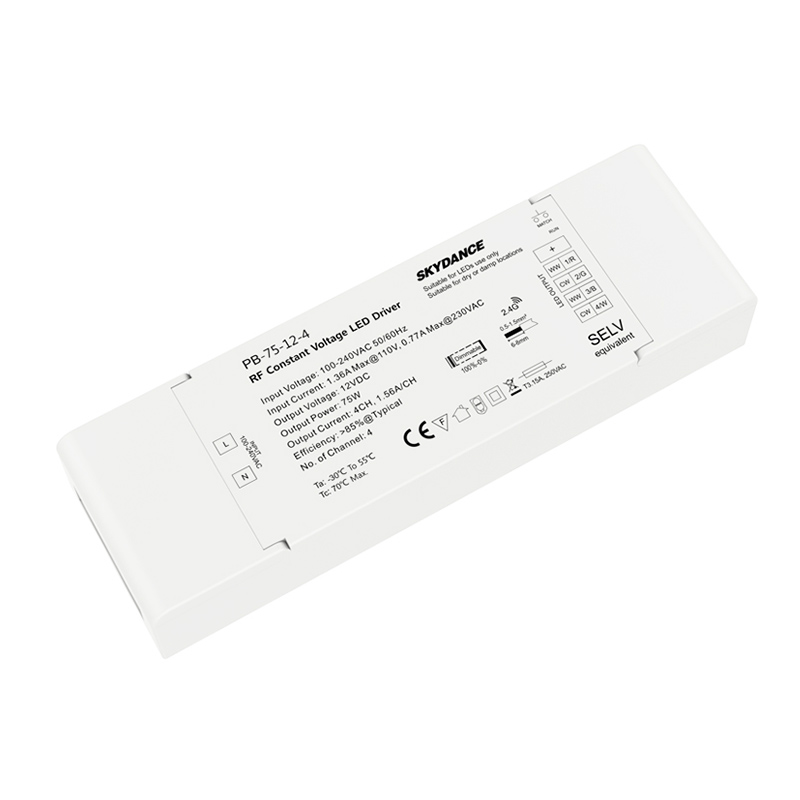

75W 4CH 12VDC CV Wireless Dim &switchDim LED Driver PB-75-12-4
Dimmable LED driver with RF control, apply to a single color, dual color or RGB/RGBW LED constant voltage strips
● Match with Skydance’s 2.4G single color, dual color and RGB/RGBW remote.
One RF LED driver accepts up to 10 remote controls
● Universal AC input / Full range
● 4 channel constant voltage output, Max. total output power 75W
● When using with RGB/RGBW light, built in 10 dynamic modes, include jump or gradual change style
● Auto-transmitting function: LED driver automatically transmit a signal to another LED driver with a 30m control distance
● Synchronize on multiple numbers of LED drivers
● Over-heat / Over-load / Short circuit protection, recover automatically
● Full protective plastic case
● Suitable for indoor LED lighting application
● 5 Year, 50,000hr warranty

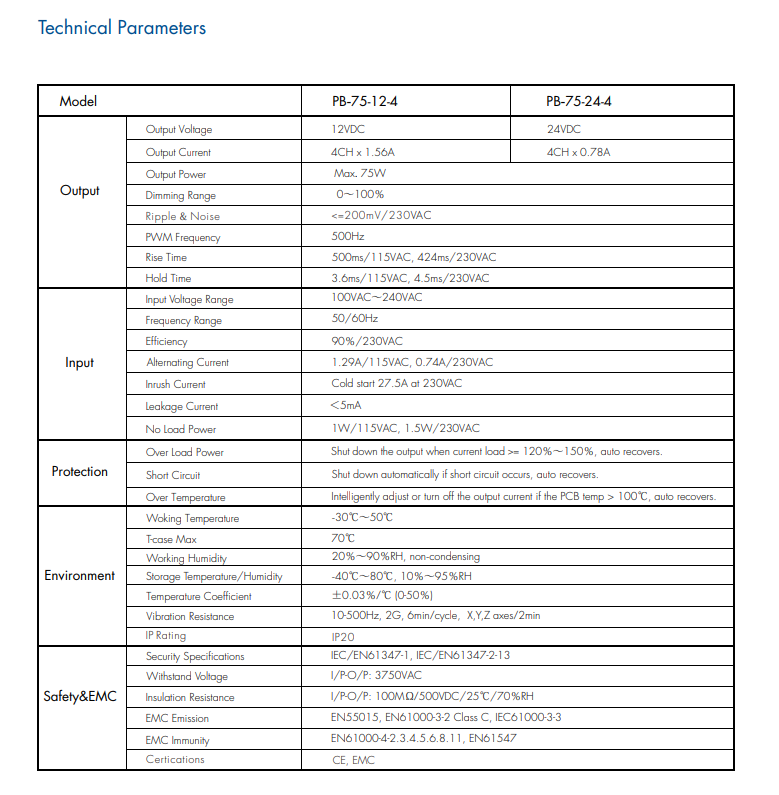

Output Voltage: 12VDC
Output Current: 4CH x 1.56A
Output Power: Max. 75W
Dimming Range: 0～100％
Ripple & Noise: <=200mV/230VAC
PWM Frequency: 500Hz
Rise Time: 500ms/115VAC, 424ms/230VAC
Hold Time: 3.6ms/115VAC, 4.5ms/230VAC
Input Voltage Range: 100VAC～240VAC
Frequency Range: 50/60Hz
Alternating Current: 1.29A/115VAC, 0.74A/230VAC
Inrush Current: Cold start 27.5A at 230VAC
Leakage Current: ＜5mA
No Load Power: 1W/115VAC, 1.5W/230VAC
Standards and Certifications
● Suitable for LED related fixture or appliance which use LED light bar and LED tape (like LED Decoration or Advertisement devices).
● Office / Commercial / Domestic Lighting, Hotels, Retail, and Display.
● Use for retrofit upgrades & new luminaire designs.
