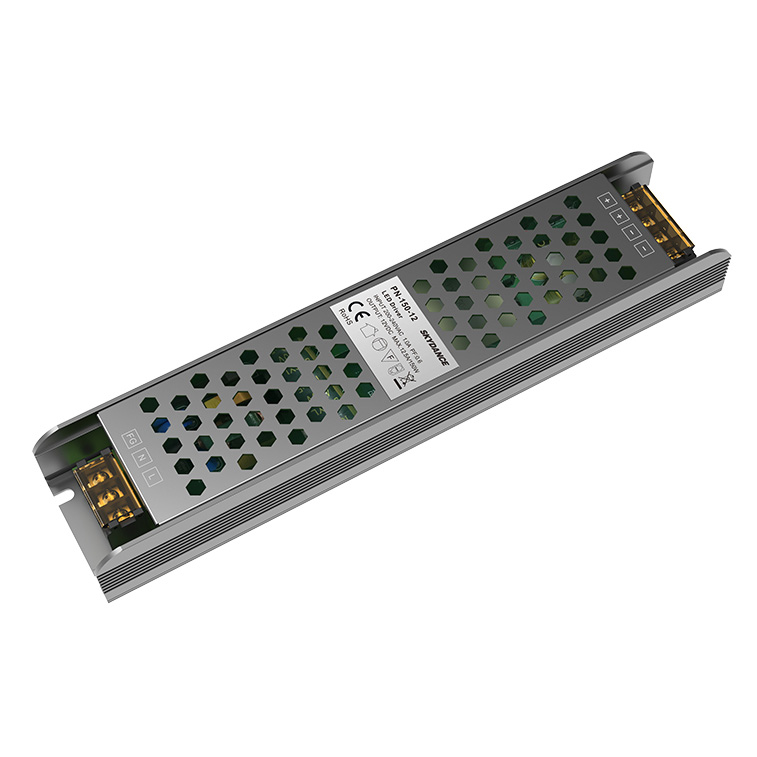

PN-150-12 DC12V 150W Constant Voltage LED Driver - AC200-240V Input
- $40.00 $29.9825% off
- $39.98 $24.9838% off
- $26.98 $22.9815% off
- $53.00 $43.9817% off
- $59.98 $19.9867% off
This LED product is our single channel constant voltage dimmable LED power supply, support AC200-240VAC input, output 12V voltage, max output 150W, built-in Overload / Short circuit protection, recover automatically protect function, suitable for DC12V LED strip light.

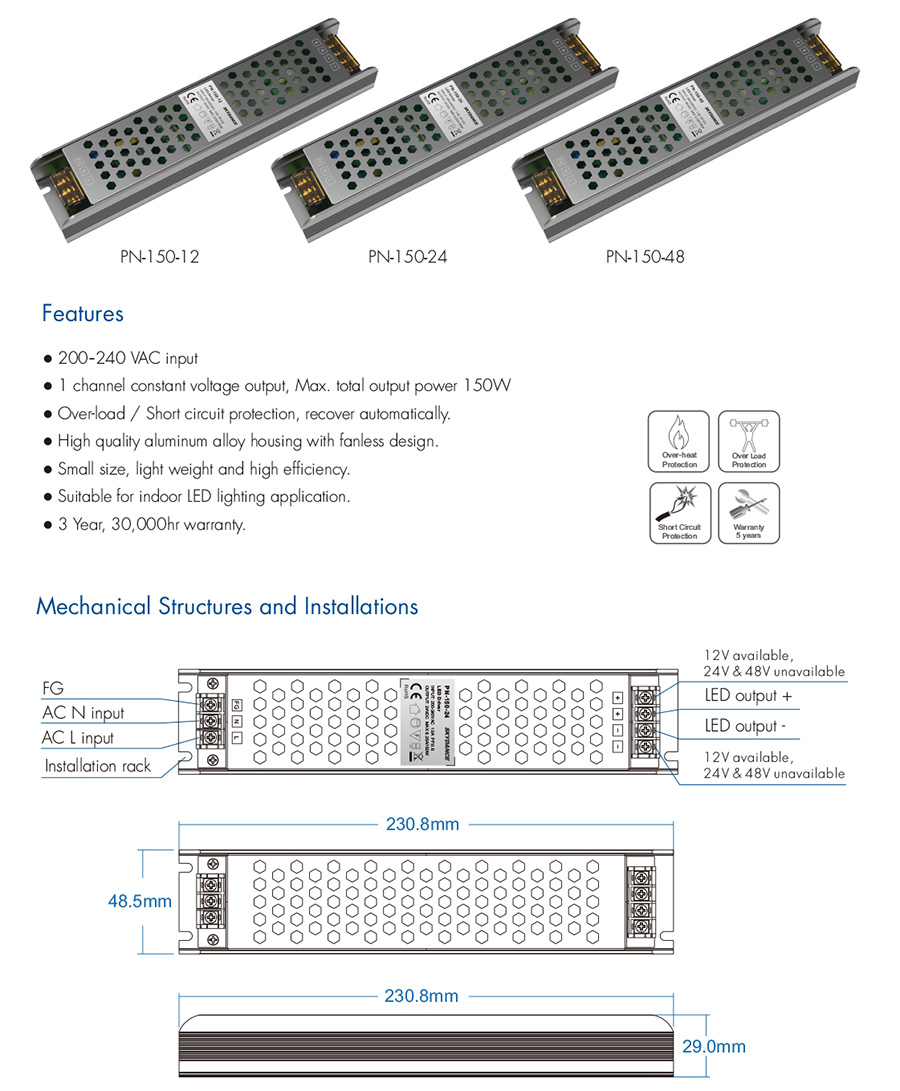

The whole LED driver adopts high-quality aluminum alloy housing, with fanless design, the working temperature is -20~45 ℃, suitable for indoor LED lighting applications, don't install the dimmable LED driver into a closed environment.
This LED strip power supply with Small in size, lightweight, and high efficiency. Total lifespan is over 30000hours, and we provide 3 years warranty

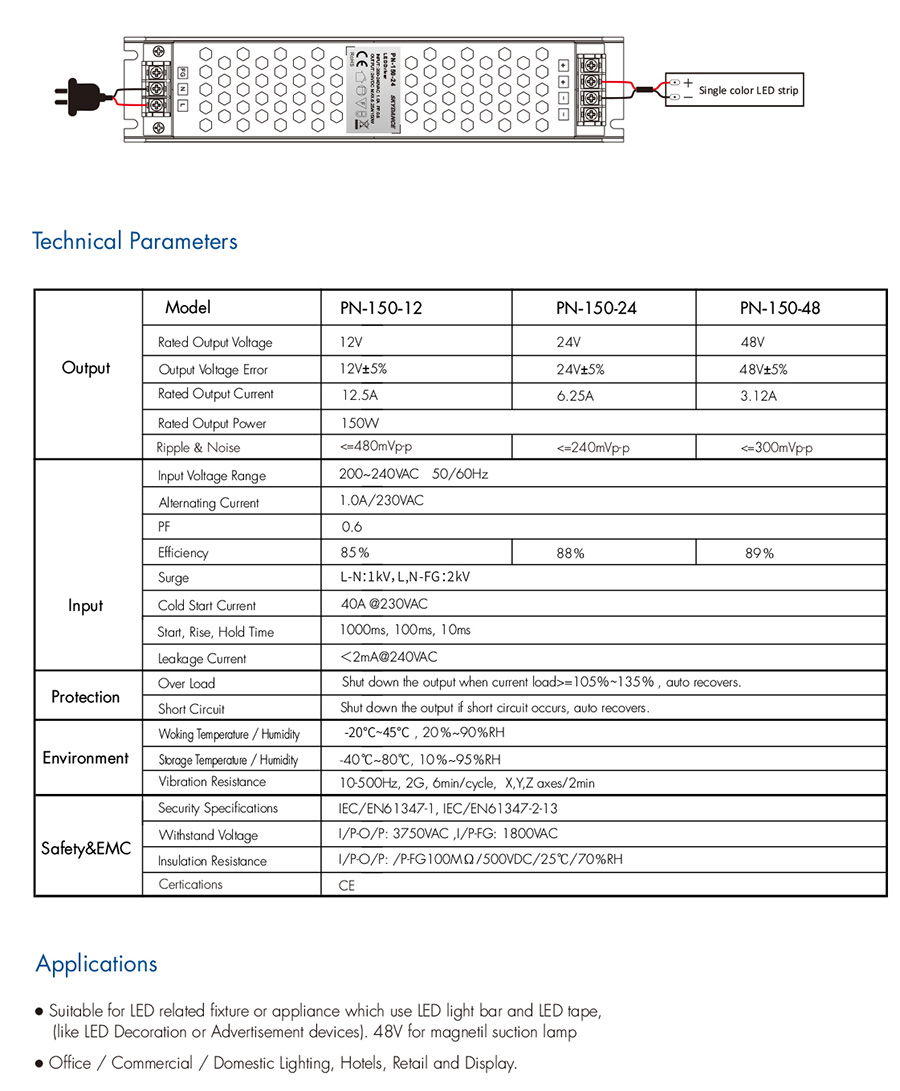

Standards and Certifications
Output Voltage: DC12V
Output Current: 12.5A
Output Power: 150W
Input Voltage: 200-240VAC
Leakage Current: <2mA@240VAC
Working Temperature: -20~45℃
● Suitable for LED related fixture or appliance which use LED light bar and LED tape (like LED Decoration or Advertisement devices).
● Office / Commercial / Domestic Lighting, Hotels, Retail and Display.
● Use for retrofit upgrades & new luminaire designs.
