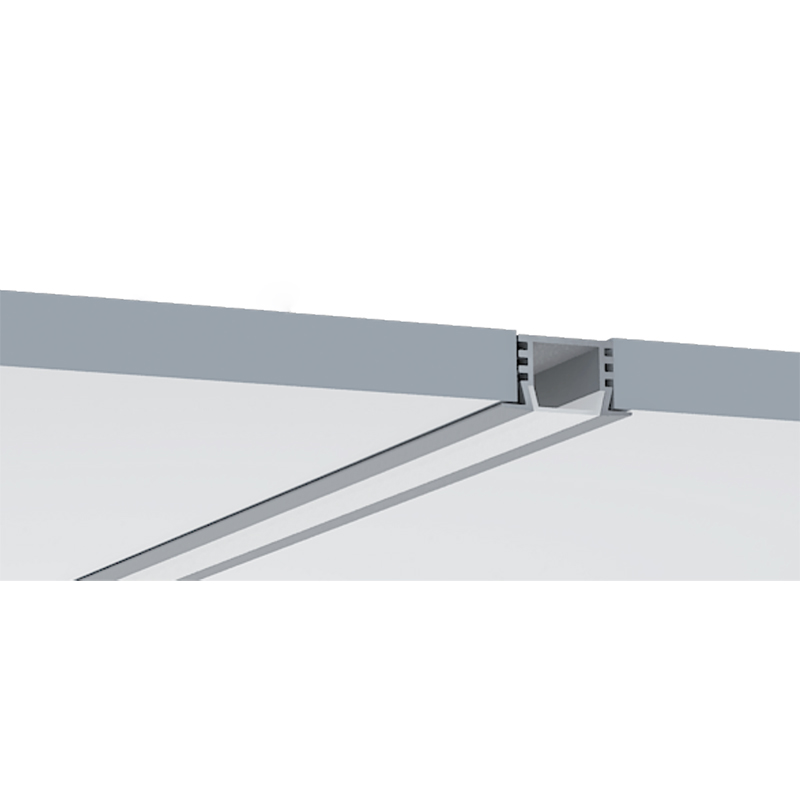

Black Diffuser Recessed LED Strip Lighting Channel For 10mm White LED Light Strip

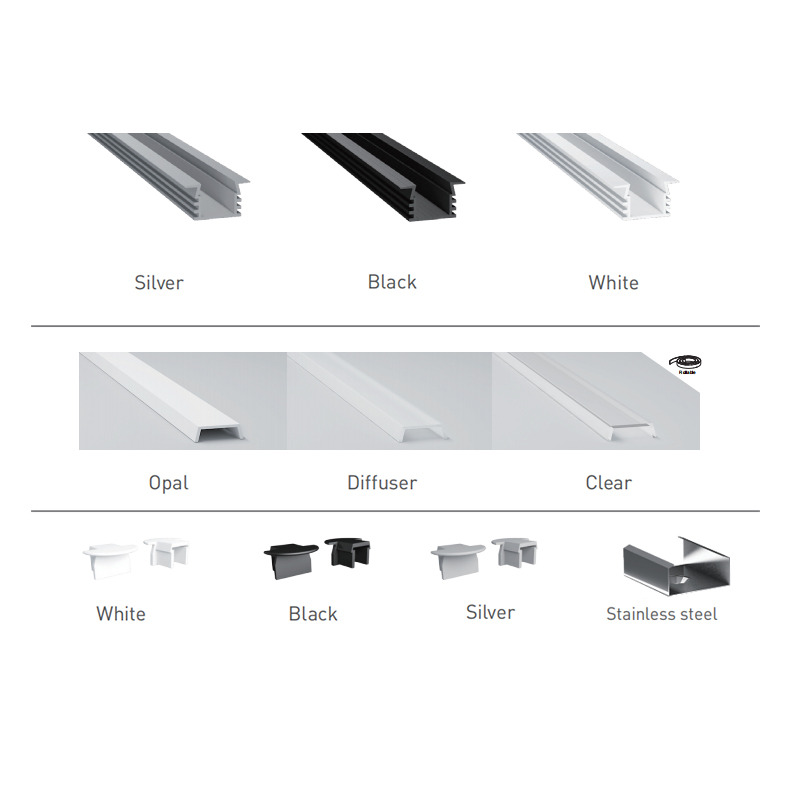

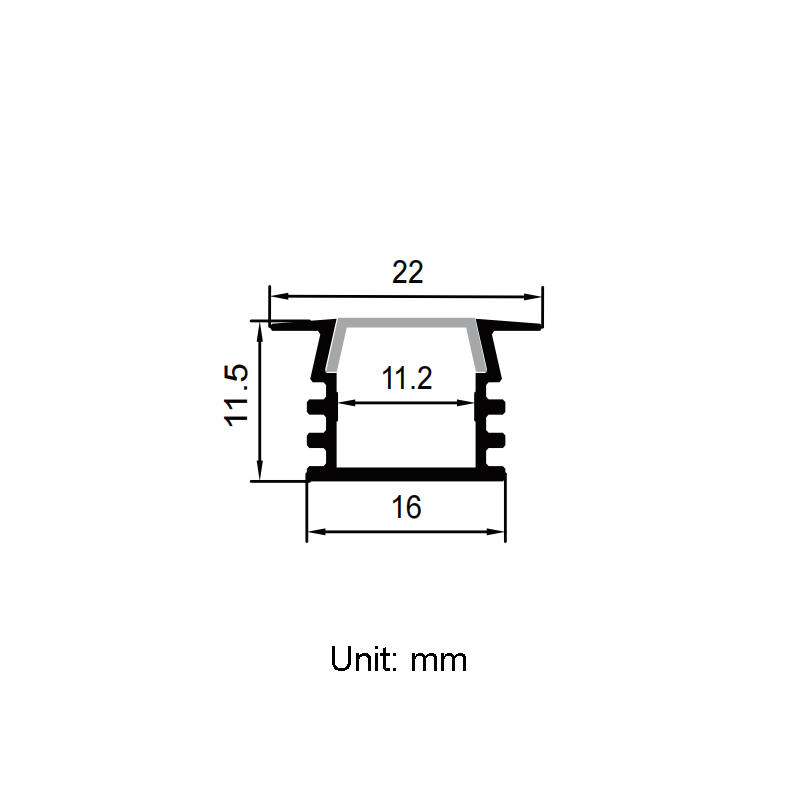

This recessed led diffuser channel is only slightly different from the QSG-2212B recessed led channel. The 2212B led diffuser is push-in type, the light diffuser is a few millimeters higher than the aluminum channel, and the light diffusion range is larger than this. This slide-in led light diffuser is in the same plane as the channel flange. Different aluminum channel colors (silver, white, and aluminum black), lengths (1m and 2m), and four PC led diffuser types (PC clear diffuser, PC semi-clear diffuser, PC opal matte diffuser, and black diffuser) are available. 11.2mm inner width, suitable for 10mm/8mm flexible led strip lights.
As the 2m and 3m led aluminum profiles are too light and long, the package size will exceed the DHL/UPS/TNT requirement(4feet), so extra long transportation costs ($170) will be required. The aluminum led strip lighting channel product itself is soft and easily damaged, so under normal circumstances, 2m and 3m extruded aluminum channels' MOQ is 10 pieces.
If you need a full 20-meter aluminum light diffuser channel, we recommend that you use 20 1-meter long led light strip channel splicing with some channel connectors, both sides of the product using industrial right angle cutting. After installation it does not affect the appearance.
Standards and Certifications
|Material||6063-T5 Aluminum Alloy|
|Aluminum Color||Silver /White /Black|
|LED Diffuser||PC opal microprism diffuser /PC clear microprism diffuser /PC semi-clear diffuser /Black PC diffuser|
|Accessory||End cap without hole, end cap with wire hole, stainless steel mounting clips|
|Apply to||8mm or 10mm flexible led strip lights|
Applications - Ultimate Guide to LED Aluminum Channel
Residential lighting: wardrobe, cabinet, kitchen, furniture, etc.
Commercial lighting: office/supermarket/shopping Mall
Stores shelf LED lighting
Heat sink and physical protection to the LEDs
Interior light design (stairs / storage / floor)
Exhibition boot LED lighting
Backlight or supplementary lighting
