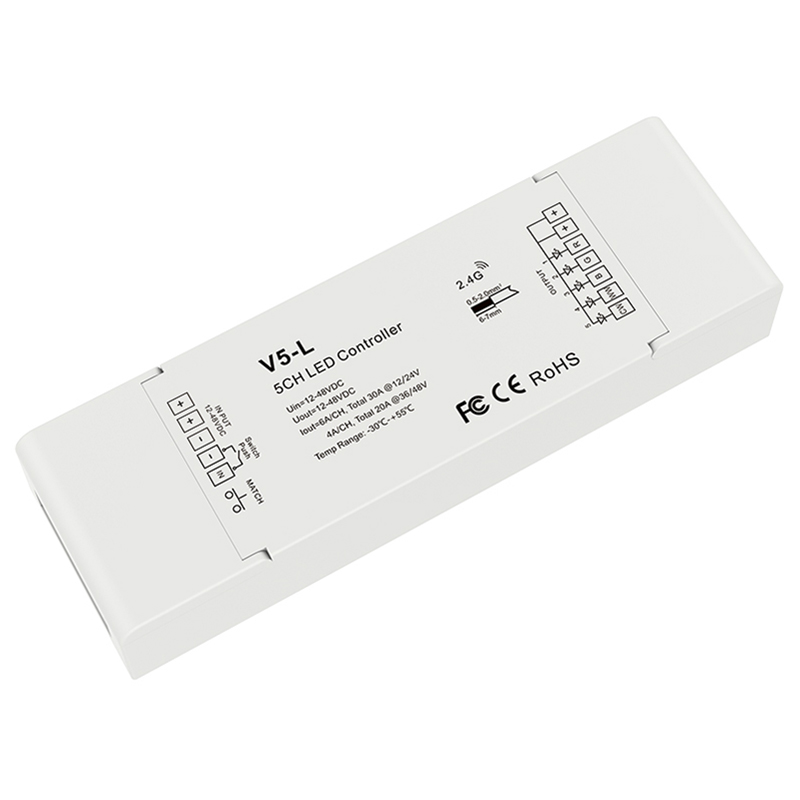

V5-L 5CH*5A DC12-48V CV RGB+CCT RF 2.4G LED Controller
● Match with RF 2.4G single zone or multiple zone RGB+CCT remote control.
● One RF controller accept up to 10 remote control.
● 4096 levels 0-100% dimming smoothly without any flash.
● Built in 10 dynamic mode, include jump or gradual change style.
● Auto-transmitting function: Controller automatically transmit signal to another controller with 30m control distance.
● Synchronize on multiple number of controllers.
● Connect with external push switch to achieve on/off and 0-100% dimming function.

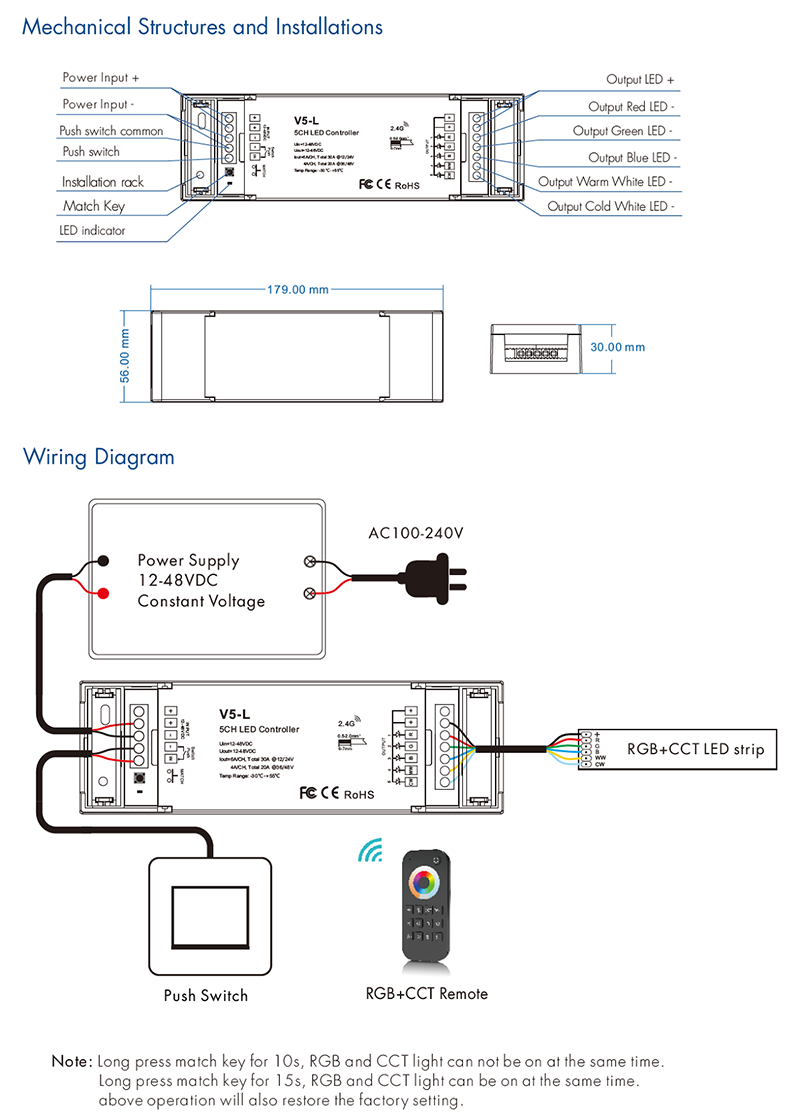

Match Remote Control (two match ways)
End user can choose the suitable match/delete ways. Two options are offered for selection:
Use the controller’s Match key
Short press match key, immediately press on/off key (single zone remote) or zone key (multiple zone remote) on the remote. The LED indicator fast flash a few times means match is successful.
Press and hold match key for 5s to delete all match, The LED indicator fast flash a few times means all matched remotes were deleted.
Use Power Restart
Switch off the power, then switch on power again, immediately short press on/off key (single zone remote) or zone key (multiple zone remote) 3 times on the remote. The light blinks 3 times means match is successful.
Switch off the power, then switch on power again, immediately short press on/off key (single zone remote) or zone key (multiple zone remote) 5 times on the remote. The light blinks 5 times means all matched remotes were deleted.
Input and Output
Input Voltage: DC12-48V
Output Voltage: 5*DC12-48V
Input Current: 30.5A
Output Current: 6A/CH @12/24V, 4A/CH @36/48V
Output Type: Constant voltage
Input Signal:RF 2.4GHz+Push Dim
Control Distant:30m(Barrier-free space)
Dimming Level: 4096(2^12) levels
Dimming Range: 0 -100%
Dimming Curve: Logarithmic
PWM Frequency: 500Hz
Warranty and Protection
Warranty: 5 years
Protection: Reverse Polarity/Short circuit/Over heat
Safety and EMC
EMC Standard (EMC): EN301 489,EN 62479
Safety Standard(LVD): EN60950
Radio Equipment(RED): EN300 328
