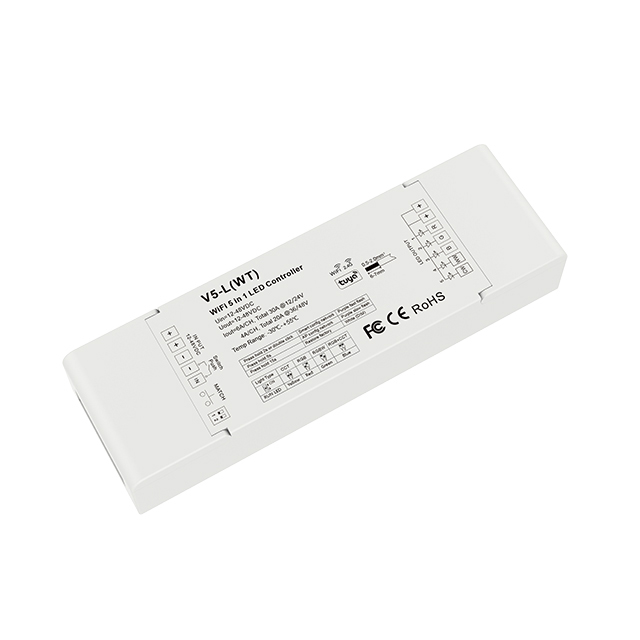

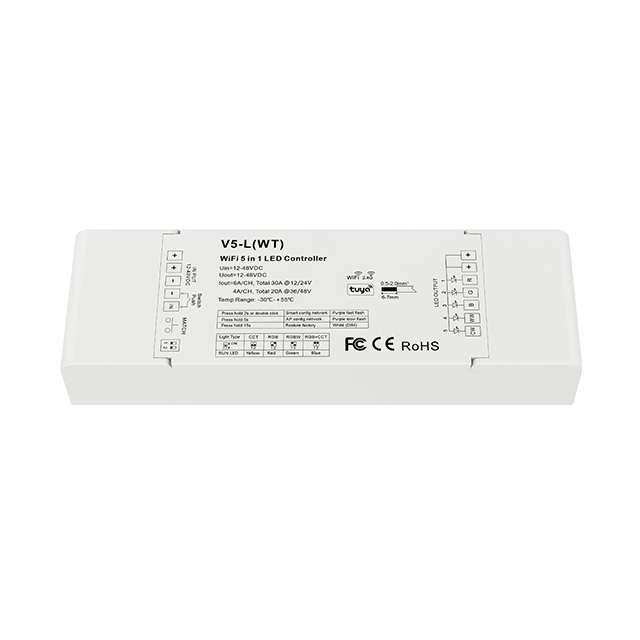

V5-L(WT) WiFi & RF Tuya Push Dimming 5 in1 LED Controller Amazon ECHO Voice Control
- $50.00 $32.9834% off
- $170.00 $109.9835% off
- $60.00 $39.9833% off
- $45.00 $22.9849% off
- $80.00 $64.9819% off
- $29.98 $14.9850% off
● 5 in 1 function, used for control RGB, RGBW, RGB+CCT, color temperature or single color LED strip.
● DC12-48V input, 5 channel constant voltage output.
● Tuya APP cloud control, support on/off, RGB color, color temperature and brightness adjust, delay turn on/off light, timer run, scene edit and music play function.
● Voice control, support amazon ECHO and TmallGenie smart speaker.
● Match with RF 2.4G remote control optional.
● Users need set light to type by pressing key before the Tuya APP network connection and matching RF remote of the same light type.
● Each V5-L(WT) controller can also work as a WiFi-RF converter, then use Tuya APP to control one or more RF LED controllers or RF LED dimming drivers synchronously.
● PWM frequency 500Hz, 2000Hz, 8000Hz or 16000Hz selectable.
● Light on/off fade time 3s selectable.

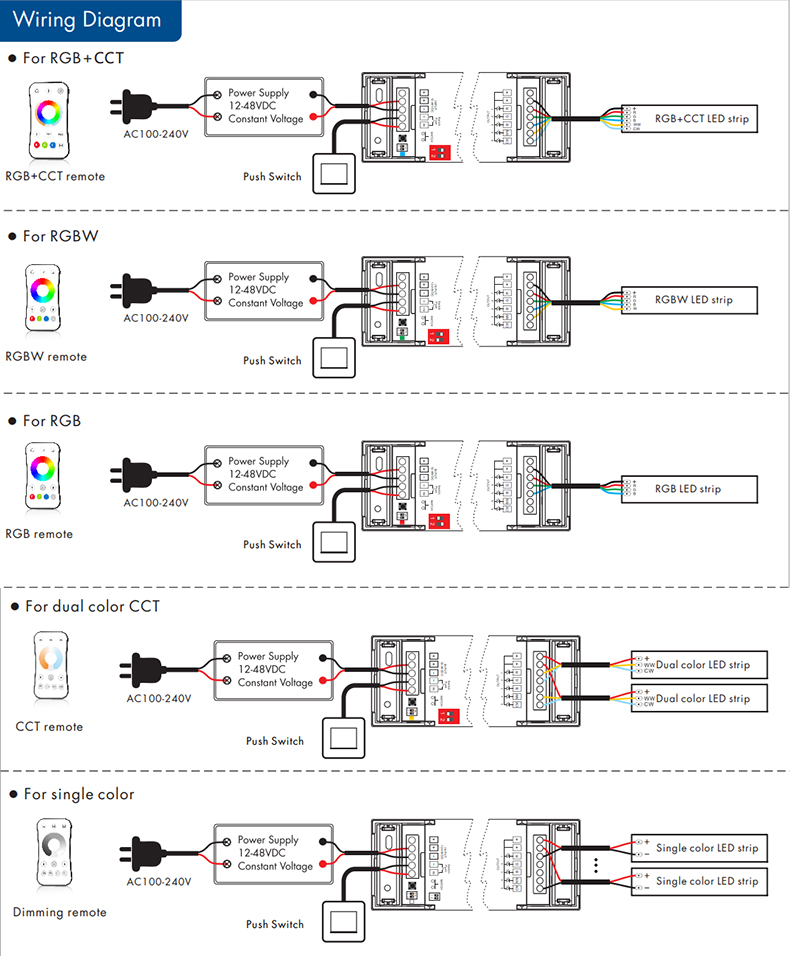

● Connect with external push switch to achieve on/off and 0-100% dimming function.
Input and Output
Input Voltage: DC12-48V
Output Voltage: 5*DC12-48V
Input Current: 30.5A
Output Current: 6A/CH @12/24V, 4A/CH @36/48V
Output Type: Constant voltage
Input Signal: Tuya APP + RF 2.4GHz + Push Dim
Control Distant:30m(Barrier-free space)
Dimming Level: 4096(2^12) levels
Dimming Range: 0 -100%
Dimming Curve: Logarithmic
PWM Frequency: 500Hz
Warranty and Protection
Warranty: 5 years
Protection: Reverse Polarity/Short circuit/Over heat
Safety and EMC
EMC Standard (EMC): EN301 489,EN 62479
Safety Standard(LVD): EN60950
Radio Equipment(RED): EN300 328
