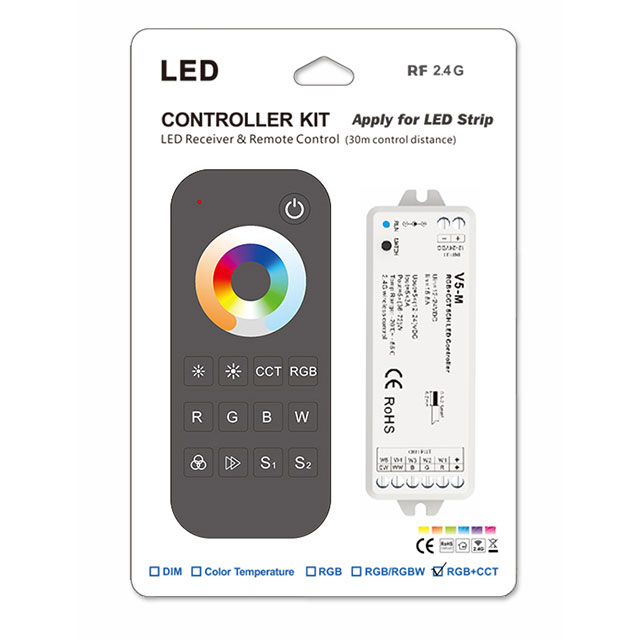

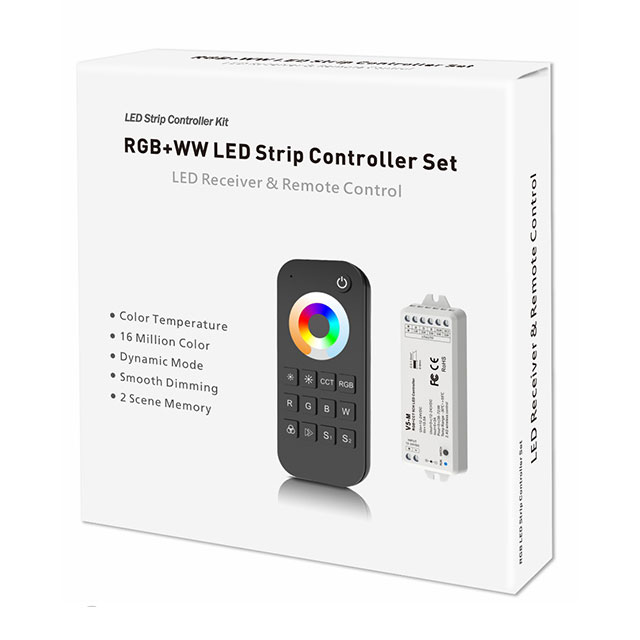

RGB+CCT LED Strip Controller Kit, choose this kit for your 12-volt or 24-volt RGBCCT LED strip light. RF wireless signal remotely controls LED lights.
5 channels constant voltage/Touch color wheel /Step-less dimming /Wireless remote 30m distance.
● Mini-style controller with 5-channel constant voltage output.
● Ultra-sensitive color adjustment touch wheel.
● Smooth dimming and switch without any flickering.
● Built-in 10 dynamic modes, including jump or gradual change style.
● Independent dimming function of each R, G, B, W channel to achieve millions of colors.
● 2 scene memory.
● Auto-transmitting function: Controller automatically transmits signal to another controller with a 30m control distance.
● Synchronize on multiple controllers.
● Light on/off fade time 3s selectable.
Standards and Certifications
|Output voltage:||5 x (12-24)VDC|
|Output Type:||Constant Voltage|

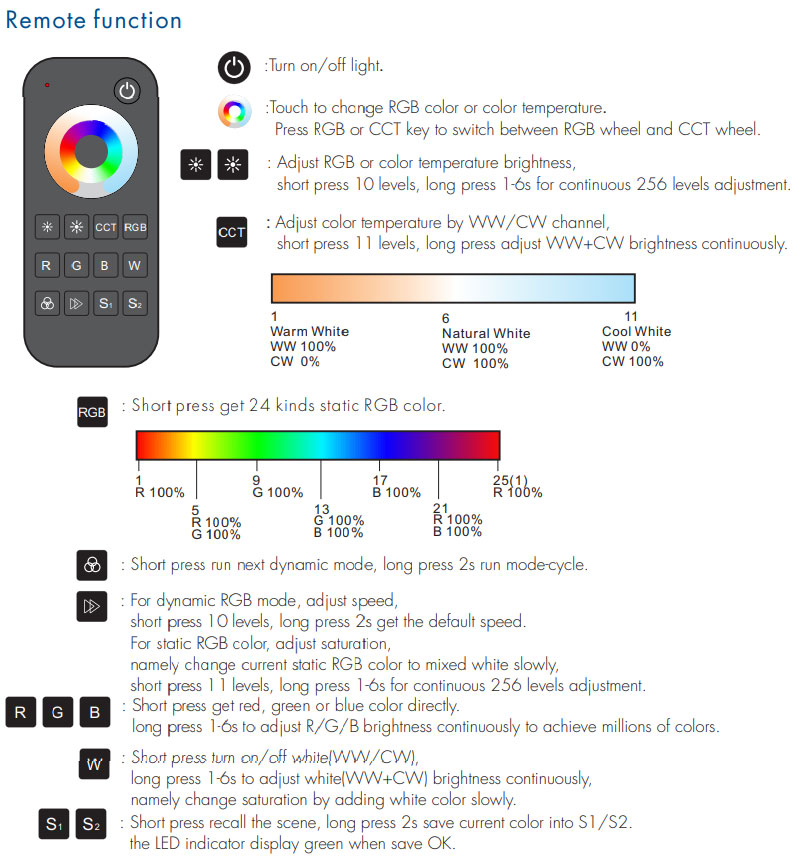

* When turn on light, the indicator display blue. when turn off light, the indicator display red.
* When touch the color wheel, the indicator will display the same color.
* When press or touch operation is invalid (If the light is off), the indicator display red.
* To extend battery life, no touch or press key operation after a few seconds, the touch wheel will enter sleep state, you need press any key to make touch wheel quit sleep state.
Light on/off fade time
Long press match key 5s, then short press match key 3 times, the light on/off time will be set to 3s, the indicator light blink 3 times.
Long press match key 10s, restore factory default parameter, the light on/off time also restore to 0.5s.
