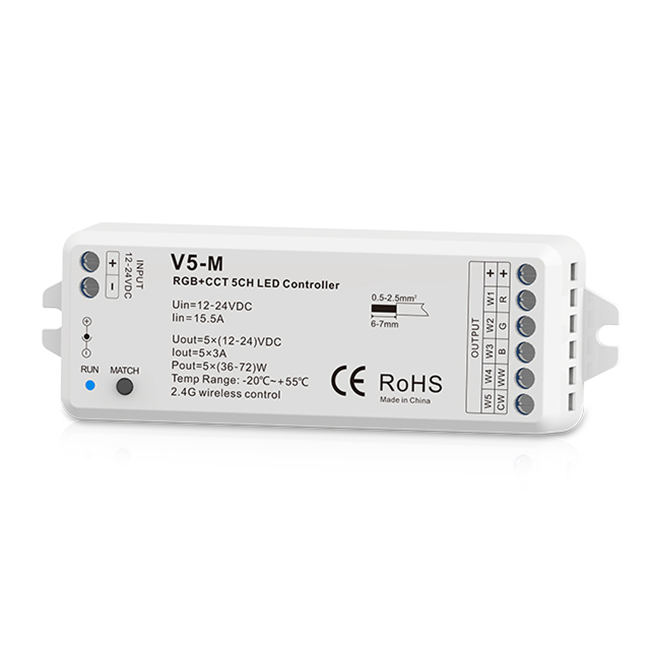

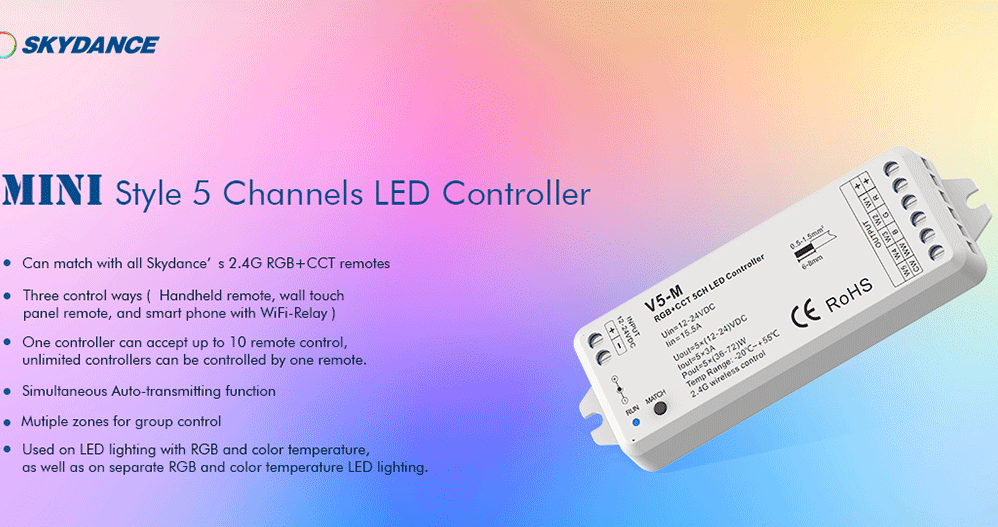

DC12-24V 5CH 3A Constant Voltage RF 2.4G LED controller V5-M For led strip light bar
Mini style LED controller with DC power socket input and 5 channel constant voltage output.
Full compatibility with a variety of RGB+CCT remote.
Smooth dimming and switch without any flickering.

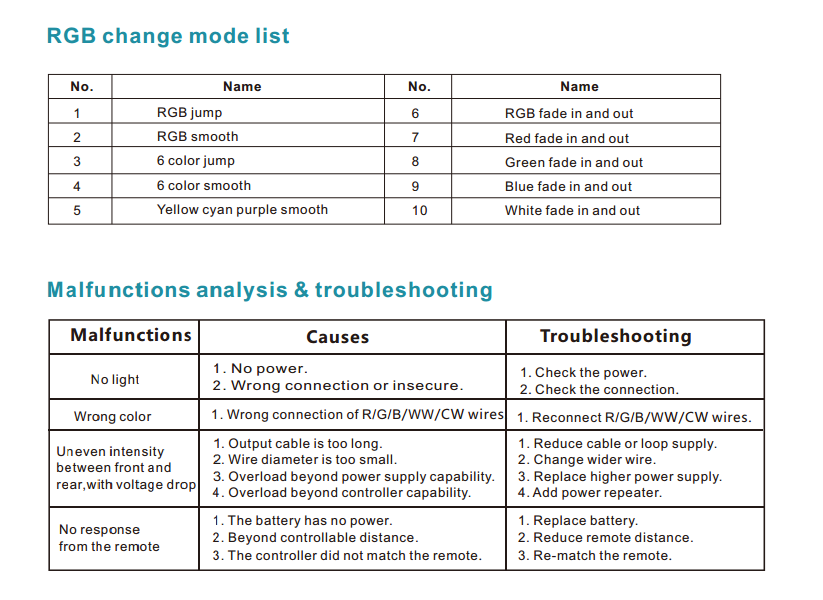

Built in 10 RGB change mode, include jump or gradual change style, adjustable speed.

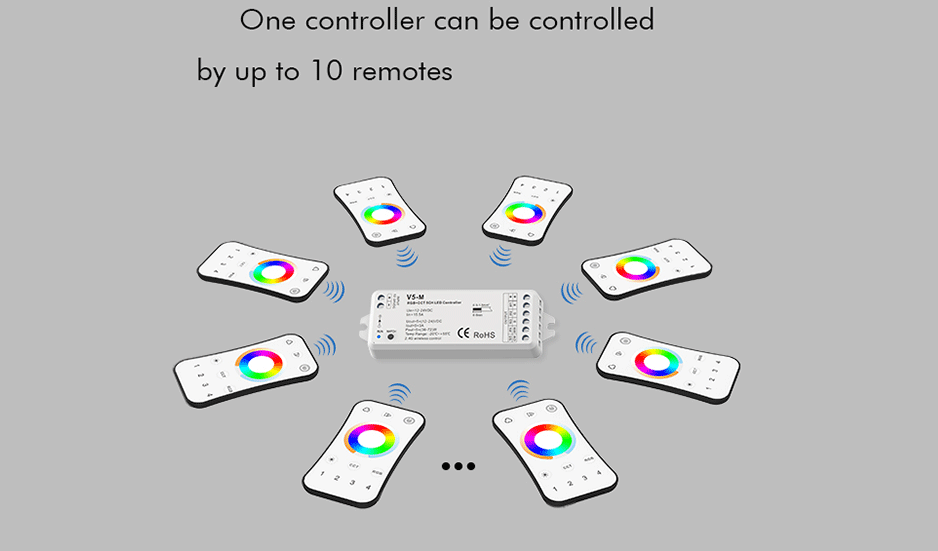

Adopt 2.4GHz wireless technology, remote distance up to 30m, can accept up to 10 remote control.

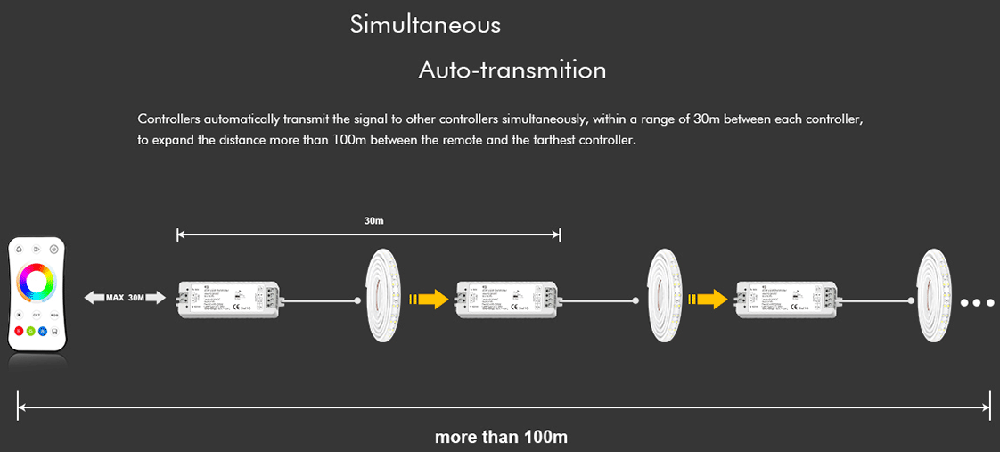

Auto-transmitting function, one receiver can transmit the signal from the remote to another receiver within 15m, so the remote control distance can be beyond 100m.

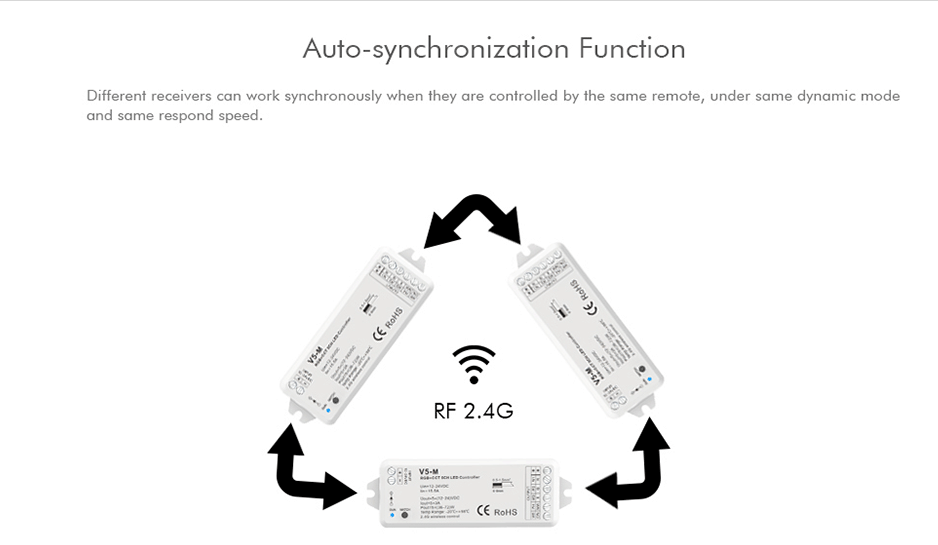

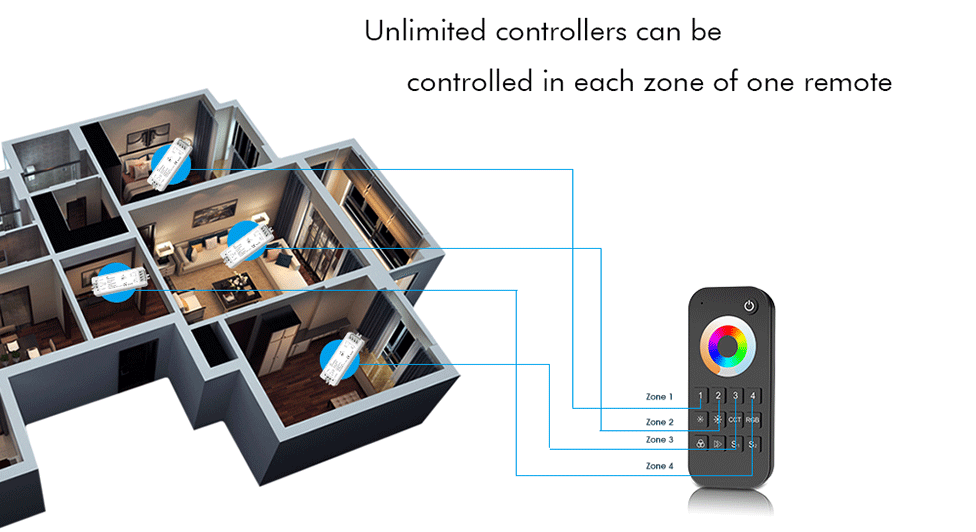

Auto-synchronization function, different receivers can work synchronously when they are controlled by the same remote, under same dynamic mode and same speed.

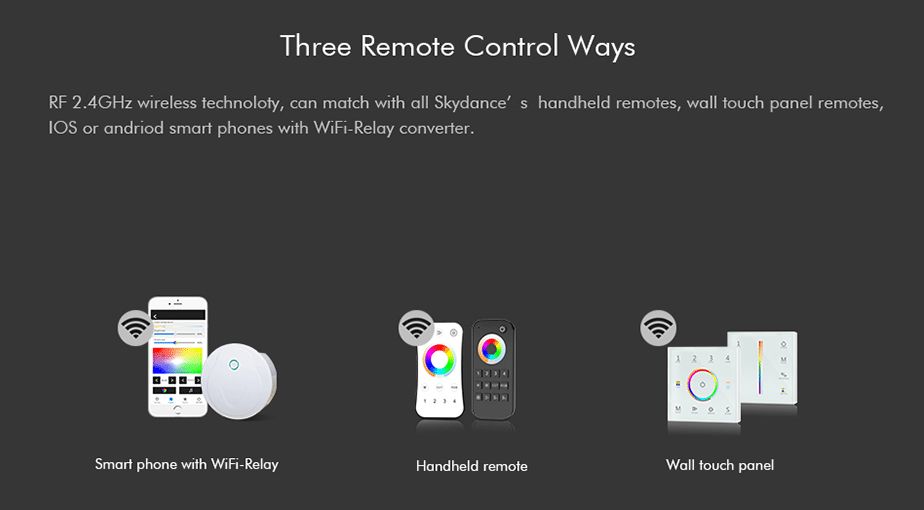

Can be WiFi controlled by APP installed on IOS or Android mobile devices while working with WiFi-Relay controller.
User can customize own RGB change mode list by APP for advanced function.
Work with power repeater to expand output unlimitedly.
Standards and Certifications
Input voltage: 12-24VDC
Output type: PWM constant voltage
Output current: 5CH, 3A/CH, Total max 15A
Output power: 180-360W
Grey levels: 4096/CH
Dimming range: 0-100%
Remote distance: 30m
Working temperature: -30℃~55℃

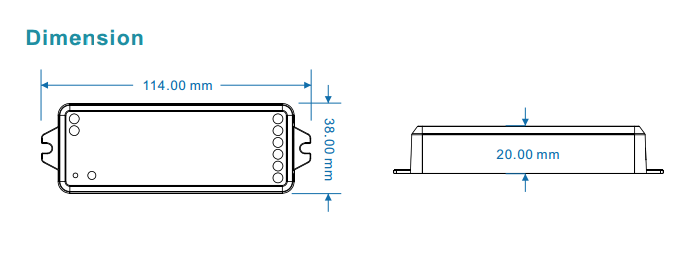

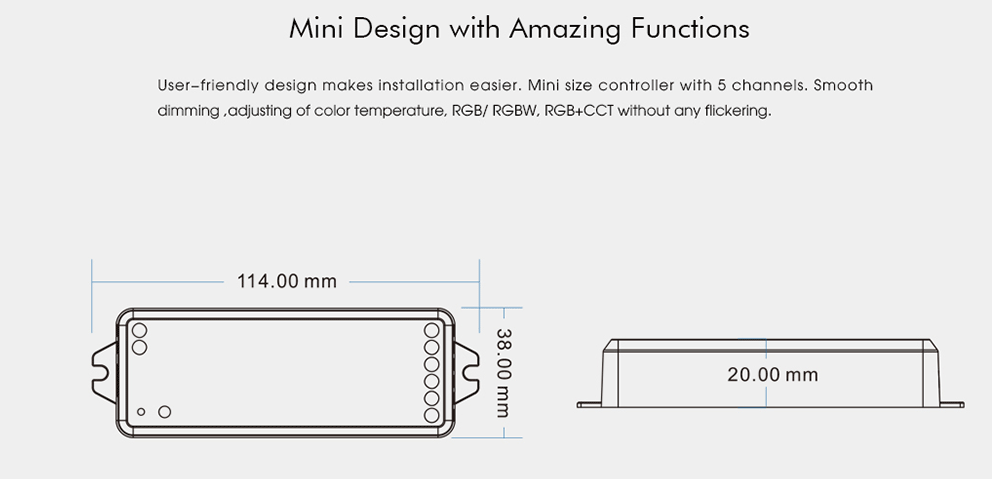

Product size: L114×W38×H20mm
Net weight: 53g
