DC5V WS2813 (Upgraded WS2812B) Breakpoint-continue 150 LEDs Individually Addressable Digital Strip Lights (Dual Signal Wires), Waterproof Dream Color Programmable 5050 RGB Flexible LED Ribbon Light, 5m/16.4ft.
1. Dual-signal wires version, signal break-point continuous transmission. If one led is damaged, it will not affect the other LEDs working
2. Individually addressable: Every 1 IC control 1 LEDs, every LED can be individually addressable and show any color you want. The strip can be cut off between every one LED without damaging the rest strip if you want it to shorten or lengthen, also can be re-connect by provided connectors
3. Waterproof IP67: the ribbon light is covered with a silicone protective sleeve, which can protect it well and makes it easy to clean
4. Wide compatibility. Works great with Arduino, Adafruit NeoPixel Library, Fast LED library, and Raspberry Pi, etc.
5. One IC controls one LED to form a loop. The controller controls the circuit in the FPCB through the control IC to control the different effects of the LED light bar changes; such as flashing, chasing, jumping, clockwise racing, counterclockwise racing, Monochrome horse racing, color-changing horse racing, single chase from beginning to end, running water, simulated lightning, etc.; the change effect of this light bar is not limited to the 94 effects built in the controller at present, and you can write it yourself according to customer needs; arrange it into a screen The form can be displayed, text, letters, pictures, animation, etc.
6. This product uses high-quality high-brightness SMD 5050 LED. It has the characteristics of low power consumption, low heat generation, no glare, and impact resistance.
7. The color can be adjusted by the remote control according to customer needs.
8. The light bar has a long life, low power consumption, low voltage DC 5V power supply, environmental protection, and safety.
9. Cutting and welding are convenient and free: each group of LEDs can form a loop, which can be arbitrarily cut along the upper tangent and welded to meet the needs of various light strip lengths required by customers.
10. Soft: The soft FPCB board is used as the substrate, which can be docked, bent, cut, and fixed on the uneven surface at will.
11. Light and thin: suitable for installation in a narrow space, with breakpoint resuming function, damage to one or more points without affecting the normal operation of other points.
WS2813 Chips Specifications Download
Standards and Certifications
Input Voltage: 5V DC
LED Quantity: 30LED/m, total 150 LEDs
LED Resource: 5050 SMD RGB
Colors: Full-color RGB, dream color changing
IC Type: WS2813 IC
Q'ty of IC: 30 IC/meter (1 IC drives 1 led chip)
Dimensions: L500cm(196.8 in ) x W1.0cm(0.39 in ) x H0.25cm(0.10 in )
Beam Angle: 120 degrees
Waterproof: NON-waterproof; IP65；IP67

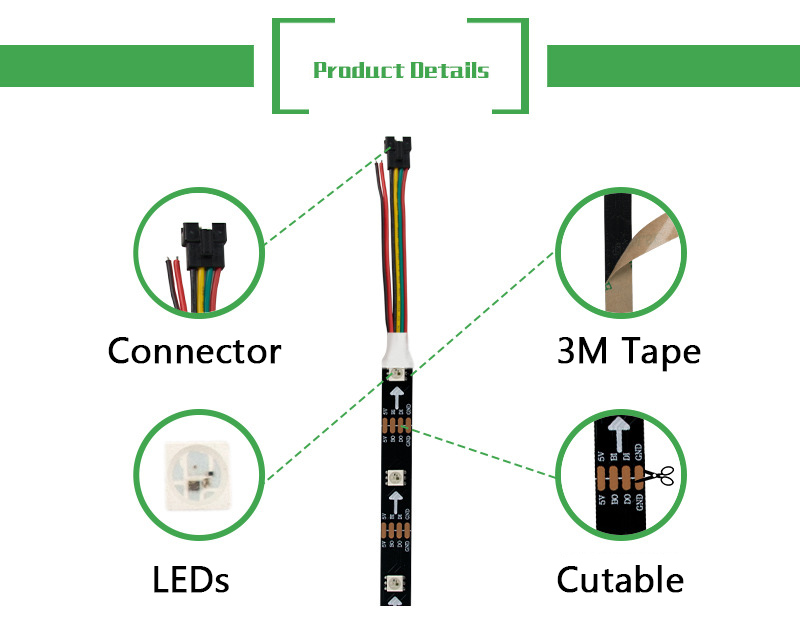

Cuttable: Every one LED is cuttable
The control circuit and RGB chip are integrated into 5050 components, to form an external control pixel
Using the built-in signal reshaping circuit to achieve the signal waveform shaping, and no distortion of the waveform of the signal takes place.
Refresh Frequency updates to 2 KHz. It supports the lower frequency and inexpensive MCU.
Any two points the distance less than 3m transmission signal without any increase circuit
The data transfer protocol uses a single NZR communication mode. Every pixel adopts auto-reshaping transmit technology, making the pixel cascade numbers are not limited to the signal transmission, only relate to the speed of signal transmission.
The BIN receives the data signal, which ensures that any the IC's damage does not affect the signal cascade transmission and make the BIN in the state of receiving signal until the restart after power-off.
Waterproof Level Description
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);
IP65 Waterproof (Epoxy cover waterproof, Epoxy Resin, PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor) ;
IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);

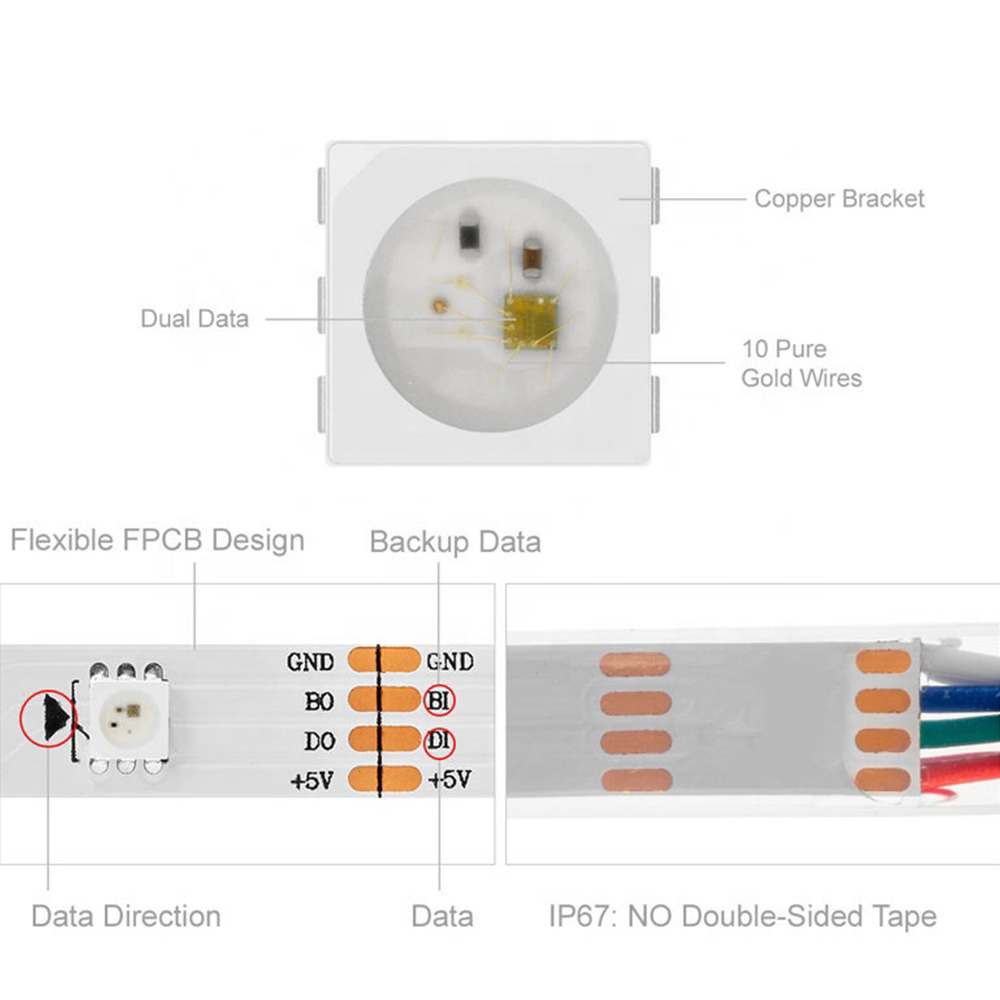

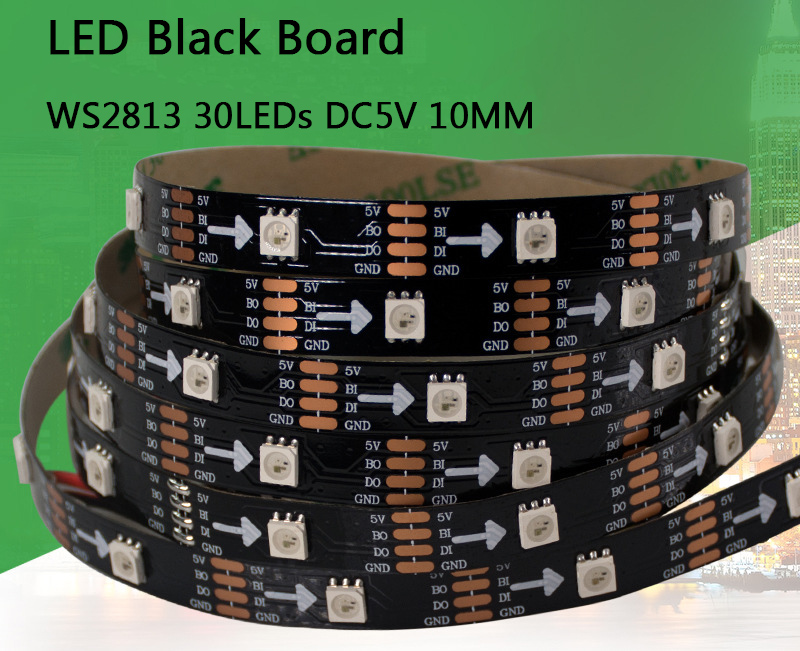

DO: Control data signal output
DI: Control data signal input
BO: Backup control data signal output
BI: a Backup control data signal input
GND: Data &Power Grounding

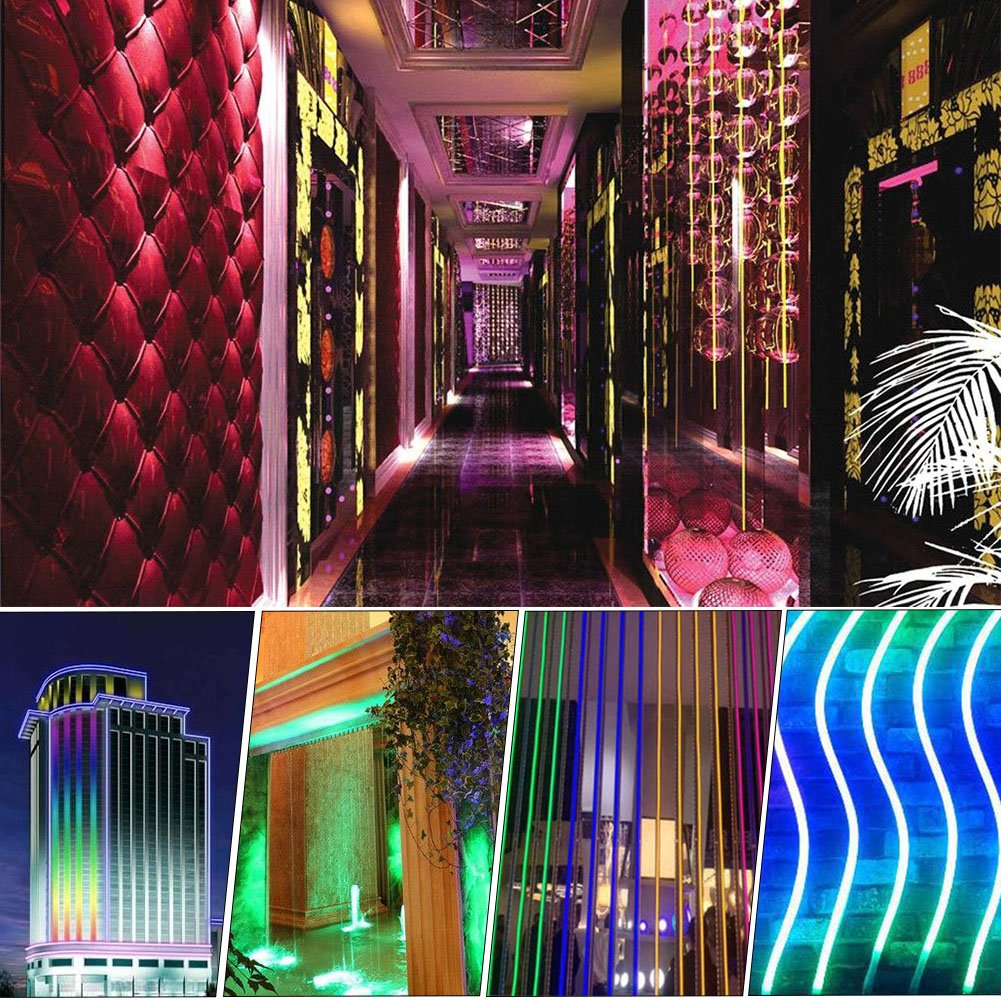

These digital Addressable LED Strips are Applicable to people who would like to pursue fashion and romance, for individual creativity and the new apartment decoration, as its soft, light and thin features very suitable for DIY personal space.
LED programmable digital screen
Hotels decoration lighting
Concealed lighting, Cove decoration
led wall, advertising board
Outdoor advertising signs,
Hotel, KTV, bars,
Wedding party lighting,
The BLACK ARROWS on the strip tell the transmitting direction of the signal. When running more than one roll of the strip after the Dream Color Controller, the following rolls of Dream Color Strip should be run strictly follow the Arrow point direction. If connected oppositely, the strip will not work
