DC5V CS2803 (Upgraded WS2812B) 5050SMD RGB, Breakpoint-continue, 300 LEDs Individually Addressable Digital Strip Lights, Waterproof Dream Color Programmable Flexible LED Ribbon Light, 5m/16.4ft per Roll

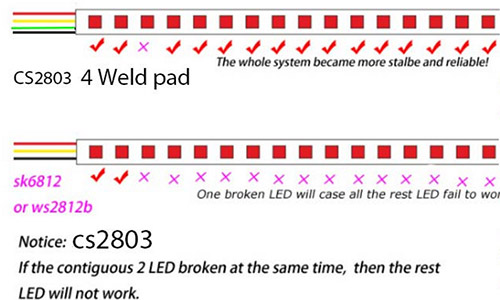

1. CS2803 LED chip has two data signals, one is DI, the other is BI, so when you use those LED chips to make LED strips, one LED disconnection will not affect LED unless the two LEDs in a row are broken, so CS2803 LED is more reliable in making digital LED projects .
2. CS2803 LED chip is controled by IC, each LED can be individually addressable, enabling a new lighting possibilities.
3. CS2803 is superior to WS2812b,SK6812,WS2813.
4. Each lamp bead forms a ring, which can be arbitrarily cut according to the length of the ring without damaging other convenient fixed and stall parts. Flexible cutting operation makes the structure simple, ultra-thin design, low-temperature light source, and the selection ofthe auxiliary material more flexible, installation energy-saving installation,lower heat, higher brightness, cleaner, lower energy consumptionand and more beautiful.
5. Adopt the chip of international leading manufacturer, brightness is high and the angle is wide, consistent color and stable performance.
6. with the DC5V power supply, the protection ratinglevel is more secure: IP20 IP65 IP67, no-radiation,wide range of use, strong impact resistance, multi-color , it is a completely new generation of green high-tech products.
Standards and Certifications
Input voltage: DC5V
Power: 18watt/meter, 90watt/roll
LED Chip Model: SMD 5050 RGB
LED resource: CS2803 LED
IC Type: CS2803 IC (1 IC drives 1 led chip)
Q'ty of LED: 60leds/meter Available
Q'ty of IC: 60 pixel/meter
Cuttable: every LED is cuttable
Dimensions: L500cm(196.85 in ) x W1.0cm(0.39 in ) x H0.25cm(0.1 in )

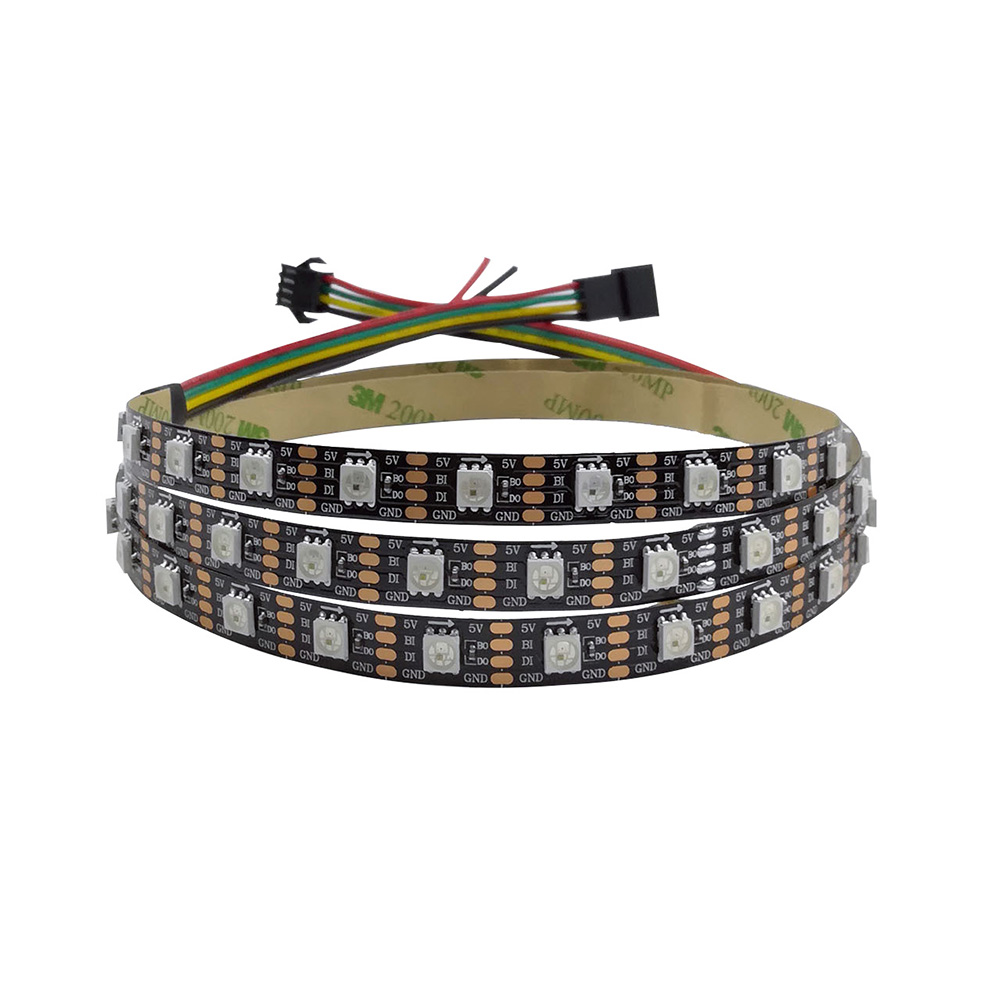

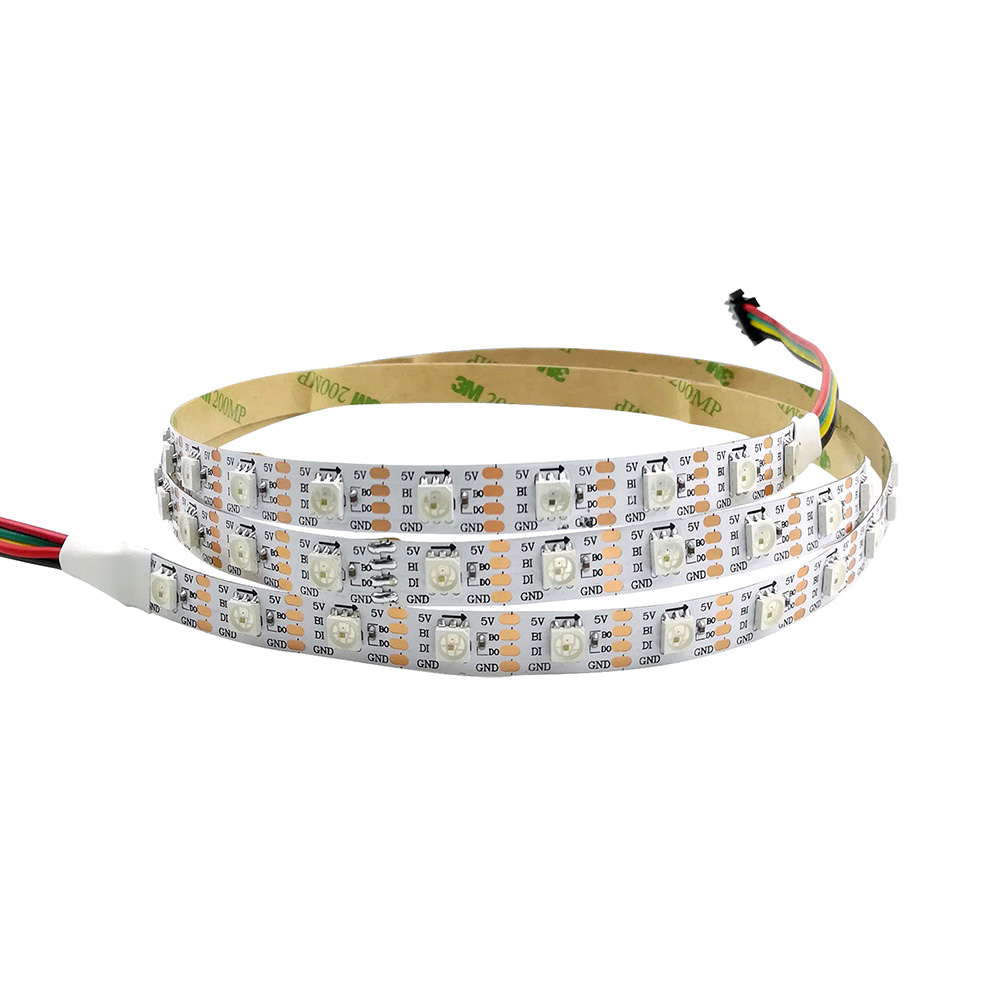

PCB color: WHITE/BLANK Available
Protection rate: Non-waterproof or IP 65( gel coating) IP67 waterproof (sealed in silicone tube)
Colors: Full color RGB, dream color changing;
Grey scale: 256
Bits/color: 8-bits/color;total 24bit for RGB color
Average Life (hrs): 50000Hours+
Beam Angle: 120 degrees
Waterproof Level Description
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);
IP65 Waterproof (Epoxy cover waterproof, PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor);
IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);

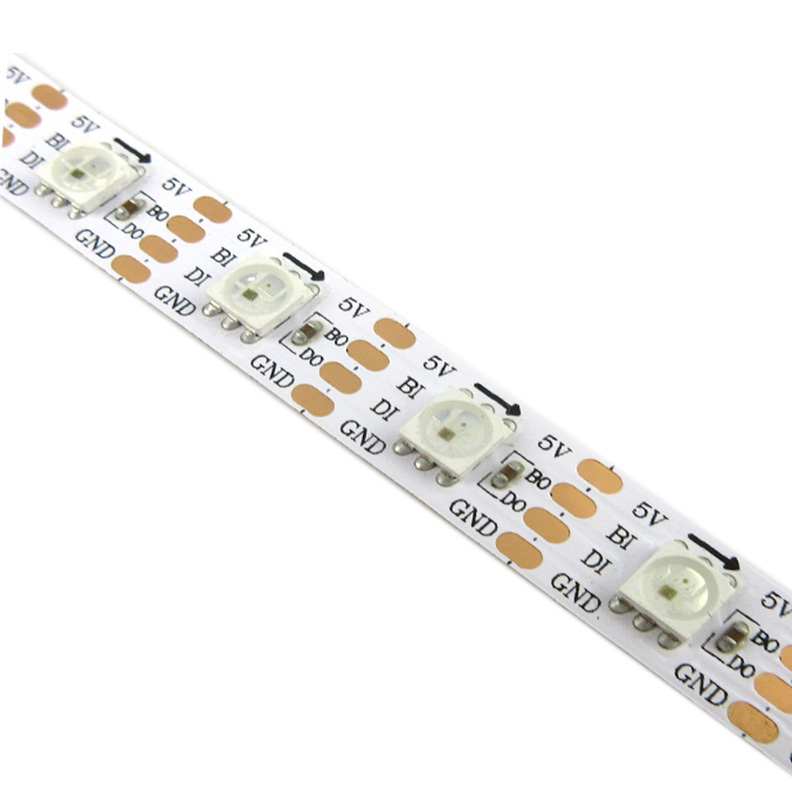

DO: Control data signal output
DI: Control data signal input
BO: Backup control data signal output
BI: a Backup control data signal input
GND: Data &Power Grounding

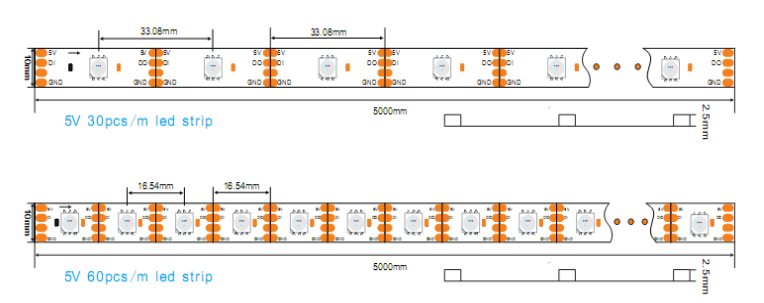

Strip cut schematic
LED strip wiring diagram
These digital Addressable LED Strips are Applicable to people who would like to pursue fashion and romance, for individual creativity and the new apartment decoration, as its soft, light and thin features very suitable for DIY personal space.
LED programmable digital screen
Hotels decoration lighting
Concealed lighting, Cove decoration
led wall, advertising board
Outdoor advertising signs,
Hotel, KTV, bars,
Wedding party lighting,

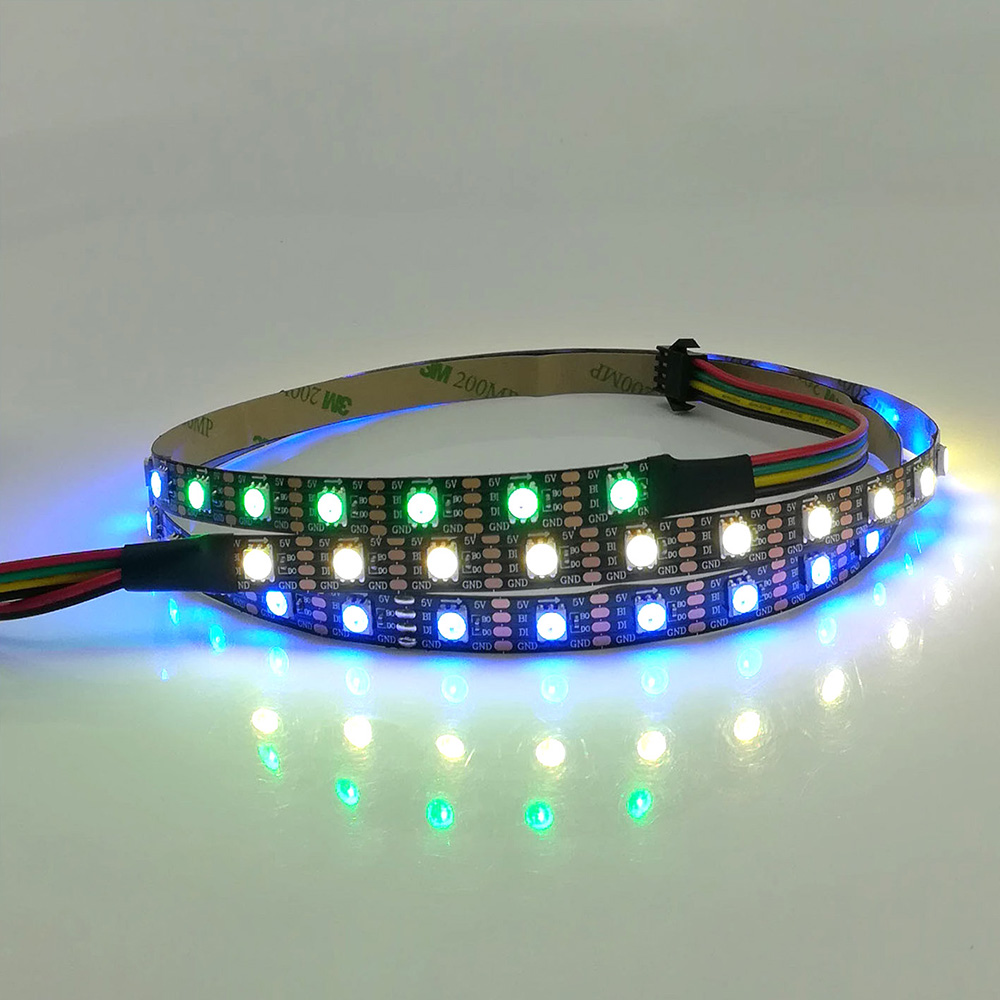

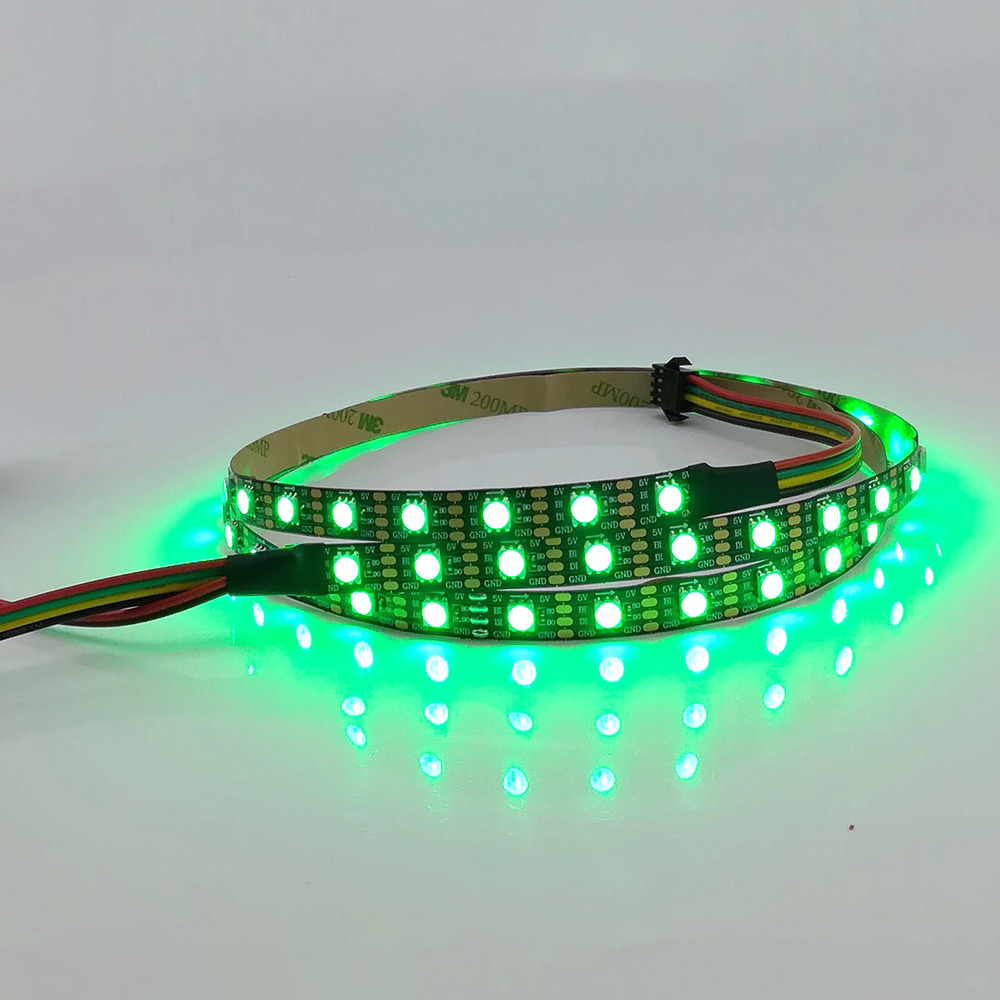

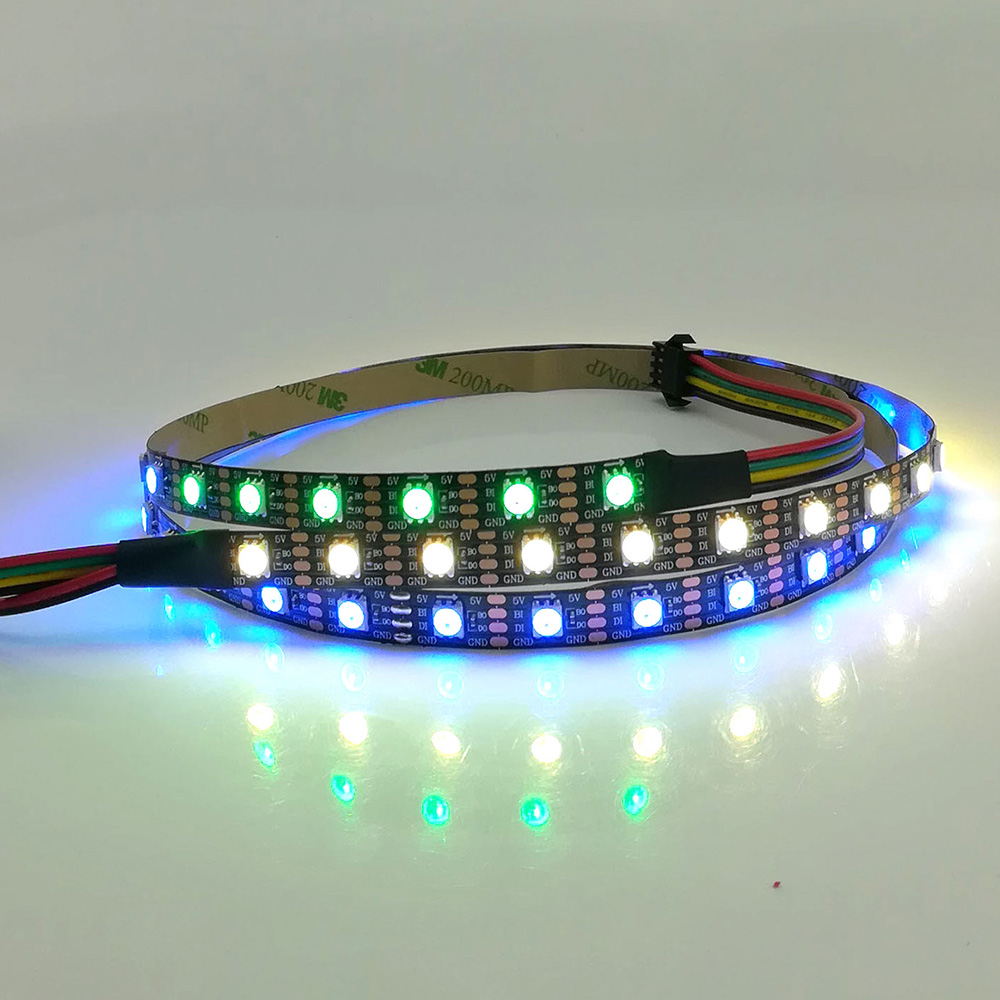

These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
