WS2813 Individually Addressable RGBW 4 in 1 LED Strip Lights - DC5V 300LEDs Breakpoint-continue Flexible LED Tape Light
1. Adopt high bright 5050SMD RGB LED chips combine with the warm white/daylight white LED, built-in WS2813 IC, making the individually addressable RGBW 4 in 1 LED strip light.
2. With serial cascade interface, dual signal wires transmit, the WS2813 full color LED lights can show you the function of breakpoint continue, even if one LED damage, other LEDs still work.
3. The RGBW LED tape lights have intelligent reverse connection protection, if the customers connect the wrong V+ and V- of the DC5V power supply, it won't burn out the LED chips.
4. The data transmission speed can up to 800Kbps, be good at the color consistency of the light, when the refresh rate is 30 frames / second, the number of cascades is not less than 768 points.

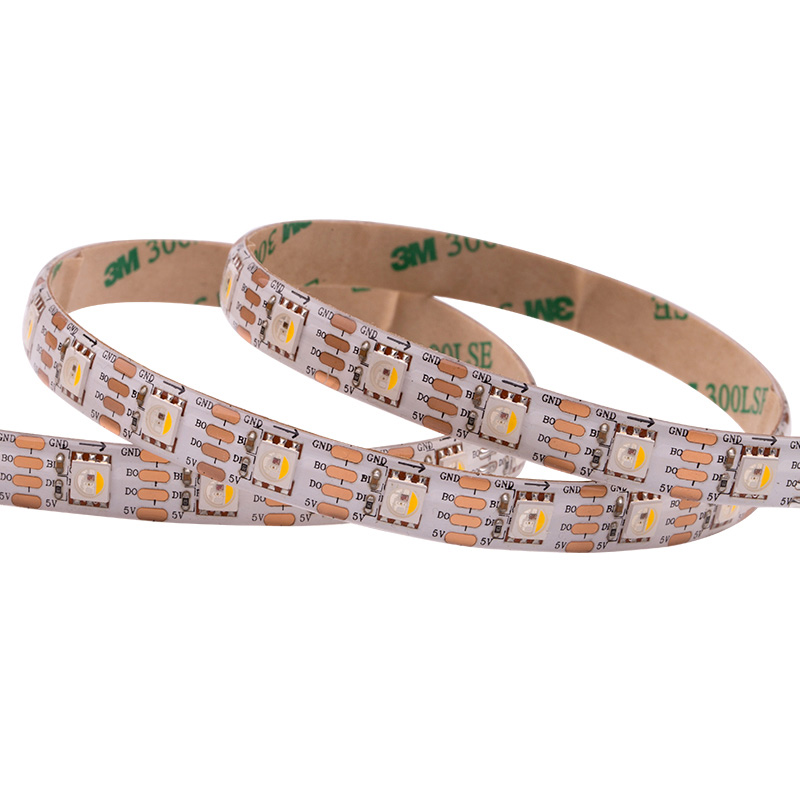

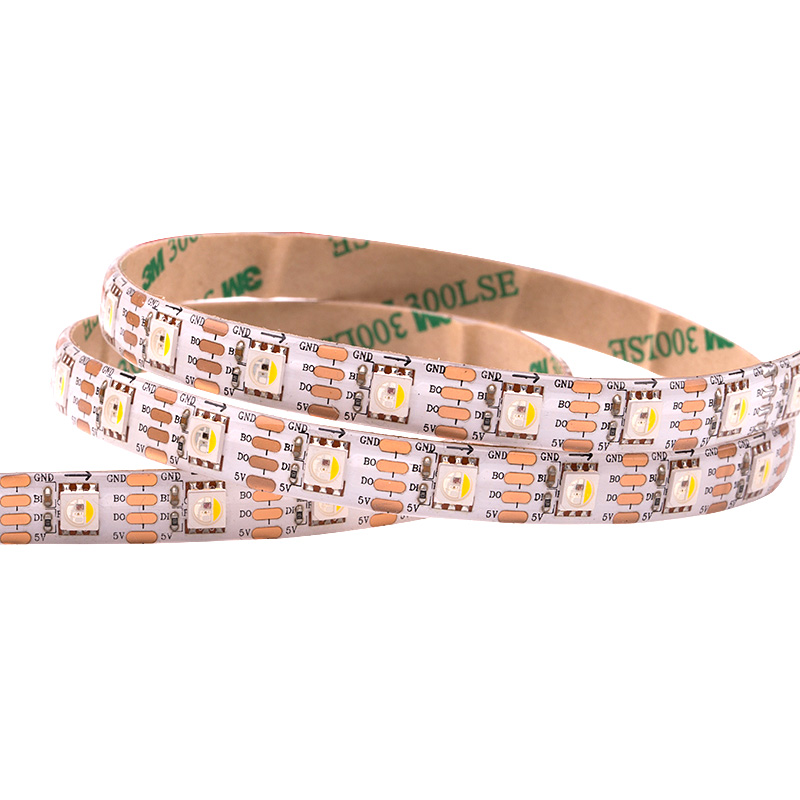

5. DC5V safe voltage, every LED can be cut, flexible and easy to get the length you need. With 3M adhesive backing, convenient to install the lights anywhere( only for IP20, IP65).
Standards and Certifications
Length: 5M / 16.4Ft per roll
Input Voltage: 5V DC
Power: 19.2 W/M, 96 W/Roll
LED Resource: 5050 SMD RGBW
IC Type: WS2813 IC
LED Quantity: 60LED/m, total 300 LEDs
IC Quantity: 60 IC/meter (1 IC drives 1 led chip)

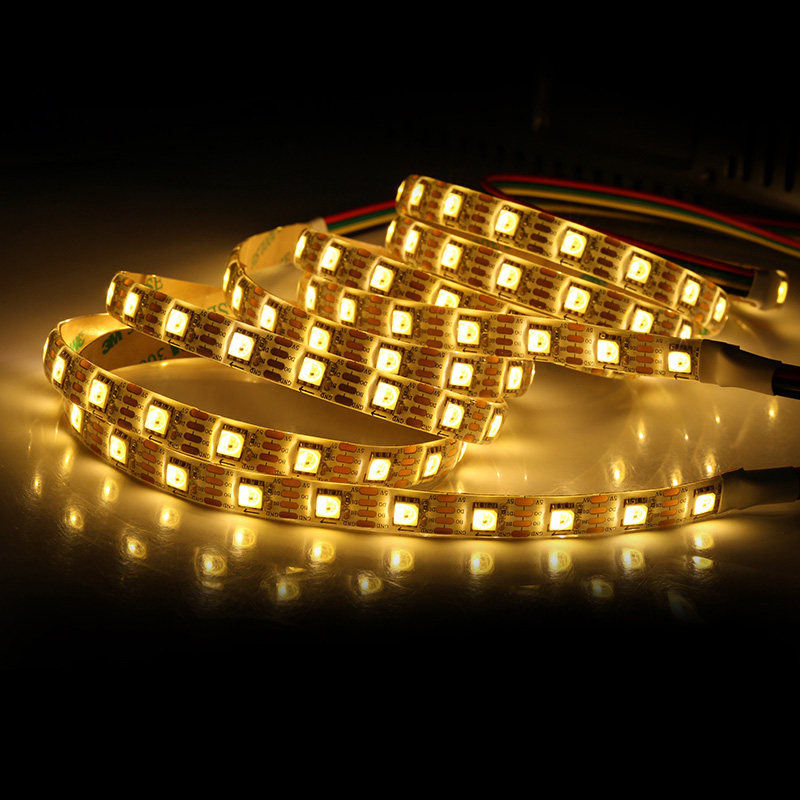

Light Color: RGB + Daylight white, RGB + Warm white

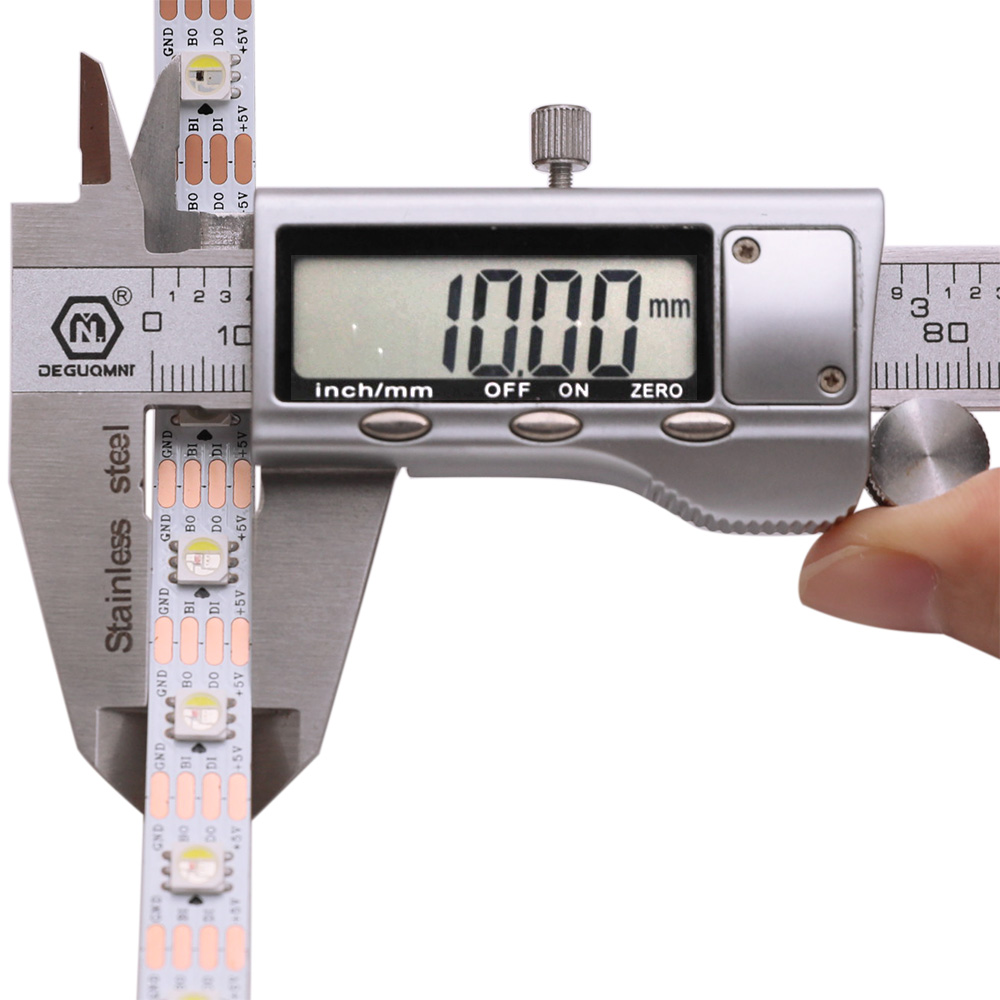

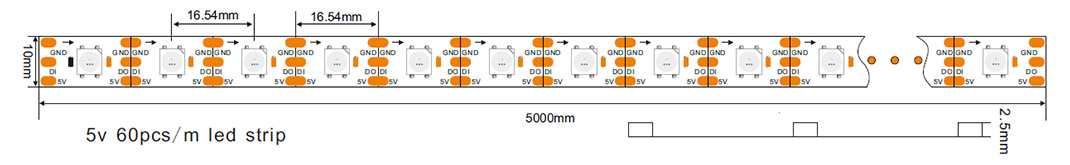

Dimensions: L500cm(196.8 in ) x W1.0cm(0.39 in ) x H0.25cm(0.10 in )
Beam Angle: 120 degrees

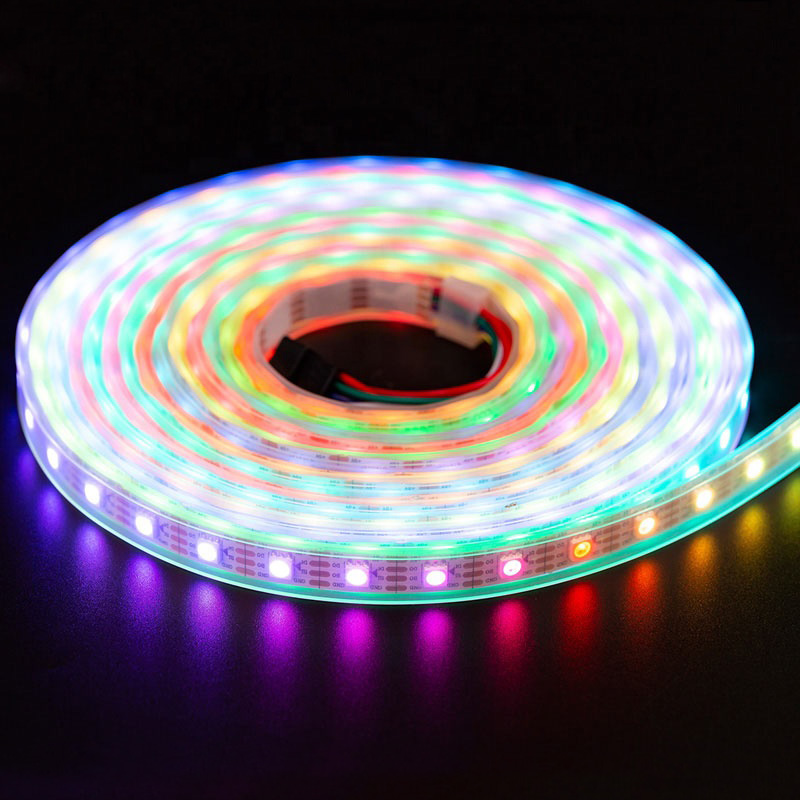

Waterproof: Non-waterproof IP20 or IP 65( gel coating) / IP67 waterproof (sealed in silicone tube) / IP68
Cuttable: Every one LED is cuttable
The control circuit and RGB chip are integrated into 5050 components, to form an external control pixel
Using the built-in signal reshaping circuit to achieve the signal waveform shaping, and no distortion of the waveform of the signal takes place.
Refresh Frequency updates to 2 KHz. It supports the lower frequency and inexpensive MCU.
Any two points the distance less than 3m transmission signal without any increase circuit
The data transfer protocol uses a single NZR communication mode. Every pixel adopts auto-reshaping transmit technology, making the pixel cascade numbers are not limited to the signal transmission, only relate to the speed of signal transmission.
The BIN receives the data signal, which ensures that any the IC's damage does not affect the signal cascade transmission and make the BIN in the state of receiving signal until the restart after power-off.
How to connect and control
The WS2813 led strip has 4 wires for sending data - one V+ pin, one GND pin, and one data pin. That means you need 4 pins to control strip. Because the data is separated, you can use any processor speed or type to control these strips. an addressable RGB LED strip is a long flexible strand of LEDs each of which can be individually set to a certain color (hence: addressable). By varying the level of red, green and blue (RGB) per LED many color combinations can be made you can use any processor speed or type to control these strips, you can use any microcontroller or microprocessor, including Arduino, Raspberry Pi, BeagleBone, Propeller, SparkCore, and any 'raw' microcontrollers/microprocessors to control the strip.
This strip comes as a single full meter with a 4-pin JST SM connector on each end. Every LEDs segment can be cut. Solder to the 0.1" copper pads and you're good to go.you can also connect strips together to make them longer. To power this strip, you need 5V power supply.
This is our recommended SPI and Programmable controller link. We are a professional lighting system company, you can tell us your lighting project requirements, we will recommend the most reasonable lighting solutions for you. If you need a customized lighting scheme, please feel free to contact me.
Waterproof Level Description
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);
IP65 Waterproof (Epoxy cover waterproof, Epoxy Resin, PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor) ;
IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);
IP68 Waterproof (Fully waterproof plastic irrigation, PCB both surface and back are encapsulated with plastic Gel, with a plastic fastener, the top level of waterproof, For Outdoor);
DO: Control data signal output
DI: Control data signal input
BO: Backup control data signal output
BI: a Backup control data signal input
GND: Data &Power Grounding
These digital Addressable LED Strips are Applicable to people who would like to pursue fashion and romance, for individual creativity and the new apartment decoration, as its soft, light and thin features very suitable for DIY personal space.
LED programmable digital screen
Hotels decoration lighting
Concealed lighting, Cove decoration
led wall, advertising board
Outdoor advertising signs,
Hotel, KTV, bars,
Wedding party lighting,
