$6.99 $5.9914% off- Special Price: $9.99 $7.9920% off
The generous internal height of up to 6mm makes it perfect for housing taller components, including high-density 5050 SMD strips or modern COB LED strip lights, allowing you to create a flawlessly smooth and dotless neon effect. Constructed from flexible, food-grade silicone, this IP67-rated channel is durable enough for both intricate indoor signage and demanding outdoor architectural applications.
Key Features

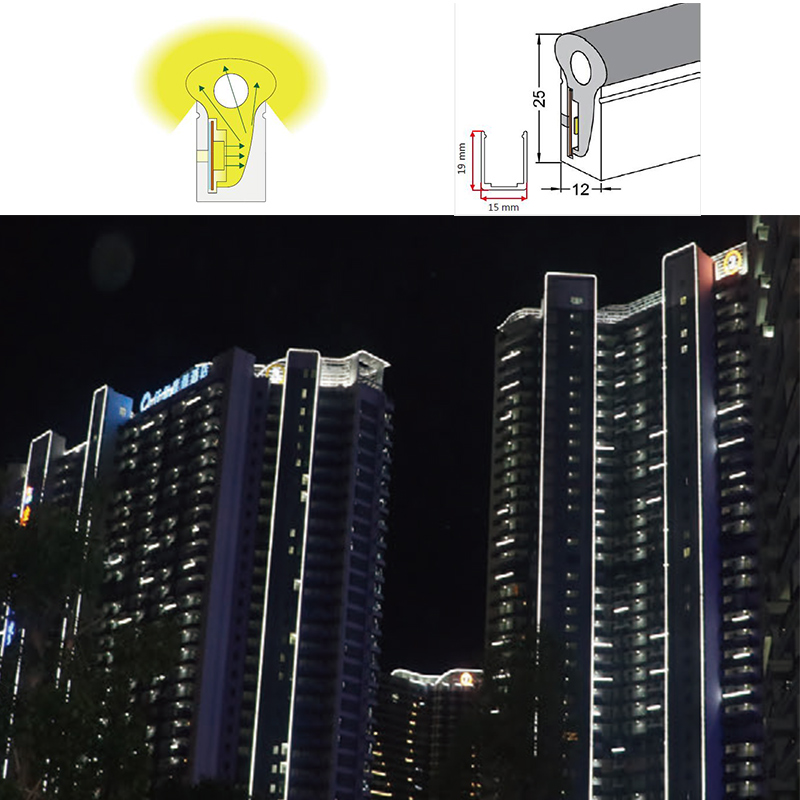

Expansive 270° Side Emission
The unique dome-top design projects light sideways across a massive 270-degree arc, creating a full, wrap-around glow ideal for high-visibility signage and architectural accents.
Spacious Internal Channel
Features an oversized interior that fits LED strips up to 12mm wide and 6mm high, perfect for high-density 5050 strips and ensuring a completely dotless output with COB strips.

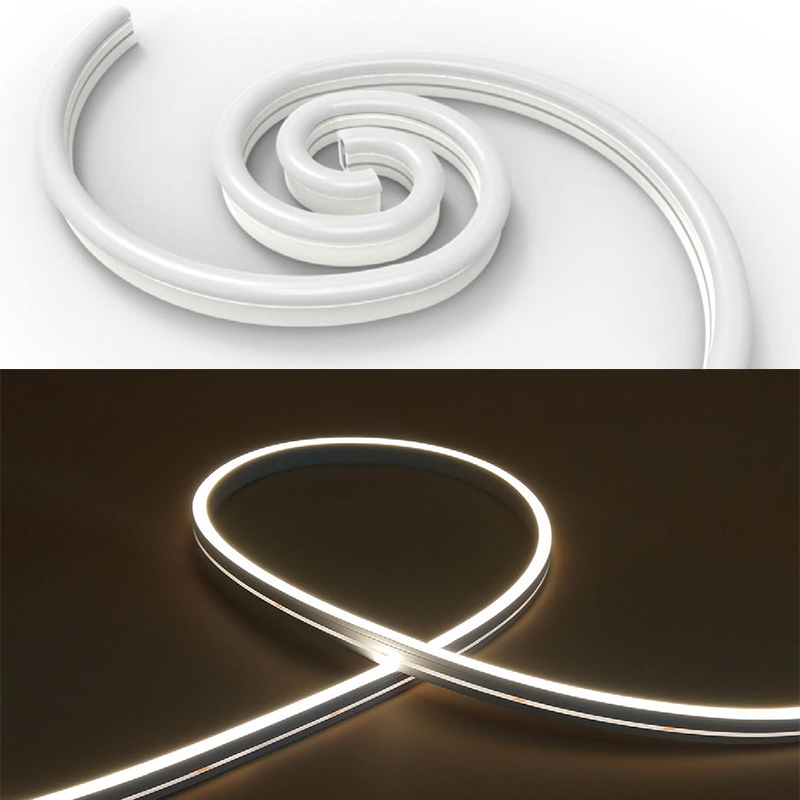

Durable & Flexible Silicone Body
Made from premium food-grade, UV-resistant silicone that remains flexible for easy bending and shaping, and operates reliably in temperatures from -50°C to 200°C without yellowing.
IP67 Weatherproof Protection
When properly sealed with the included end caps, this channel provides excellent protection against dust and water, making it safe for outdoor and damp environment installations.
Technical Highlights
- 270° Dome Top Illumination
- Side-Emitting Light Direction
- Extra Large Interior for COB/5050 Strips
- IP67 Weatherproof Construction
- High-Purity, UV-Resistant Silicone
Product Specifications
| Parameter | Details |
|---|---|
| Model | FLNLT-T1225 |
| Tube Material | Food-grade Silicone |
| Lighting Direction | Side-emitting |
| Beam Angle | 270° |

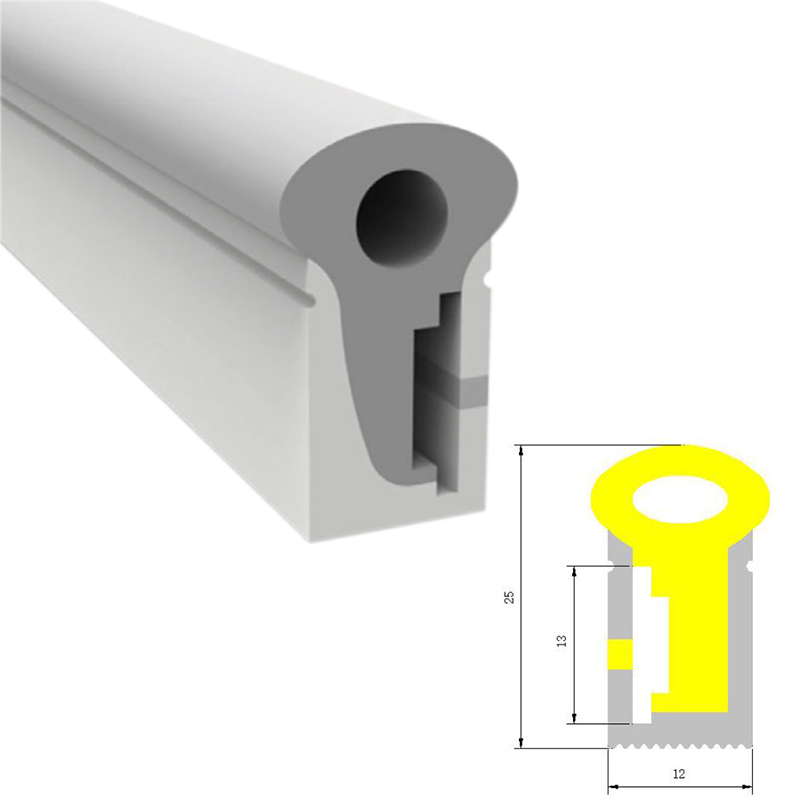

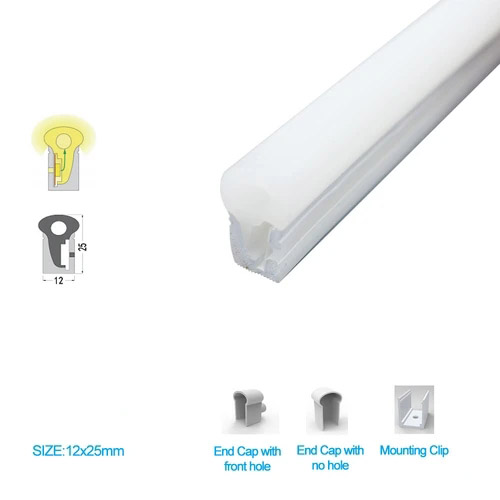

| External Dimensions (W*H) | 12mm x 25mm (0.5" x 1") |
| Maximum LED Strip PCB Width | 12mm / 0.5" |
| Maximum LED Strip Height | 6mm / 0.24" |
| Available Lengths | 1m (3.28ft), 2m (6.56ft), 5m (16.4ft) |
| Waterproof Rating | IP67 |
| UV Resistant | Yes |
| Working Temperature | -50°C to 200°C |
Application Scenarios
- This product is a silicone channel only; LED strip lights are sold separately.
- To achieve the IP67 waterproof rating, end caps must be sealed with silicone adhesive.
- For a detailed guide, please read: How To Put A Flexible LED Strip Light Into A Silicoen Tube?
Frequently Asked Questions
Q: What makes this 270° channel different from other side-emitting channels?
A:This model features a unique dome top that creates an extra-wide 270° beam angle, providing a much broader and more immersive glow compared to standard 120° or 180° channels.
Q: Can I use COB LED strip lights in this channel?
A:Absolutely. This channel was specifically designed with a large internal space (up to 6mm high) to accommodate taller strips like COB, ensuring a perfectly smooth, dot-free neon effect.
Q: What is the maximum width of the LED strip I can use?
A:This channel is designed for LED strip lights with a maximum PCB width of 12mm (0.5 inches).
Q: Is this channel suitable for outdoor use?
A:Yes, it has an IP67 waterproof rating. To ensure full protection, you must properly seal both ends with the included end caps and a suitable silicone sealant.
Q: Does this product include the LED strip?
A:No, this is a silicone channel/diffuser only. You will need to purchase a compatible 12mm LED strip light separately.

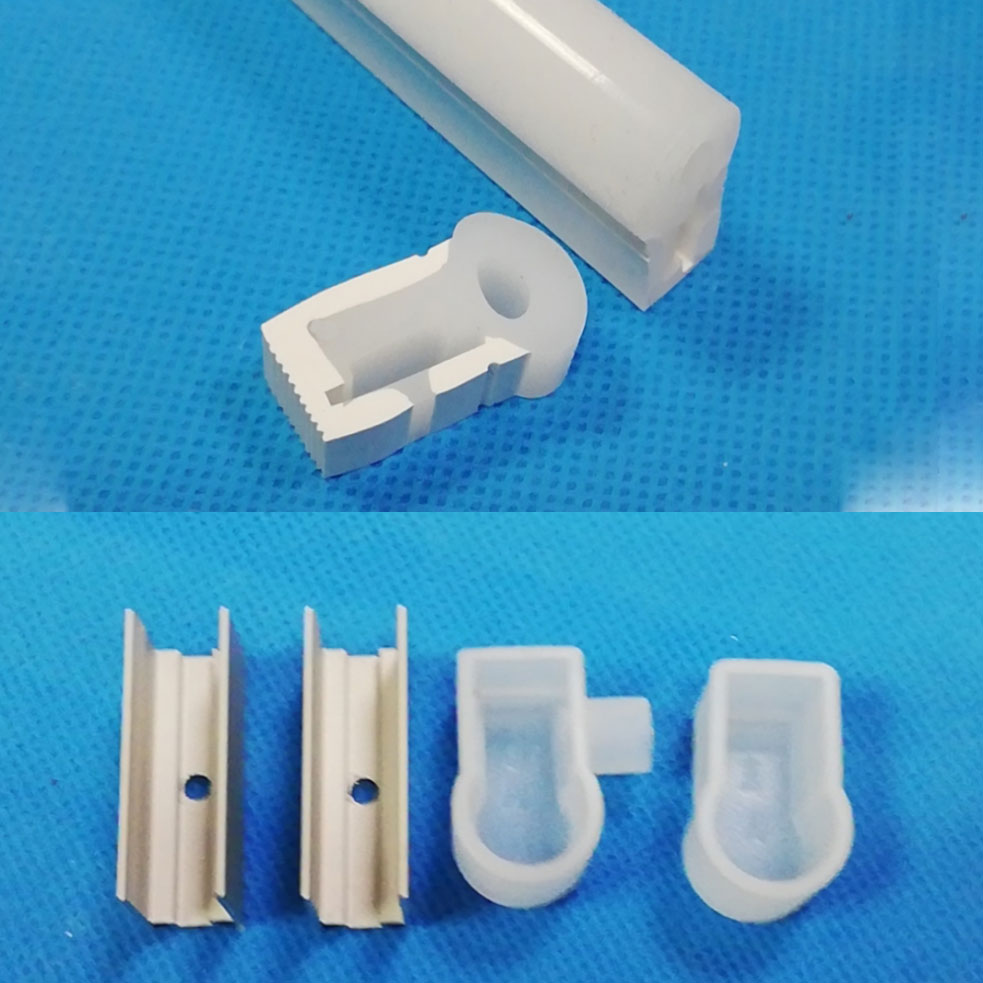

Q: How do I mount this silicone tube?
A:You can secure it using mounting clips, install it within a rigid aluminum channel for straight runs, or use it with flexible profiles for custom curved designs. The clip size is about 15mm*19mm.
Q: What is the advantage of food-grade silicone?
A:Food-grade silicone is a high-purity material that offers excellent durability, heat resistance, and flexibility. It is also UV-resistant, meaning it won't yellow or crack when used outdoors over time.
