4PIN Waterproof Connector Male And Female For RGB LED Strip Lights
4PIN Waterproof Connector... $2.29
4 Pin Waterproof... $2.25
4PIN Waterproof Connector...
4 Pin Waterproof...

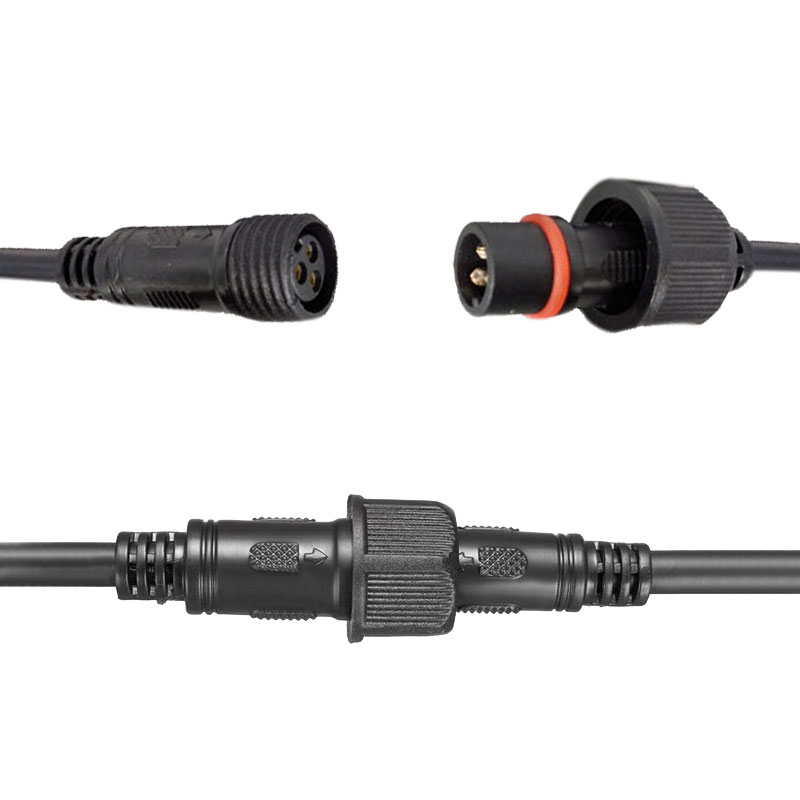

Waterproof connector to connect two IP67/IP68 RGB led strip lights together, or connect the RGB light strip to the RGB controller. The male connector and the female connector is both 20cm long. It can be used with this extension cable.
Note: 4pin only 0.3, 0.5, 0.75 options. 5Pin only 0.3 and 0.5.

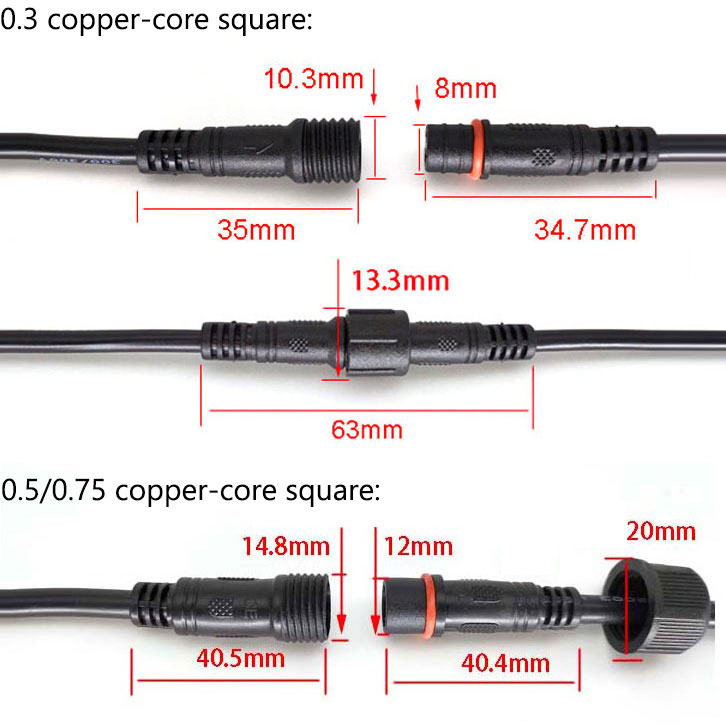

|Copper Wire Square mm||Pins||Cable Diameter||Rated Current||Rated Voltage||220V Reference Wattage|
|0.3||2pin, 3pin, 4pin, 5pin||4.5mm||2.4A||1-300V||500W|
|0.5||2pin, 3pin, 4pin, 5pin||6.4mm||4A||1-500V||800W|
|0.75||2pin, 3pin, 4pin||7mm||6A||1-500V||1300W|
|1.0||2pin, 3pin||6.8mm / 7.2mm||8A||1-500V||1700W|
|2.5||2pin, 3pin||9.4mm / 10mm||20A||1-500V||4400W|
Working Temperature: -20~75°C
Type: Waterproof male and female plug. Waterproof connector.
Wire Core: 4-pin
Wire Length: 20cm, total 40cm
Protection Level: IP67-IP68
