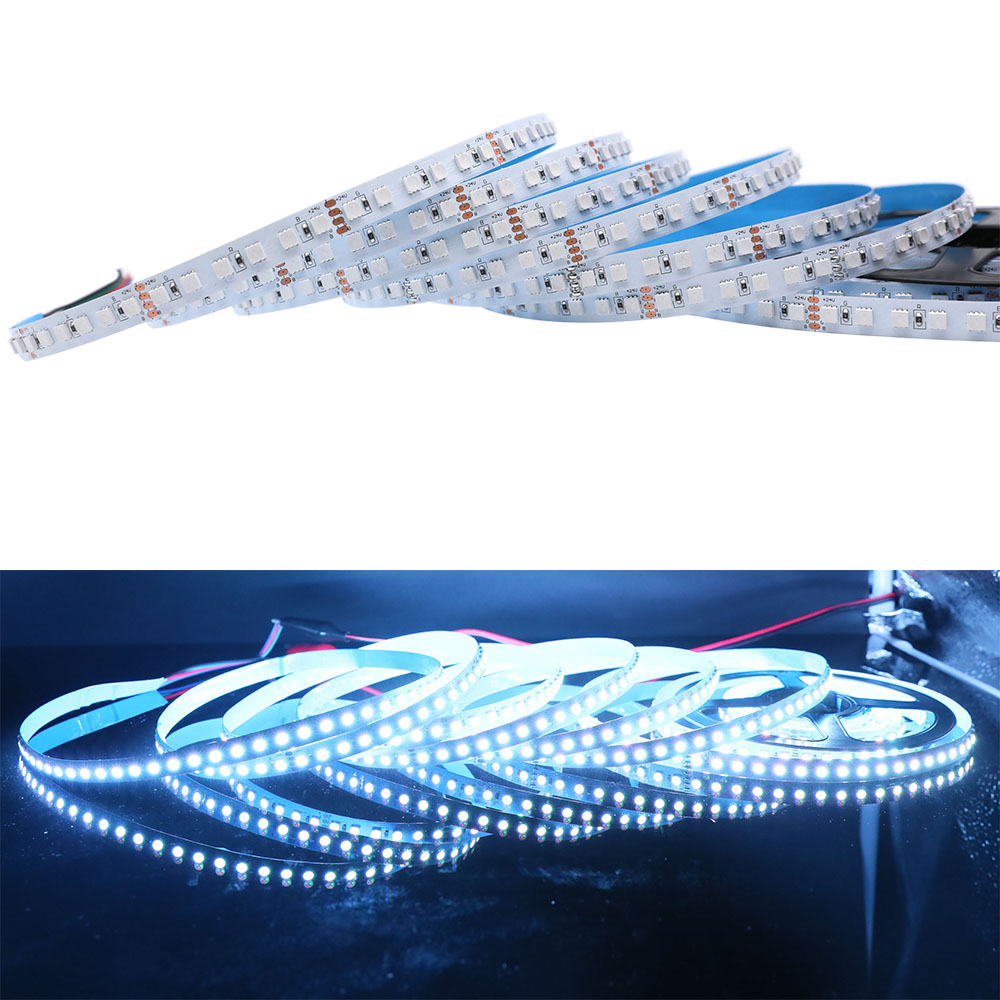

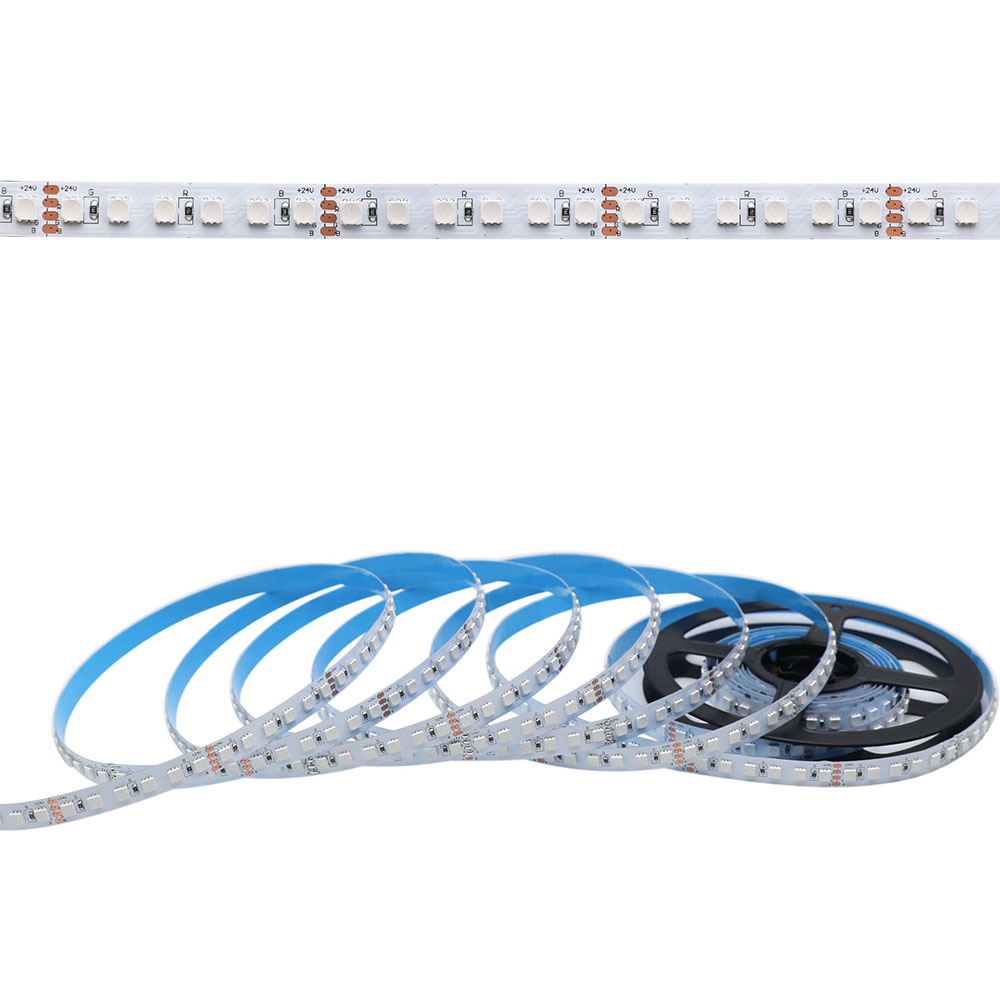

LED color changing RGB light strips use 3-in-1 RGB LEDs, which can display a variety of static colors and dynamic color effects through the control of the RGB controller. You can use mobile APP, remote control, or voice control to change the light colors, brightness, and color modes. It is the best item to use lights to create an entertainment atmosphere or mood lighting. This RGB led strip uses 12V/24V safe low voltage and needs to be driven by an 12V/24V LED power supply.

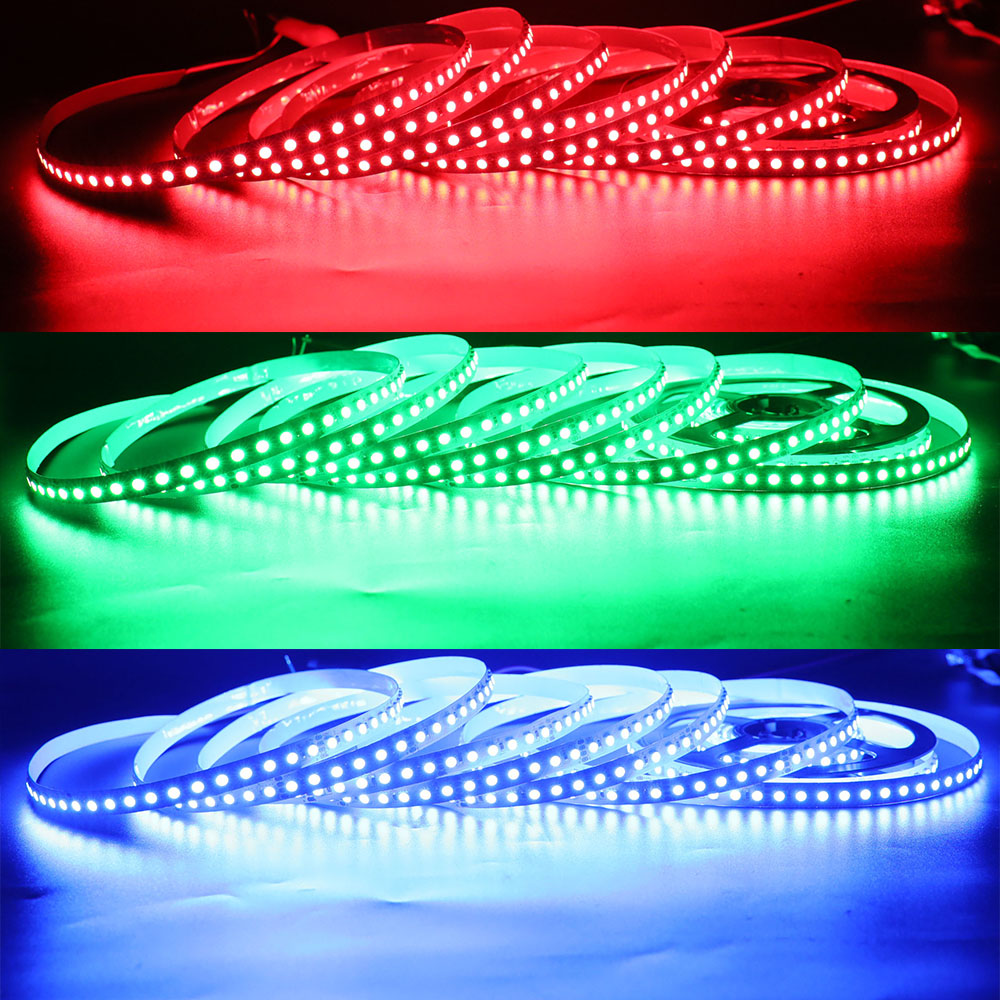

RGB LED Chip 3in1 packaged in the SMD4040 component, multiple RGB colors change
Input voltage is DC12/24V optional, safety and stability
10mm (24V) or 8mm (24V) wide, 120LEDs/m hight density, high brightness
IP20/IP65/IP67/IP68 waterproof ratings for indoor and outdoor lighting

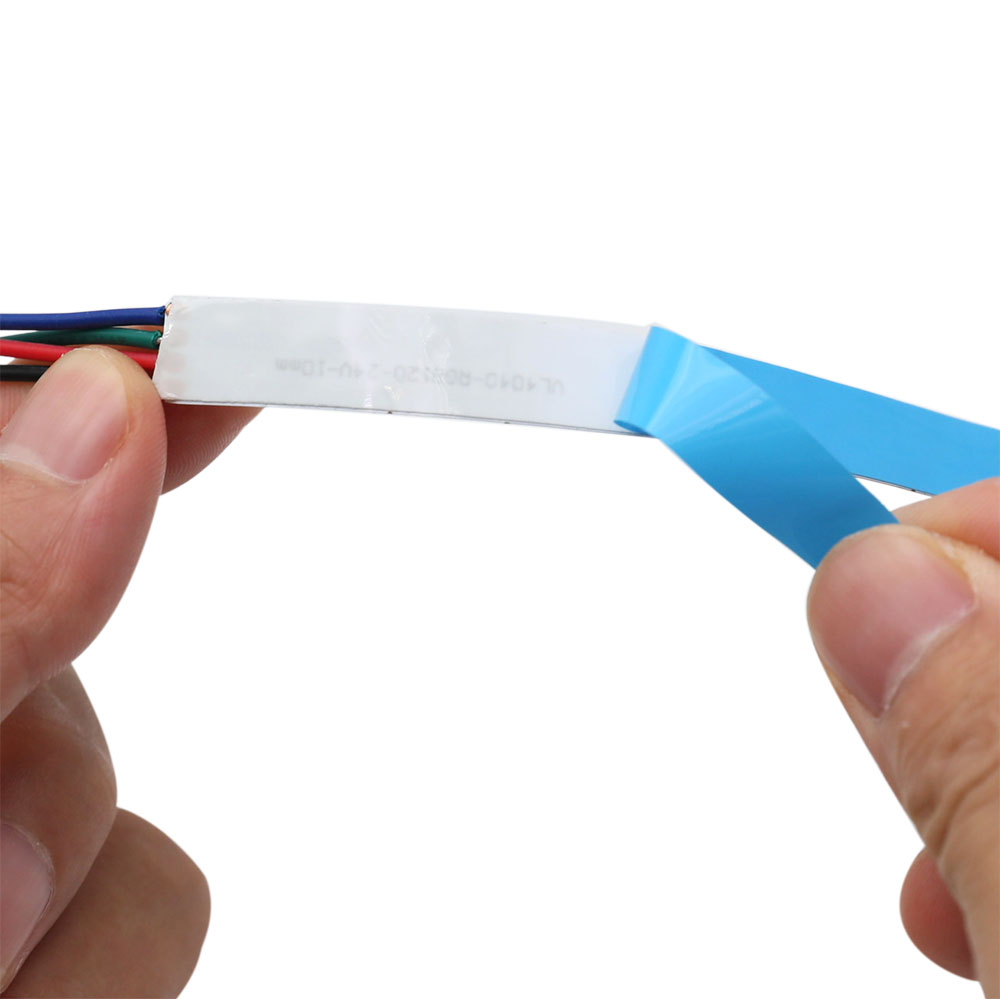

High-quality 3M tape on the back, easy to install
12V RGB LED Strip vs 24V RGB LED Strip:

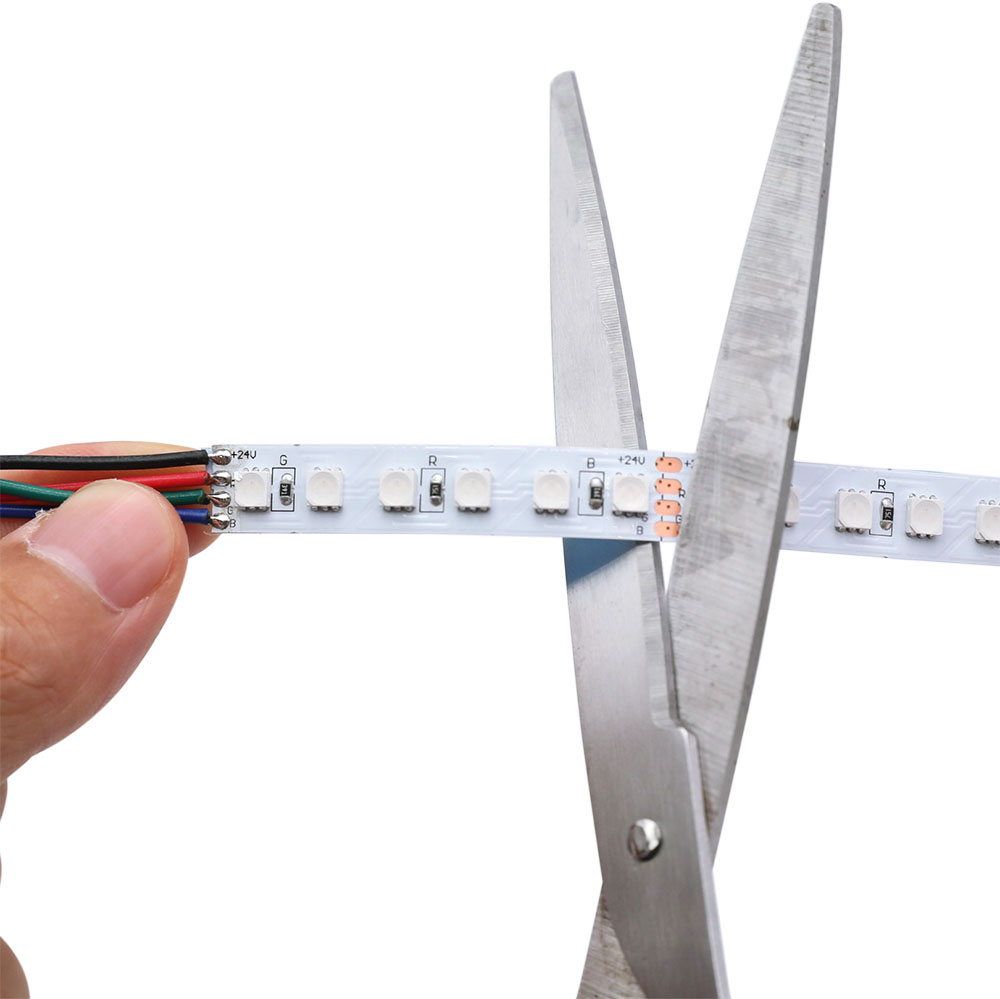

DC12V: 3LEDs cuttable, the min-cut size is 25mm, 5m no voltage drop, more than 5m requires a power supply at both ends

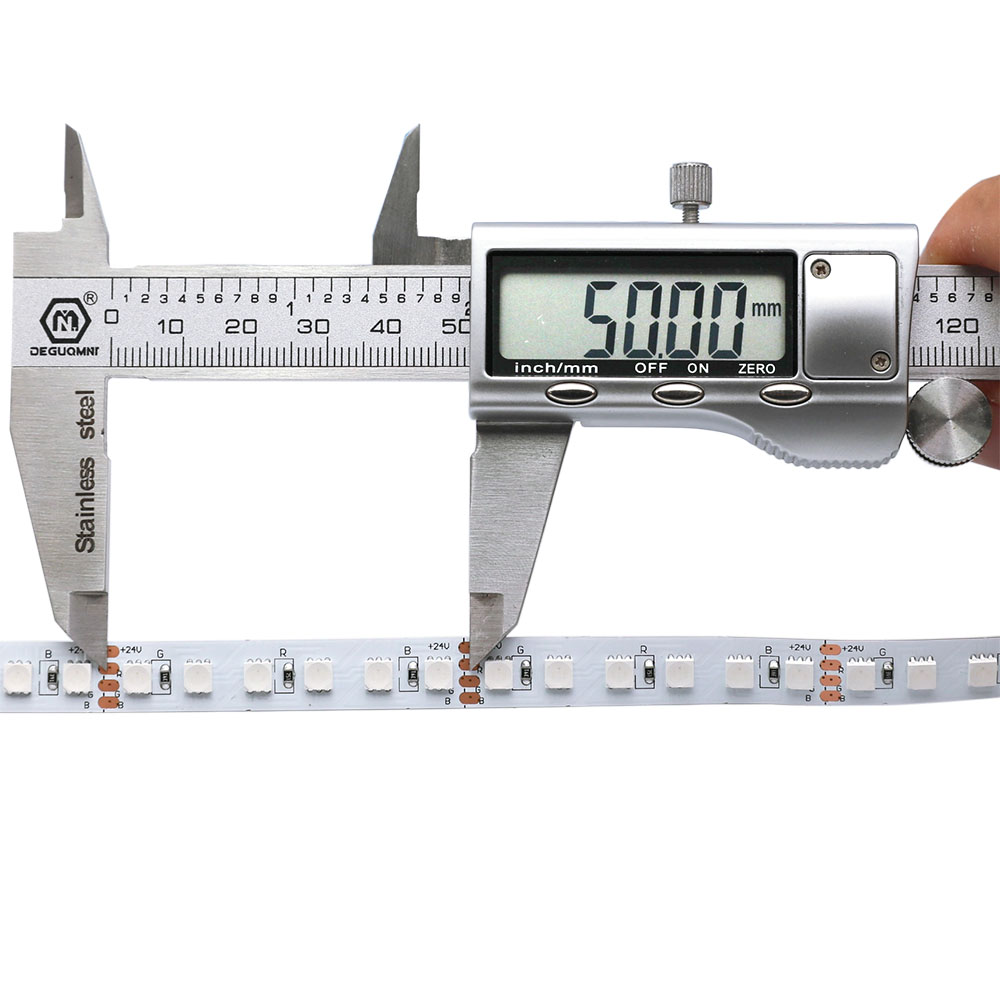

DC24V: 6LEDs cuttable, the min-cut size is 50mm, 10m no voltage drop, more than 10m requires a power supply at both ends
RGB Lighting Kit:
If you choose the LED controller in the kit, we will send you V3-L + R8-1
If you choose the LED power adapter in the kit, we will send you PSPS-12V-96W and PSPS-24V-96W

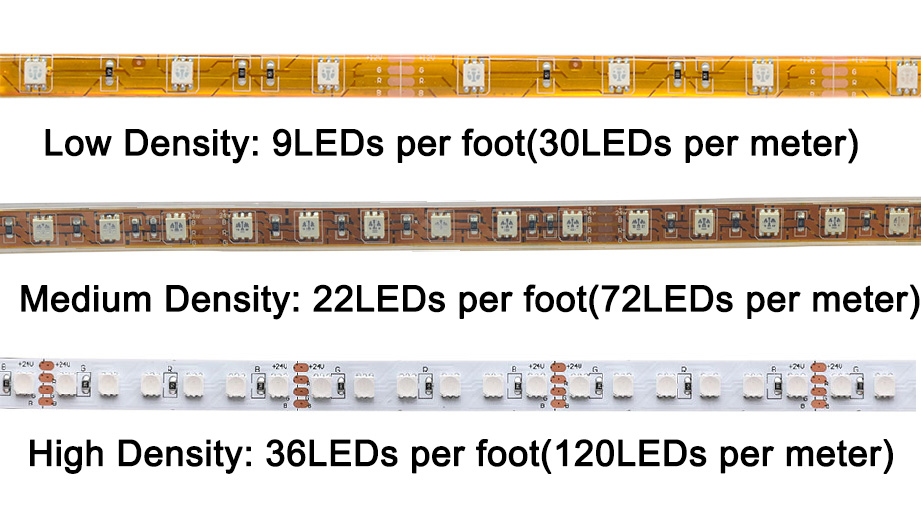

Low Density: 9LEDs per foot(30LEDs per meter)
Medium Density: 22LEDs per foot(72LEDs per meter)
High Density: 36LEDs per foot(120LEDs per meter)
120LEDs have a higher power output, so the brightness will be significantly higher than 30/72LEDs

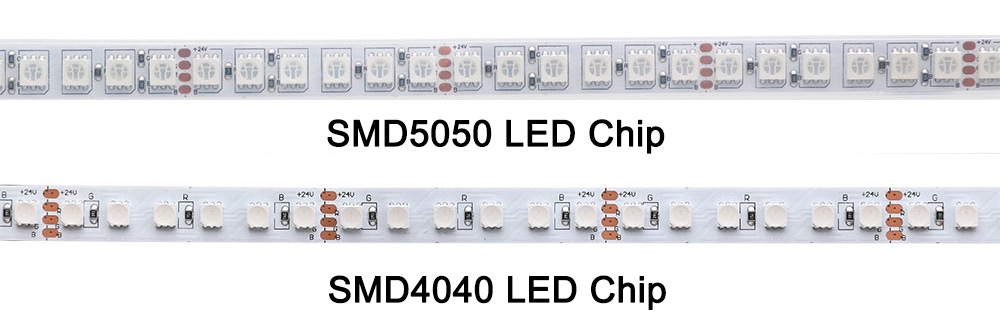

SMD5050 vs SMD4040 LED:
RGB led strip lights use 3in1 LED chips integrated red, green and blue LED chip packaged in the SMD LED component, which are 4 channels LED light strips.
LED size: SMD5050 is 5.0*5.0mm; SMD4040 is 4.0*4.0mm
Standards and Certifications
|LED Strip Type:||SMD4040 RGB 600LEDs/16.4ft|
|LED Chip:||Epistar Chip|
|Working Temperature:||-4°F (-20°C) ~ 122°F (50°C)|
|Storage Temperature:||-40°F (-40°C) ~ 176°F (80°C)|
|Light Color:||RGB Color|
|Dimension:||16.4ft/roll, every 3/6 PCS LED can be cut|
|LED Quantity:||120 LEDs per 1meter (3.28 ft)|

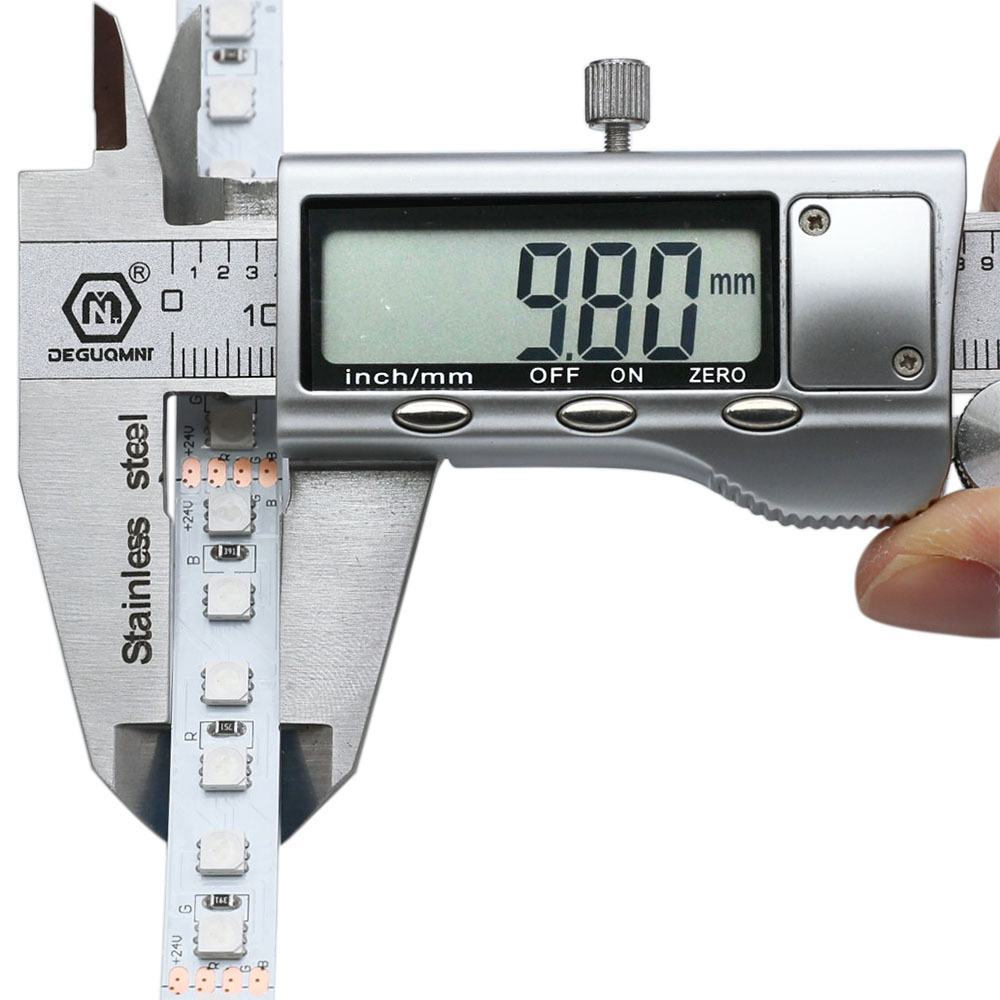

|Strip Width:||8mm/0.31in - 12V, 10mm/0.39in - 24V|
|Input Voltage(V):||12/24 VDC|
|Working Power:||19.2W/m, 96W /16.4ft Max → Informations About LED Power Supply|
|Beam Pattern:||120 degree|
|Waterproof Rating:||Non-waterproof IP20, waterproof IP65 IP67 IP68|
How To Wire RGB LED Strip Lights?
1. RGB led strip wiring diagram:
2. LED light strip accessories: RGB light led strip matching silicone diffuser or LED channel can achieve a soft, spotless linear light effect.
3. Installing RGB led strip lights: - How To Install LED Strip Lights?
LED task Lighting
Retail LED lighting
Sign illumination LEDs
Automotive accent lighting
Display case and accent lighting
