Large 2/3/4/5 Pin 1-to-2 IP68 Waterproof Wire Cable Splitter Connector
Large 2/3/4/5 Pin 1-to-2... $5.69
Waterproof IP68 Male To... $1.20
2/3/4/5 PIN Waterproof... $9.98
Large 2/3/4/5 Pin 1-to-2...
Waterproof IP68 Male To...
2/3/4/5 PIN Waterproof...

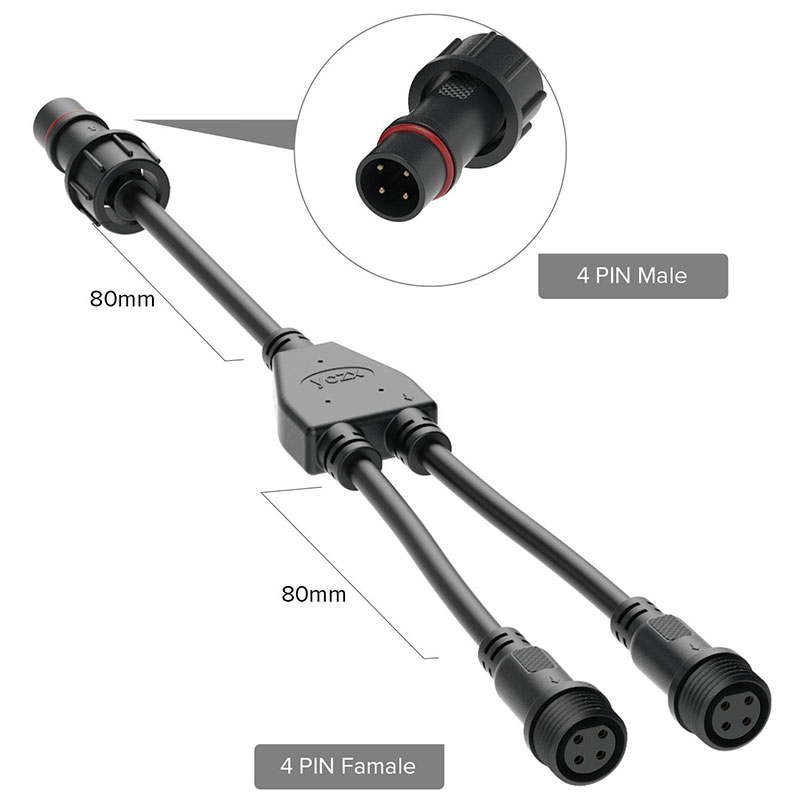

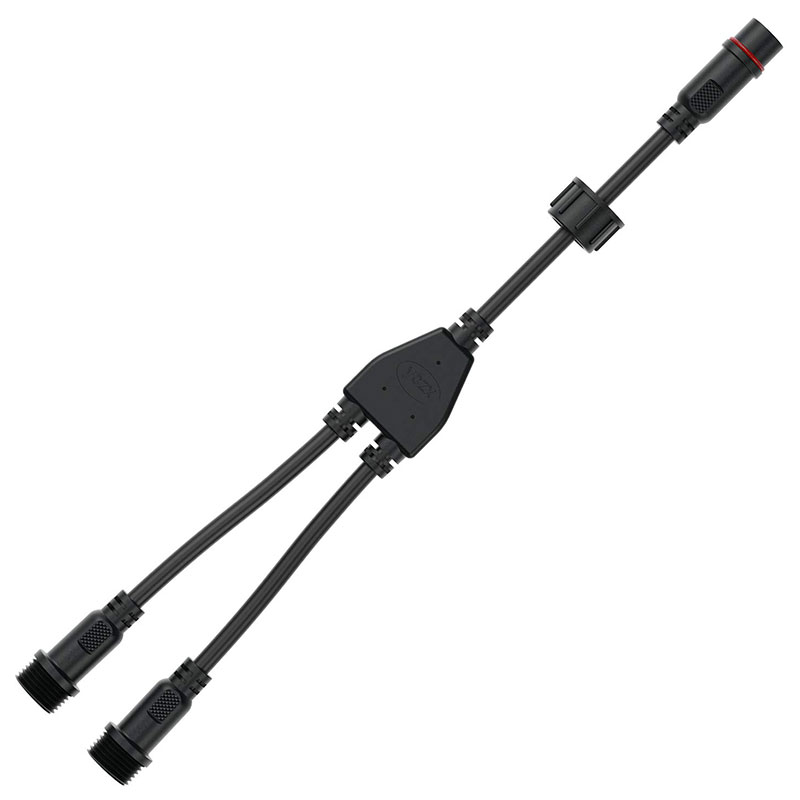

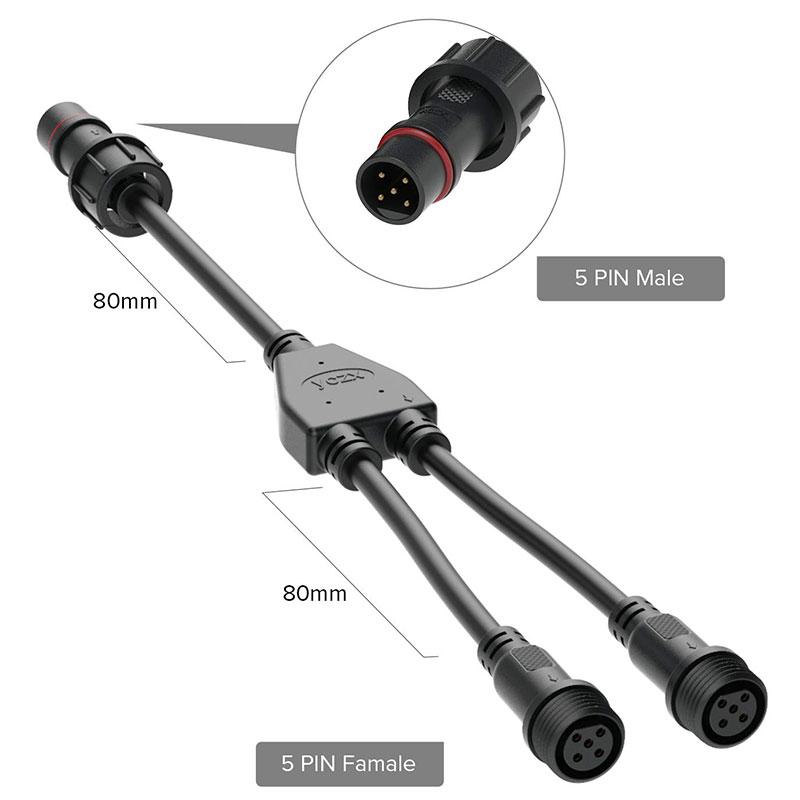

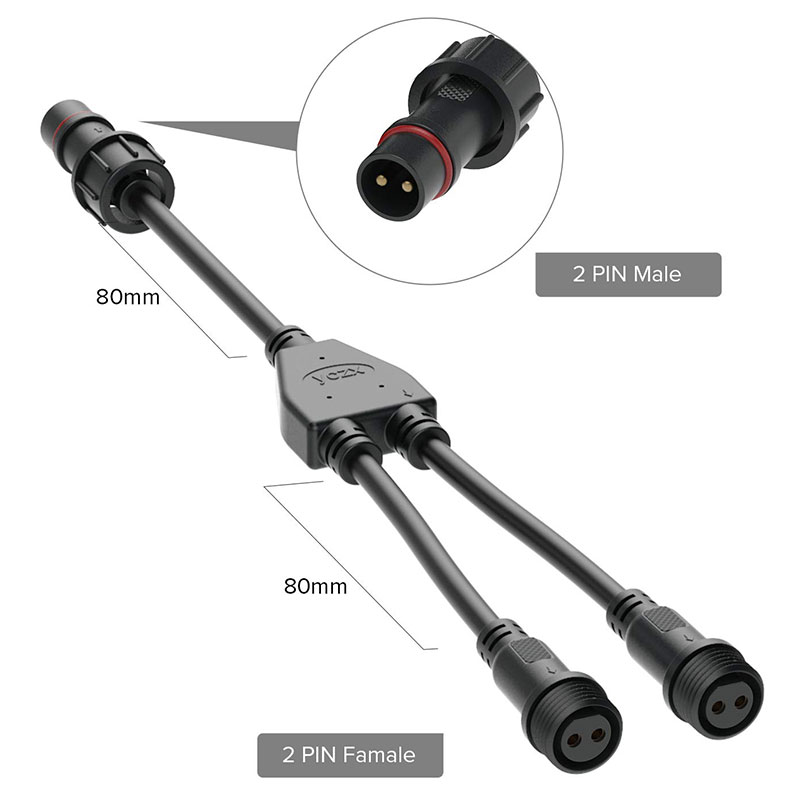

This is a Wire Splitter for waterproof & outdoor lighting applications. One male connector is divided into two female connectors, you can use it to connect two LED strip lighting systems. The 1-to-2 Wire Cable Splitter is available to using with WP-2/3/4/5PIN-CON male and female cables and WC-EXTENSION-CABLE extension cable.
2-Pin Waterproof Connector: For waterproof single-color led strip lights.
3-Pin Waterproof Connector: For outdoor tunable white led strip lights.
4-Pin Waterproof Connector: For color-changing RGB led strip lights.
5-Pin Waterproof Connector: For waterproof RGBW led strips.

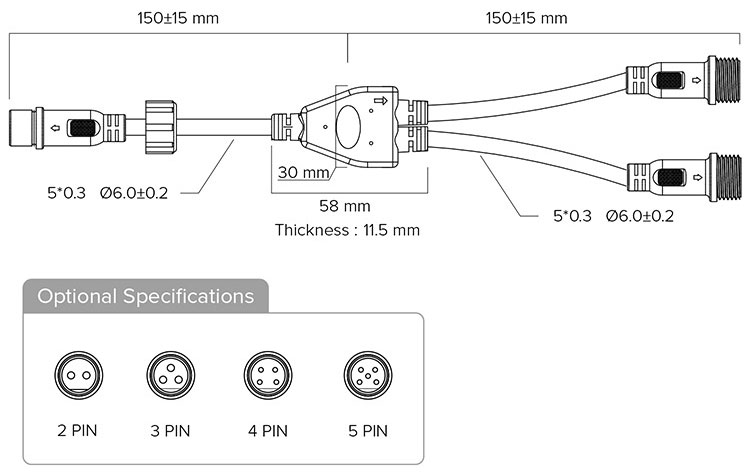

Note the compatibility between this waterproof cable connector and yours:
2pin large size=2pin 0.75m㎡=18AWG=5-6A
3pin large size=3pin 0.75m㎡=18AWG=5-6A
4pin large size=4pin 0.5m㎡=20AWG=4-5A
5pin large size=5pin 0.3m㎡=22AWG=3A
