Product Information

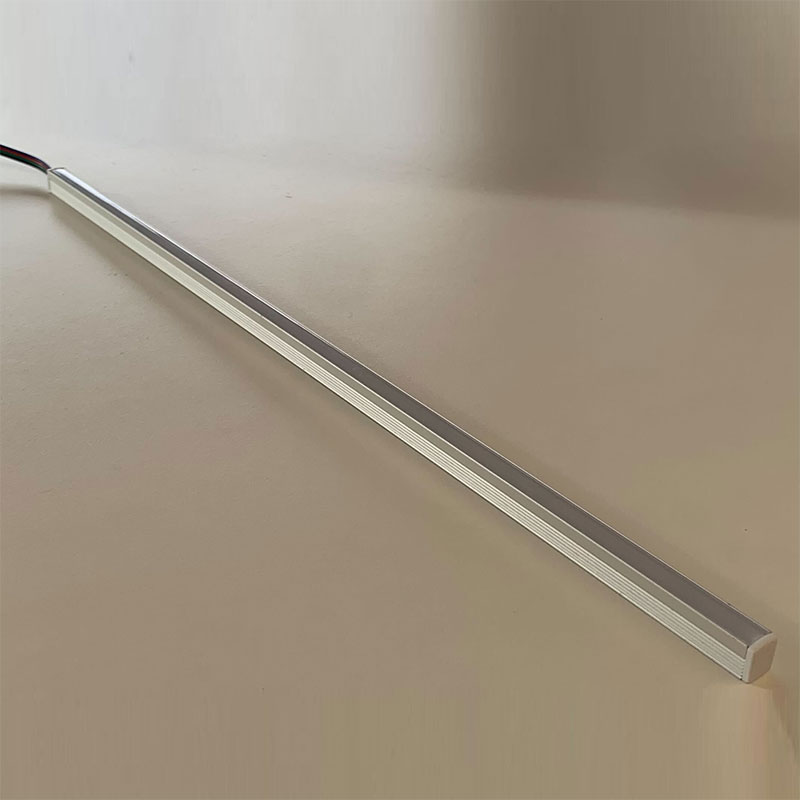

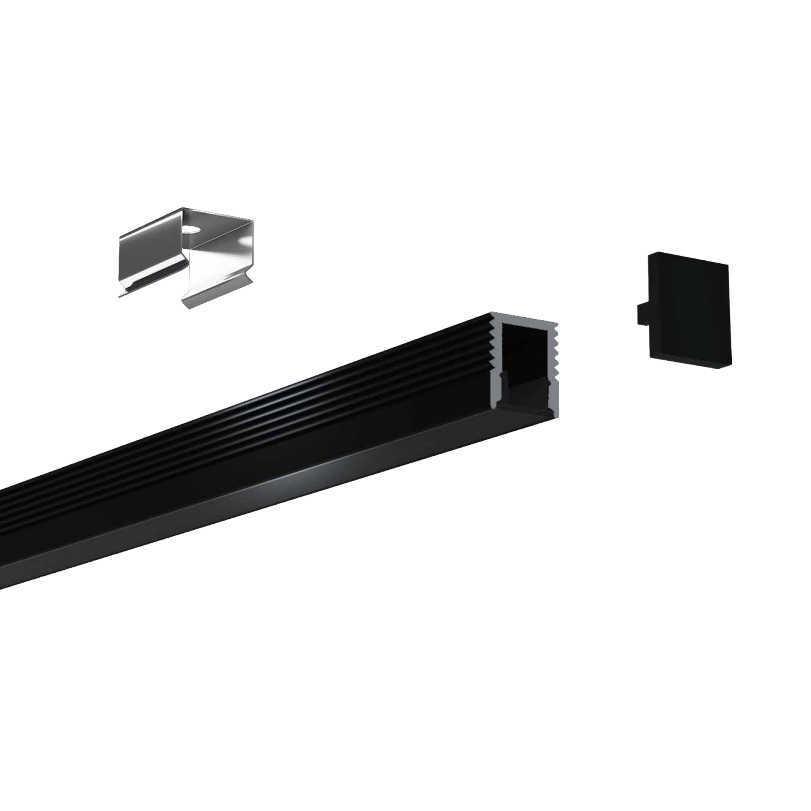

Put RGB led strip lights into led aluminum channel, then covered with a PC opal diffuser, and you will get an aesthetic clean appearance and a uniform, soft, spotless light effect. Each led bar is equipped with two mounting clips. Click here to learn more about the effect of LED channel on strip light.

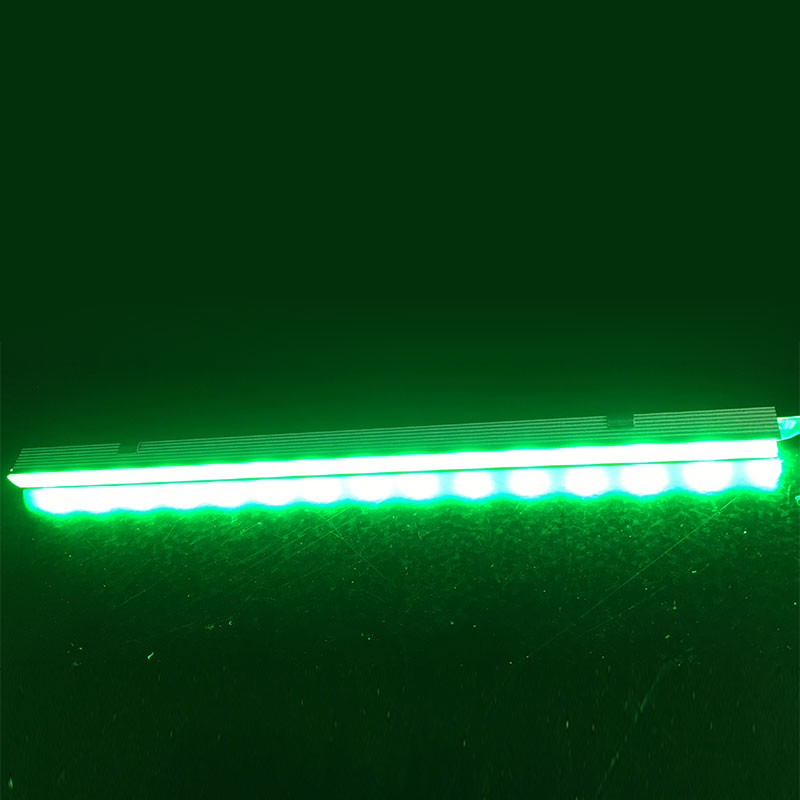

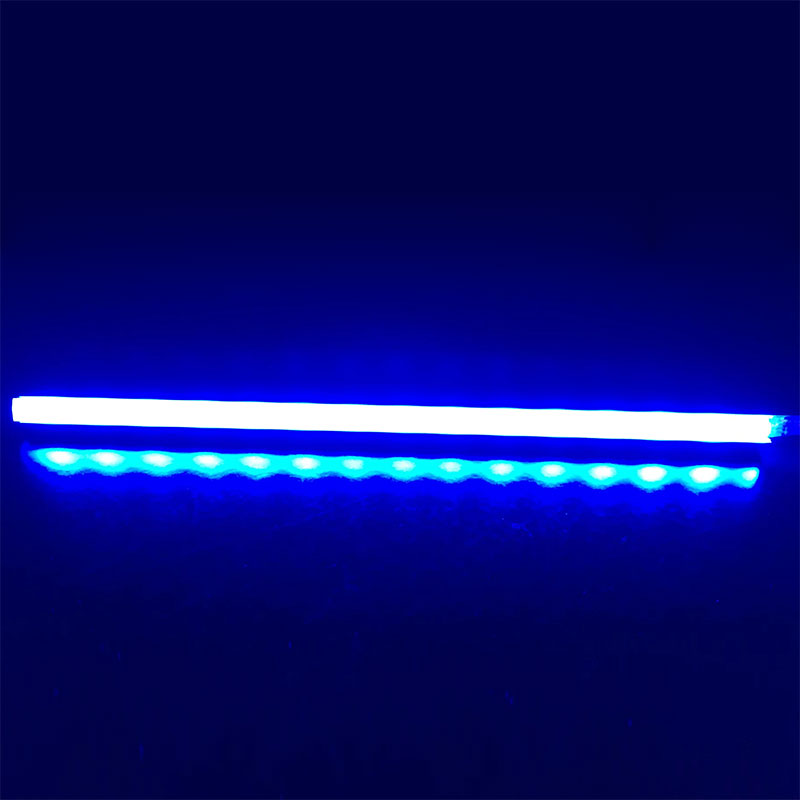

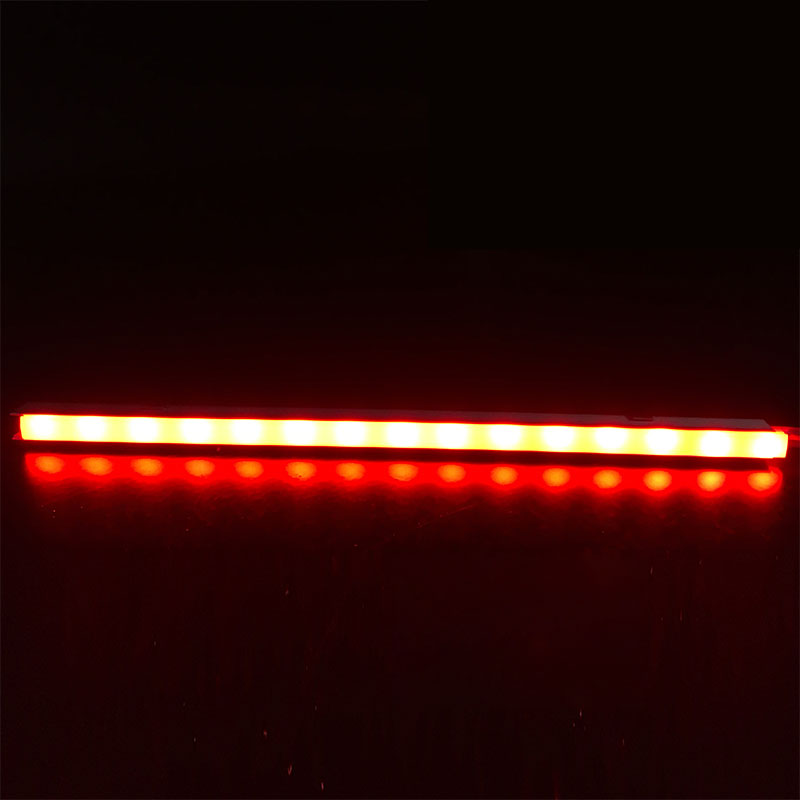

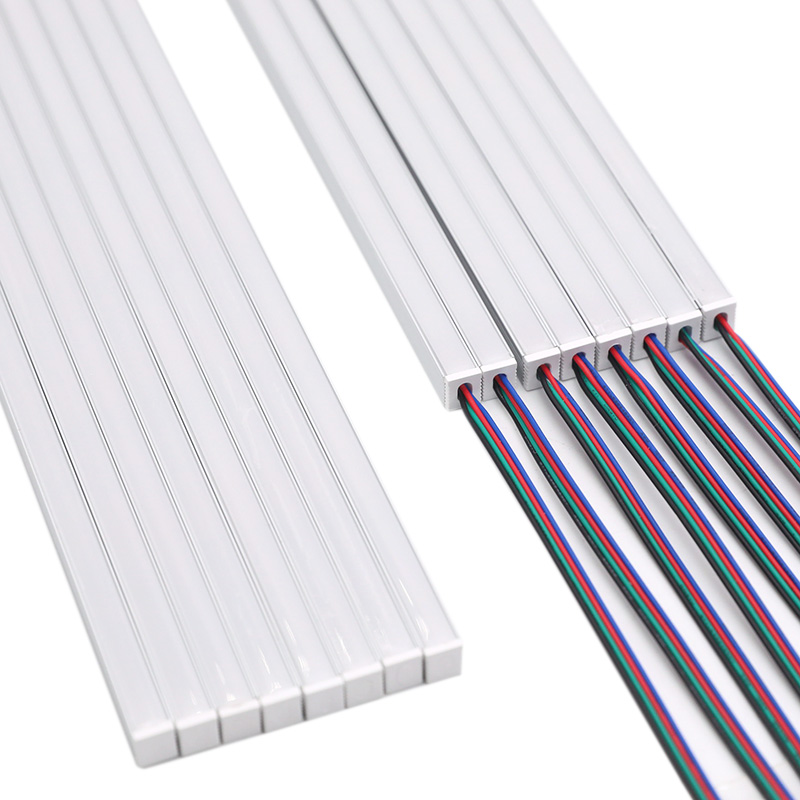

The RGB light bar is narrow 7.6mm wide, 9mm in height, and 350mm long. It has 24 RGB LEDs to illuminate your home cabinets, bars, bookshelves, display shelves, collection shelves, and more. Light up your place with this RGB led bar where color is needed to enhance atmosphere.

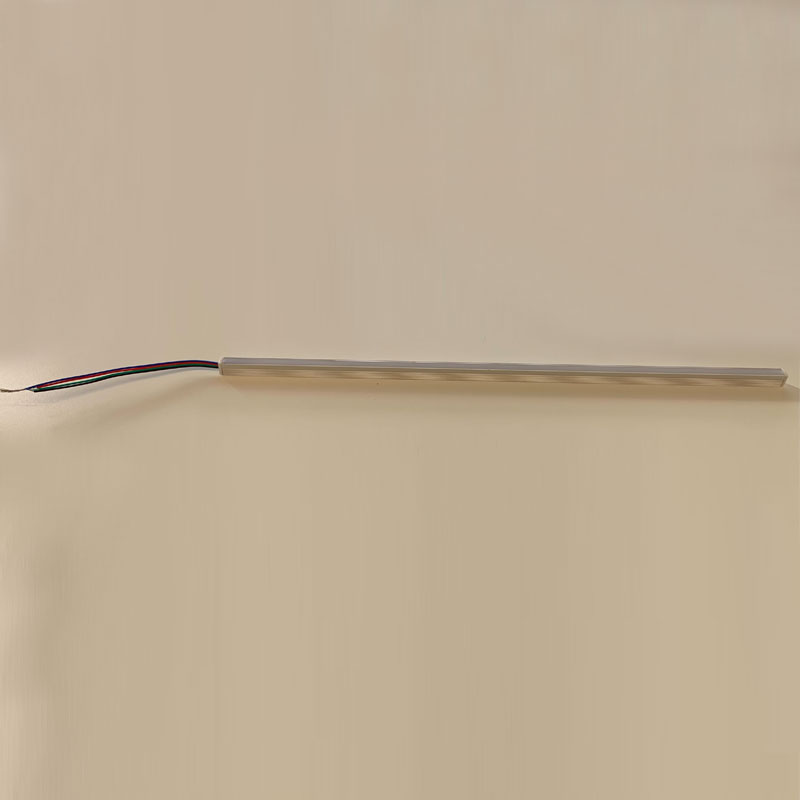

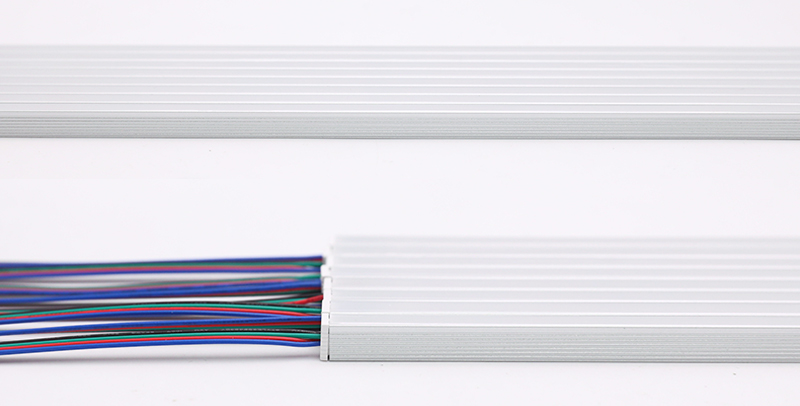

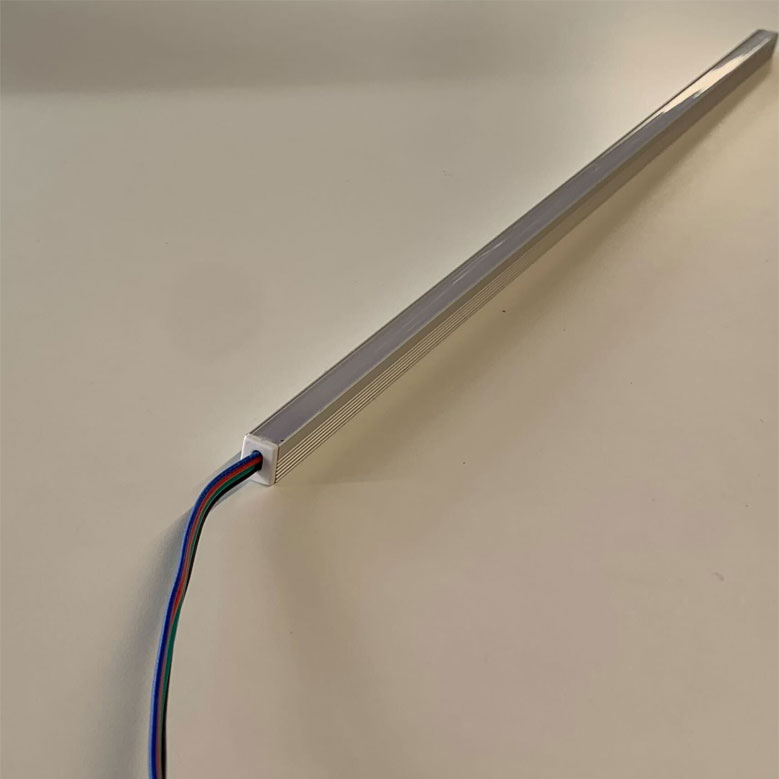

The rigid RGB led light bar comes with a 13cm-15cm (5.1in-5.9in) 4pin extension wire at one end. Note that you need purchase a RGB controller and a 12V power adapter or switching power supply seperately to drive it. Buy the accessories you need here.
Product Specification
| LED Strip Type: | RGB Light Bar |
| Input Voltage: | DC12V |
| Working Temperature: | -4°F (-20°C) ~ 122°F (50°C) |
| Storage Temperature: | -40°F (-40°C) ~ 176°F (80°C) |
| LED Color: | RGB Color Change |
| Wavelength NM(RGBY): | Red(620-630nm), Green(515-525nm), Blue(465-475nm), Yellow(585-595nm) |
| LED Quantity: | 24LEDs |

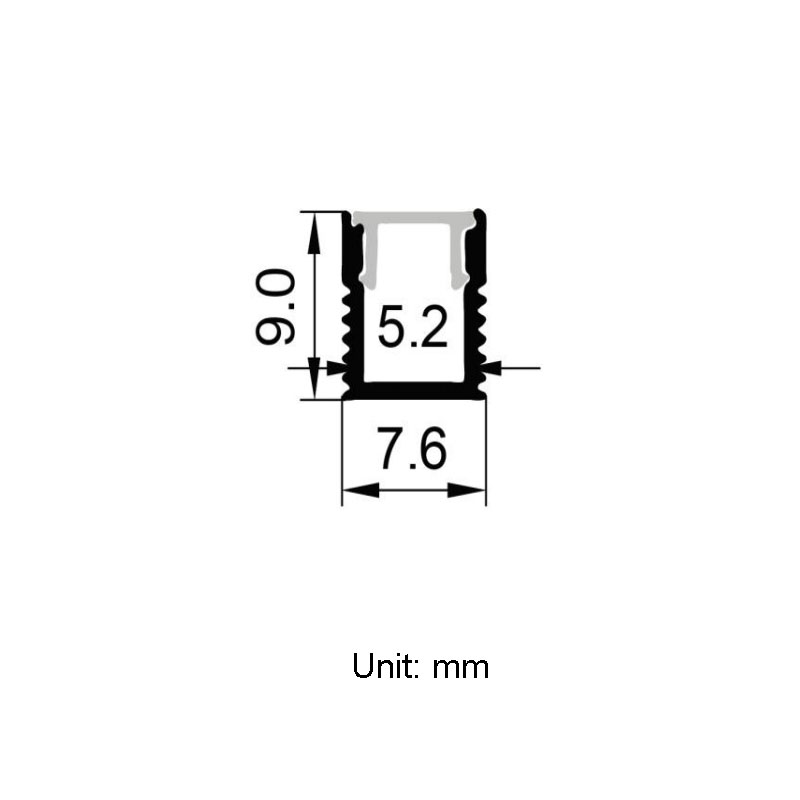

| Dimensions: | L350mm x W7.6mm x H9mm |
| Working Power: | 6W/pcs |
| Lumen Per LED: | 16-18 Lumen/LED |
| Beam Angle: | 120 degree |
| Lifespan: | 50,000+hours |
| Wire Gauge: | 22 AWG |
| Wire Length: | 13cm/5" |
How to wire RGB led strip channel?
