WS2815 Individually Addressable Dream Color RGB LED Strip 12V

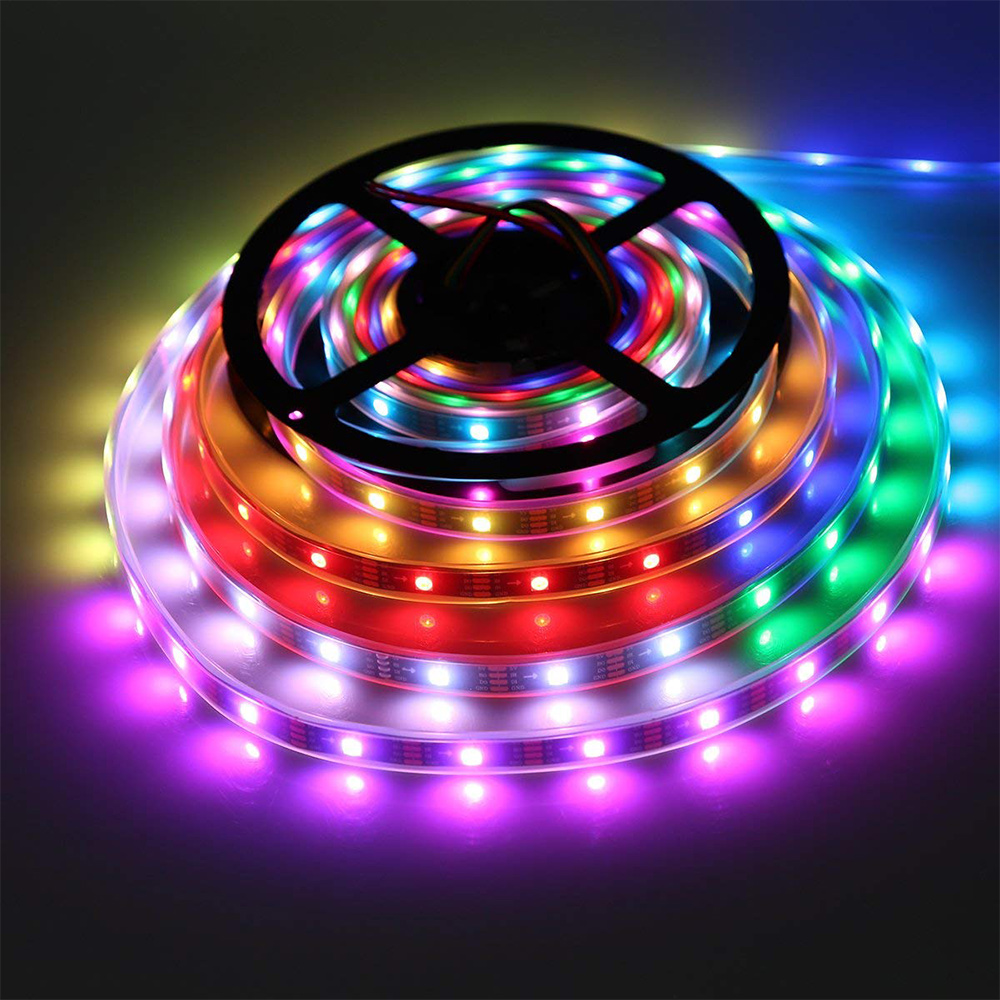

DC12V WS2815 (Upgraded WS2812B) 5M 150 LEDs Individually Addressable Digital LED Strip Lights (Dual Signal Wires), Dream Color Programmable 5050 RGB Light Strip. It is available in RGB color and daylight 6000K or warm white 3000K white color.
1. Dual-signal wires version, signal break-point continuous transmission. If one led is damaged, it will not affect the other LEDs working.
2. With 4-pins male connector and separated power/ground wire at both ends for easy interconnection and power connection.

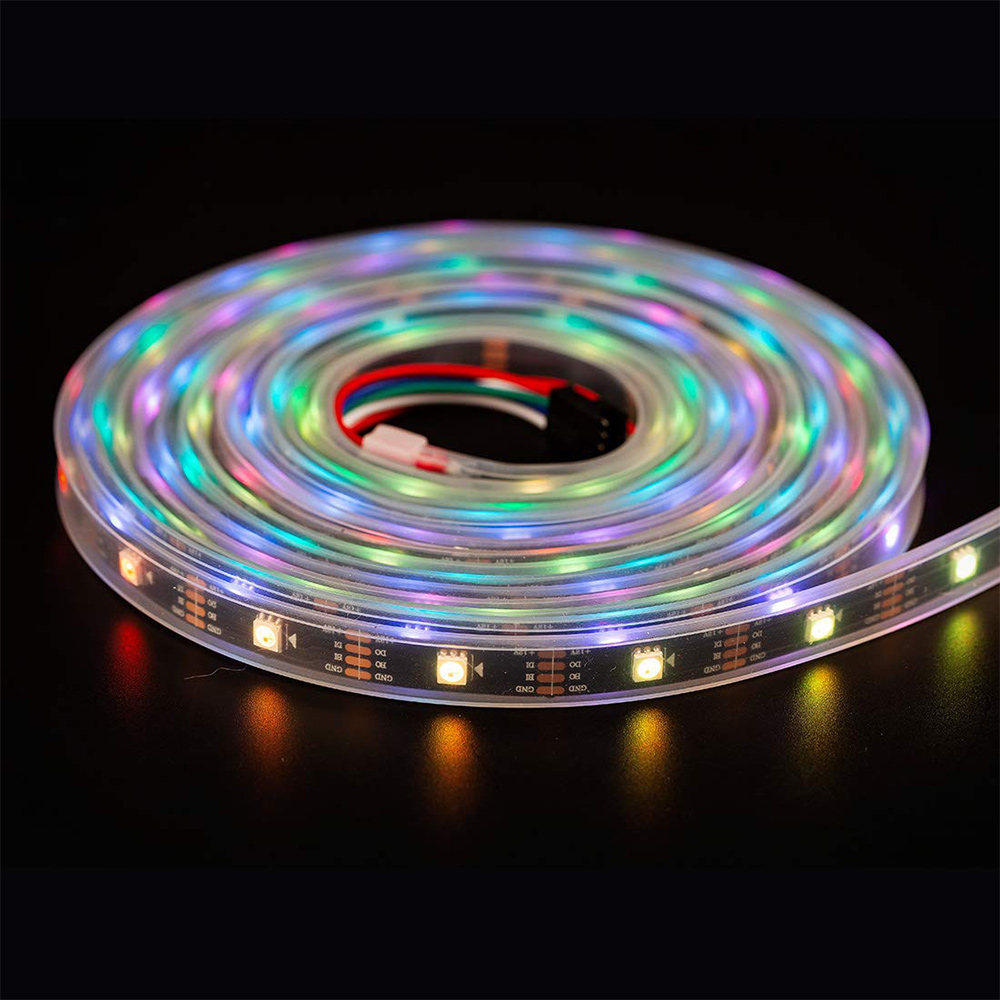

3. Waterproof IP67: the ribbon light is covered with silicone protective sleeve, which can protect it well and makes it easy to clean.
4. Individually addressable: Every 1 IC control 1 LEDs, every LED can be individually addressable and show any color you want. The strip can be cut off between every one LED without damaging the rest strip if you want it to shorten or lengthen, also can be re-connect by provided connectors.
5. The digital LED WS2815 fully color integrates all electronic components into a single 5050 luminaire, without the need for any other peripheral electronic components to assist in forming a complete internal control pixel.in the meanwhile，the WS2815 LED strip reduces resistance caused by inverting the product during installation.
6. Wide compatibility. Works great with LED screnn, LED wall, advertising board, and widely apply for KTV, hotel, bars, clubs, wedding party lighting, etc.
Standards and Certifications
|LED Strip Type:||Individually Addressable RGB LED Strip Lights|
|LED Chip:||WS2815 Breakpoint Resume + SMD5050|
|Power:||7.2W/m max, 36W/roll|
|LED Color:||Full-color RGB, Daylight 6000K, Warm white 3000K|
|LED Quantity:||30 LEDs/m, 150LEDs per roll|
|IC Quantity:||30 IC/meter (1 IC drives 1 led chip)|

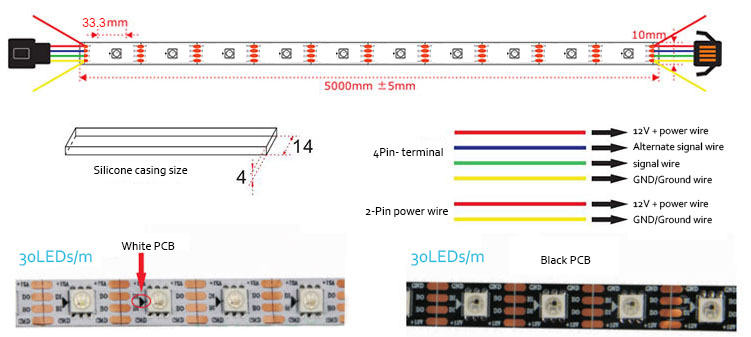

|Dimensions:||L500cm(196.8 in ) x W1.0cm(0.39 in ) x H0.25cm(0.10 in )|
|Waterproof Rating:||Non-waterproof IP20 / Indoor waterproof IP65 / Outdoor Waterproof IP67 IP68|
|Lumen:||20-22 lm/LED, 3300lm Max /16.4ft|
|PCB Color:||White / Black|
WS2815 Technical Features
The control circuit and RGB chip are integrated into 5050 components, to form an external control pixel
Using the built-in signal reshaping circuit to achieve the signal waveform shaping, and no distortion of the waveform of the signal takes place.
Refresh Frequency updates to 2 KHz. It supports the lower frequency and inexpensive MCU.
Any two points the distance less than 3m transmission signal without any increase circuit
The data transfer protocol uses a single NZR communication mode. Every pixel adopts auto-reshaping transmit technology, making the pixel cascade numbers are not limited to the signal transmission, only relate to the speed of signal transmission.
The BIN receives the data signal, which ensures that any the IC's damage does not affect the signal cascade transmission and make the BIN in the state of receiving signal until the restart after power-off.

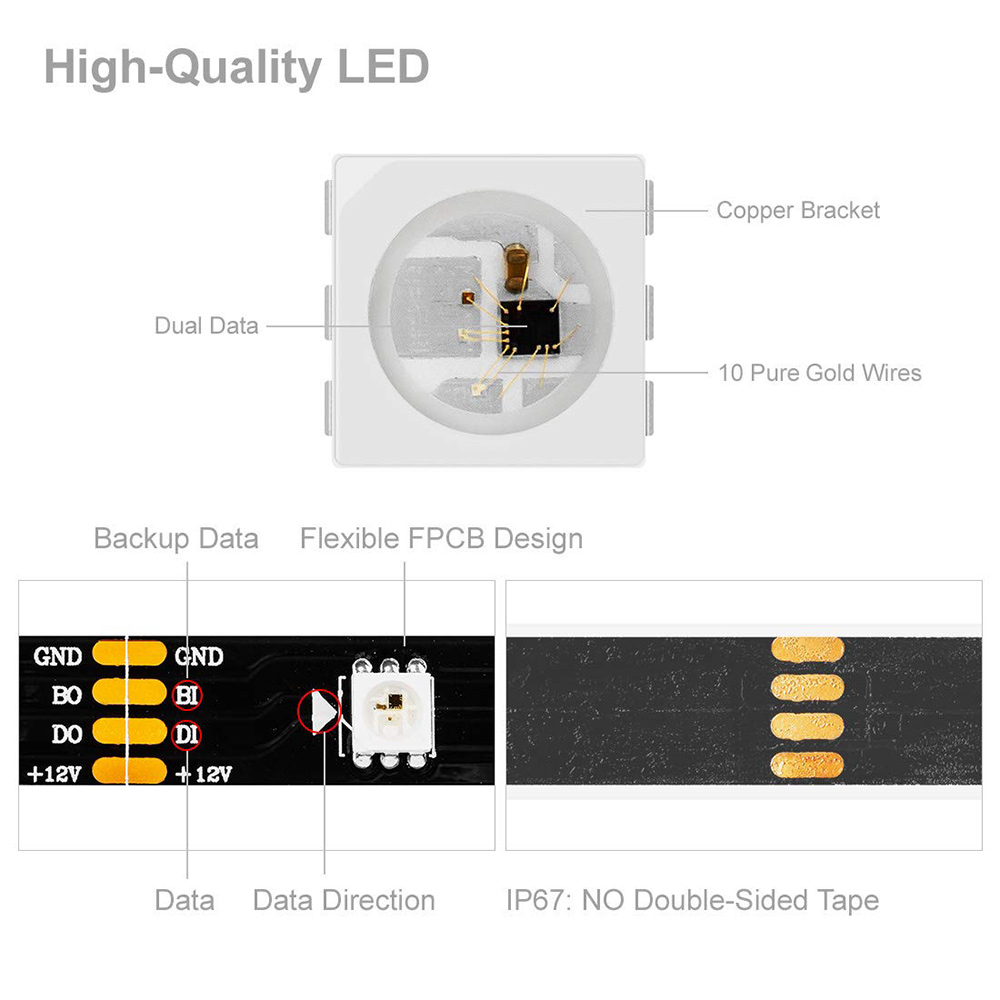

DO: Control data signal output
DI: Control data signal input
BO: Backup control data signal output
BI: a Backup control data signal input
GND: Data &Power Grounding
LED programmable digital display
Hotels decoration use
Concealed lighting, Cove decoration
Theaters, clubs, shopping malls lighting
Architectural decorative lighting
Boutique atmosphere lighting
Auditorium walk stairway lighting
Hidden groove, Wine cabinet decoration
Show exhibition decoration
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
