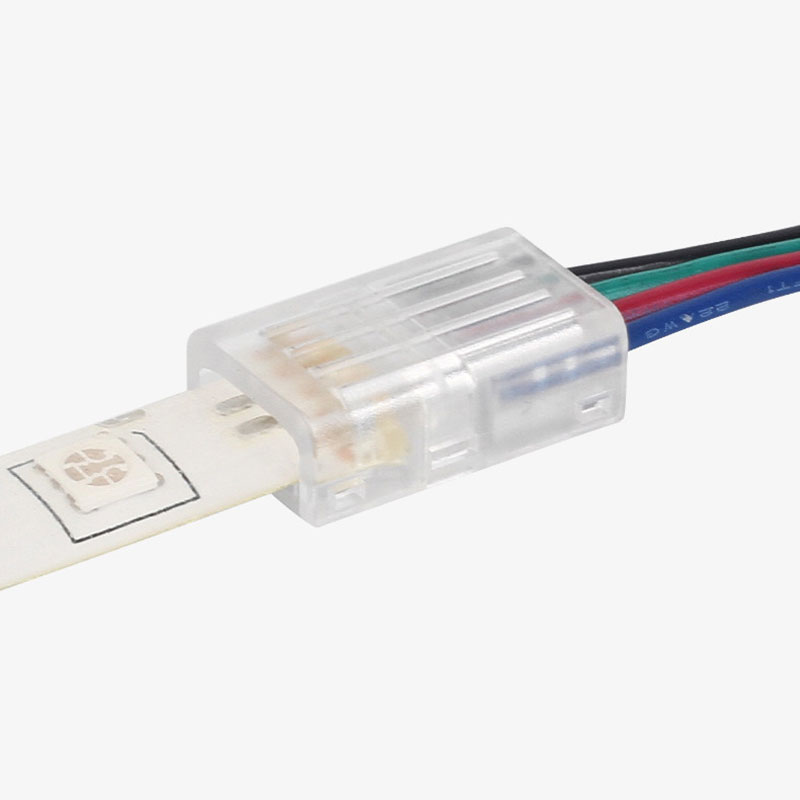

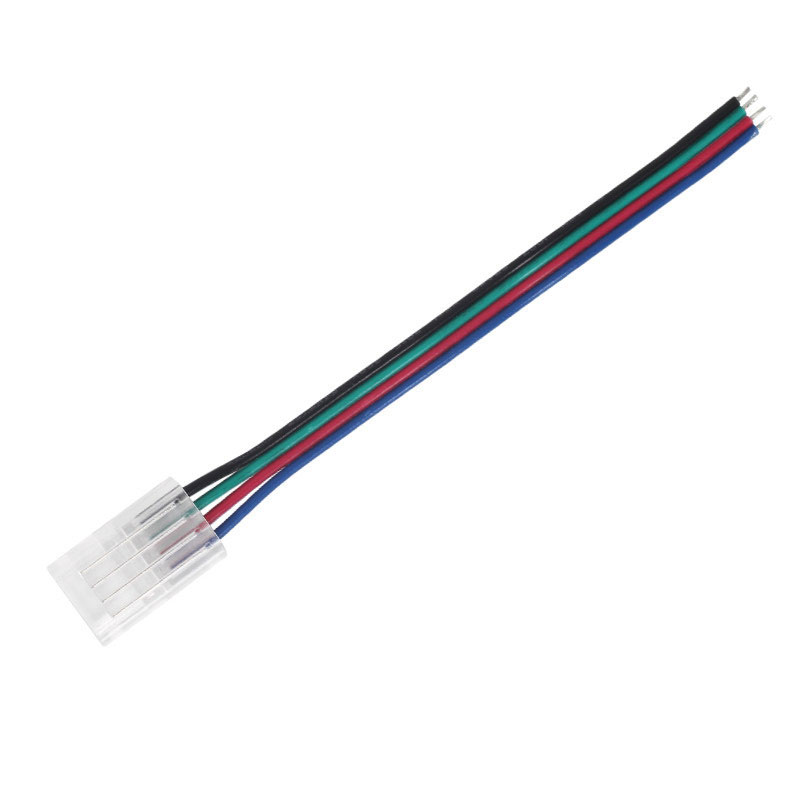

4 Pin Transparent RGB LED Connector - Strip to Wire - For SMD LED Strip

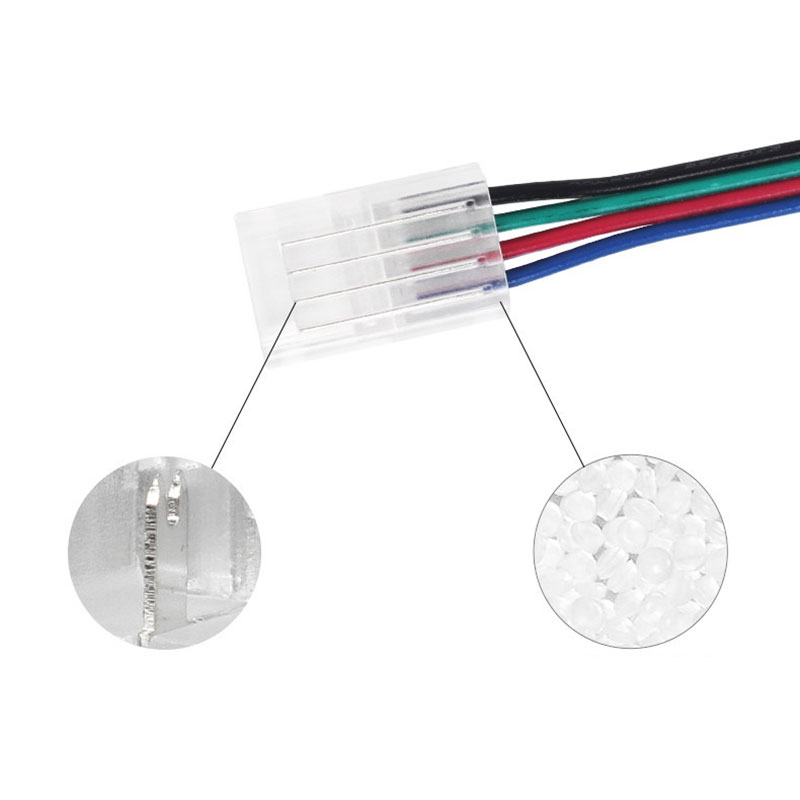

We offer you this high-quality 4 pin RGB LED strip connector to reliably connect your lighting projects. It is suitable for 8 mm or 10 mm SMD RGB LED strips with one end connected to the strip and a 4-pin bare wire on the other end. The transparent housing design allows for excellent light transmission and ensures smooth light propagation.
Strip to wire type

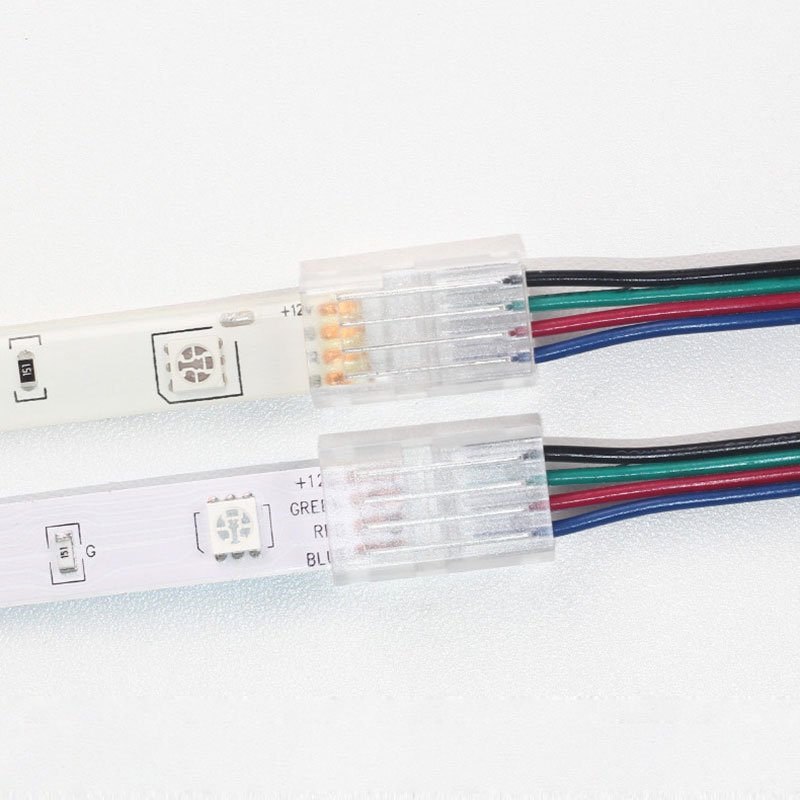

For 8mm/10mm SMD RGB led strips like 5050
Compatible with IP20 and IP65 ratings
How to Use
1. Unroll the ribbon and cut it to the desired length, cutting it from the cutting lines.
2. Open the lower cover of the connector to 45 degrees (for IP65 tape, it should be opened to 75 degrees) and insert the tape into place.
3. Insert the strip, pay attention to let the pad in the lower part of the copper stabbing needle, the bead face back towards the direction of the flip cover, close the transparent lower cover completely with both sides of the seat lock. (The operation of the IP65 strip can be used with the help of electrical pliers). This connector is a live buckle, and can be recycled many times.
4. Install the wire without stripping the wire insulation, directly into the wire slot (please note that the positive and negative poles correspond to the color). With the help of electrician's pliers can close the lower cover so that both sides are completely locked.
5. When connecting the light strip, pay attention to the positive and negative poles of the strip to correspond. (The positive pole corresponds to the positive pole).
6. complete the installation.
Abnormal causes troubleshooting
1. Please check whether the wire is standard.
2. Whether there is a mistake in the positive and negative poles of the wire-ribbon.
3. Whether the pad distance is too large offset from the hardware contact piece.
4. Check if the strip is intact.
