Product Information
Ensure your outdoor lighting installations withstand the elements with our robust IP68 Waterproof Male-to-Female LED Strip Connectors. Sold in convenient packs of five pairs, these connectors are engineered to provide a completely dust-tight and submersible seal, making them the definitive choice for landscape lighting, marine applications, and any project exposed to harsh weather. Unlike standard indoor connectors, this series offers superior durability for a truly reliable and long-lasting connection. With multiple customization options including 2, 3, 4, or 5 pins, two distinct sizes for different power requirements, and black or white wire colors, you can create a seamless and professional setup for all types of waterproof DIY LED strip lights installations.
Key Features
Superior IP68 Waterproofing
Provides a fully submersible, dust-tight seal, ensuring maximum protection for outdoor and landscape lighting connections.
Multi-Pin Versatility
Available in 2, 3, 4, and 5-pin configurations to support single color, CCT, RGB, and RGBW LED strip lights or addressable lights.
Durable, Secure Connection
Features a robust male-female plug design with a threaded locking nut for a reliable, effective, and secure waterproof link.
Customizable for Your Project

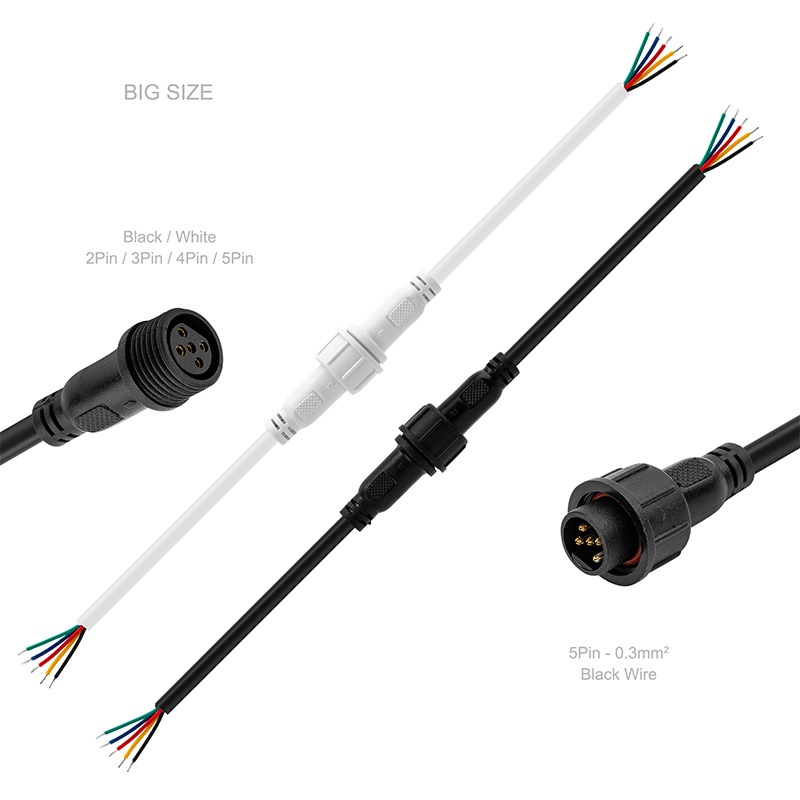

Choose between Small and Large sizes to match wire gauge needs, as well as Black or White wire colors for aesthetic consistency.
Convenient 5-Pair Package
Each package includes 5 male and 5 female connectors, perfect for projects requiring multiple secure connection points.
Product Specifications
| Parameter | Details |
|---|---|
| Product Model | WP-2/3/4/5PIN-CON |
| IP Rating | IP68 |
| Connector Type | Male to Female Pair |
| Package Contents | 5 Pairs (5 Male + 5 Female) |

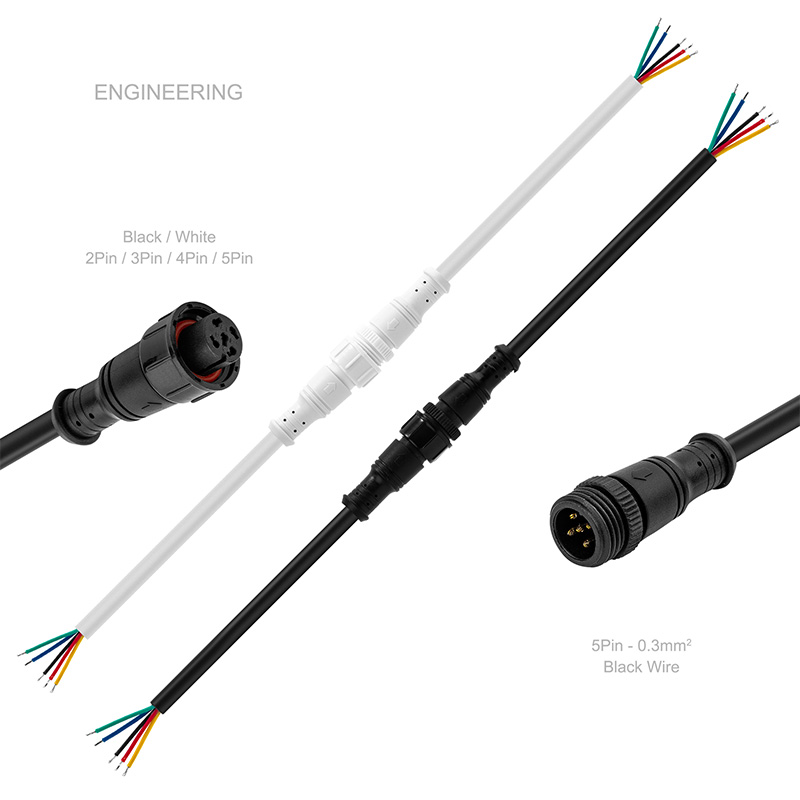

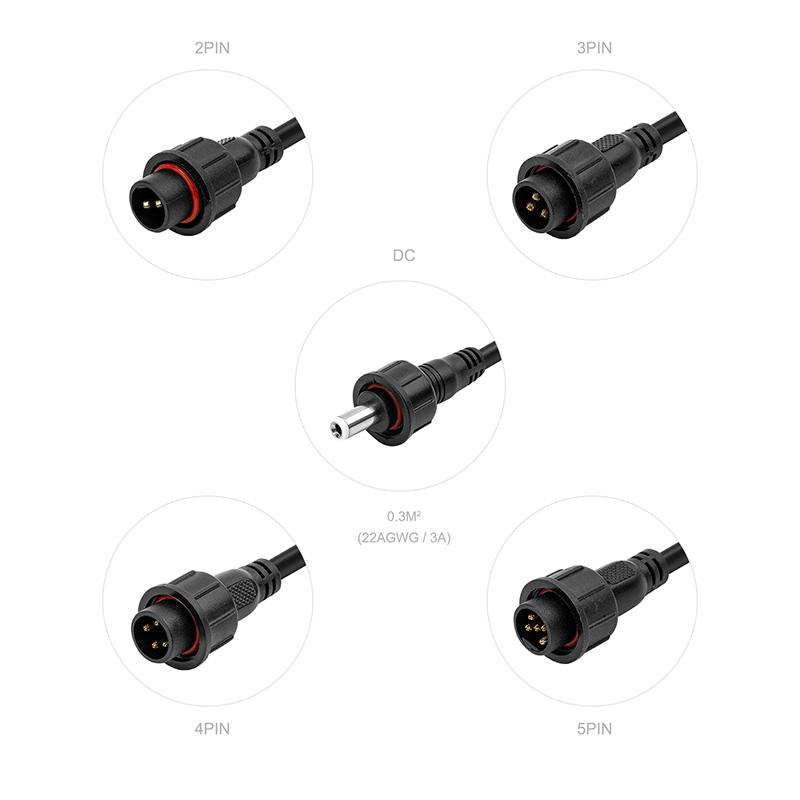

| Available Pin Counts | 2 Pin, 3 Pin, 4 Pin, 5 Pin |

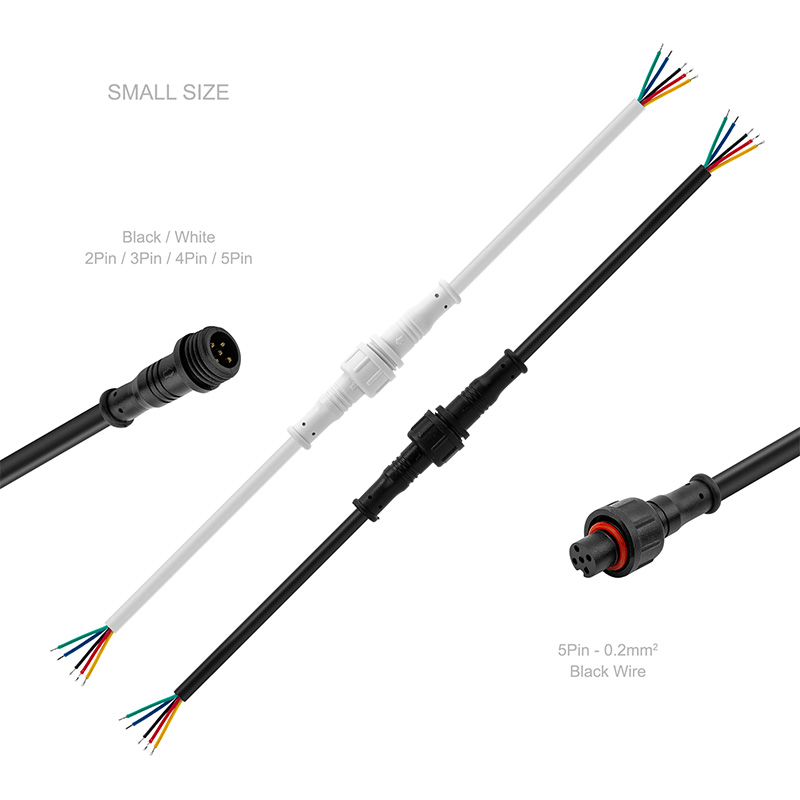

| Available Sizes | Small, Large |

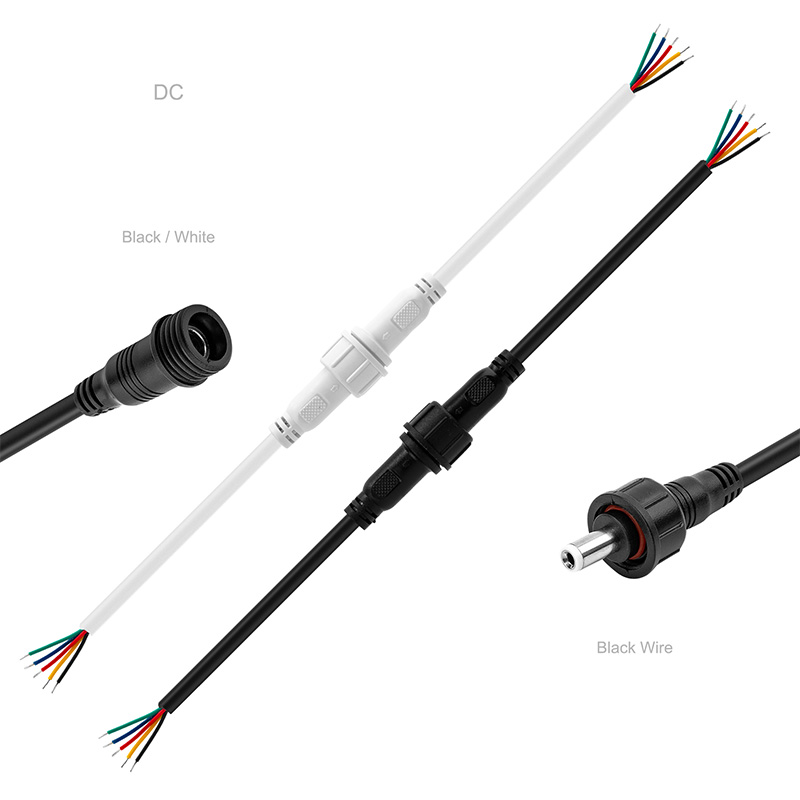

| Available Wire Colors | White, Black |
| Standard Length (Male or Female) | 200mm (Custom lengths available with MOQ of 30 pairs) |
| Connector Dimensions |
 |

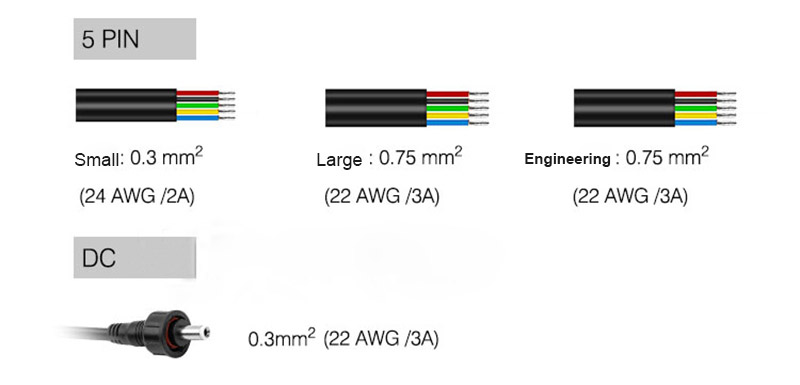

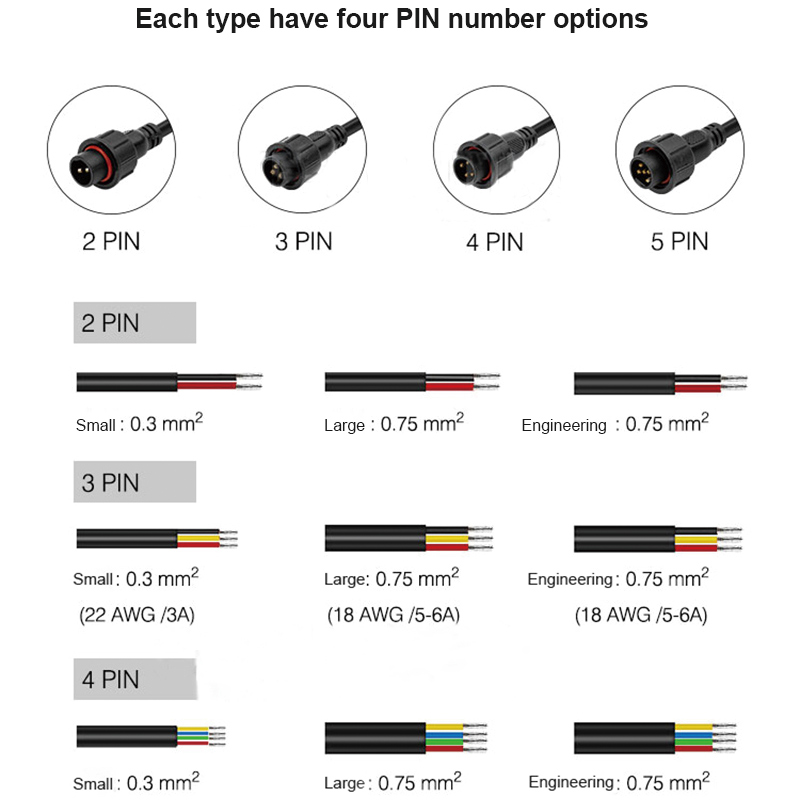

| Wire Gauge & Current (2 Pin Small) | 0.3mm² (22AWG), 2-3A |
| Wire Gauge & Current (2 Pin Large) | 0.75mm² (18AWG), 5-6A |
| Wire Gauge & Current (3 Pin Small) | 0.3mm² (22AWG), 3A |
| Wire Gauge & Current (3 Pin Large) | 0.75mm² (18AWG), 5-6A |
| Wire Gauge & Current (4 Pin Small) | 0.2mm² (24AWG), 2A |
| Wire Gauge & Current (4 Pin Large) | 0.5mm² (20AWG), 4-5A |
| Wire Gauge & Current (5 Pin Small) | 0.2mm² (24AWG), 2A |
| Wire Gauge & Current (5 Pin Large) | 0.3mm² (22AWG), 3A |
| Reference | DC=2pin 0.3m㎡=22AWG=3A |
Application Scenarios
Installation Guide
- Select the connector with the correct pin count, size, and wire color for your LED strip.
- Connect the pigtail wires of the connector to your LED strip wires, matching the corresponding channels (e.g., V+ to V+, G to G, etc.). Soldering is recommended for the most secure and waterproof connection.
- Slide a piece of adhesive-lined waterproof heat-shrink tubing over each solder joint and apply heat to create a permanent seal.
- Align the male and female connectors and push them firmly together.
- Hand-tighten the threaded locking nut to engage the O-ring and complete the IP68 waterproof seal.
- Always double-check pin alignment before connecting to avoid damaging your LED strips or power supply.
- Ensure the connector's size (Small/Large) and its corresponding wire gauge are rated to handle the total current of your LED strip run.
- These connectors are designed to work seamlessly with our compatible waterproof accessories:

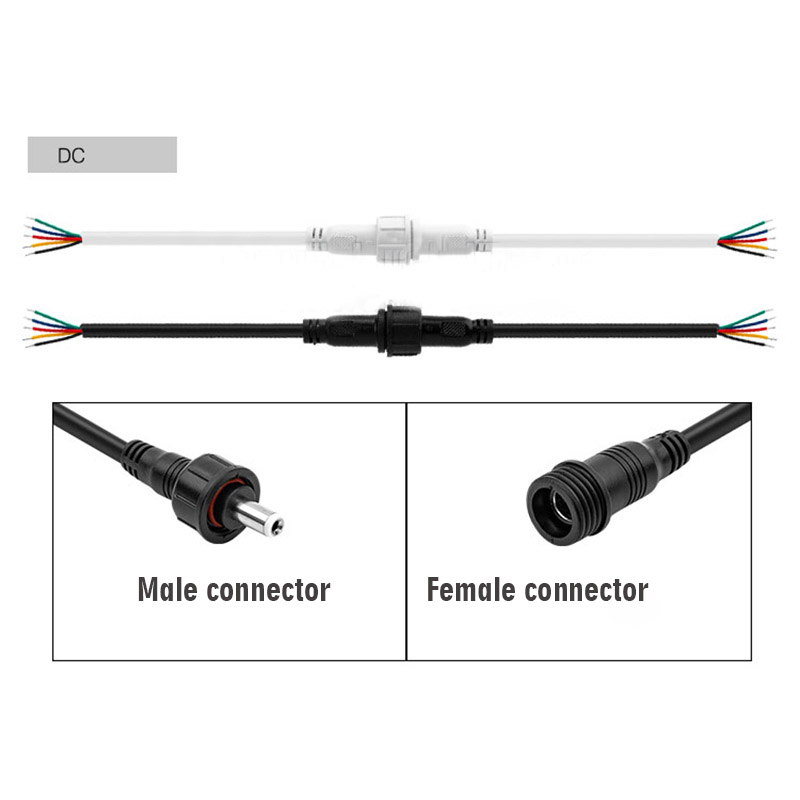

- Extension Cables: WC-EXTENSION-CABLE IP68 waterproof extension
- Y-Splitters (Small Size): WC-1-TO-2-S small size 1-to-2 Y wire splitter, WC-1-TO-3-S small size 1-to-3 wire splitter
- Y-Splitters (Large Size): WC-1-TO-2-L large size 1-to-2 Y wire splitter, WC-1-TO-3-L large size 1-to-3 wire splitter
What's in the Box
- ✓5 x Male IP68 Waterproof LED Strip Connectors
- ✓5 x Female IP68 Waterproof LED Strip Connectors
Frequently Asked Questions
Q: What is the main difference between the 'Small' and 'Large' size connectors?
A:The primary difference is the wire gauge and current capacity. The Large size uses thicker wire (18-20AWG) to safely handle higher power loads, while the Small size uses a more flexible wire (22-24AWG) for lower power applications.
Q: Do I need to solder these connectors to my LED strip?
A:These are pigtail connectors, meaning they have short wires pre-attached. You will need to connect these wires to your LED strip's wires, and soldering is the recommended method to achieve a secure and fully waterproof seal.
Q: Can I order these connectors with longer wires?
A:Yes, we can provide custom lengths. Please contact our sales team to discuss your requirements; a minimum order quantity of 30 pairs applies for customization.
