Product Information
Build and repair your DMX lighting system with our versatile DMX XLR Connectors. Unlike pre-made cables, these individual connectors give you the freedom to create custom-length signal lines or perform on-the-spot repairs, ensuring your setup is always running. We offer a comprehensive selection including 3-pin, 4-pin, 5-pin, and 6-pin options in both male and female formats, catering to virtually any DMX512 requirement. From standard 3-pin setups for stage lighting to 5-pin configurations for RDM-enabled fixtures, these connectors provide a secure, professional-grade link. Since 2015, SuperLightingLED has been a trusted supplier for lighting professionals, and these connectors are essential components for anyone managing a DMX-based installation.
Key Features
Comprehensive Selection

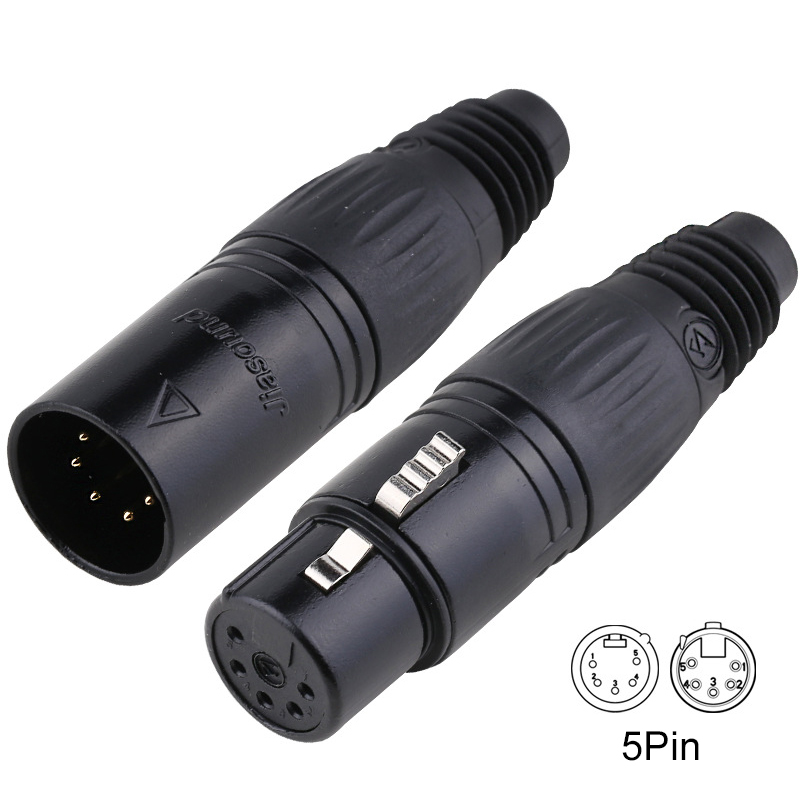

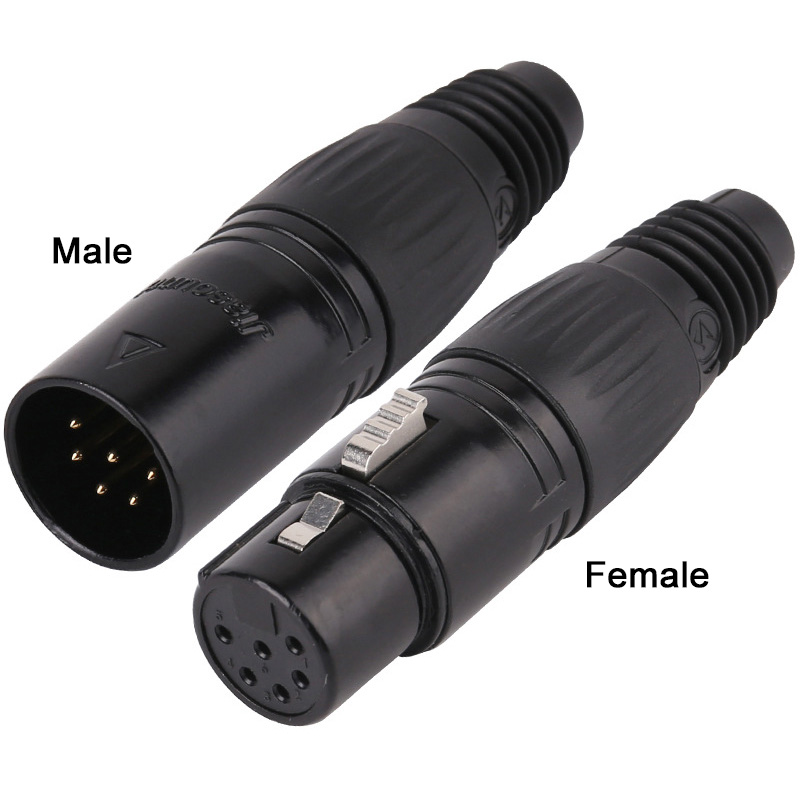

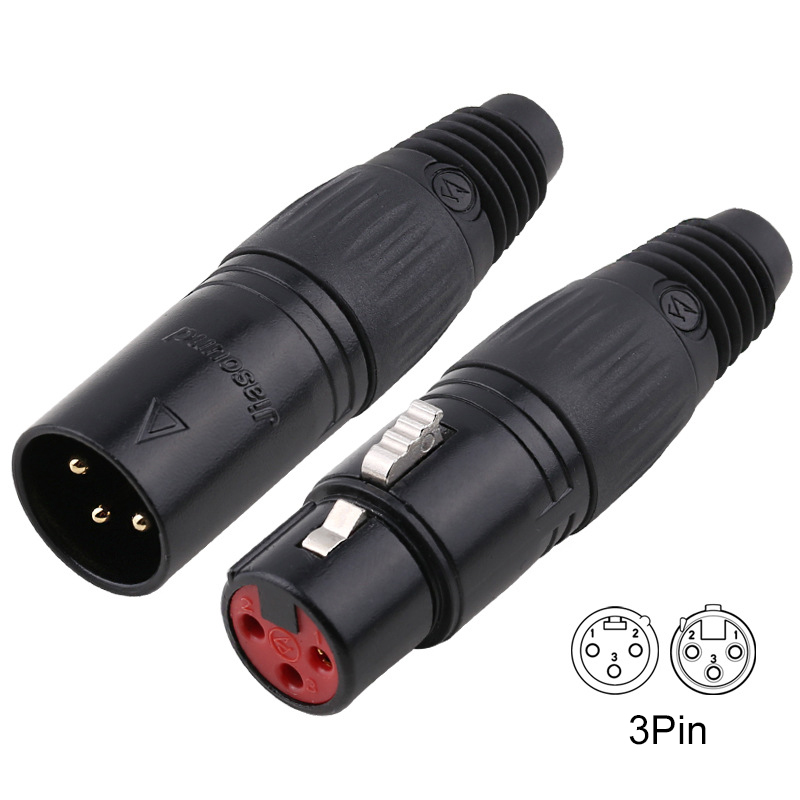

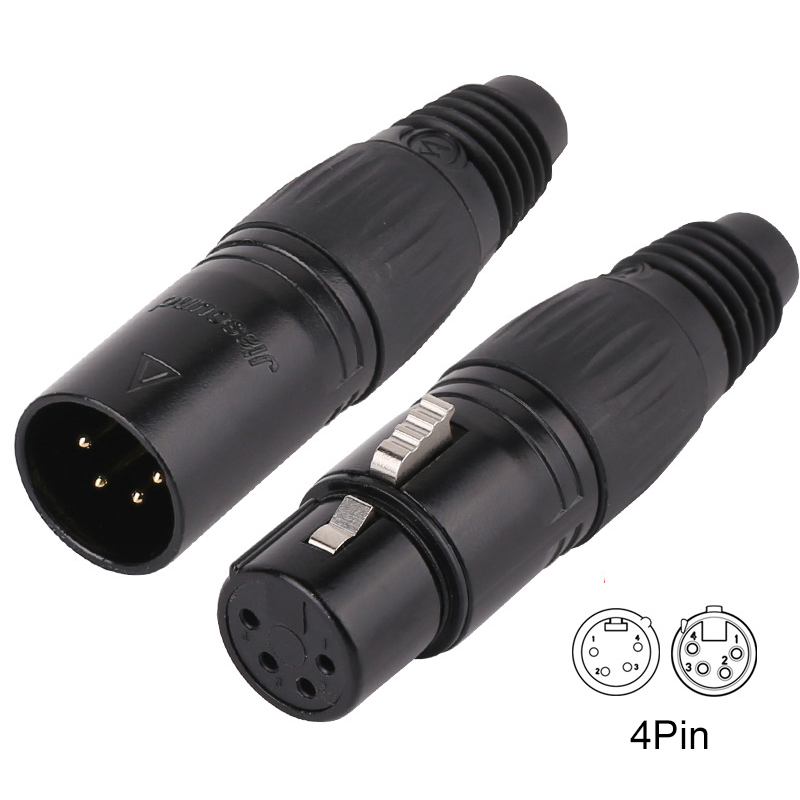

Available in 3, 4, 5, and 6-pin versions with male, female, and male-to-male adapter options to fit any DMX application.
Reliable Signal Integrity
Engineered for stable DMX512 signal transmission with a secure latching mechanism that prevents accidental disconnection during use.
Durable Construction
Features a robust housing designed to withstand the rigors of stage, event, and architectural installations.
DIY & Repair Focused
Ideal for technicians and designers who need to build custom-length cables or replace damaged connectors on existing equipment.
Technical Highlights
- Standardized pinouts for universal DMX512 compatibility.
- Secure locking mechanism ensures a stable physical and data connection.
- Solder cup terminals for creating strong, permanent wire terminations.
- Designed specifically for low-voltage DMX data signals, not AC power.
Product Specifications
| Parameter | Details |
|---|---|
| Product Model | DMX-XLR-CONN |
| Product Name | Female And Male DMX XLR Connectors |
| Connector Type | DMX XLR |
| Available Pin Counts | 3-Pin, 4-Pin, 5-Pin, 6-Pin |
| Available Types | Male, Female, Male to Male (for 3-Pin) |
| Rated Voltage | < 50V |
| Termination Method | Solder Cups |
| Locking System | Push-button Latch |
| Housing | Durable composite |
Application Scenarios
How to Use These DMX XLR Connectors
- Select the correct connector by matching the pin count (e.g., 3-pin, 5-pin) and gender (male/female) to your equipment's specifications.

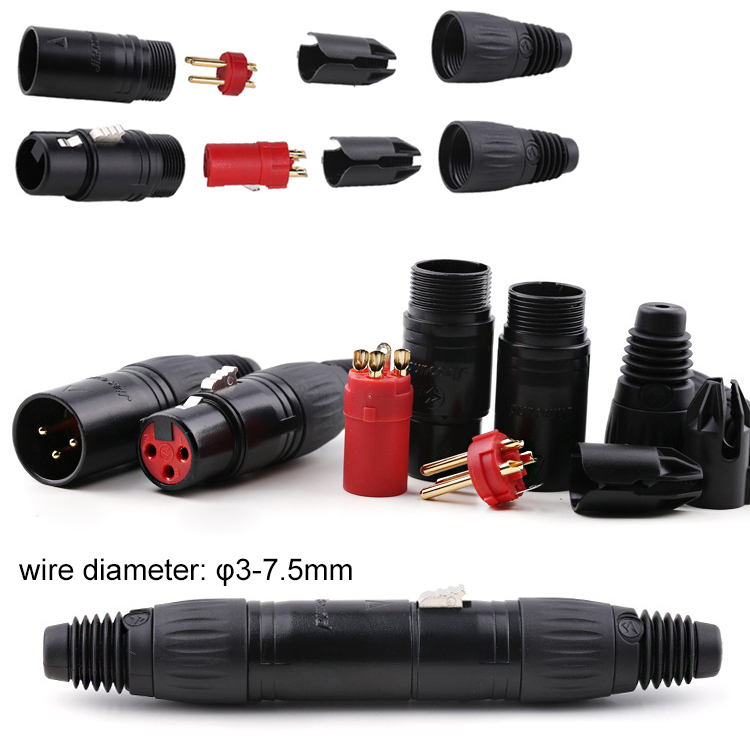

- Disassemble the connector housing and slide the boot and strain relief over the cable.
- Carefully strip the outer cable jacket and the insulation of the inner wires to expose about 1/8 inch (3-4mm) of conductor.
- Pre-tin the exposed wire ends and the solder cups on the connector pins with a soldering iron.
- Solder each wire to its corresponding pin, following the DMX512 standard: Pin 1 (Ground), Pin 2 (Data -), Pin 3 (Data +). Refer to your equipment manual for 4, 5, or 6-pin configurations.
- Once cooled, slide the strain relief and boot back up and reassemble the connector housing securely.
- Always verify the pinout diagram for your specific lighting equipment before soldering.
- Ensure solder joints are clean and solid to prevent signal loss or short circuits.
- These connectors are intended for low-voltage DMX signal lines (<50V) and must not be used for mains power connections.
- For outdoor or wet environments, ensure you use appropriately rated waterproof cables and consider sealing the connector entry point.
What's in the Box
- ✓1 x DMX XLR Connector (in your selected pin count and type)
Frequently Asked Questions
Q: What is the difference between 3-pin and 5-pin DMX connectors?
A:3-pin is the common standard for a single DMX512 universe (Ground, Data-, Data+). 5-pin connectors use the first three pins for the primary DMX line and have two extra pins that can be used for a second data link, RDM feedback, or other proprietary functions.
Q: Can I use these XLR connectors for audio microphones?
A:While they are physically identical to audio XLR connectors, it is strongly recommended to use dedicated DMX-rated components for lighting control. DMX systems require a specific impedance (110-120 ohms) for reliable data transmission, which may differ from audio cables.
Q: Are these led strip light connectors universal?
A:No. These are specialized DMX XLR connectors designed for DMX512 lighting control systems. They are not compatible with the direct plug-in connectors found on most consumer-grade RGB or single-color LED strip lights.
Q: What tools do I need to attach these to a cable?
A:You will need a soldering iron, solder, wire strippers, and a cable cutter. A helping hands tool or vise can also be very useful for holding the connector while you work.
Q: What is the 'Male to Male' type used for?
A:The Male-to-Male option is a gender changer or turnaround. It's used in specific situations to connect two female DMX cables or to connect a device with a female output directly to another device with a female output.
