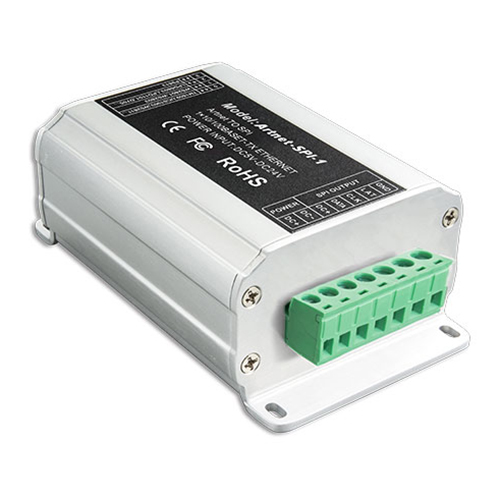

Artnet-SPI converter Artnet-SPI-1
Artnet-SPI converter is the Ethernet Control System based on the Artnet protocol, used to convert the Artnet network date package into SPI(TTL) digital signal, adopting high-speed ARM processor, stable and reliable working. Following Art-net standard protocol, it support RJ45 network interface and green terminal output interface.
Artnet-SPI-1 can control LED lighting with compatible driving IC, such as TM1804，TM1809，UCS1903，UCS1909，UCS1912，UCS2903，UCS2909，UCS2912，WS2811, WS2812, LPD6803，LPD1101，D705，UCS6909，UCS6912, WS2801，WS2803, P9813, etc

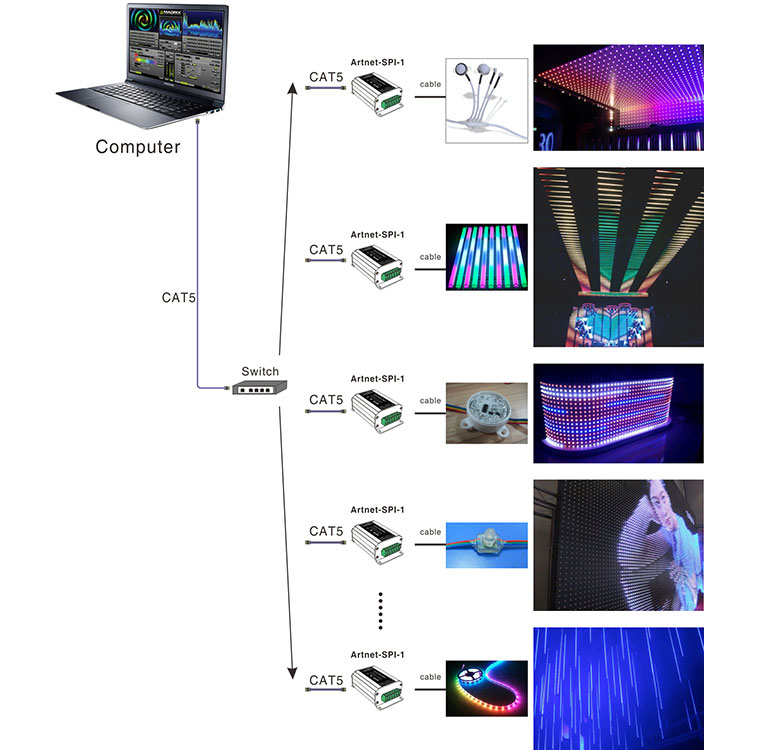

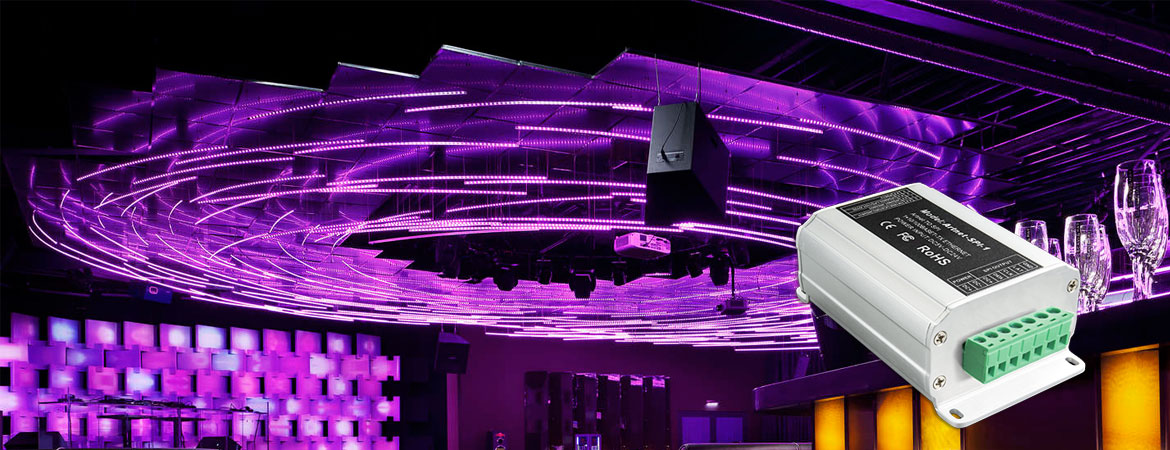

It is compatible with all the effects lighting control software which support Artnet protocol, widely used in the LED dot matrix and the stage lighting.
● Based on Artnet protocol network data communication, accept network DMX data, output one set SPI data ;
● IP address is bound to Subnet, no need to reset, plug and play.
● Manage Artnet on broadcast mode or unicast mode.
● Compatible with the light software based on Artnet Protocol, control LED lighting.
Input voltage: DC5V-DC24V
Input signal : Artnet
Output signal : SPI (TTL) Digital Signal
Compatible driving IC : TM1804，TM1809，UCS1903，UCS1909，UCS1912，UCS2903，UCS2909，UCS2912，WS2811, WS2812, LPD6803，LPD1101，D705，UCS6909，UCS6912, WS2801，WS2803, P9813
Working temperature : -20℃～65℃
Package Size : L200×W80×H50mm
Weight (G.W) : 290g
