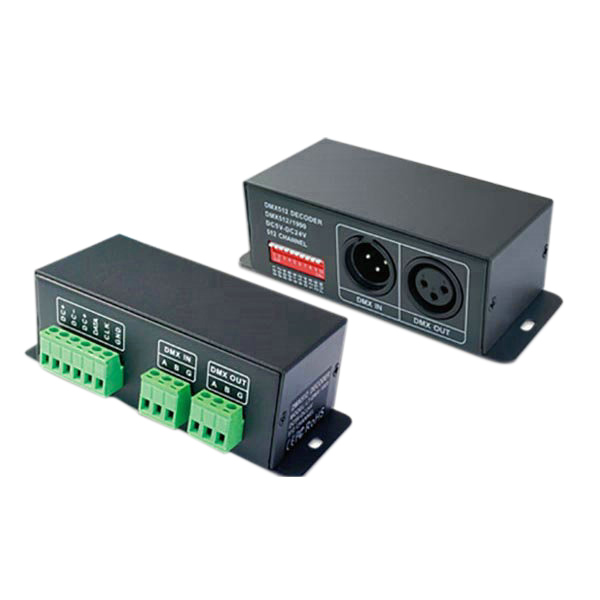

DMX-SPI Decoder LT-DMX-1809
LT-DMX-1809 converts the universal standard DMX 512 signal into SPI(TTL) digital signal to drive LEDs with compatible driving IC, It could control every channel of the LED lights, realize 0-100% dimming or editing all sorts of changing effect.
DMX-SPI decoder is widely used in LED flashing word string light, LED dot light, SMD strip, LED digital tubes, LED wall light, LED pixel screen, Hi-power spotlight, floodlight, etc.
LT-DMX-1809 DMX-SPI Decoder
Input voltage: DC5V～DC24V
Input signal: DMX512
Compatible IC: TM1803, TM1804, TM1809, TM1812, UCS1903, UCS1909, UCS1912, UCS2903, UCS2909, UCS2912, WS2811, WS2812B Driving IC
Decoder channels: 512 DMX CH/unit
DMX512 socket: XLR-3, Green terminal
Dimming range: 0~100%
Working temperature: -30℃～65℃
Package Size: L135×W70×H50mm
Weight (G.W) : 300g
