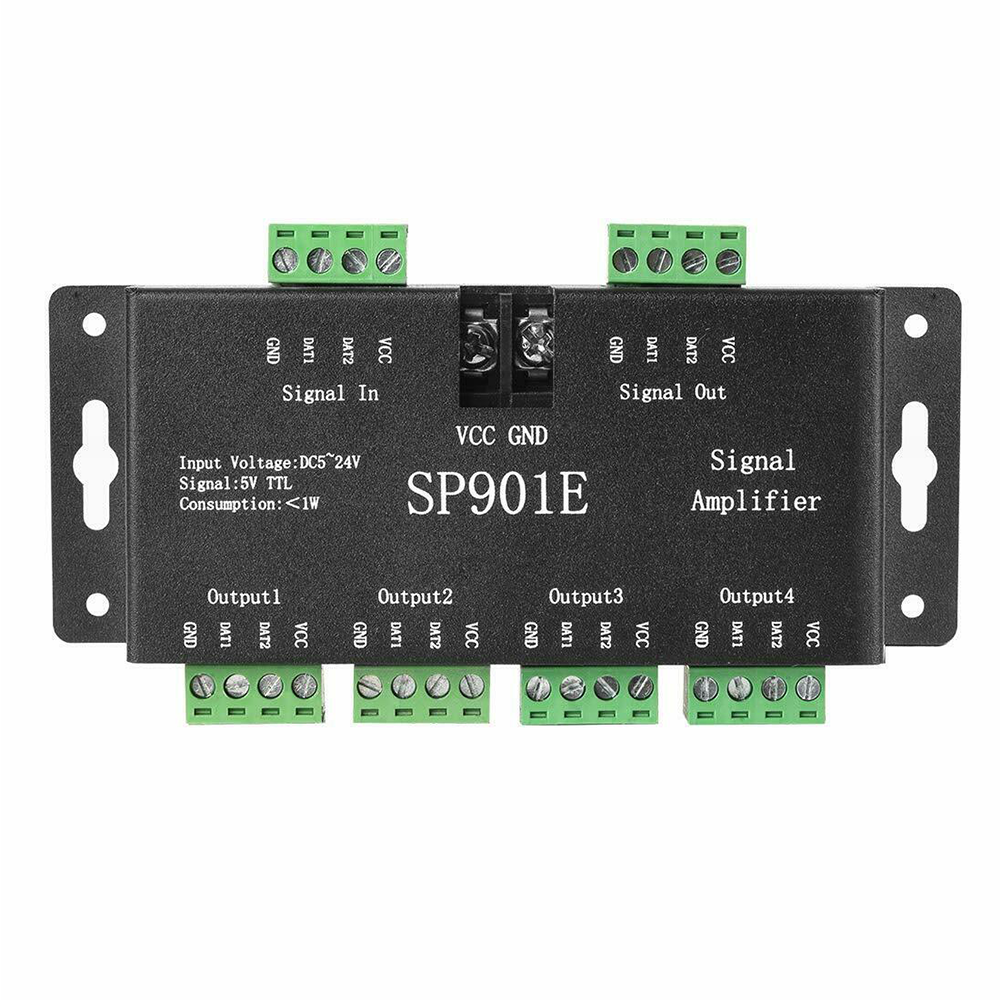

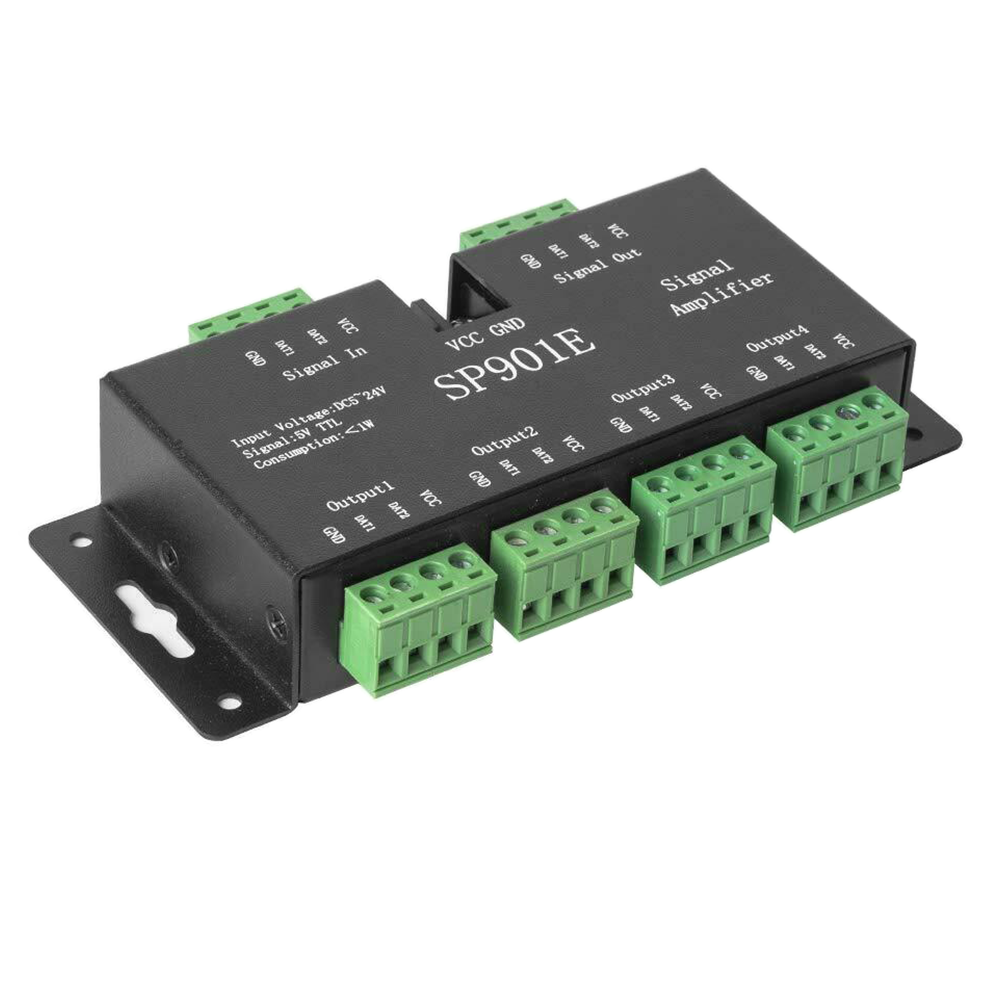

4CH SPI Signal Amplifier SP901E For Programmable LED Light Strips
- $60.00 $44.9825% off
- $90.00 $69.9822% off
- $120.00 $99.9817% off
- $129.00 $94.9826% off
- $120.00 $99.9817% off
Dream-color SPI signal amplifier applies to all the dream-color controllers of our company, each time add one dream-color amplifier, it could output 84 groups of dream-color signals, achieve the effection of multi-group dream-color strip light changing synchronously. Dream-color amplifiers could be connected immensely.
Wide operating voltage range of DC5V~24V, but the output voltage cannot be adjusted. This means that the output voltage of the power supply must be the same as the operating voltage of the LED lights. The current flowing through an amplifier is finite, and when the current consumed is high, a corresponding voltage needs to be added to the power supply.
Standards and Certifications
Working temperature: -20-60℃
Supply voltage: DC5-24V
Static power consumption: <1W

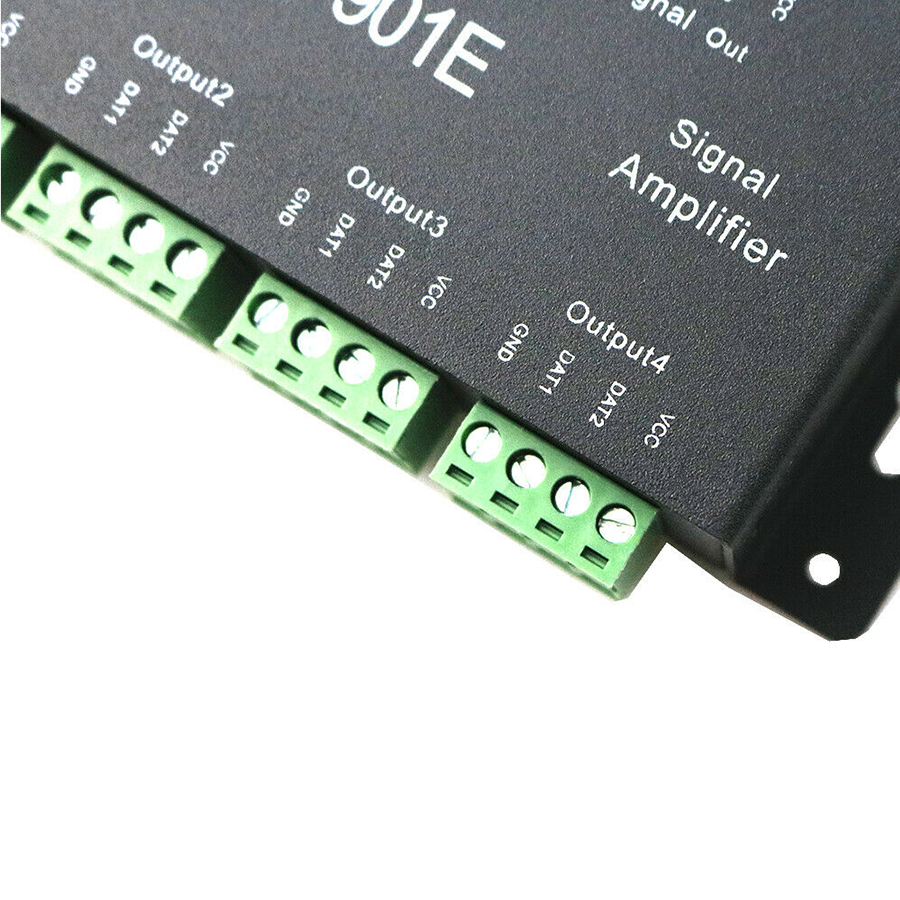

Output: 4 SPI signal channels
Net weight: 116g
Gross weight: 170g

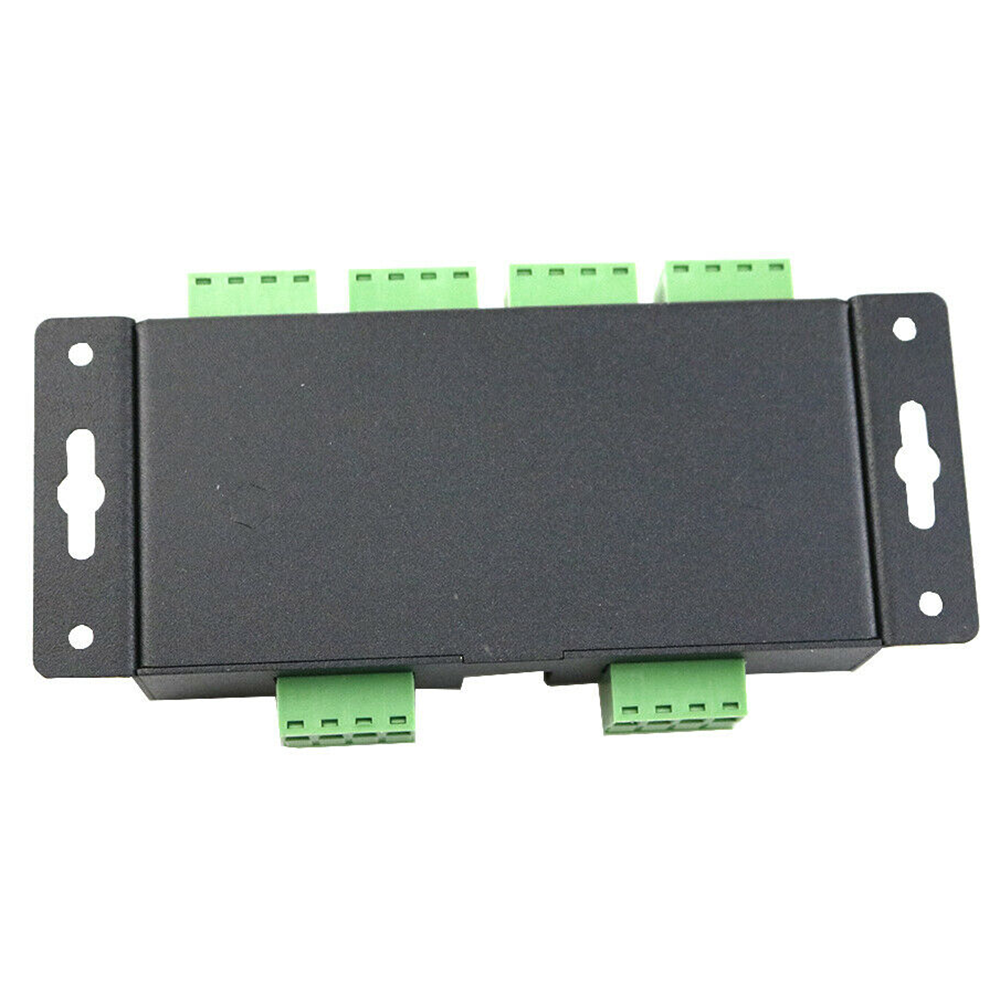

External dimension: L 140 Χ W 56 Χ H 28mm
Compatible IC type: WS2812B,WS2811,SK6812, SK6812-RGBW,SM16703, WS2813, WS2815, CS8812, AL2815, WS2801, APA102, SK9822,UCS1903, LPD6803, LPD8806, APA102
Direction for Use

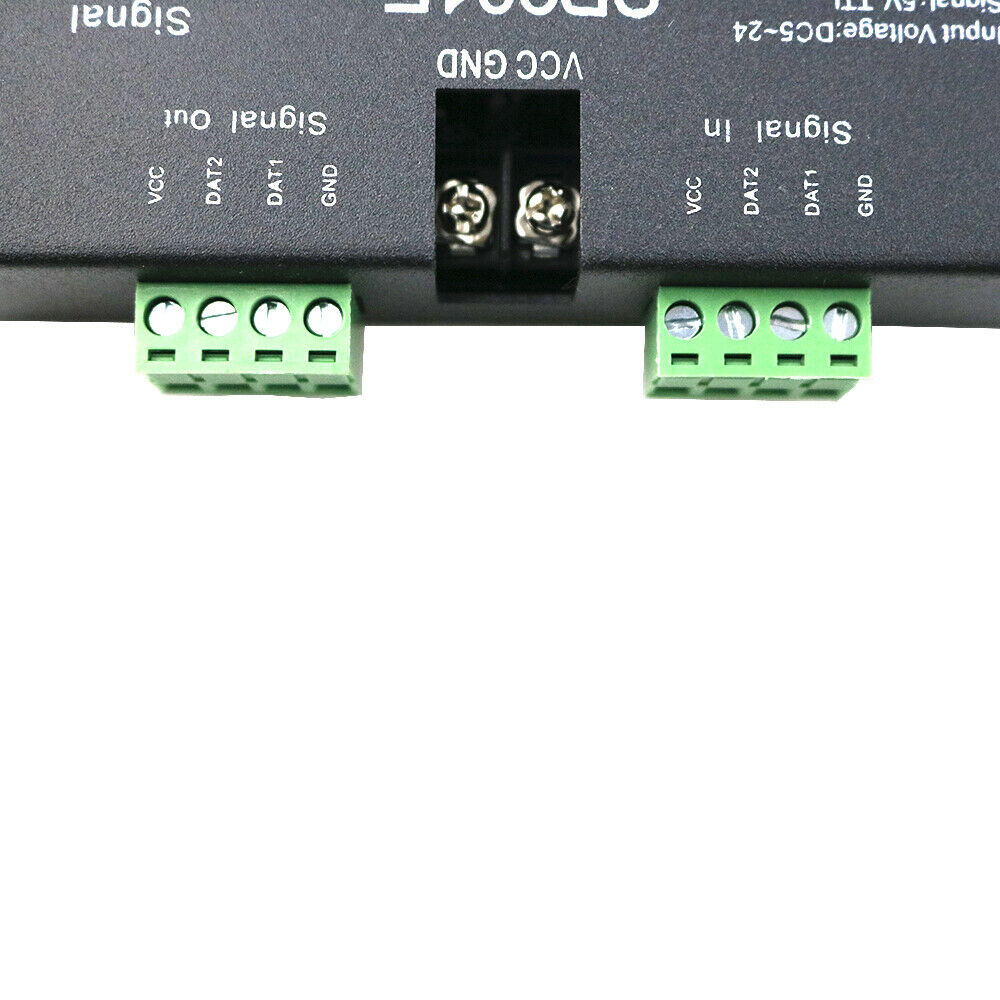

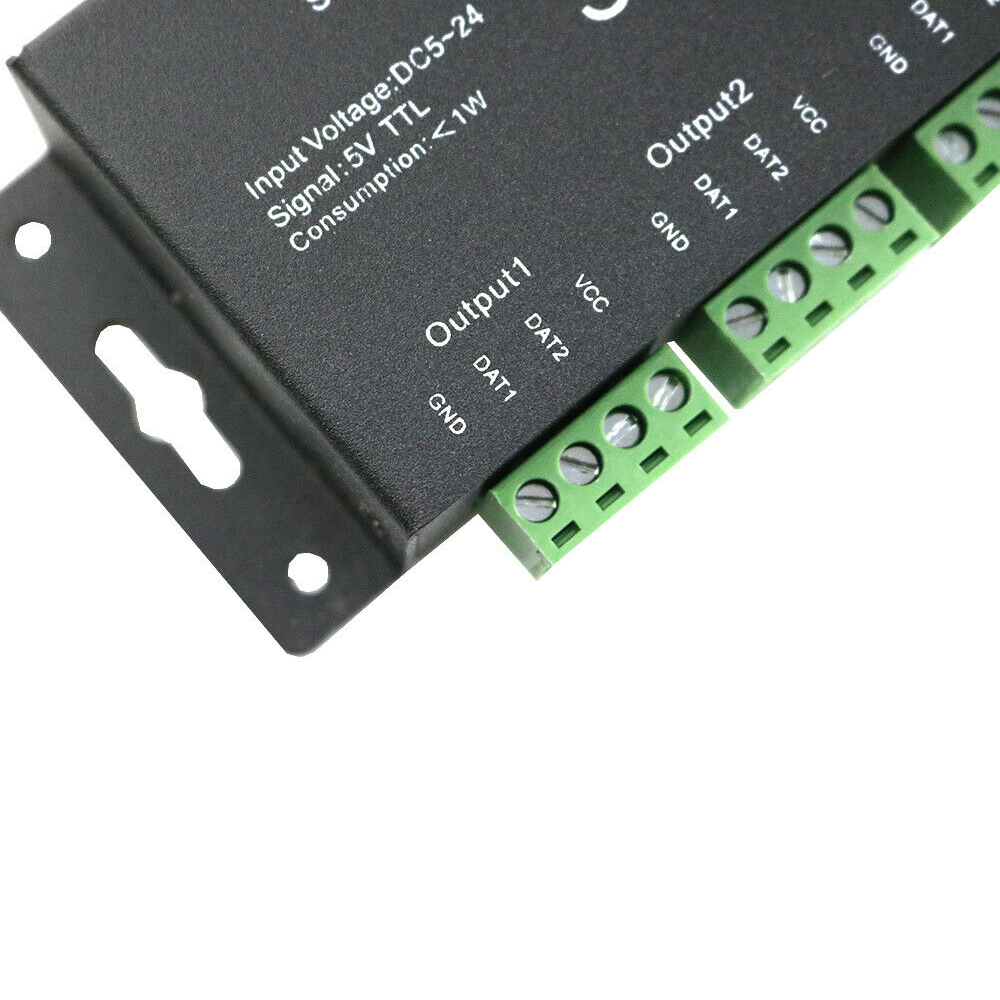

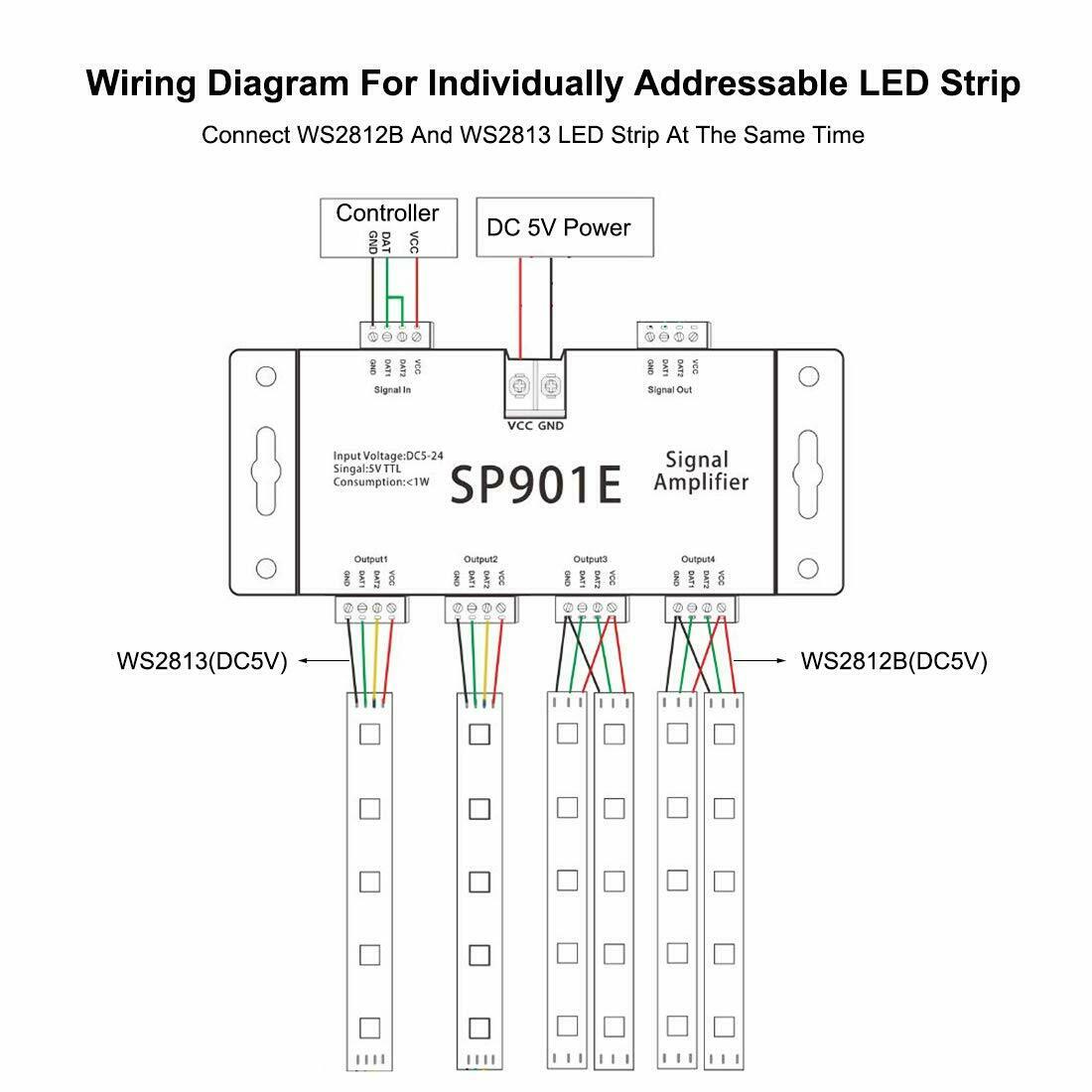

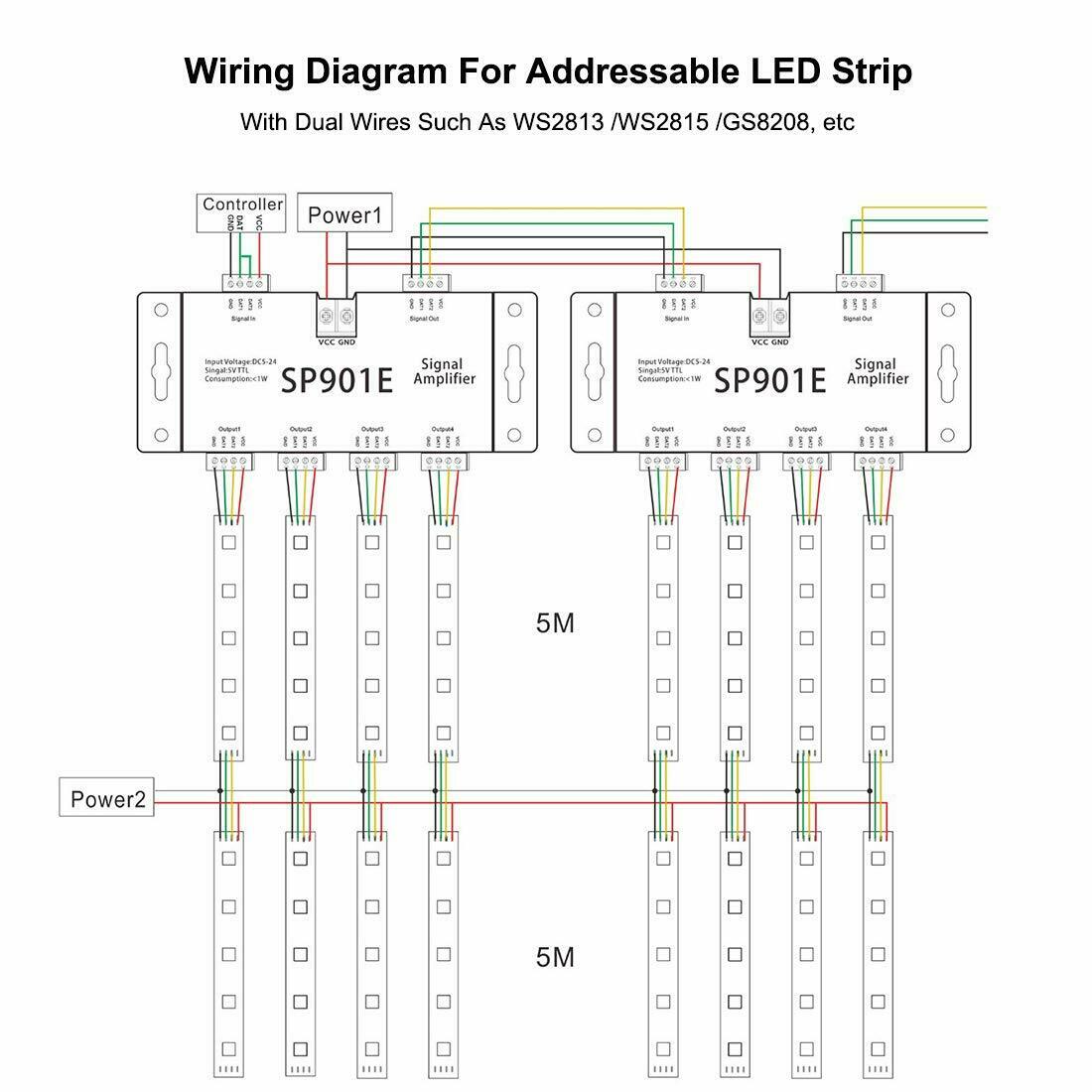

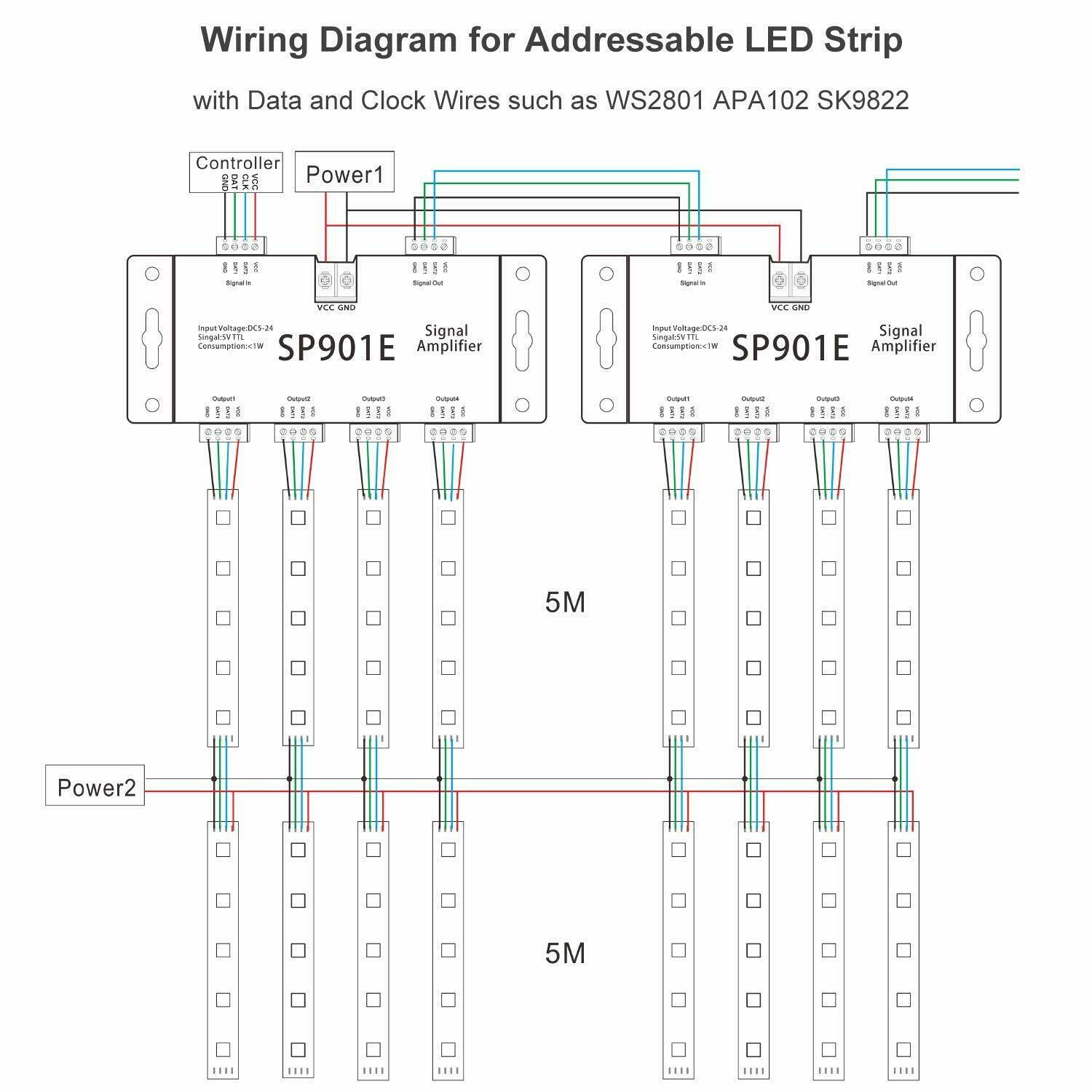

According to the silk-screen prompts on the panel of dream-color amplifier, connect input and output signal wires in order，ensure short circuit can not occur between wires, then connect power with dream-color amplifier, actually use it with dream-color controller, please reference to the following typical application.
