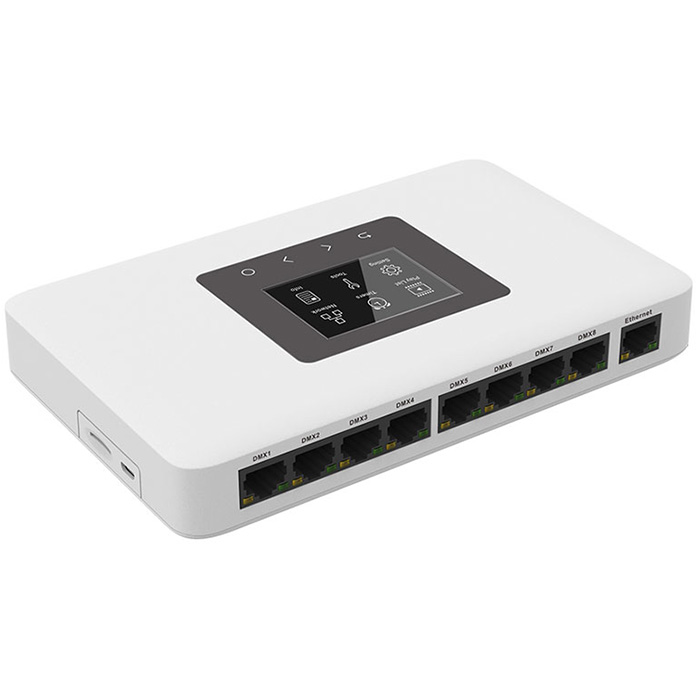

Artnet-DMX Control System Artnet-DMX-8S
1、Ethernet Control System based on the Artnet protocol.
2、Convert the Artnet network data package into DMX512 data.
3、Adopting high-speed ARM processor, stable and reliable.
4、Supports RJ45 network interface and DMX512 with RJ45 output interface.
5、With TFT 2.4" LCD screen and 4 touch keys, very easy for setting operation.
6、Update firmware via SD card or network.
7、Support program record.
8、Support offline playback.
9、Compatible with the light software based on Artnet Protocol.

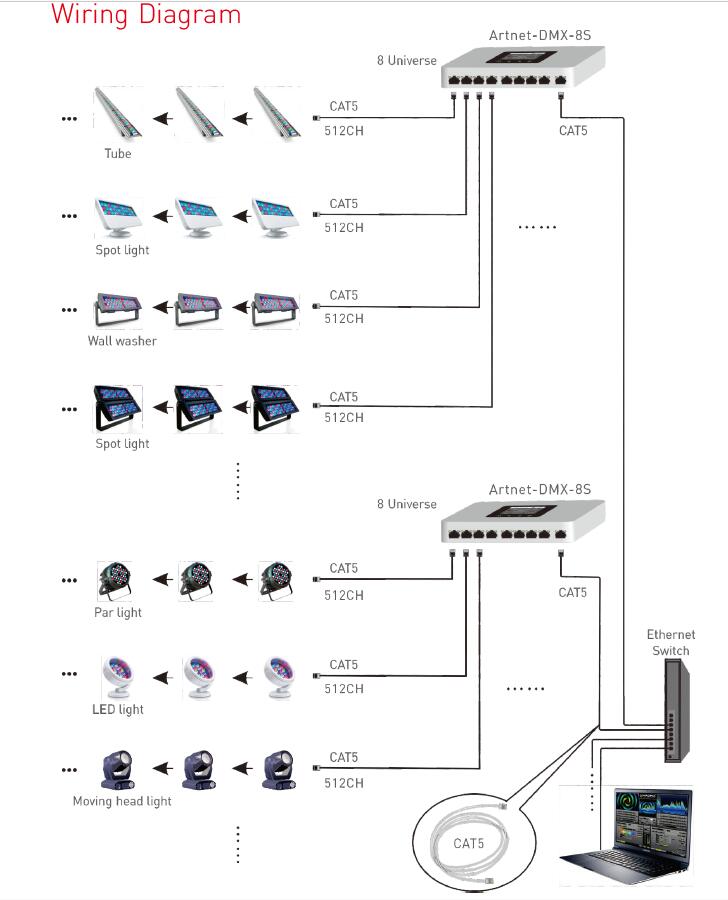

10、Widely used in the LED dot matrix and the stage lighting control network in needing lots of DMX512 data.
11、Suitable for TV station recorded scene, stage performances, entertainment and so on.
Power input: 5Vdc, 1A
Input signal :Ethernet
Output signal: 8 Universe
Network protocol: Artnet Input / DMX output
SD card capability: 8G (support 16G)
DMX output connection: RJ45
Network connection: RJ45
Screen size: 2.4", TFT230+240
Isolation ethernet port: Total isolation
Isolation power input: Total isolation

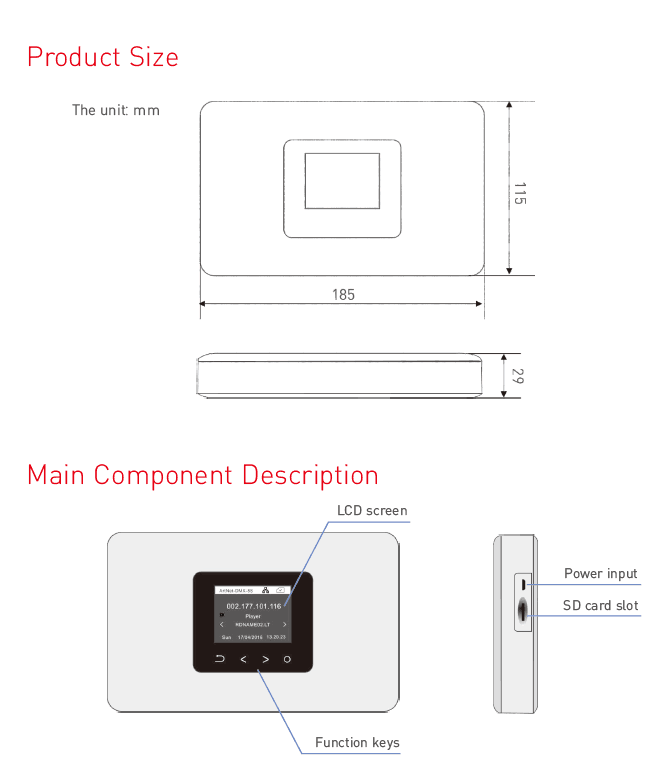

Package size: L192×W164×H36mm
Working temperature: -30℃～55℃
