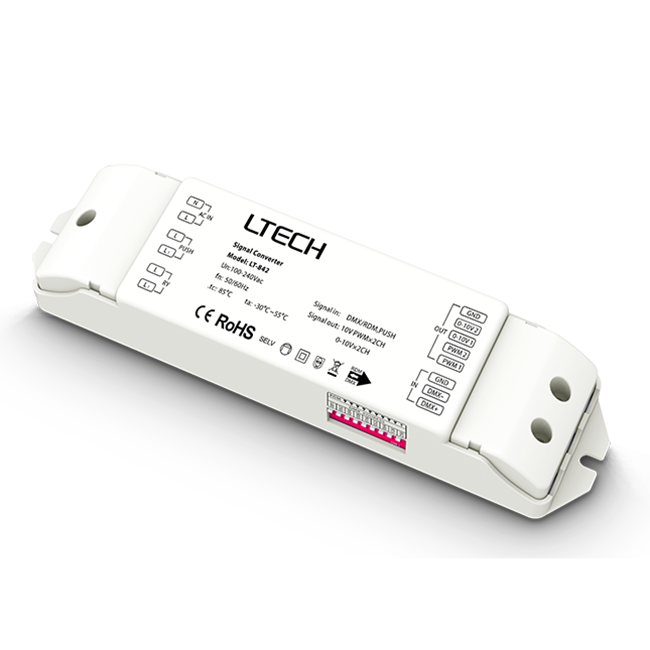

Dimming signal converter LT-842
LT-842 Dimming signal converter
Input voltage: 100-240 Vac
Input signal: DMX/RDM, PUSH DIM
Output: 0-10V × 2CH + 10V PWM × 2CH
Dimming Range: 0.1～100%
working temperature tc: 85°C ta: -30°C ~ 55°C
Package Size: L178×W48×H33(mm)
Weight (G.W): 120g±10g
