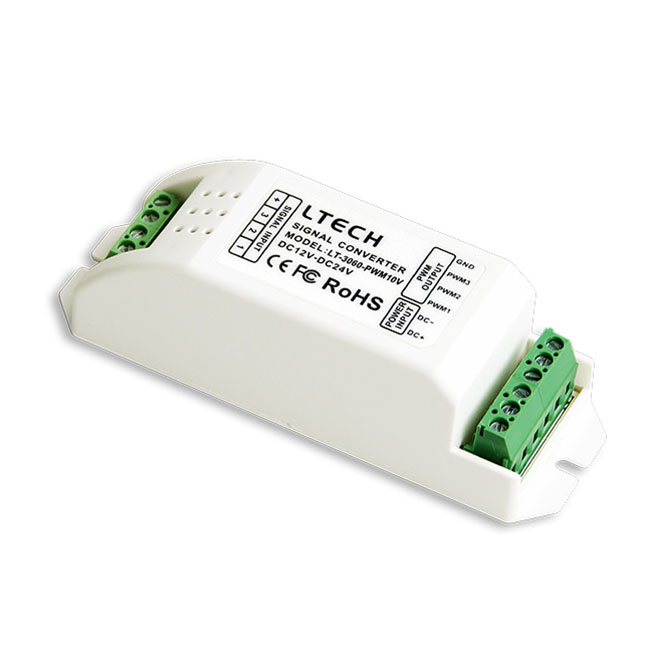

Dimming signal converter LT-3060-PWM10V
LT-3060-PWM10V Dimming signal converter
Input voltage: DC12V～DC24V
Input signal: PWM x3CH (compatible with CV/CC Power PWM and Signal PWM)
Output: 10V PWM x3CH
Dimming Range: 0～100%
working temperature: -30℃～55℃
Package Size: L123×W42×H42(mm)
Weight (G.W): 80g

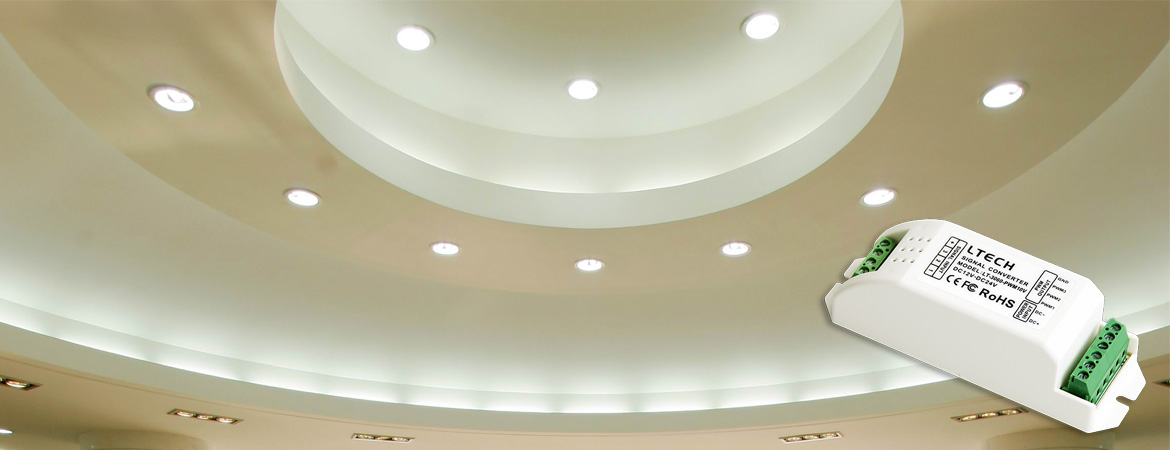

LED Dimmer LT-3060-PWM10V
