LT-84A DMX/DALI - 0-10V Dimming Module
Adopt SAMSUNG/COVESTRO V0 flame resistant polycarbonate protective housings with small size and light weight.

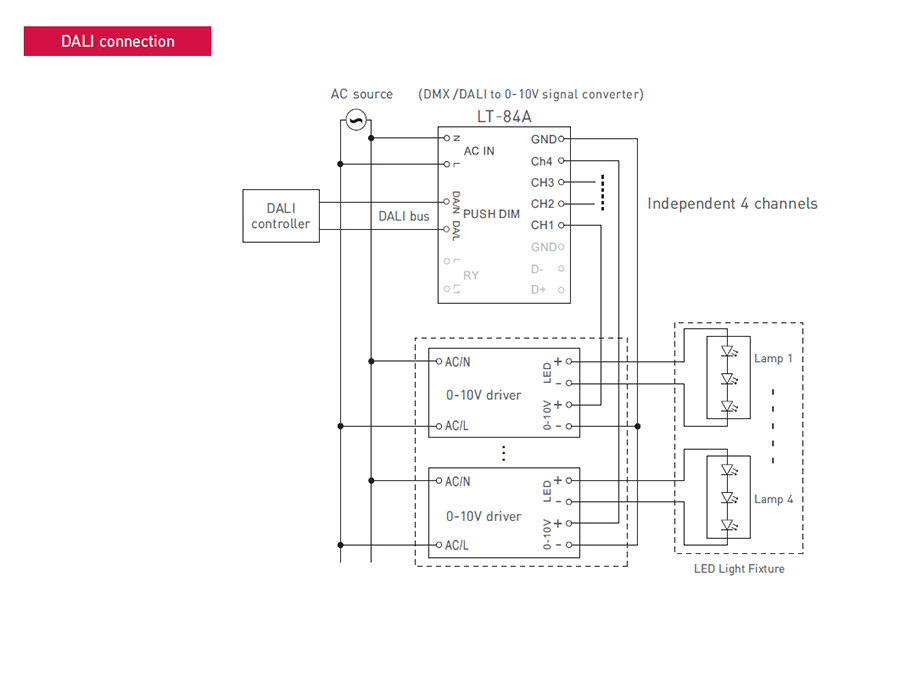

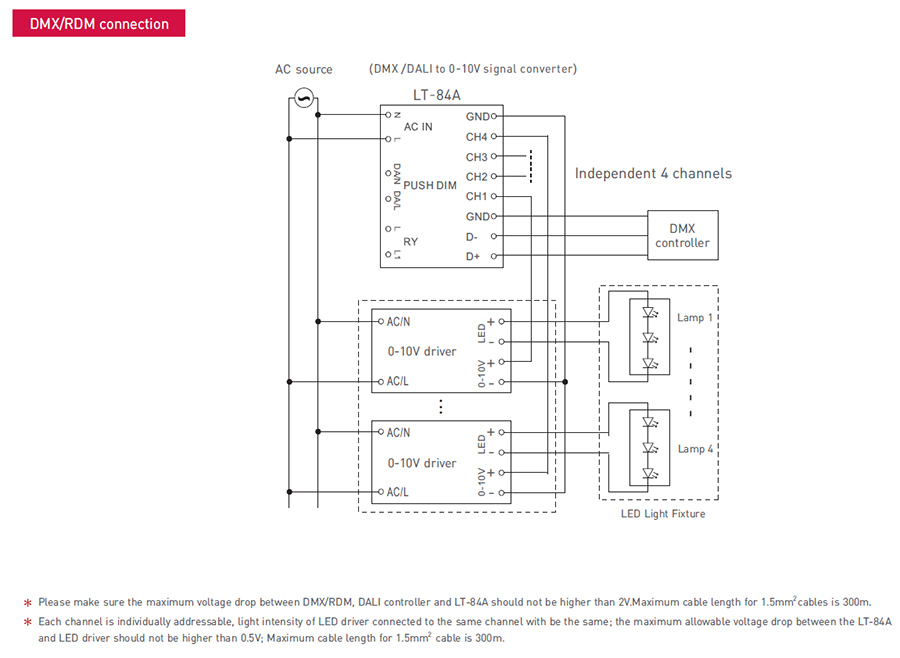

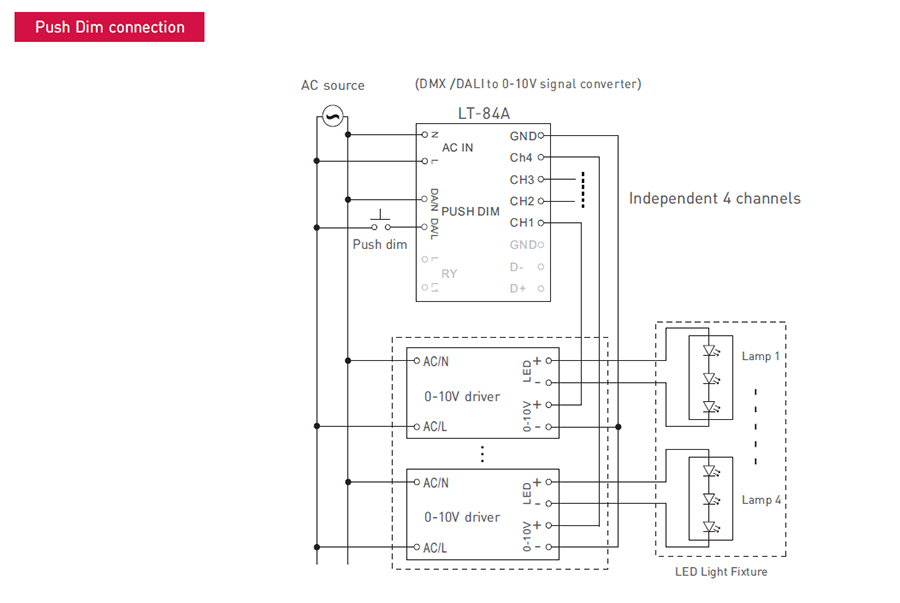

Dimming interface: DMX/RDM, DALI, Push Dim.
Optional output: 0-10V, 5V PWM, 10V PWM.
With the RDM protocol.
4 channel output.

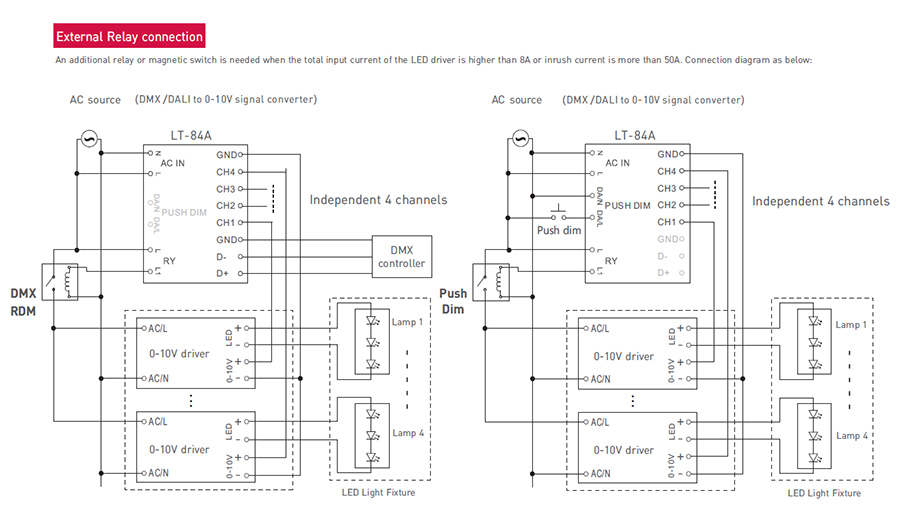

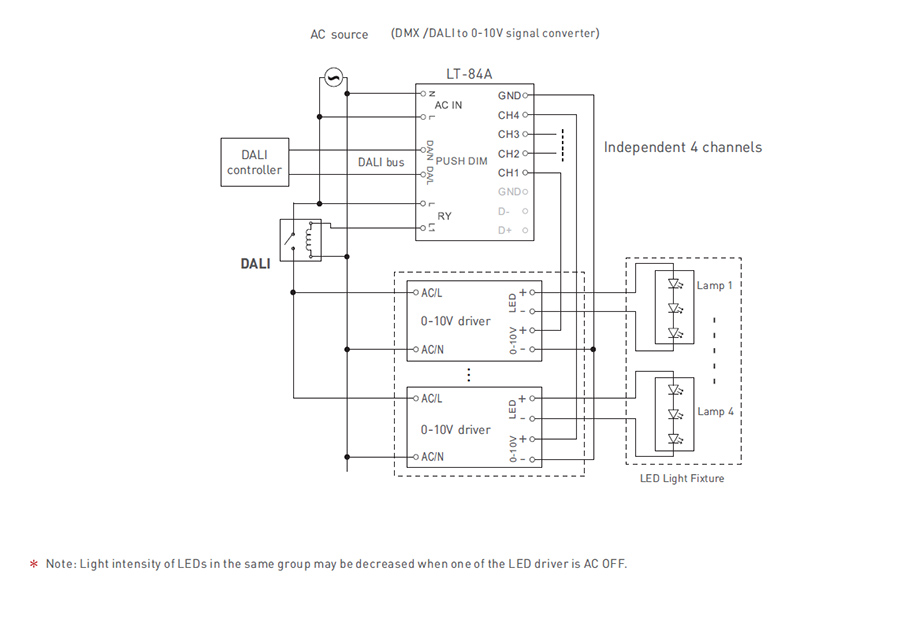

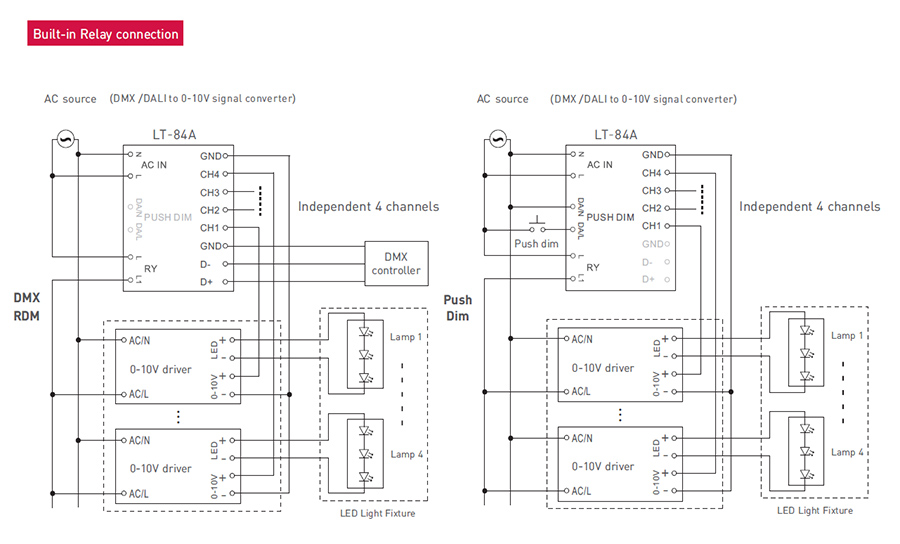

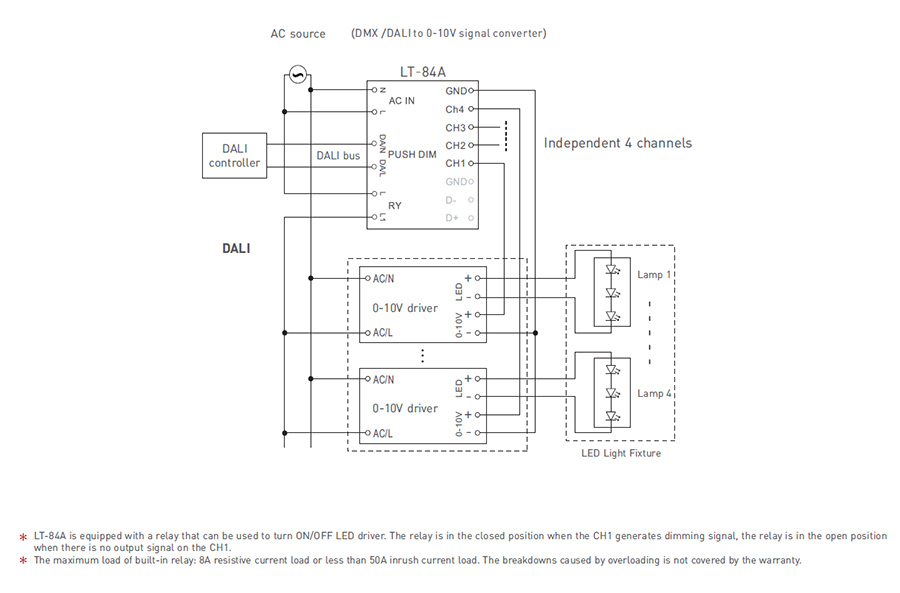

Built-in relay for ON/OFF control of LED driver.
Soft-on and fade-in dimming function enhances your visual comfort. Dimming range: 0~100%.
Full protective plastic housing.
DALI bus standard: IEC62386-101,102,207.
Compliant with Safety Extra Low Voltage standard.
Suitable for indoor environments.
Dimming interface: DMX/RDM,DALI,Push Dim
Output signal: 0-10V × 4CH (Default) ,5V PWM × 4CH,10V PWM × 4CH (Default 0-10V,Please specify if the other two output signals are needed)
Dimming range: 0~100%
Output signal logic: High potential
Input voltage: 100-240Vac/277Vac (277 Vac for North America only)
AC current: 0.055A
Inrush current: Cold start14A@230Vac
Leakage current: <0.5mA/240Vac
Power consumption: 115Vac@3.0W MAX 230Vac@3.5W MAX
Relay switch: 240Vac/8A
Working temperature: ta: -30°C ~ 55°C tc: 70°C
Working humitdity: 20 ~ 95%RH, non-condensing
Storage temp/Humidity: -40 ~ 80°C, 10~95%RH
Vibration: 10-500HZ, 2G 12min/1cycle，72 min for X,Y and Z axes respectively.
Standards and Certifications
Products shall be installed by qualified professionals.
LTECH products are non-waterproof (special models excepted). Please avoid the sun and rain.
When installed outdoors, please ensure it is mounted in a water proof enclosure.
Good heat dissipation will extend the working life of products. Please ensure good ventilation.
Please check if the working voltage used complies with the parameter requirements of products.
The diameter of wire used must be able to load the light fixtures you connect and ensure the firm wiring.
Before you power on products, please make sure all the wiring is correct in case of incorrect connection that causes damage to light fixtures.
If a fault occurs, please do not attempt to fix products by yourself. If you have any question, please contact your suppliers.
This manual is subject to changes without further notice. Product functions depend on the goods. Please feel free to contact our official distributors if you have any question.
Warranty periods from the date of delivery 5 years.
Free repair or replacement services for quality problems are provided within warranty periods.
Warranty exclusions below:
Beyond warranty periods.
Any artificial damage caused by high voltage, overload, or improper operations. Products with severe physical damage.
Damage caused by natural disasters and force majeure.
Warranty labels and barcodes have been damaged.
No any contract signed by LTECH.
1.Repair or replacement provided is the only remedy for customers. LTECH is not liable for any incidental or consequential damage unless it is within the law.
2.LTECH has the right to amend or adjust the terms of this warranty, and release in written form shall prevail.
