Product Information
Key Features
Triple Signal Input
Accepts DMX512/RDM, DALI, and Push DIM signals, offering maximum flexibility for any control environment.
Forward Phase-Cut Output
Provides a leading-edge Triac dimming signal compatible with a wide range of incandescent, halogen, and dimmable LED lights.
High Load Capacity
Handles a maximum load of 5A, supporting up to 500W of incandescent/halogen lamps or 300W of dimmable LEDs.
Universal AC Input
Operates on a wide voltage range of 100-240Vac, making it suitable for installations worldwide.
Intelligent Signal Priority
Automatically prioritizes control signals in the order of DALI, then DMX/RDM, and finally Push DIM for predictable operation.
Built-in Safety Protections
Features automatic overload protection that shuts down the output at ≥102% load and recovers automatically.
Technical Highlights
- Compliant with DALI bus standards IEC62386-101, 102, and 207.
- RDM (Remote Device Management) enabled for easy discovery and addressing in DMX systems.
- Binary DIP switches allow for easy and precise setting of the DMX initial address from 1 to 511.
- Full protective plastic housing ensures safety and durability in indoor environments.
- Smooth, flicker-free dimming from 0% to 100% across all compatible load types.
Product Specifications
| Parameter | Details |
|---|---|
| Model | LT-834 |
| Dimming Interface | DALI, DMX/RDM, Push DIM |
| Input Voltage | 100~240Vac |
| Input Frequency | 50~60Hz |
| Output Signal | Leading Edge Phase-Cut (Triac) |
| Output Current | Max. 5A |
| Max Load Power (Incandescent) | 25-500W |
| Max Load Power (High-Voltage Halogen) | 25-500W |
| Max Load Power (Dimmable LEDs) | 6-300W |
| Dimming Range | 0~100% |
| Protection | Overload (auto-recovery) |
| Working Temperature | -30℃~55℃ |
| Dimensions (L×W×H) | 175×44×H30 mm |
| Package Size (L×W×H) | 178×48×H33 mm |
| Gross Weight | 140g |
Application Scenarios
How to Install & Configure the LT-834 Dimming Module
- Step 1: Disconnect Power - Before beginning installation, ensure the main AC power is turned off at the circuit breaker to prevent electrical shock.
- Step 2: Wire Connections - Connect the 100-240Vac power to the L (Live) and N (Neutral) input terminals. Connect the lighting load to the Triac dimmer output terminals. Connect your control signal (DMX, DALI, or Push switch) to the appropriate signal input terminals as shown in the datasheet diagrams.
- Step 3: Set DMX Address (If Using DMX) - Use the 9-position DIP switch to set the DMX initial address. The address is the sum of the values of the switches in the 'ON' position (1, 2, 4, 8, 16, 32, 64, 128, 256). For RDM mode, ensure all DIP switches are OFF.
- Step 4: Test Operation - Once all wiring is secure, restore AC power. Use your DMX console, DALI controller, or push switch to test the dimming functionality. A short press of a push switch toggles on/off, while a long press dims up or down.
- This product is for indoor use only.
- Ensure the total load does not exceed the maximum rating of 5A.
- Only use with luminaires compatible with forward phase-cut (leading-edge/Triac) dimming.
- Provide adequate ventilation around the module to prevent overheating.

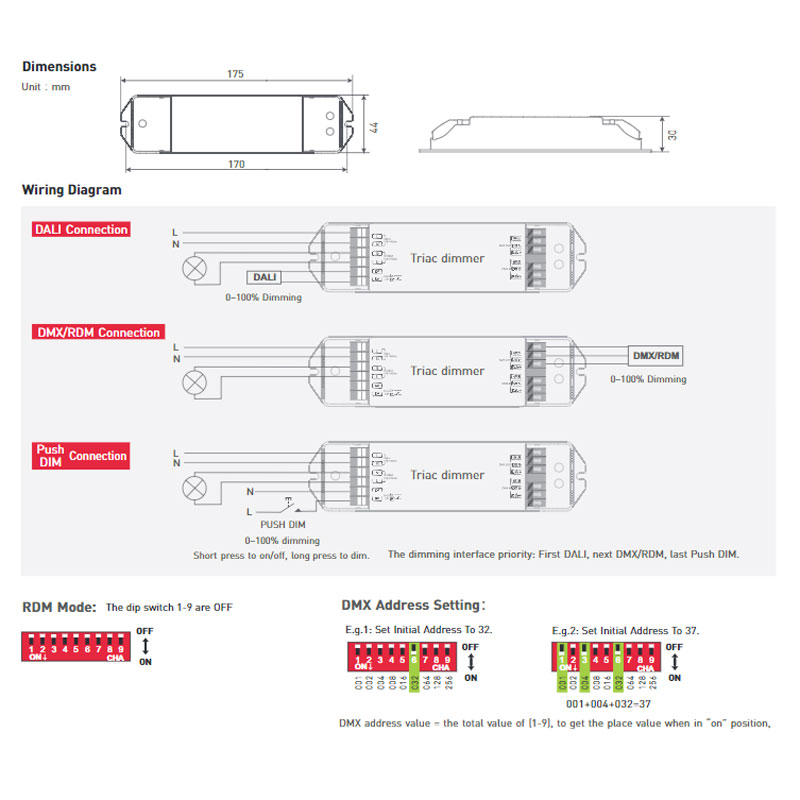

- Please refer to the detailed datasheet in the Downloads section for complete wiring diagrams and DMX address settings.
What's in the Box
- ✓1 x LT-834 DMX/DALI to Phase-cut Dimming Module
- ✓1 x User Manual
⇩ Downloads & Documents
Frequently Asked Questions
Q: What is forward phase dimming?
A:Forward phase-cut dimming, also known as leading-edge or Triac dimming, is a common method for dimming incandescent, halogen, and compatible LED lights. The LT-834 is specifically designed for this type of dimming.
Q: Does this module work with reverse phase dimming (ELV)?
A:No, this module is exclusively for forward phase-cut (leading-edge) dimming. It is not compatible with reverse phase-cut (trailing-edge/ELV) dimmers or loads.
Q: Can I use this with any LED bulb?
A:You must use LED bulbs or fixtures that are specifically marked as 'dimmable' and compatible with Triac or leading-edge dimmers. Non-dimmable LEDs will not work and may be damaged.
Q: How do I set the DMX address?
A:The DMX address is set using the 9 DIP switches. Each switch has a binary value (1, 2, 4, 8, etc.). Add the values of all switches in the 'ON' position to get your desired starting address.
Q: What happens if I connect both DALI and DMX signals at the same time?
A:The LT-834 has a built-in signal priority. It will always listen to the DALI signal first. If a DALI signal is present, it will ignore any DMX or Push DIM commands.
Q: What is the difference between this module and a standard DMX decoder?
A:This module outputs a high-voltage AC phase-cut signal to dim line-voltage lights directly. A standard DMX decoder typically outputs a low-voltage PWM signal to control constant voltage LED strip lights.
