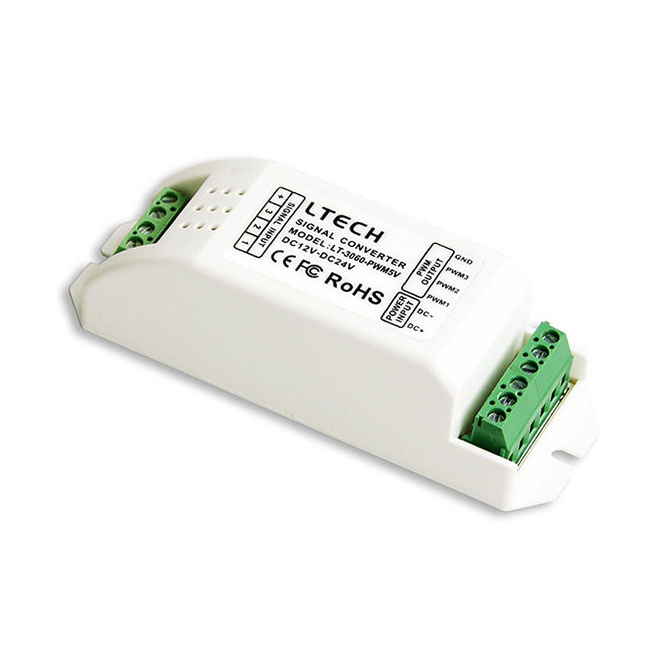

The Ltech LT-3060-PWM5V is a specialized 3-channel dimming signal converter designed to bridge the compatibility gap between different voltage standards in your lighting system. It expertly converts high-voltage 12V-24V Pulse-Width Modulation (PWM) signals into a clean, stable 5V PWM output. This makes it an essential tool for integrating specialized 5V LED fixtures or components into a larger lighting installation that runs on a standard 12V or 24V infrastructure. By ensuring seamless communication between devices, the LT-3060-PWM5V allows for unified control and smooth, flicker-free dimming performance across your entire project, regardless of voltage differences.
Key Features
Precise Signal Conversion
Reliably converts standard DC12V-24V PWM input signals to a clean, low-voltage 5V PWM output.
3-Channel Control
Independently manages three channels, making it perfect for 5V RGB strips or three separate zones of single-color lights.
Broad Compatibility
Accepts both Constant Voltage (CV) and Constant Current (CC) PWM input signals for versatile system integration.
Full Range Dimming
Achieves smooth, flicker-free dimming from 0% to 100%, giving you complete brightness control over your 5V fixtures.
Compact & Durable Design
Features a robust and compact housing for easy and discreet installation in control boxes or tight spaces.
Technical Highlights
- Ensures signal integrity when integrating 5V LED components into 12V or 24V lighting systems.
- High-speed signal processing prevents lag, maintaining perfect synchronization between input and output.
- Wide operating temperature range (-30℃ to 55℃) ensures reliability in various professional environments.
Product Specifications
| Parameter | Details |
|---|---|
| Model | LT-3060-PWM5V |
| Input Voltage | DC12V ~ DC24V |
| Input Signal | PWM x 3 Channels |
| Input Compatibility | Constant Voltage (CV) & Constant Current (CC) Power PWM, Signal PWM |
| Output Signal | 5V PWM x 3 Channels |
| Dimming Range | 0 ~ 100% |
| Working Temperature | -30℃ ~ 55℃ |
| Dimensions (L×W×H) | 121 × 39 × 39 mm |
| Package Size (L×W×H) | 123 × 42 × 42 mm |
| Gross Weight | 95g |
Application Scenarios
How to Install & Use This Signal Converter
- Power Connection: Connect a DC12V-24V power supply to the 'Power Input' terminals. Ensure correct polarity (+ to +, - to -).
- Input Signal Wiring: Connect the PWM output from your main controller or PWM driver to the 'Signal Input' terminals (CH1, CH2, CH3).
- Output Signal Wiring: Connect the 'Signal Output' terminals (CH1, CH2, CH3) to the PWM signal input of your 5V LED driver or fixture.
- Verify Connections: Double-check all wiring for secure connections and correct polarity before applying power.
- Test System: Power on the main controller and power supply. Test the dimming functionality to ensure the 5V fixture responds correctly to the input signal.
- Always use a power supply that matches the converter's input voltage range (DC12V-24V).
- This device converts the control signal, not the main power. Your 5V fixtures will still require their own separate DC5V power supply.
- Ensure the total load of your connected devices does not exceed the capacity of your main controllers and power supplies.
- For detailed specifications and diagrams, please refer to the product datasheet available in the Downloads section below.
What's in the Box
- ✓1x LT-3060-PWM5V Dimming Signal Converter
- ✓1x User Manual
⇩ Downloads & Documents
Frequently Asked Questions
Q: What is the main purpose of the LT-3060-PWM5V converter?
A:It converts a 12V or 24V PWM dimming signal into a 5V PWM signal. This allows you to control 5V LED fixtures using a higher voltage PWM controller or driver.
Q: Does this device power my 5V LED strips?
A:No, this is a signal converter, not a power supply. It only translates the dimming control signal. Your 5V LED lights will still need a separate DC5V power supply.
Q: Can I use this to control a 5V RGB LED strip?
A:Yes, its three independent channels make it ideal for controlling 3-channel 5V PWM-based RGB LED strips or three separate single-color 5V zones.
Q: Is this converter compatible with DMX or 0-10V signals?
A:No, this model is specifically designed for PWM-to-PWM signal conversion. For other signal types, please browse our range of DMX and 0-10V converters.
Q: What is the difference between this and the LT-3060-PWM10V model?
A:The LT-3060-PWM5V outputs a 5V PWM signal, while the sibling LT-3060-PWM10V model outputs a 10V PWM signal. Choose the model that matches the input signal requirement of your target LED driver or fixture.
Q: Can it accept signals from both constant voltage and constant current drivers?
A:Yes, the input is designed to be compatible with PWM signals originating from both Constant Voltage (CV) and Constant Current (CC) power sources.
