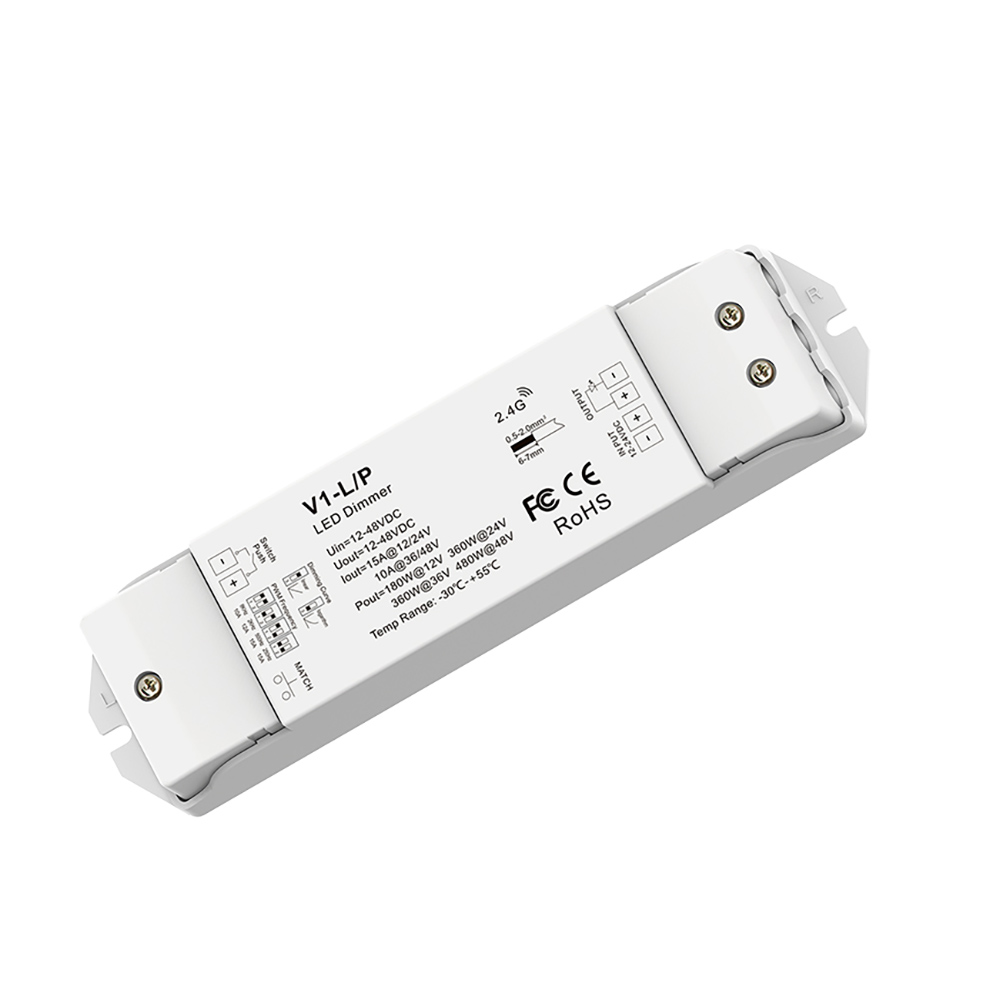

1CH*15A 12-48VDC CV Controller, Push-Dim V1-L/P

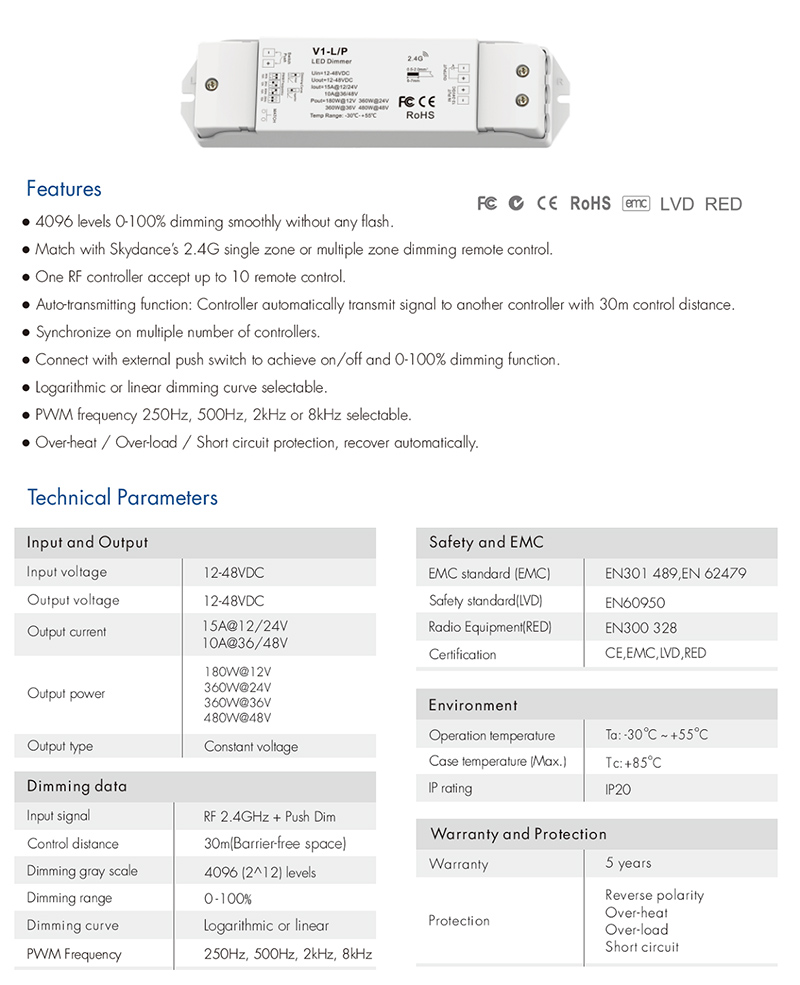

4096 levels 0~100% dimming smoothly without any flash.
Match with Skydance's 2. 4G single zone or multiple zones dimming remote control.
One RF controller accepts up to 10 remote control.

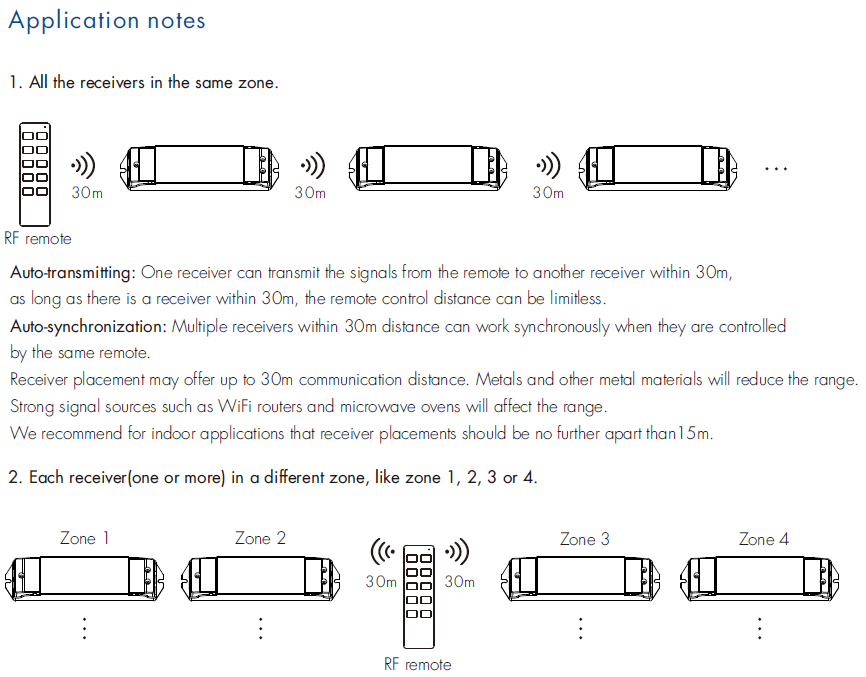

Auto-transmitting function: Controller automatically transmits a signal to another controller with 3Om control distance.
Synchronize on multiple controllers.
Connect with external push switch to achieve on/off and O- 100% dimming function.

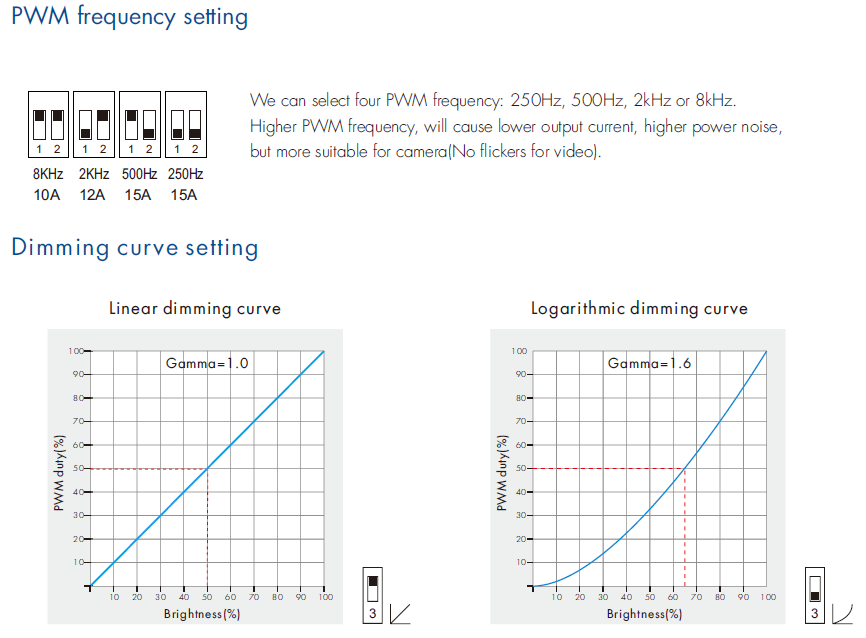

Logarithmic or linear dimming curve selectable.
PWM frequency 250Hz, 5OOHz, 2kHz, or 8kHz selectable.
Over-heat / Overload / Short circuit protection, recover automatically.
Output voltage: 12-48VDC
Output current: 1 5A@12/24V 10A@36/48V
Output power: 180W@ 12V 360W@24V 360W@36V 4 80W@48V
Output type: Constant voltage
Safety and EMC
EMC standard (EMC): EN301 489,EN 62479
Safety standard(LVD): EN6095O
Radio Equipment(RED): EN300328
Certification: CE,EMC,LVD, ,RED
Operation temperature: Ta: -30C~+55"C
Case temperature (Max.): Tc:+85"C
IP rating: IP20
Input signal: RF 2 4GHz + Push Dim
Control distance: 3Om(Barrier-free space)
Dimming gray scale: 4096 (2712) levels
Dimming range: 0-100%
Dimming curve: Logarithmic or linear
PWM Frequency: 250Hz, 500Hz, 2kHz, 8kHz
Warranty and Protection
Protection：Reverse polarity Over-heat Over-load Short circuit
Standards and Certifications
Push Dim Function

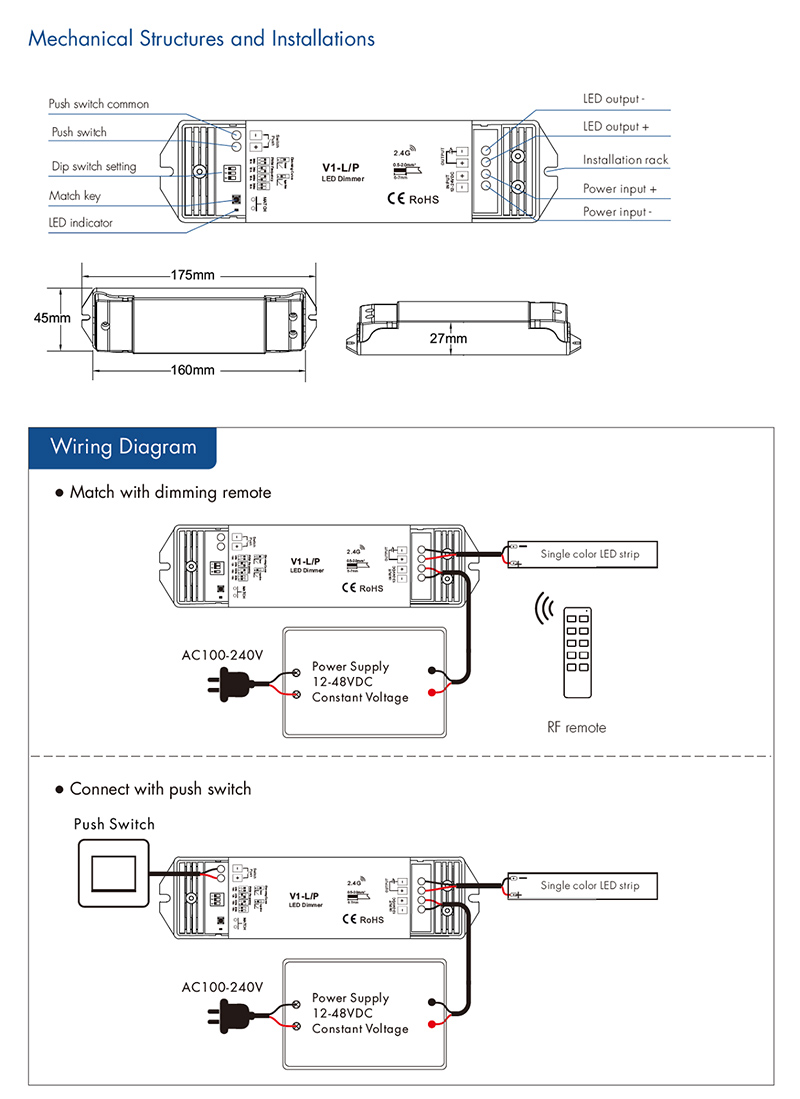

The provided Push-Dim interface allows for a simple dimming method using a commercially available non-latching (momentary) wall switch.
● Short press:
Turn on or off the light.
● Long press (1-6s):
Press and hold to step-less dimming, With every other long press, the light level goes in the opposite direction.
● Dimming memory:
Light returns to the previous dimming level when switched off and on again, even at power failure.
If more than one controller is connected to the same push switch, do a long press for more than 10s, then the system is synchronized and all lights in the group dim up to 100%.
This means there is no need for any additional synchrony wire in larger installations.
We recommend the number of controllers connected to a push switch does not exceed 25 pieces, The maximum length of the wires from the push to the controller should be no more than 20 meters.
Use the controller’s Match key
Short press match key, immediately press on/off key (single-zone remote) or zone key (multiple zones remote) on the remote. The LED indicator fast flashes a few times means the match is successful.
Press and hold match key for 5s to delete all match, The LED indicator fast flash a few times means all matched remotes were deleted.
Use Power Restart
Switch off the power, then switch on power again,
an immediately short press on/off key (single-zone remote)
or zone key (multiple zones remote) 3 times on the remote.
The light blinks 3 times means the match is successful.
Switch off the power, then switch on power again, an immediate short press on/off key (single-zone remote) or zone key (multiple zones remote) 5 times on the remote. The light blinks 5 times means all matched remotes were deleted.
