Skydance V1-F Fade-in Fade-out Push+RF LED Dimmer for single color LED lights, 5 fading speed /Step-less dimming /Push Dim/ Wireless remote control/ Multiple protection.
● Fade-in Fade-out LED dimmer with smooth fading effect for soft start and stop.

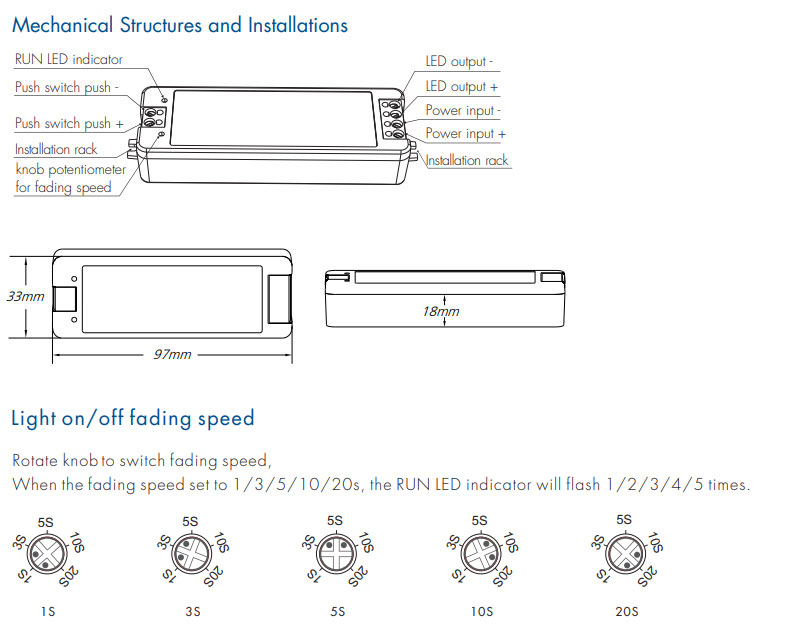

● The fading speed can be set via knob potentiometer, 1S, 3S, 5S, 10S, 20S selectable.

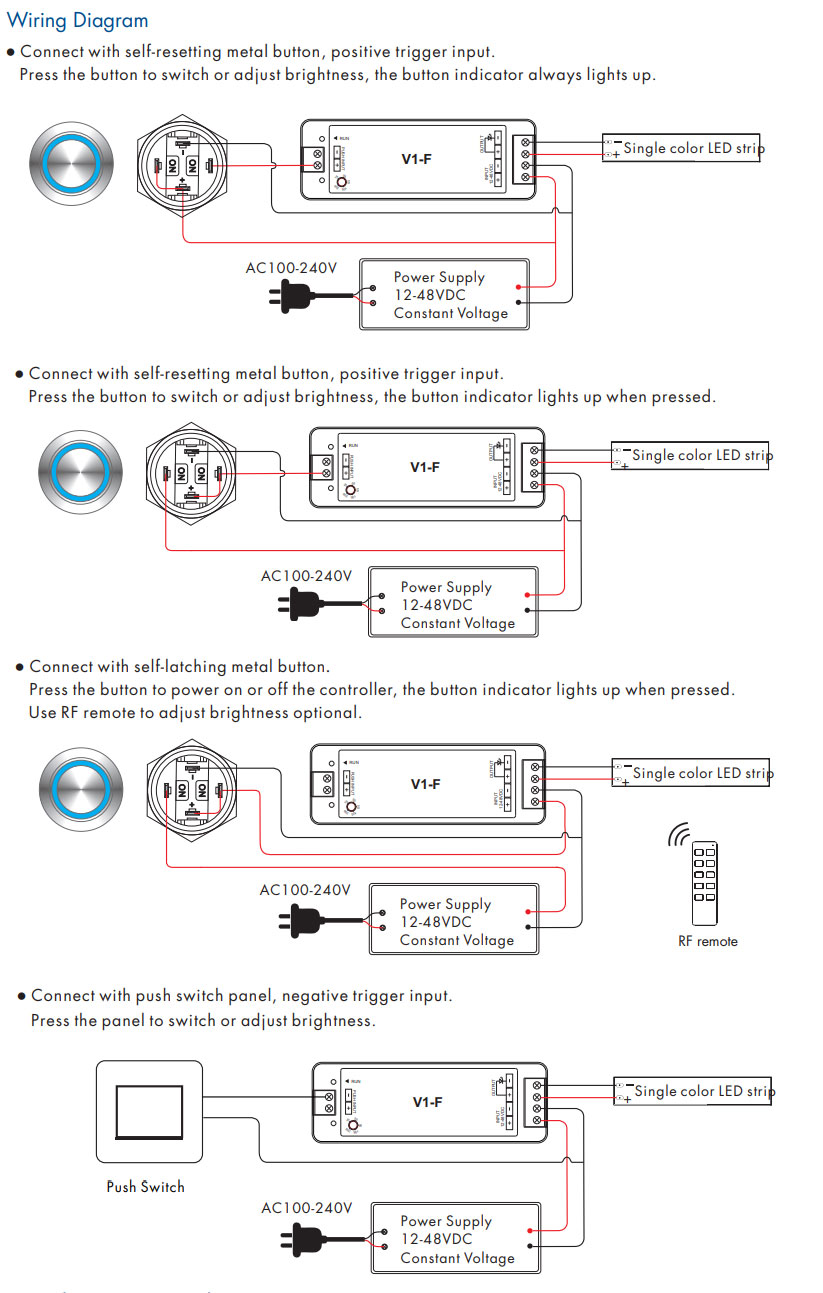

● Connect with a self-resetting metal button or push switch to achieve on/off and 0-100% dimming function.
● Push input can accept either positive or negative triggers.
● Match with RF 2.4G single zone or multiple zones dimming remote control optional.
● Over-heat / Over-load / Short circuit protection, recover automatically.
Standards and Certifications
|Output Current:||1CH, 8A|
|Output Type:||Constant Voltage|
|Input Signal:||Push Dim + RF 2.4GHz|
|Control Distance:||30m(Barrier-free space)|
|Dimming Gray Scale:||4096 (2^12) levels|
|Dimming Range:||0 -100%|
|PWM Frequency:||2000Hz (default)|
|Working Temperature:||-20°C ~ 55°C|
