DC12-24V 1CH*20A CV RF& /1-10V&Push-Dim 3 in 1 Dimming Controller V1-T
RF remote, 0/1-10V, Push Dim (3-in-1) dimming.
Match with Skydance’s 2.4G dimming remote control,
one RF controller accept up to 10 remote control.
Auto-transmitting function: Controller automatically transmits a signal to another controller with 15m control distance.
Synchronize on multiple numbers of controllers.

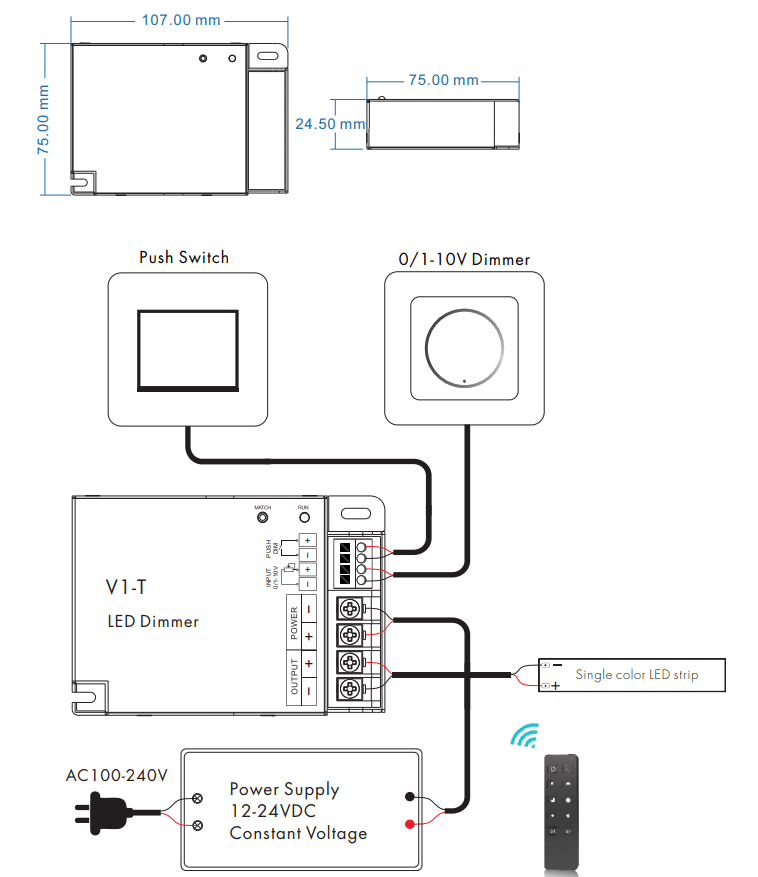

Connect with external push switch to achieve on/off and dimming function.
Input and Output
Input voltage: 12-24VDC
Input current: 20.5A
Output voltage: 12-24VDC
Output current: 1CH,20A
Output power: 240W/480W
Output type: Constant voltage
Input signal: RF 2.4GHz, 0/1-10V, Push Dim
Control distance: 15m
Dimming level: 4096 levels
Dimming range: 0 -100%

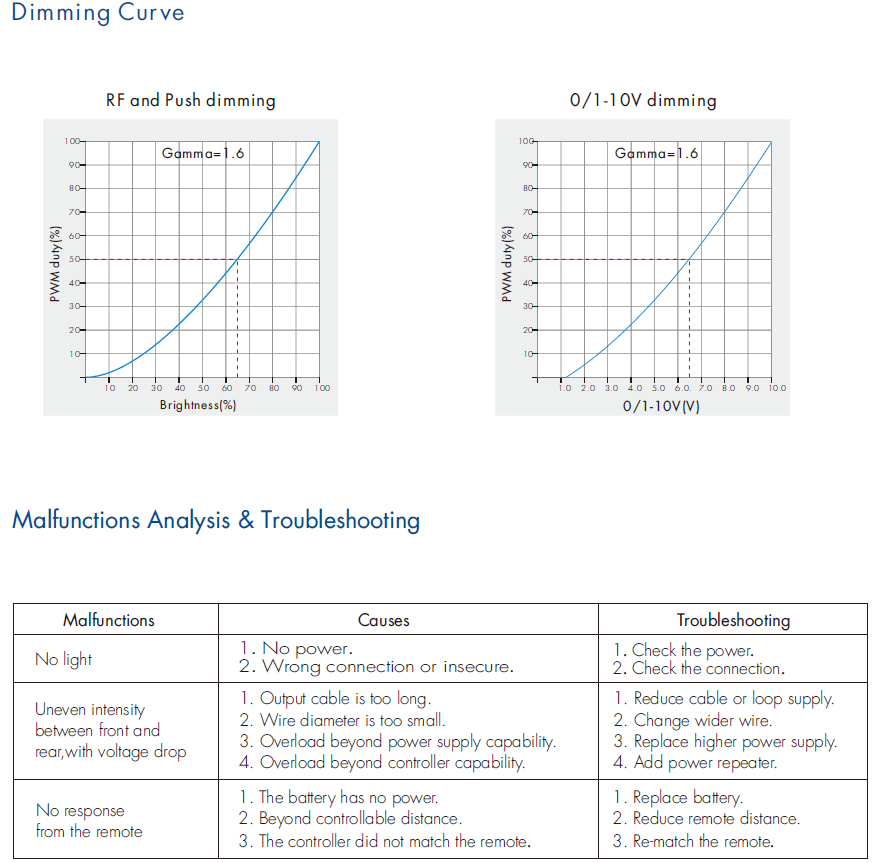

Dimming curve: Logarithmic
PWM Frequency: 500Hz
Safety and EMC
EMC standard (EMC): EN301 489,EN 62479
Safety standard(LVD): EN60950
Radio Equipment(RED): EN300 328
Standards and Certifications
Use the controller’s Match key
Short press match key, immediately press on/off key (single-zone remote) or zone key (multiple zones remote) of the remote.
Press and hold match key for 5s to delete all matches, The light blinks 5 times means all matched remotes were deleted.
Use Power Restart
Switch off the power, then switch on power again, an immediate short press on/off key (single-zone remote) or zone key (multiple zones remote) 3 times on the remote. The light blinks 3 times means the match is successful.
Switch off the power, then switch on power again, an immediate short press on/off key (single-zone remote) or zone key (multiple zones remote) 5 times on the remote. The light blinks 5 times means all matched remotes were deleted.
Push Dim Function
● Short press:
Turn on or off the light.
● Long press (1-6s):
Press and hold to step-less dimming, With every other long press, the light level goes in the opposite direction.
● Dimming memory:
Light returns to the previous dimming level when switched off and on again, even at power failure.
