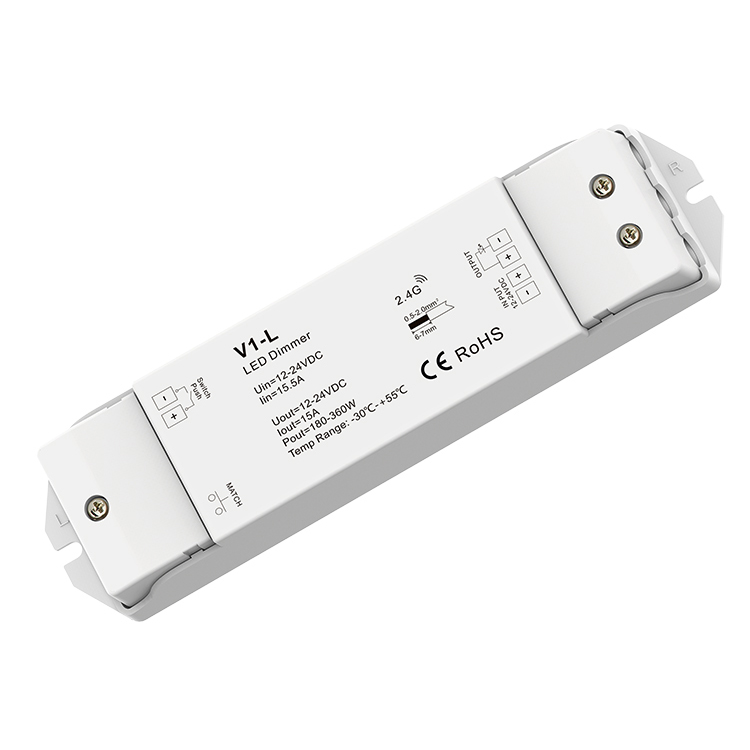

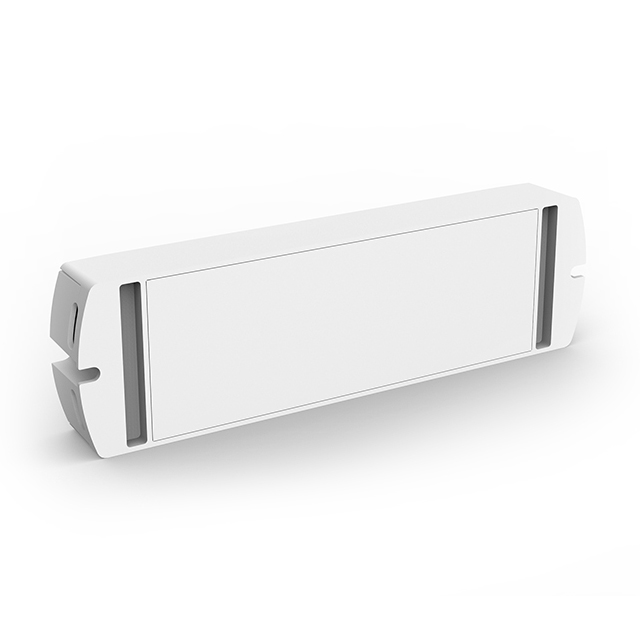

1CH*15A 12-48VDC CV Controller V1-L
● 4096 levels 0-100% dimming smoothly without any flash.

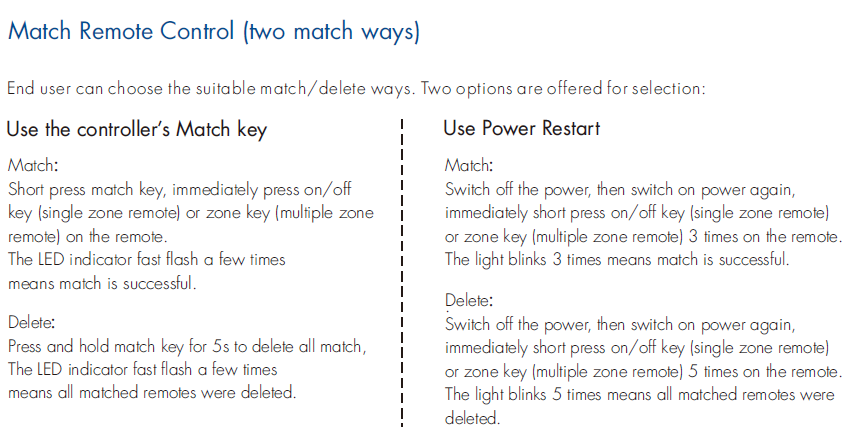

● Match with Skydance’s 2.4G single zone or multiple zones dimming remote control.
● One RF controller accepts up to 10 remote control.

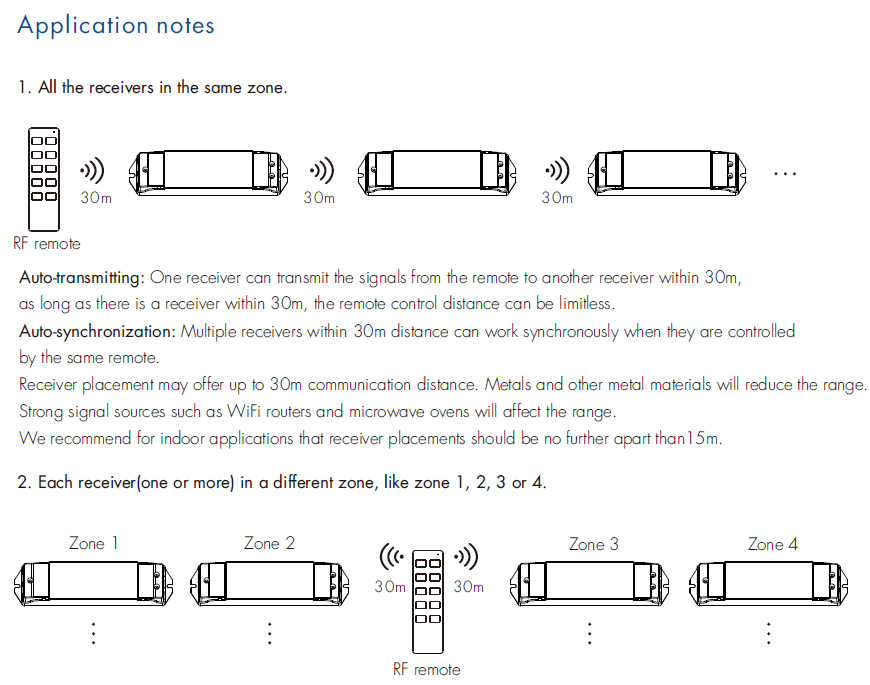

● Auto-transmitting function: Controller automatically transmits a signal to another controller with a 30m control distance.
● Synchronize on multiple controllers.

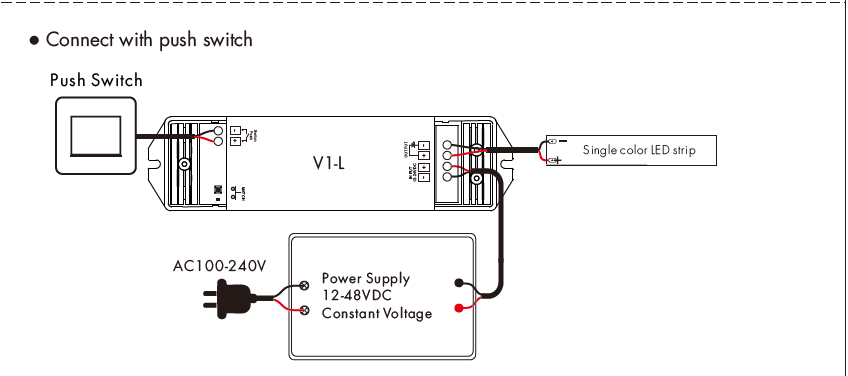

● Connect with external push switch to achieve on/off and 0-100% dimming function.
● Over-heat / Over-load / Short circuit protection, recover automatically.
Input and Output
Input voltage： 12-48VDC
Output voltage： 12-48VDC
Output current： 15A@12/24V
Output power： 180W@12V
Output type： Constant voltage
Input signal：RF 2.4GHz + Push Dim
Control distance：30m(Barrier-free space)

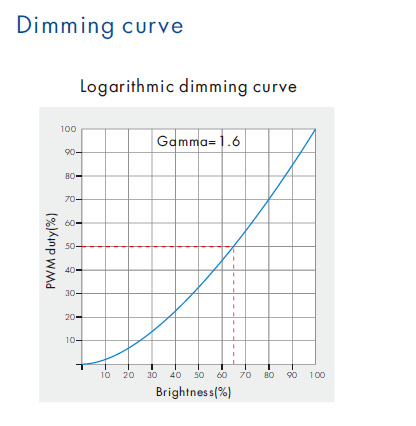

Dimming gray scale：4096 (2^12) levels
Dimming range：0 -100%
PWM Frequency：500Hz (default)
Standards and Certifications
