SE-10-350-700-W1M DC2-12V 10W 350-700mA Constant Current DMX Driver
T-PWM digital dimming,present a perfect visual experience.
With soft-on and fade in function, visual more comfortable.

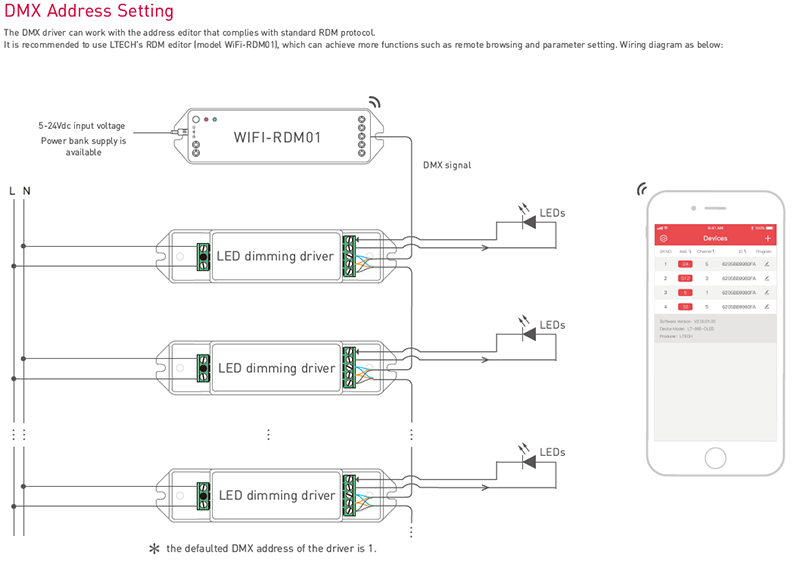

With RDM remote device management protocol.
DIP switch for multiple optional currents' quick selection.
Dimming range: 0~100%, LED start at 0.01% possible.
0-100% flicker-free,High frequency exemption level.
Innovative thermal management technology, intelligent power life protection.
Over-heat / Over load / Short circuit protection, recover automatically.
Suitable for internal lights application for Ⅰ/Ⅱ/Ⅲ
Up to 50000-hour life time.
5 years warranty (Rubycon capacitor)..
Output Voltage: DC2-12V
Max Output Voltage: DC20V
Output Current: 350-700mA
Output Power Range: 0.7W~8.4W
Dimming Range: 0~100%, 0.01% dimming depth.
LF current ripple(<120Hz): <1%
Current Accuracy: ±5%
Ripple & Noise: ≤2V
PWM Dimming Frequency: ≤3600Hz

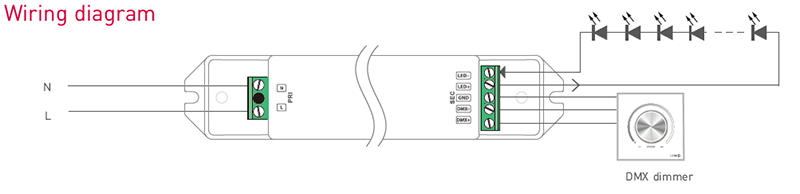

Dimming Interface: DMX512/RDM
Input Voltage: 100-240Vac Max. 265Vac
Input Current: 0.15A@115Vac, 0.1A@230Vac
Inrush Current(typ.): Cold start 5A at 230Vac
Anti Surge: L-N: 1kV
Leakage Current: <0.35mA/230Vac
Working Temperature: ta: -30°C ~ 50°C tc: 75°C
Working Humidity: 20 ~ 95%RH, non-condensing
Storage Temp., Humidity: -40°C ~ 80°C, 10~95%RH
Temp. Coefficient: ±0.03%/°C (0-50°C)
