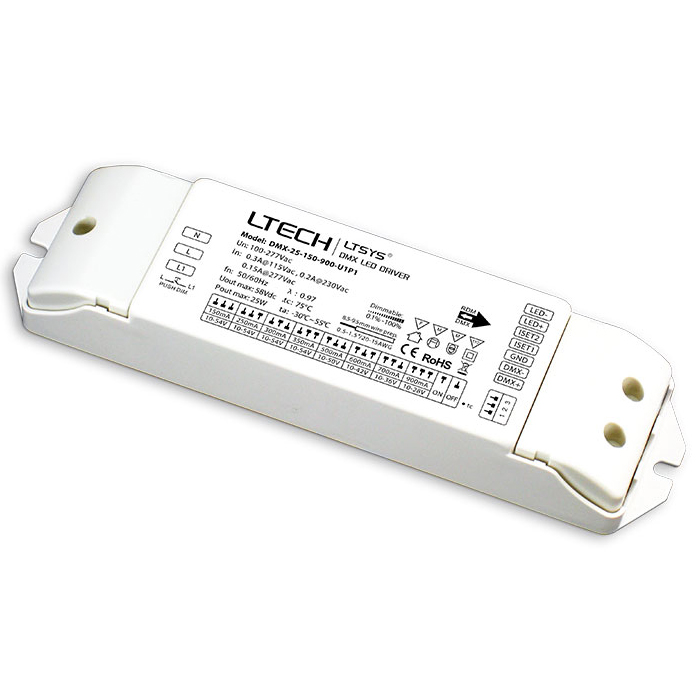

LED Intelligent Driver, 25W 150-900mA (100-277Vac) DMX-25-150-900-U1P1
LED Intelligent Driver

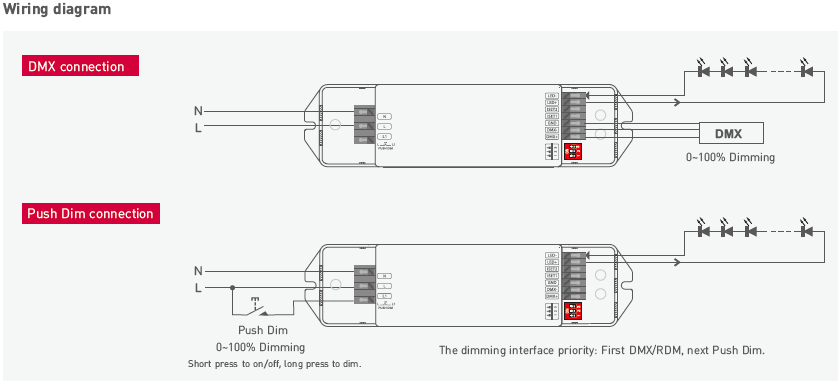

Dimming interface: DMX512/RDM, Push Dim.
With RDM remote device management protocol.
PWM digital dimming, no alter LED color rendering index.
Dimming range: 0~100%, LED start at 0.1% possible.
Multi-current & wide voltage, suitable for different power LED.
Short circuit / Over-heat / Over load / Non-load protection, recover automatically.
Non-load output voltage 0V to prevent damages to LED caused by poor contact.
Class 2 power supply. Full protective plastic housing.
Compliant with Safety Extra Low Voltage standard.

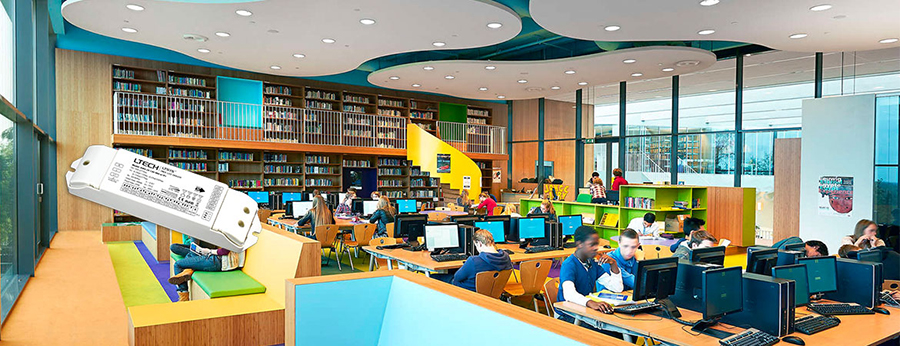

Suitable for internal lights application for Ⅰ/Ⅱ/Ⅲ.
