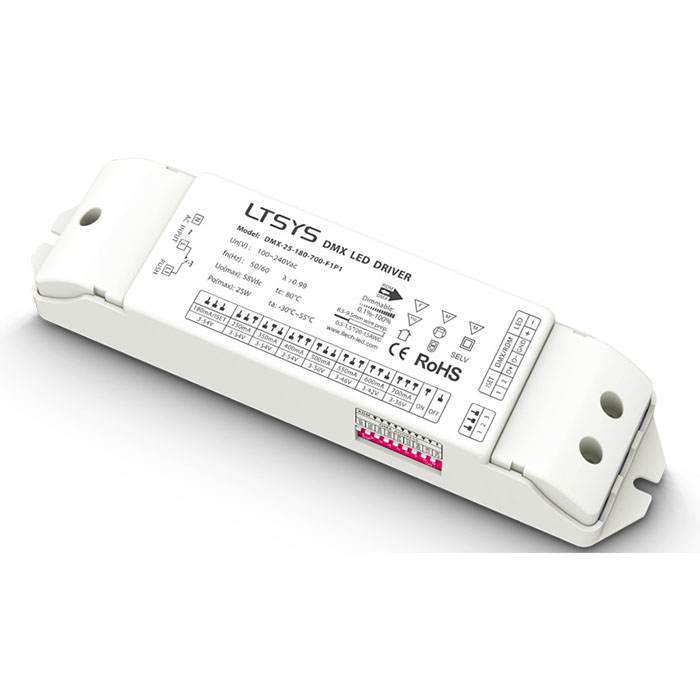

100-240VAC 25W 180-700mA CC DMX Driver
Dimming interface DMX512/RDM, PUSH DIM
Dimming range: 0-100%
Input voltage: 100-240VAC
Power factor: >0.99
Current Accuracy: ±3%
Output voltage: 3-54VDC
CC output: 180mA-700mA
Output power: 0.54W-25W
working temperature: -30℃～55℃
Package Size: L178×W48×H33(mm)
Weight (G.W): 150g
Dimming interface: MX512/RDM use DIM
With the RDM remote device management protocol,
Supports DMX512 signal bi-directional communication.
PWM digital dimming, no alter LED color rendering index.
Dimming range: 0~100%, LED start at 0.1% possible.
Multiple current, wide voltage, compatible with a variety of LED lights.
Power factor > 0.99, Efficiency > 85%
Short circuit / Over-heat / Over load protection.
Class 2 power supply. Full protective plastic housing.
Compliant with Safety Extra Low Voltage standard.
Suitable for indoor environments
