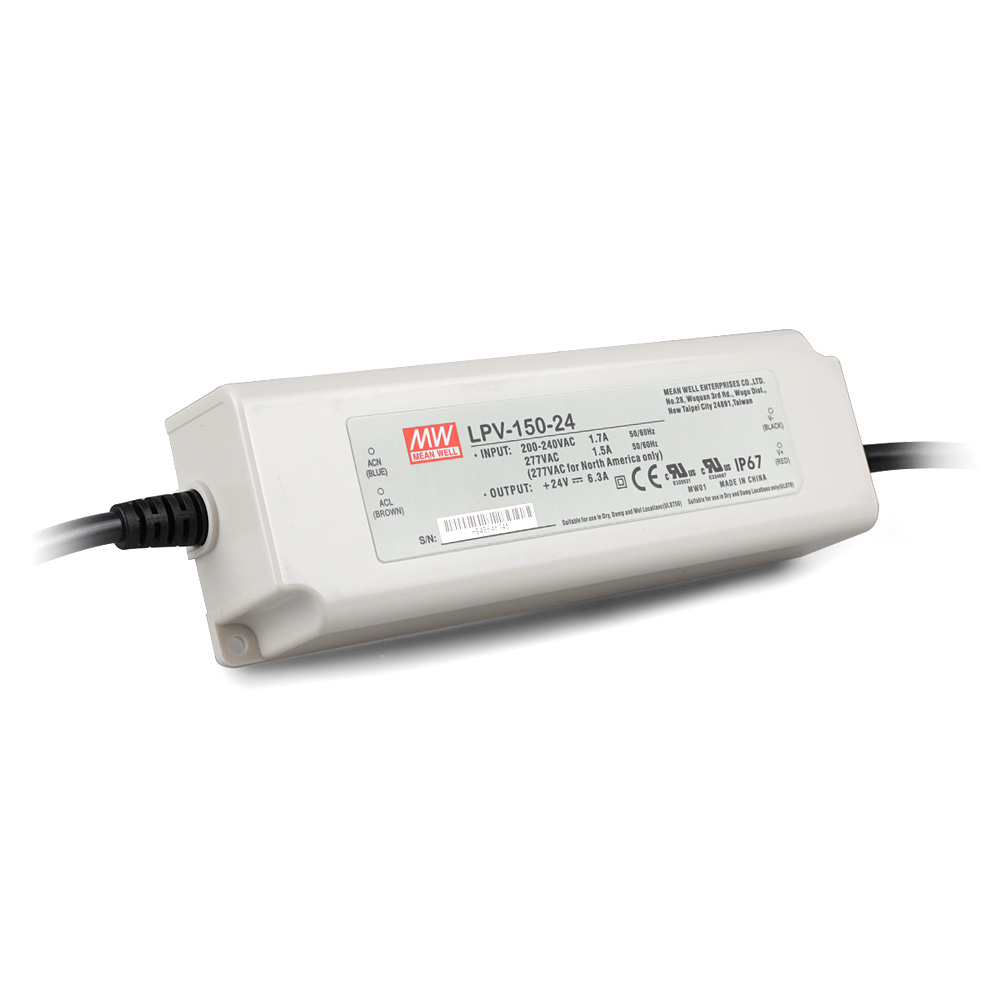

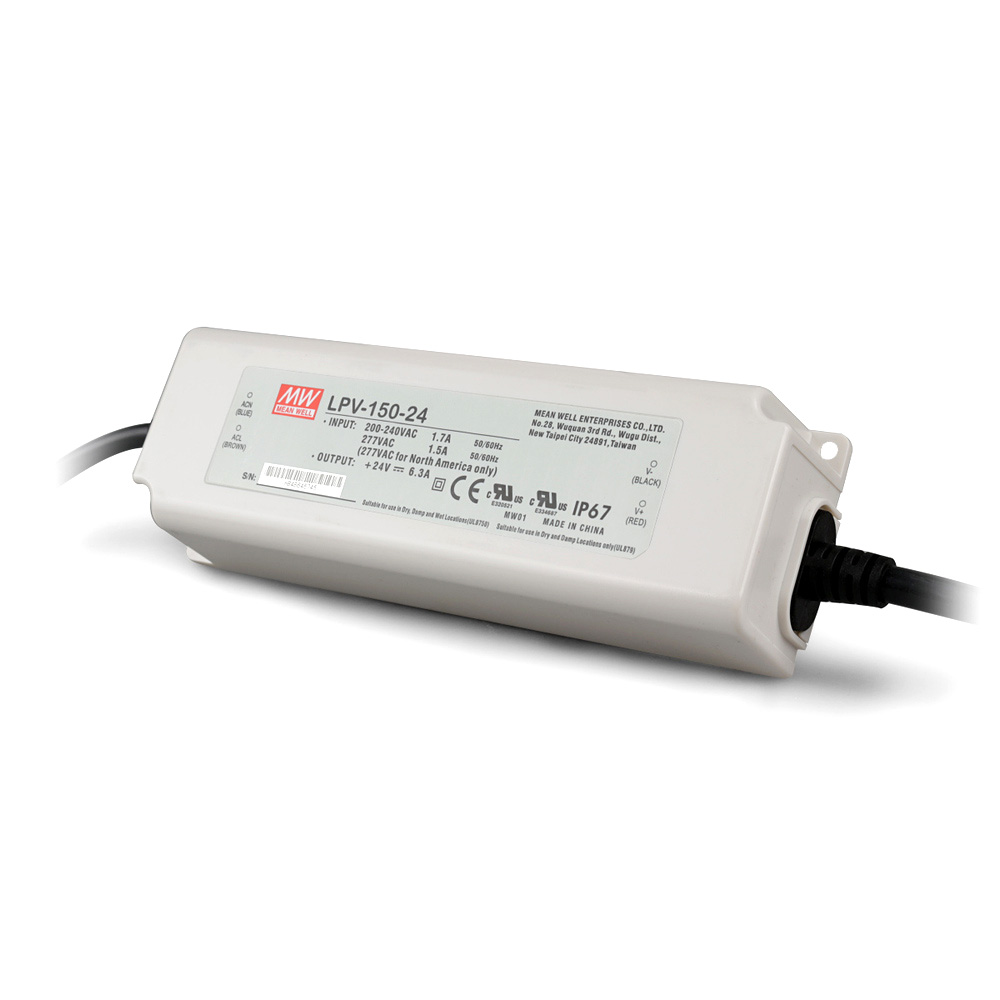

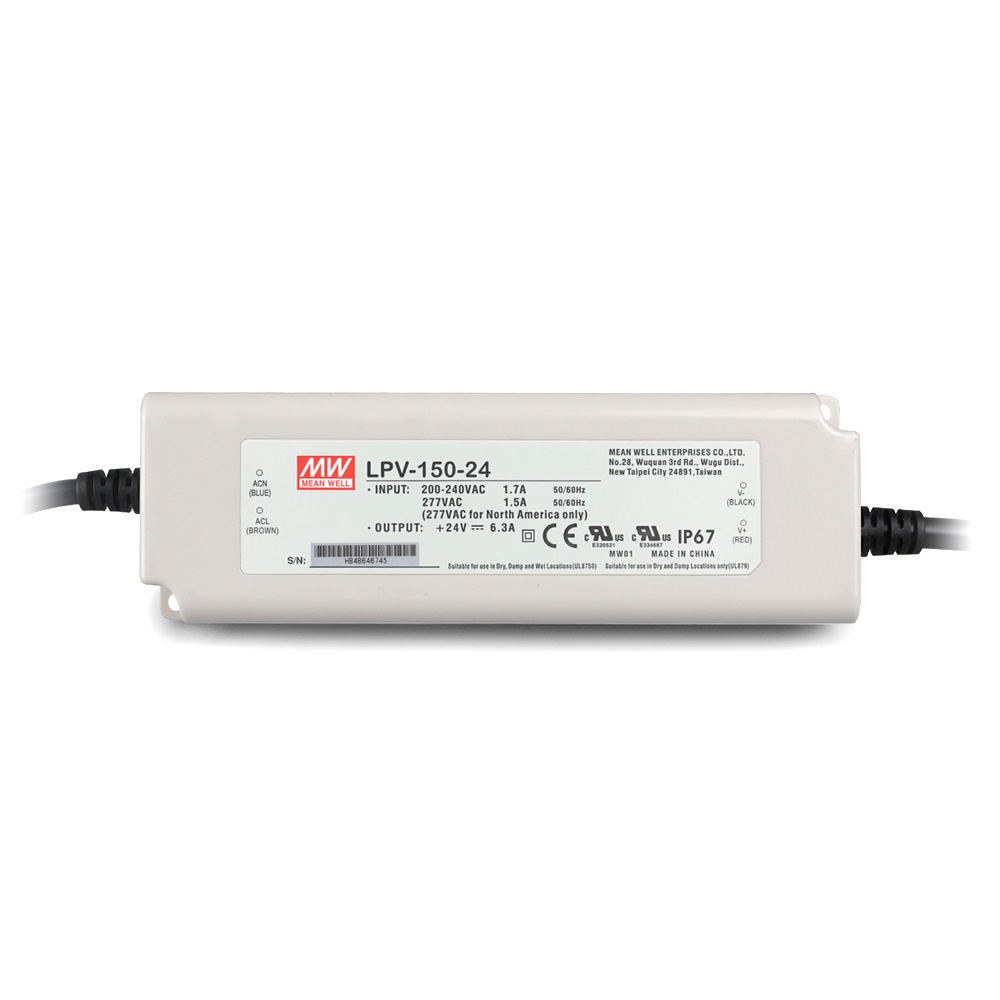

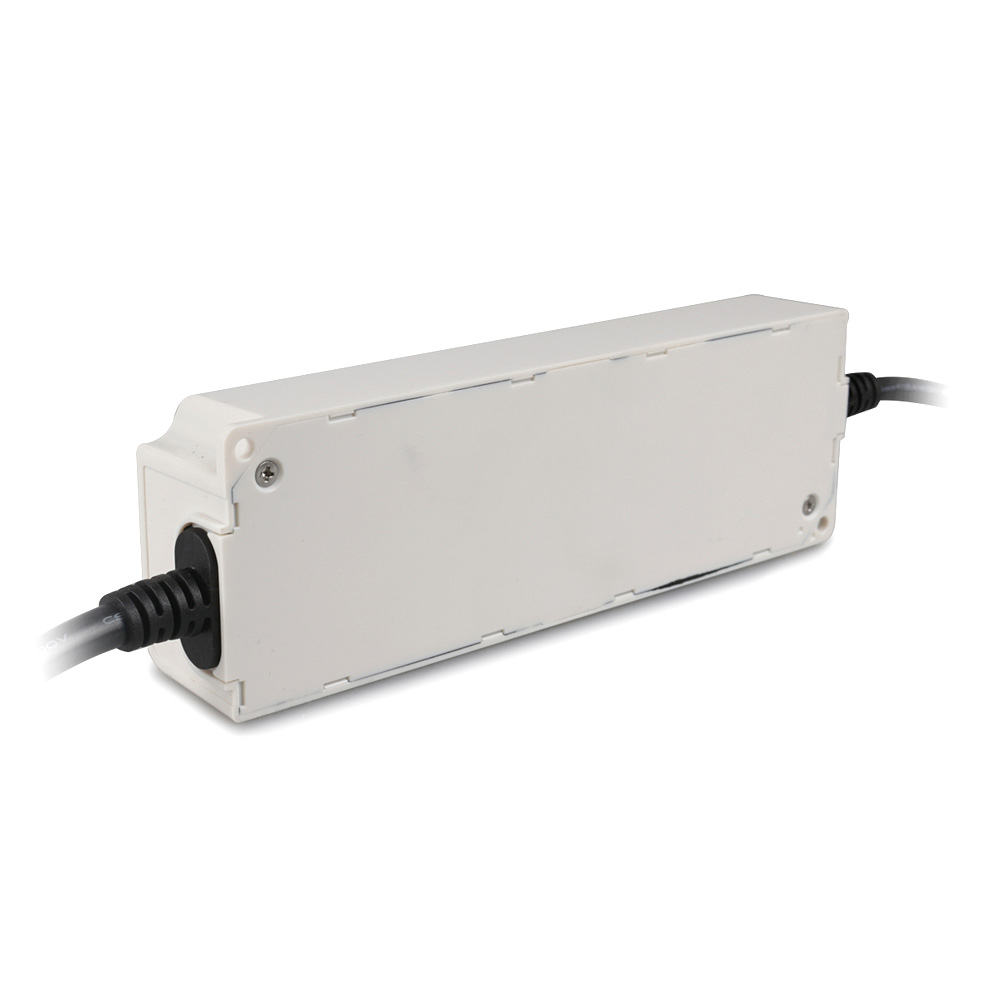

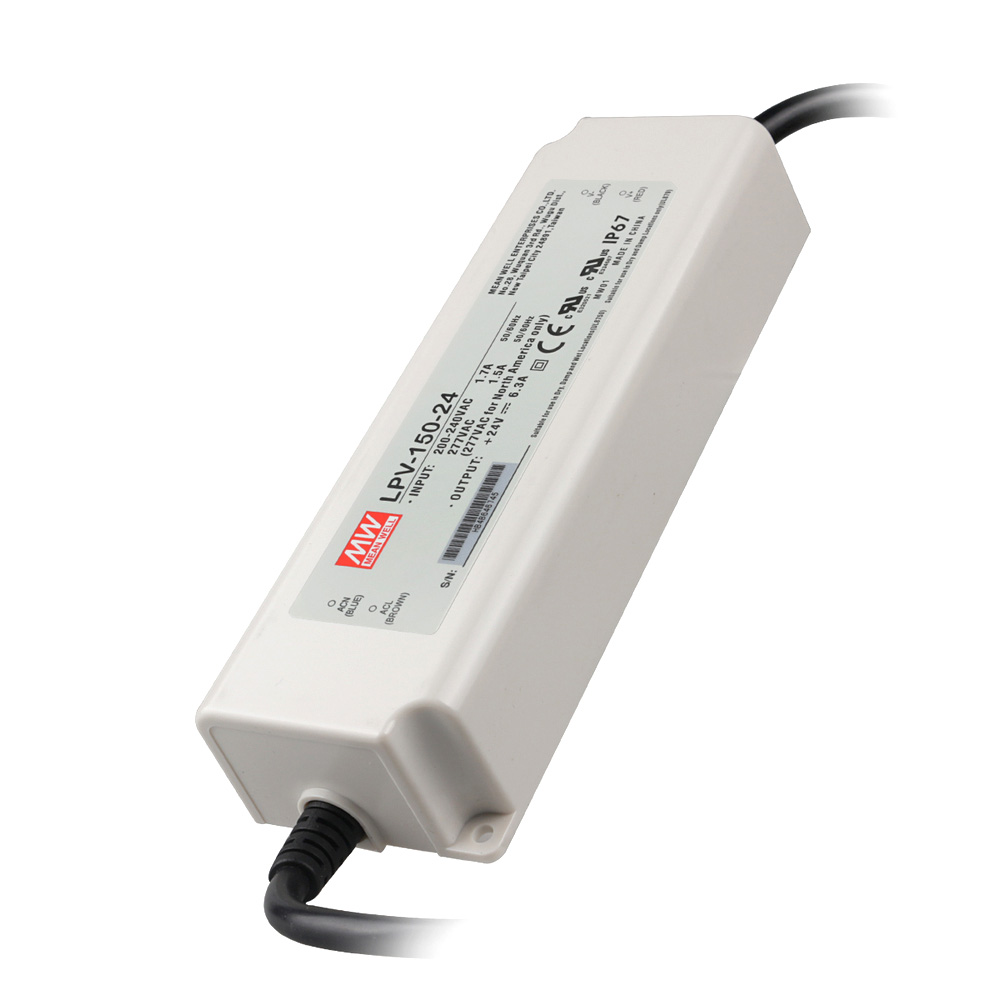

LPV-150-24 150Watt AC110V Input Voltage Mean Well High-Efficacy Waterproof DC24V UL-Listed LED Display Lighting Power Supply
The main material used in the MEAN WELL LPV series is ultra-thin plastic, and the waterproof rating can reach IP67. The LP series LED driver has 300VAC surge input for 5 seconds, which can effectively avoid short circuit, load, and other safety problems. It is suitable for economical LED lighting and mobile sign applications. The input voltage is 90～132VAC. This power supply is designed for constant voltage and wide voltage input and can be used in the United States and European countries. The output voltage is DC12V, which is safe, efficient, and stable, suitable for DC24V LED strip light. Mean Well LP series LED driver’s type “HL” LED drivers for use in Class I, Division 2 hazardous. The total power of the LED power supply is 150W, suitable for DC24V waterproof LED strip light.
Note: Because the power supply is waterproof, we recommend that you choose the waterproof LED strip light.
Universal AC input / Full range
Withstand 300V AC surge input for 5 seconds
Protections: Short circuit / Over load / Over voltage
Cooling by free air convection
Fully encapsulated with IP67 level (Note.8)
Fully isolated plastic case
Suitable for LED lighting and moving sign application(Note.7)
100% full load burn-in test
Low cost, high reliability
2 years warranty
DC Voltage: DC24V
Rated Current: 6.3A
Current Range: 0-6.3A
Rated Power: 151.2W
Output Voltage Accuracy: ±5%
Input Voltage: 90～132VAC/254～370VDC
Input Surge Current Cold Start,3.0A/115VAC
Leakage Current: <0.25mA / 240VAC
Overload Protection: The over current point is 110%～150%, automatic detection, automatic recovery
1 * LPV-150-24
