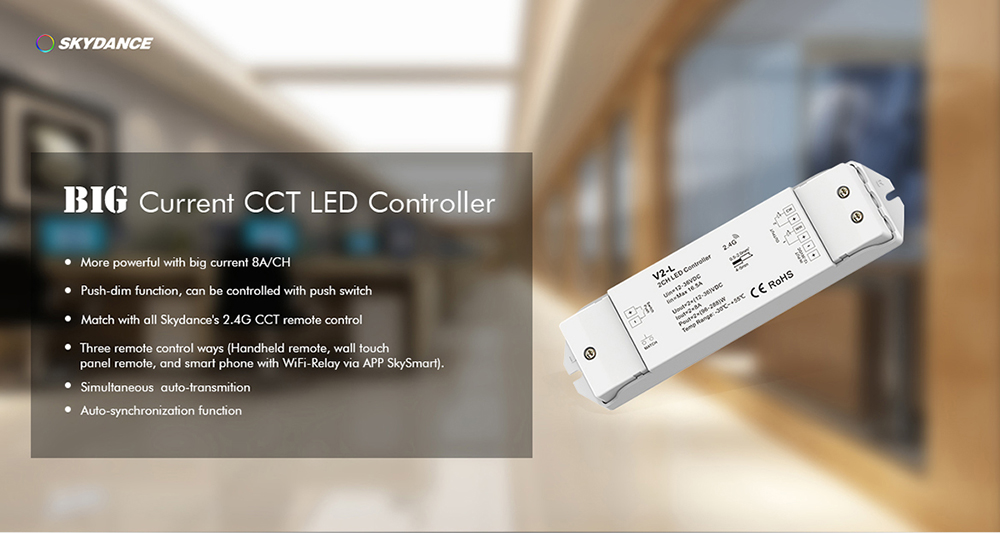

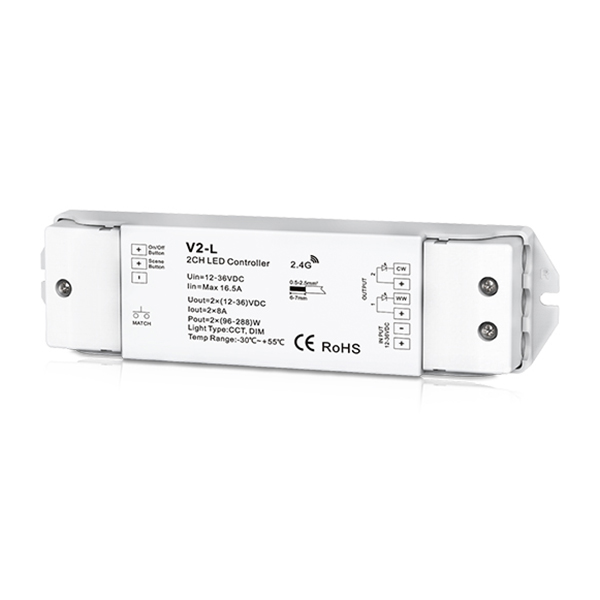

2CH 8A Constant Voltage RF 2.4G Receiver V2-L For CCT DIM LED Strip Light
RF controller with 2 channel PWM constant voltage or constant current output,

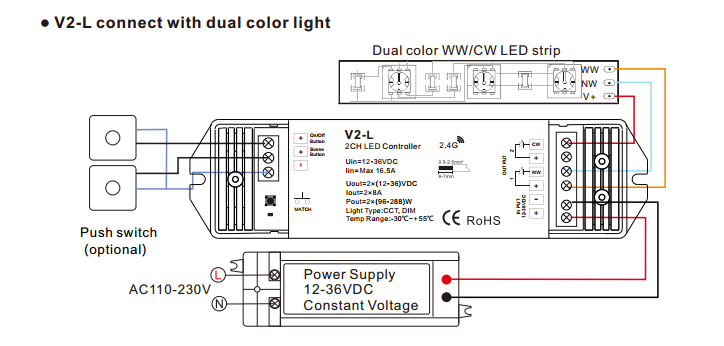

Default as dual color(WW/CW) controller, need match dual color RF remote.
Can also be used as single color dimming controller, strong compatibility.
Smooth dimming and switch without any flickering.

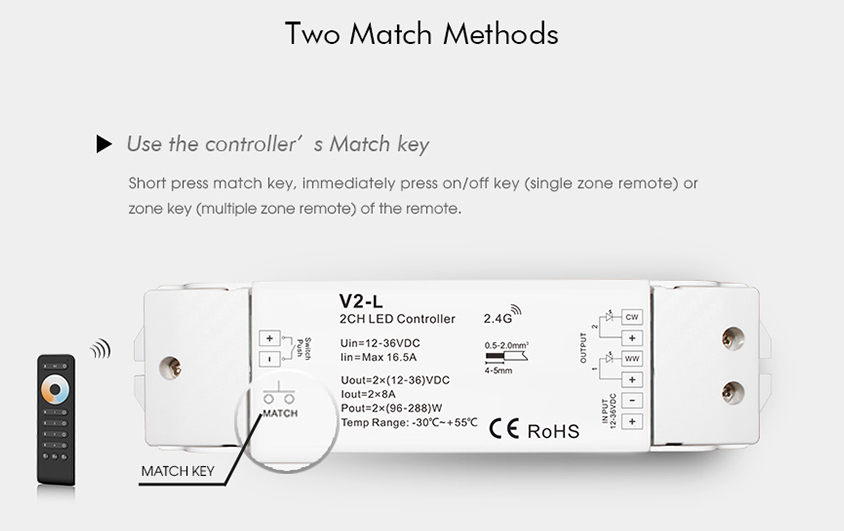

Full compatibility with a variety of single color, dual color RF remote.

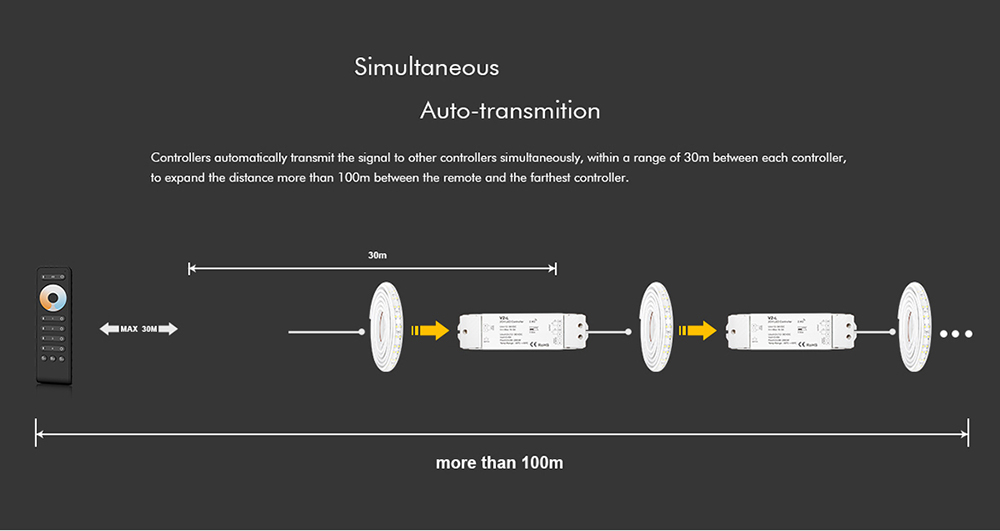

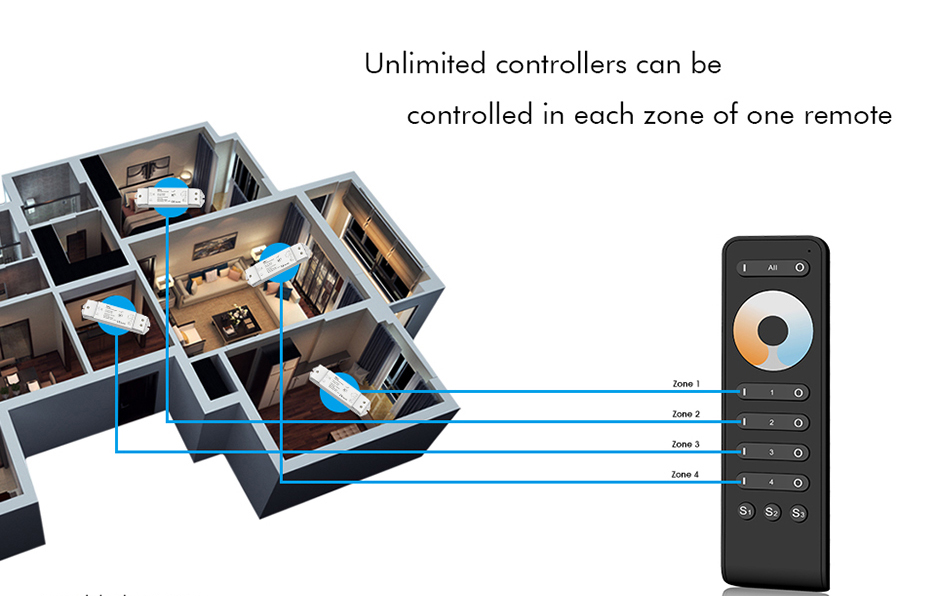

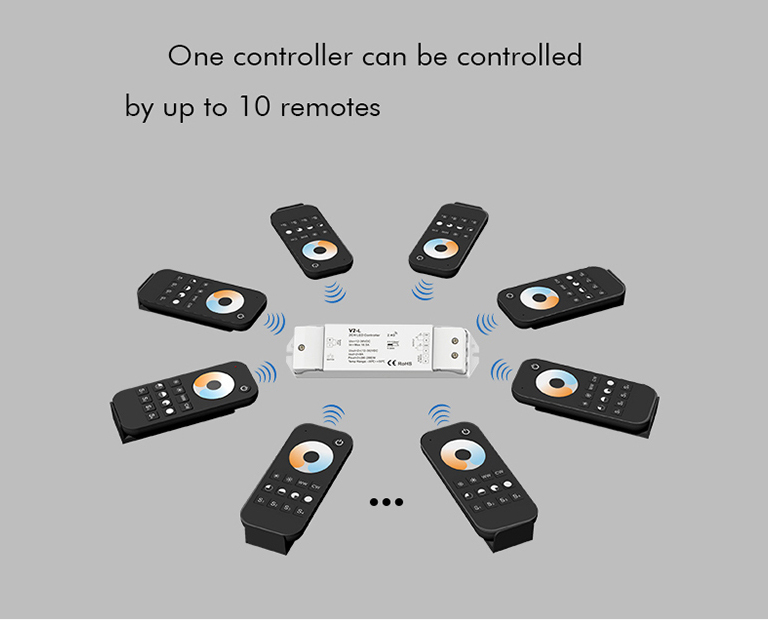

Adopt 2.4GHz wireless technology, remote distance up to 30m,one receiver can accept up to 10 remote control.
Can be WiFi controlled by APP installed on IOS or Android mobile devices while working with WiFi-Relay controller.
Work with power repeater to expand output unlimitedly
Standards and Certifications
Input voltage: 12-36VDC;
Output current: 2CH,5A/CH
Output power : 2 x (60-120)W
Output type: Constant voltage
