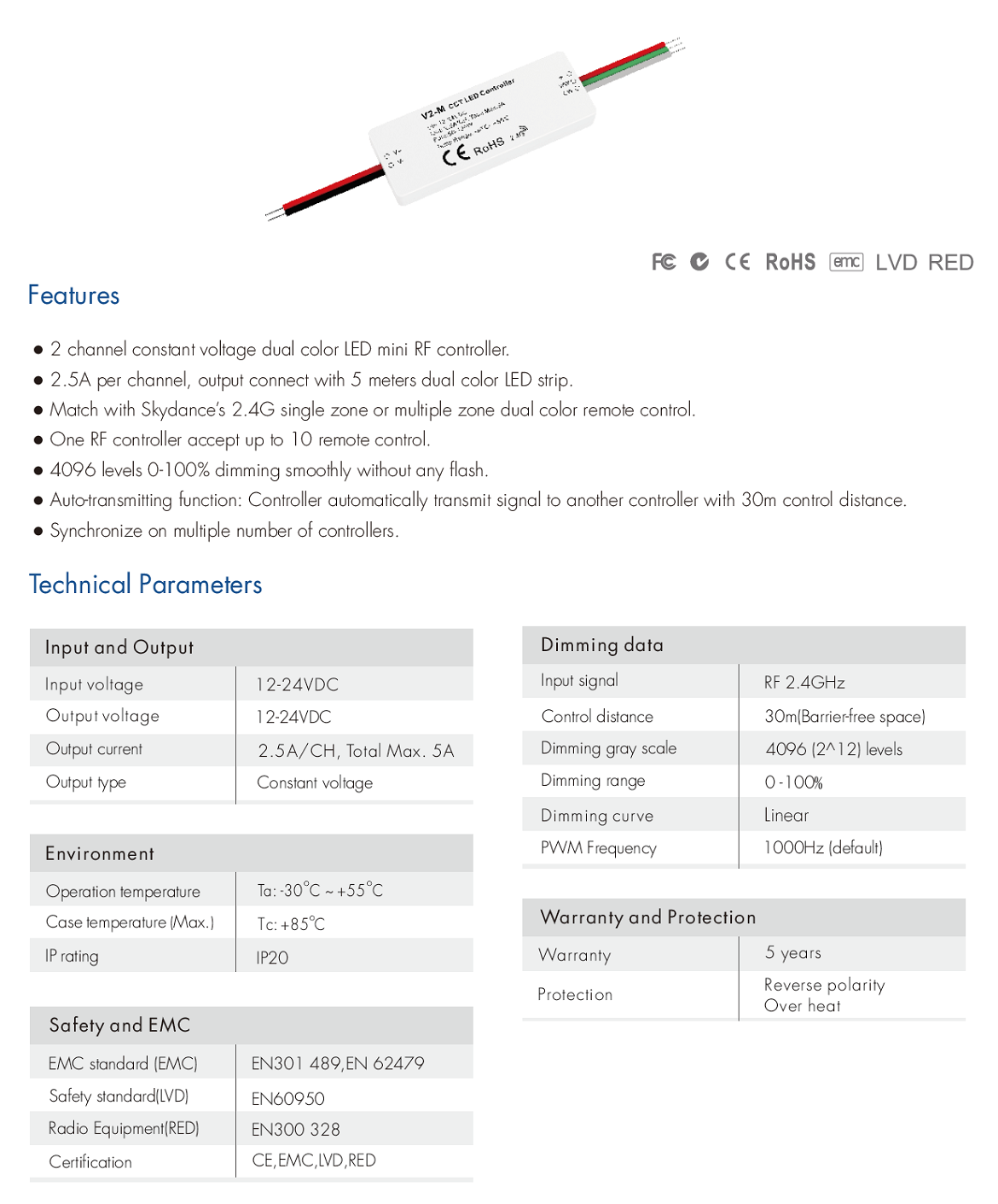

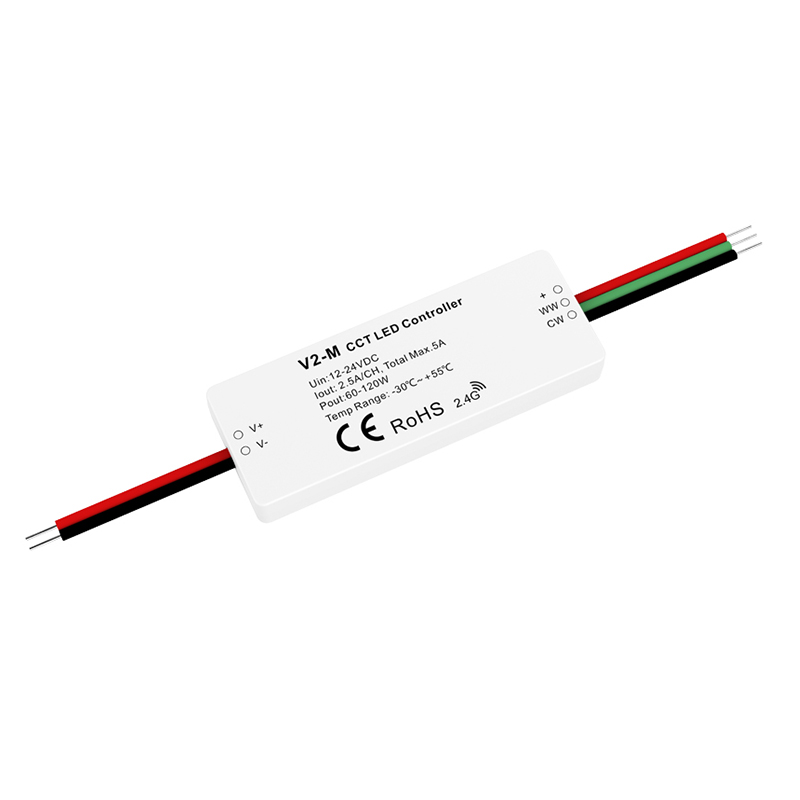

2CH*2.5A 12-24VDC Dual Color LED Mini RF Controller V2-M
● 2 channel constant voltage dual color LED mini RF controller.
● 2.5A per channel, output connect with 5 meters dual color LED strip.
● Match with Skydance’s 2.4G single zone or multiple zones dual color remote control.
● One RF controller accepts up to 10 remote control.
● 4096 levels 0-100% dimming smoothly without any flash.
● Auto-transmitting function: Controller automatically transmits the signal to another controller with 30m control distance.
● Synchronize on the multiple numbers of controllers.
Input and Output
Input voltage: 12-24VDC
Output voltage: 12-24VDC
Output current: 2.5A/CH, Total Max. 5A
Output type: Constant voltage
Input signal: RF 2.4GHz
Control distance: 30m(Barrier-free space)
Dimming gray scale : 4096 (2^12) levels
Dimming range: 0 -100%
Dimming curve: Linear
PWM Frequency: 1000Hz (default)
Warranty and Protection
Warranty: 5 years
Protection: Reverse polarity Over heat
Safety and EMC
EMC standard (EMC): EN301 489,EN 62479
Safety standard(LVD): EN60950
Radio Equipment(RED): EN300 328
