LED Light Channel Black Aluminum Profile For 10mm 2216 LED Strips

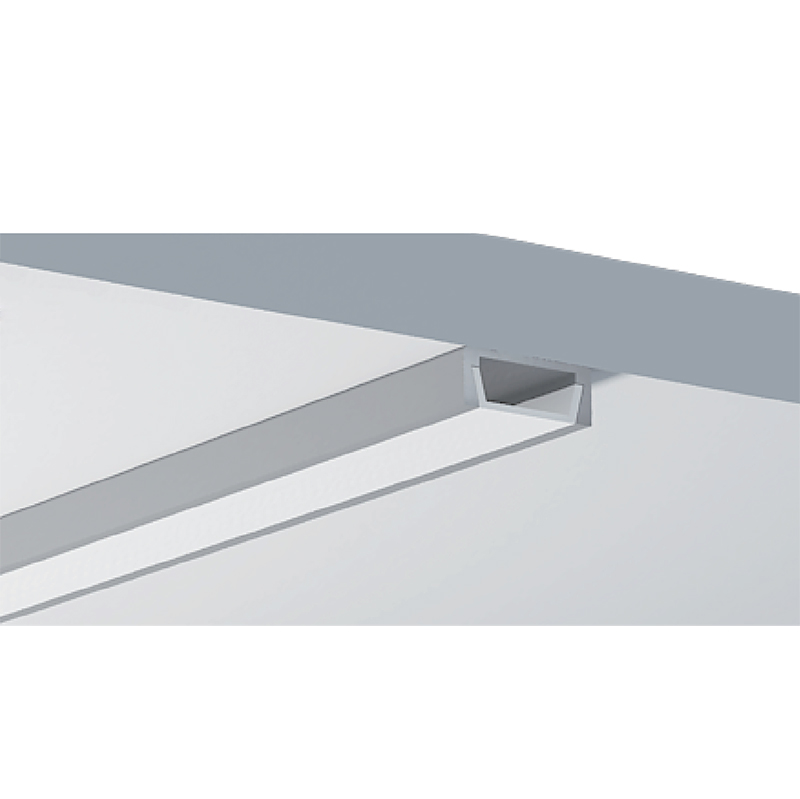

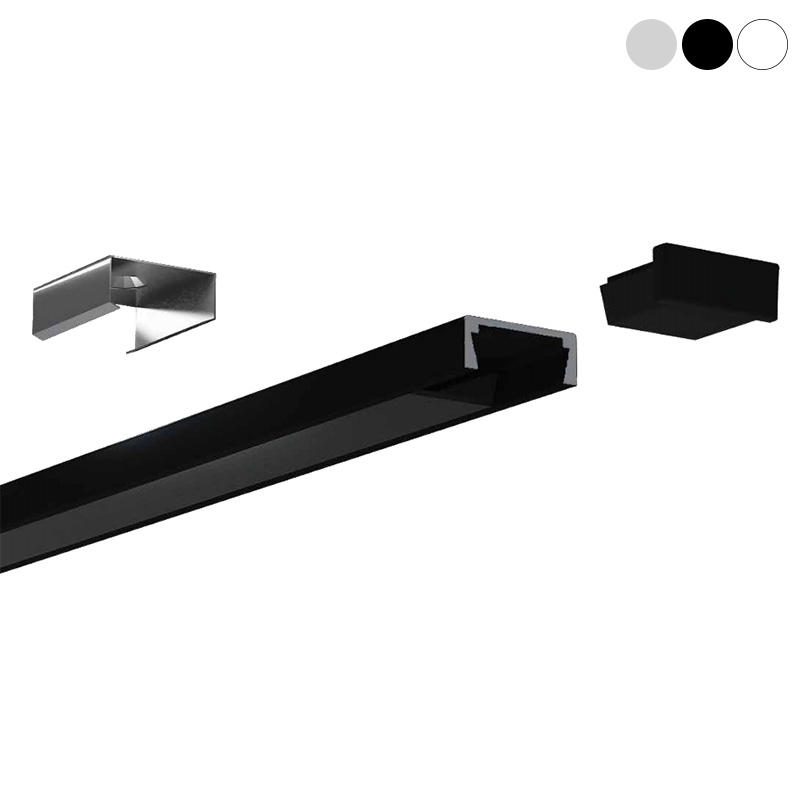

LED strip diffuser channel is an aluminum channel with a PC led light cover. Made from high-quality silver anodized aluminum, this surface mount aluminum led channel is for 8mm or 10mm 2216 led strip lights. The LED light strip with a led diffuser channel can achieve more even lighting effects and enhance heat dissipation. Silver, white, and black aluminum channels can be selected to echo your home style. Comes with ens caps and stainless steel mounting clips. Endcap without hole to protect the led strip light from dust and external damage. End cap with wire hole to let the led lighting strip connect the led dc power supply or the led light controller to power or control the led strip lighting. Mounting clips make the led aluminum channels can be mounted in walls, furniture, or other indoor led linear lighting projects.
As the 2m and 3m led aluminum profiles are too light and long, the package size will exceed the DHL/UPS/TNT requirement(4feet), so extra long transportation costs ($170) will be required. The aluminum led strip lighting channel product itself is soft and easily damaged, so under normal circumstances, 2m and 3m extruded aluminum channels' MOQ is 10 pieces.
If you need a full 20-meter aluminum light diffuser channel, we recommend that you use 20 1-meter long led light strip channel splicing with some channel connectors, both sides of the product using industrial right angle cutting. After installation it does not affect the appearance.
Standards and Certifications
|Material||6063-T5 Aluminum Alloy|

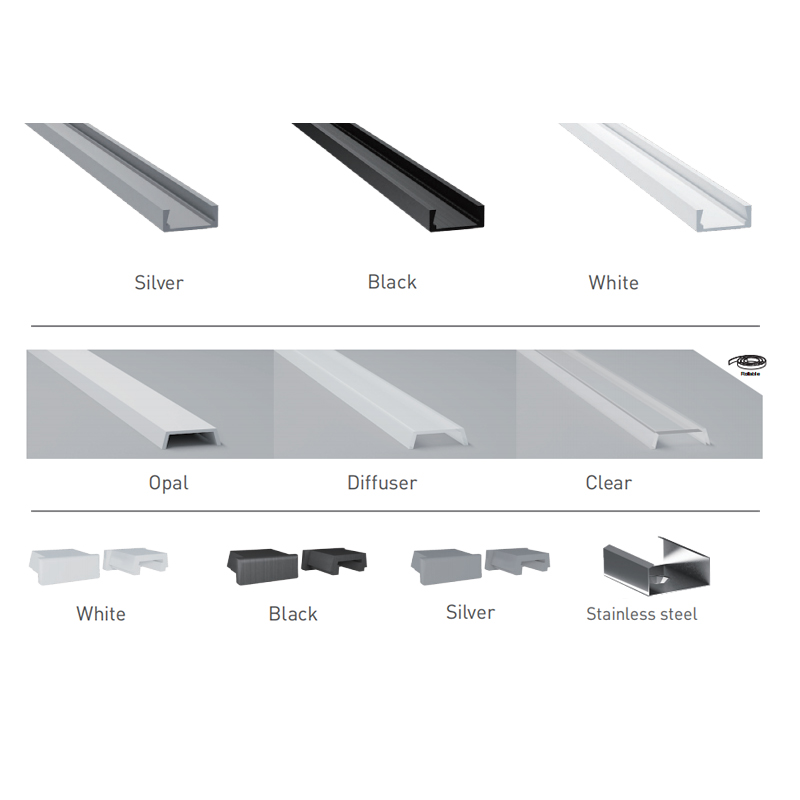

|Aluminum Color||Silver /White /Black|
|LED Diffuser||PC opal microprism diffuser /PC semi-clear diffuser /PC clear microprism diffuser|
|Accessory||End cap without hole, end cap with wire hole, stainless steel mounting clips|
|Apply to||8mm/10mm 5050/2216/2110/3014/5630/5730/COB/CCT flexible led strip lights|
Applications - Ultimate Guide to LED Aluminum Channel
1. Furniture production (kitchen/office)
2. Stores shelf LED lighting
3. Heat sink and physical protection to the LEDs
4. Independent LED lamp
5. Interior light design (stairs / storage / floor)
6. Exhibition boot LED lighting
