V2-N 12-24VDC Constant Voltage Mini Push CCT Dimmable LED Controller

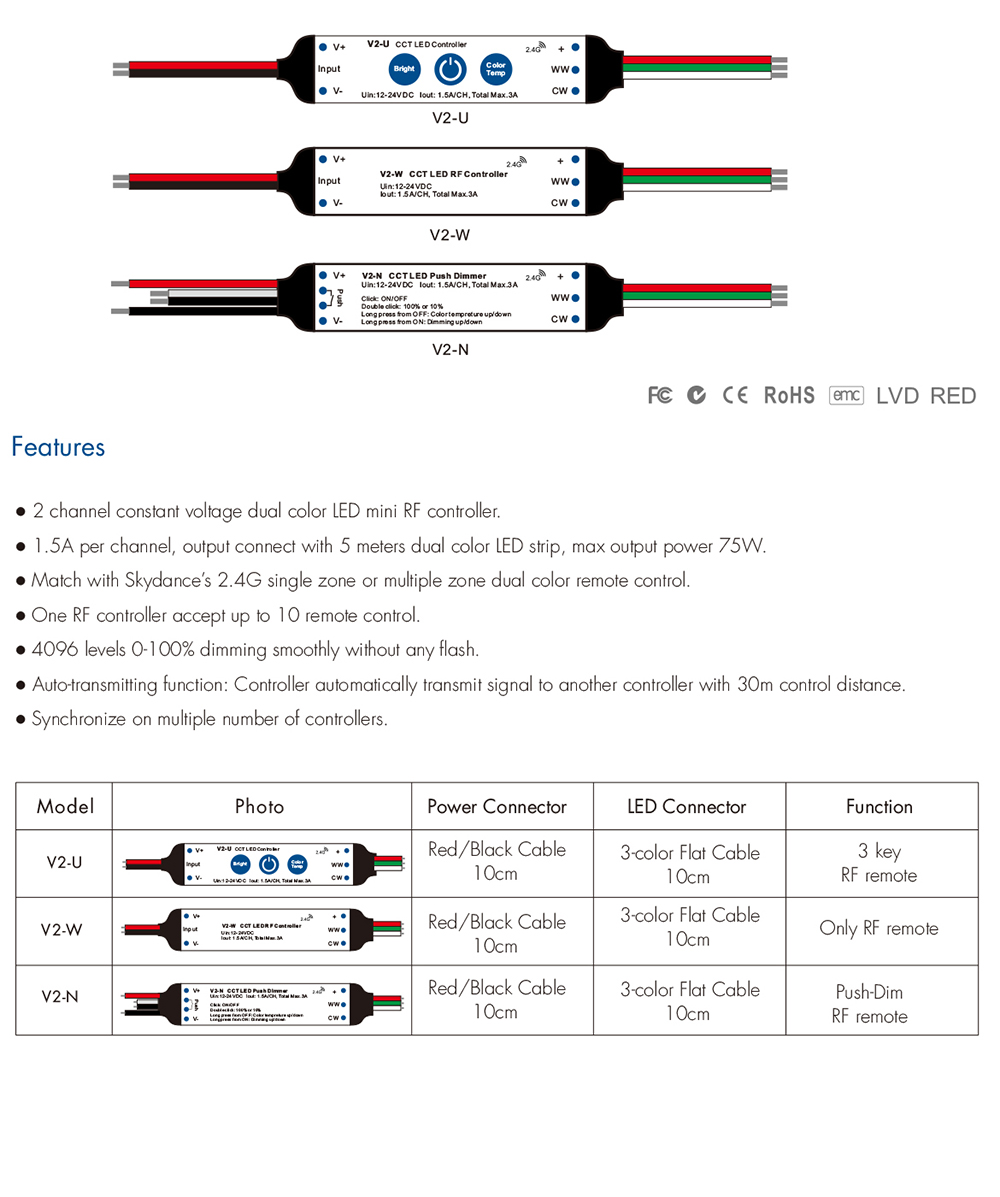

2 channel constant voltage dual color LED mini RF controller.
1.5A per channel, output connect with 5 meters dual color LED strip,max output power 75W.
Match with Skydance's 2.4G single zone or multiple zoneS dual color remote control.
One RF controller accept up to 10 remote control.
4096 levels 0-100% dimming smoothly without any flash.
Auto+ransmiting function:Controller automatically transmit signal to another controller with 30m control distance.
Synchronize on multiple number of controllers.

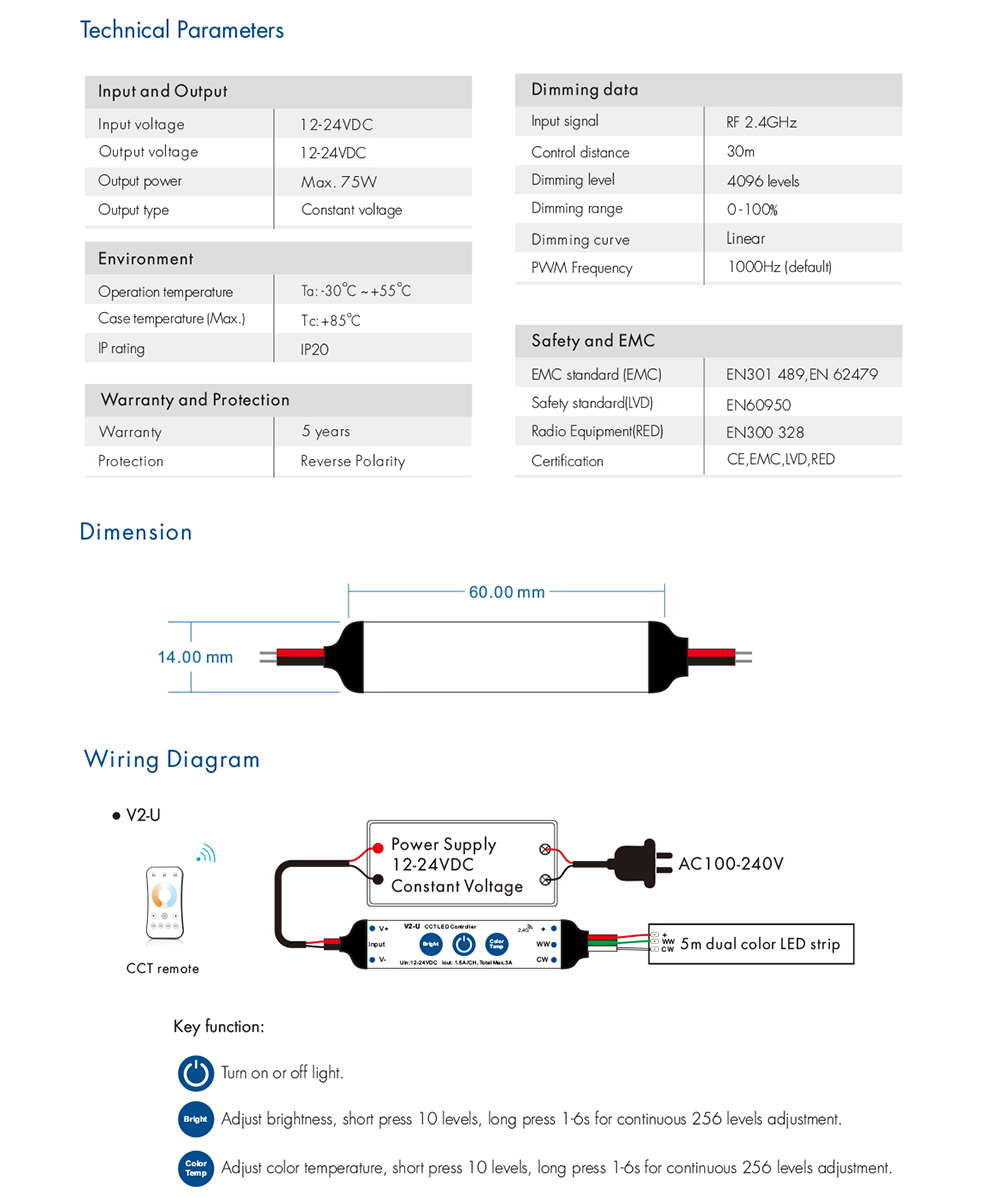

Input and Output
Input voltage: 12-24VDC
Output voltage: 12-24VDC
Output power: Max. 75W
Output type: Constant voltage
Input signal: RF 2.4GHz
Control distance: 30m
Dimming level: 4096 levels
Dimming range: 0 -100%
Dimming curve: Linear
PWM Frequency: 1000Hz (default)
Safety and EMC
EMC standard (EMC): EN 301 489; EN62479
Safety standard(LVD): EN 60950
Radio Equipment(RED): EN 300 328
Warranty and Protection
Warranty: 5 years
Protection: Reverse Polarity
Standards and Certifications
