Product Information

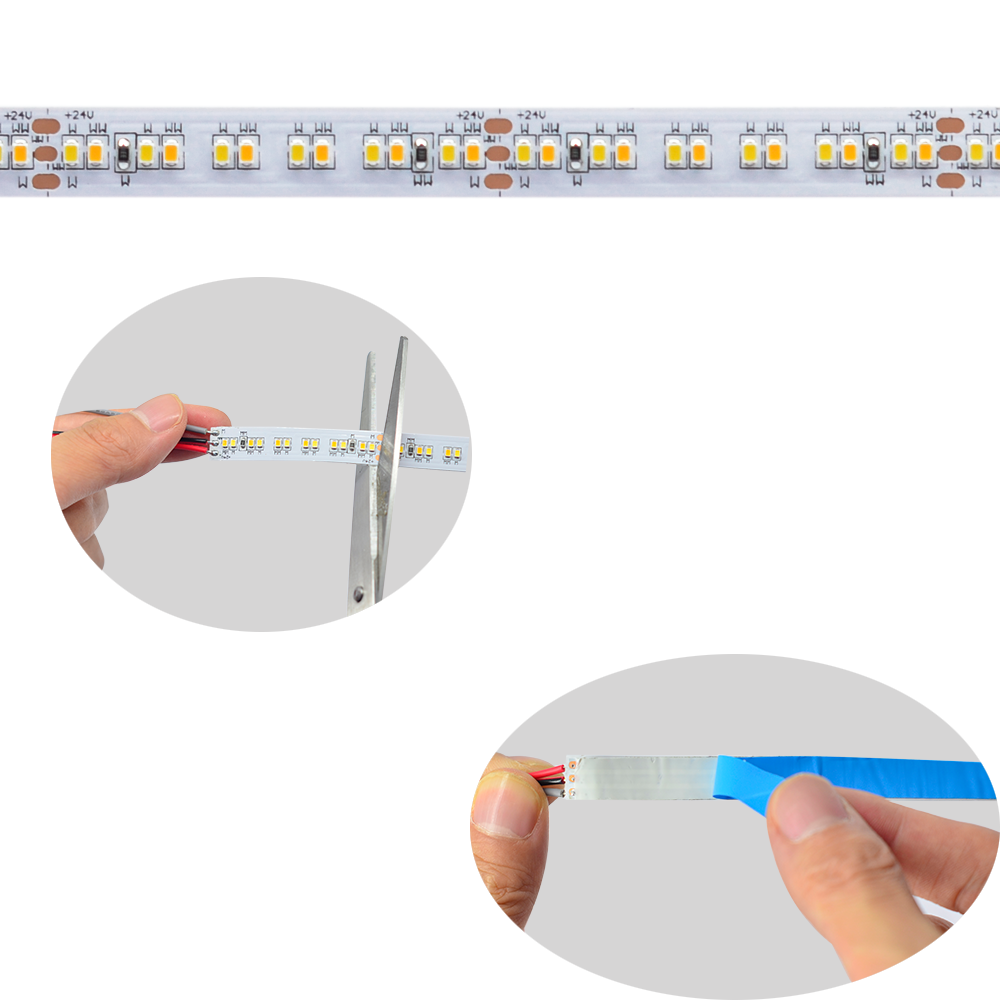

2216SMD Flexible LED Strip Lights is the newest production in 2019. This versatile LED Strip Light is in 19.2W/M (5.9 Watts/foot). This LED Strip has very High-Density Lighting with 240 diodes per meter or (73/ft). It is cuttable every 12 LED chips or 1.96"(50mm) for 24VDC. The PCB width of this led strip light is 10mm. It is very suitable for aluminum profiles in a smaller size. Because of LED high density, the light through PC cover is fairly uniform without spot. If you seek a higher density, we can customize for you. We PCB factory will make a quick response.
What is CCT tunable white LED strip?
CCT means correlated color temperature. Usually, the warm white light and cool white LED light are specifically expressed by Kelvin color temperature. The white light color temperature of CCT tunable white LED strip can be adjusted with white CCT dimmers from 3000K to 6500K(warm white/soft white to natural white to daylight white to cool white).
What is 2216 SMD LED?
2216 SMD(surface mounted device, an LED technology) LED is referred to its size 2.2mm*1.6mm. The 2216 LED chip name is named after the LED size.
12V vs 24V LED strip lights
12V led strip lights are no voltage drop in 5-7 meters and cut 3 LED lights as a cut unit. The 12V led strip is powered at one end of five meters and needs to be powered at both ends for 10 meters. 12V light strips are also used in cars and boats.
24V led strip lights work under DC24V low voltage, have no voltage drop in 8-10 meters, and can cut 6 LED lights at a time. A 15-meter 24V led strip requires an led power supply at both ends, and a 10-meter strip can be powered at one end.
Standards and Certifications
Product Specification
LED Strip Type: SMD 2216 1200PCS/16.4ft
LED Chip: Epistar Chip
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)
Light Color: Warm White + Daylight White
Dimension: 16.4ft/roll, every 12 PCS LED can be cut
LED Quantity: 240 LEDs per 1meter (3.28 ft) (120 daylight white+120 warm white)
Lifespan: 50,000+hours
Warantty: 3 years
Dimensions: L500cm(196.8 in ) x W1.0cm(0.39 in ) x H0.20cm(0.08 in )
Input Voltage(V): 24VDC
Working Power: 96W /16.4ft Max
Lamp Luminous Flux(lm): 6~7lm/LEDs 8400Lumens/16.4ft, 512Lumens/Ft, 87.5Lumens/watt
Color Temperature CCT(White): Warm White(2700-3200k), Daylight White(5500-6500k)
Wavelength NM(RGBY): Red(620-630nm), Green(515-525nm), Blue(465-475nm), Yellow(585-595nm)
Beam Pattern: 120 degree
Water Proof: Non-Waterproof , Waterproof IP65/IP67/IP68
CRI (Ra>): 92 （If you need CRI 95 version, please email us, the MOQ is 100 meters.）
►16.4/32.8 feet (5/10meter) Connection diagram:
